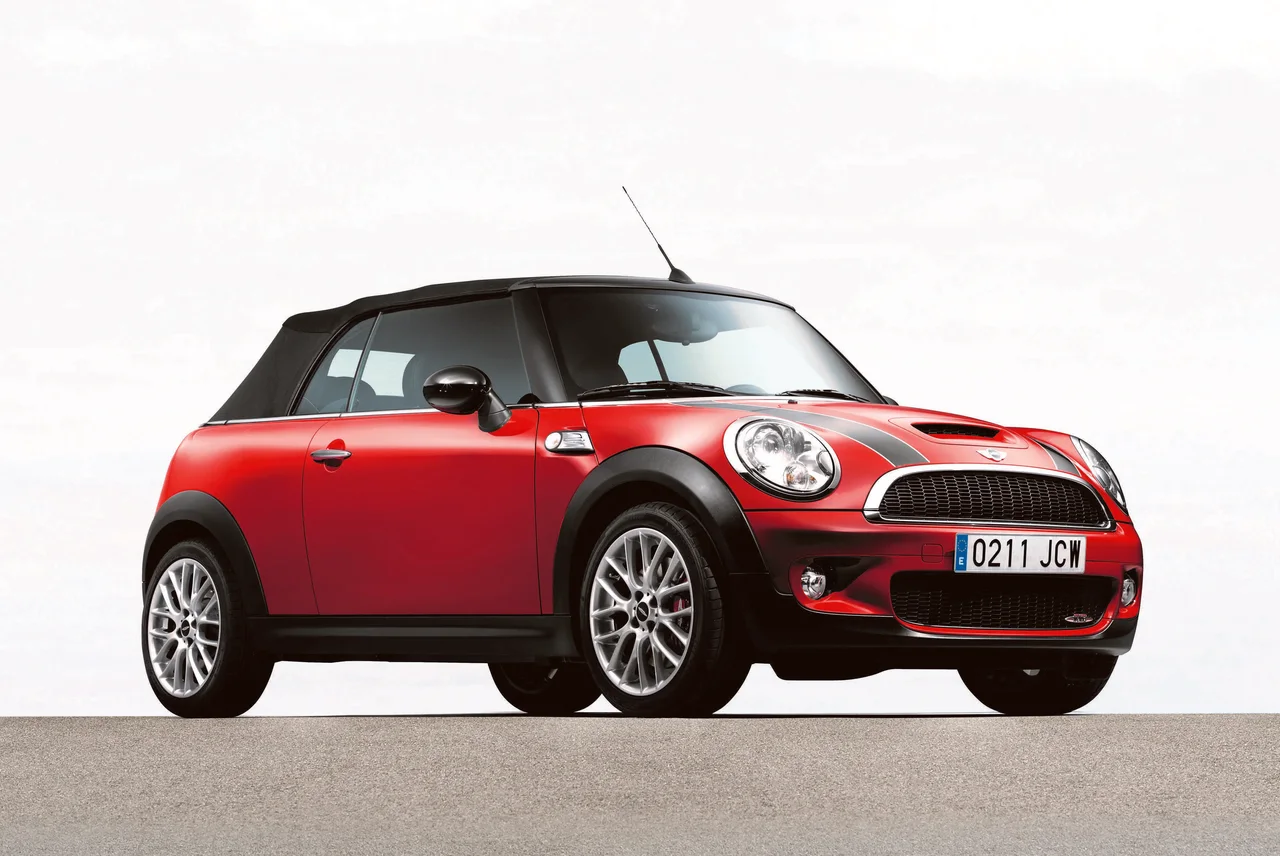

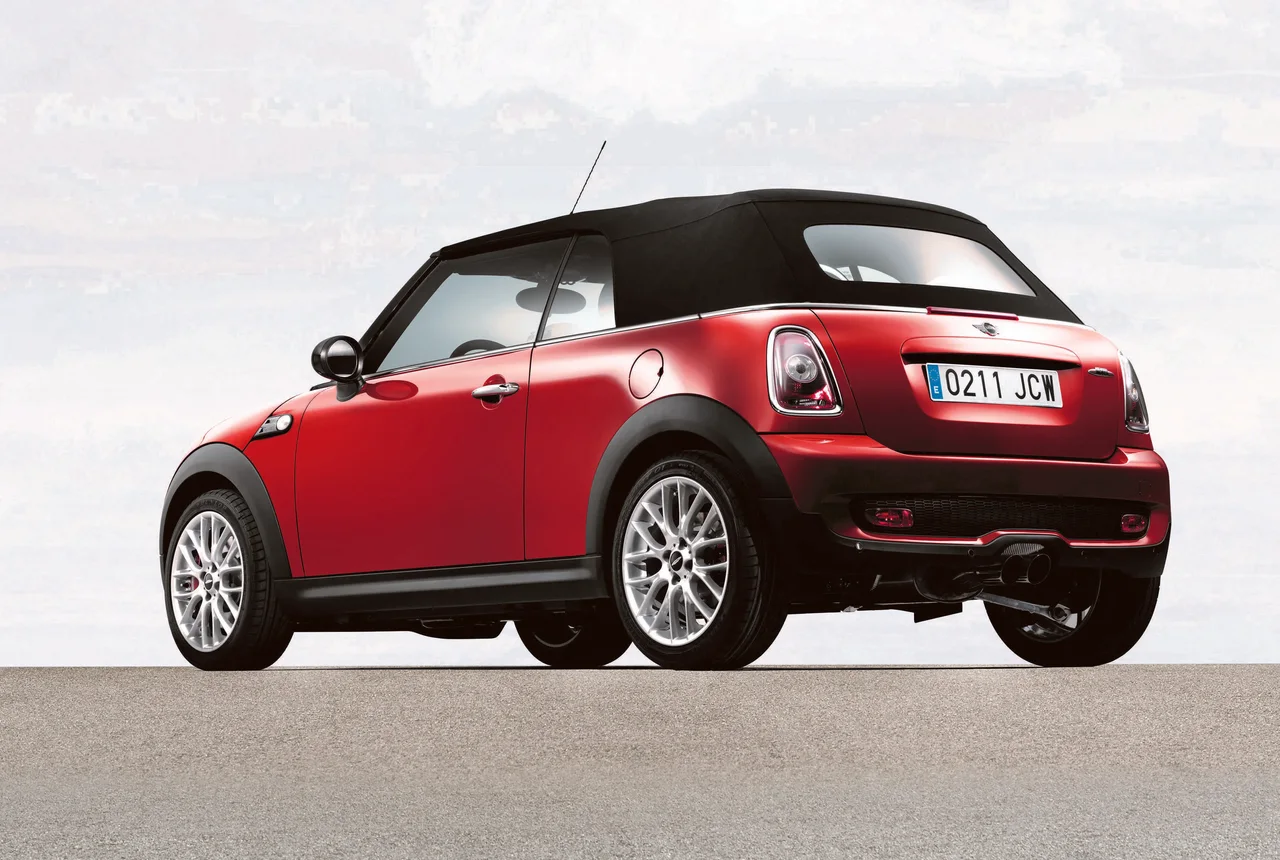

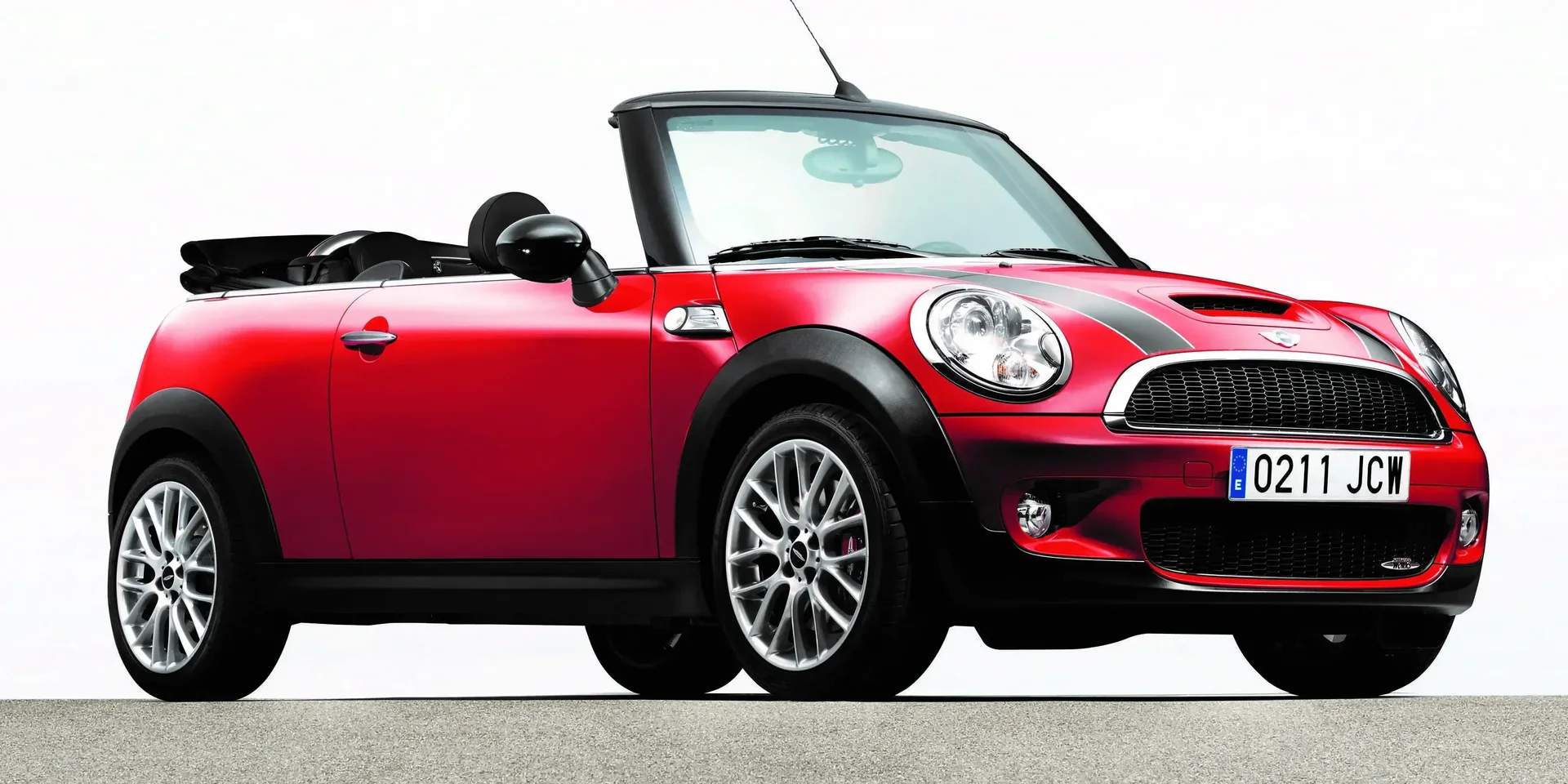

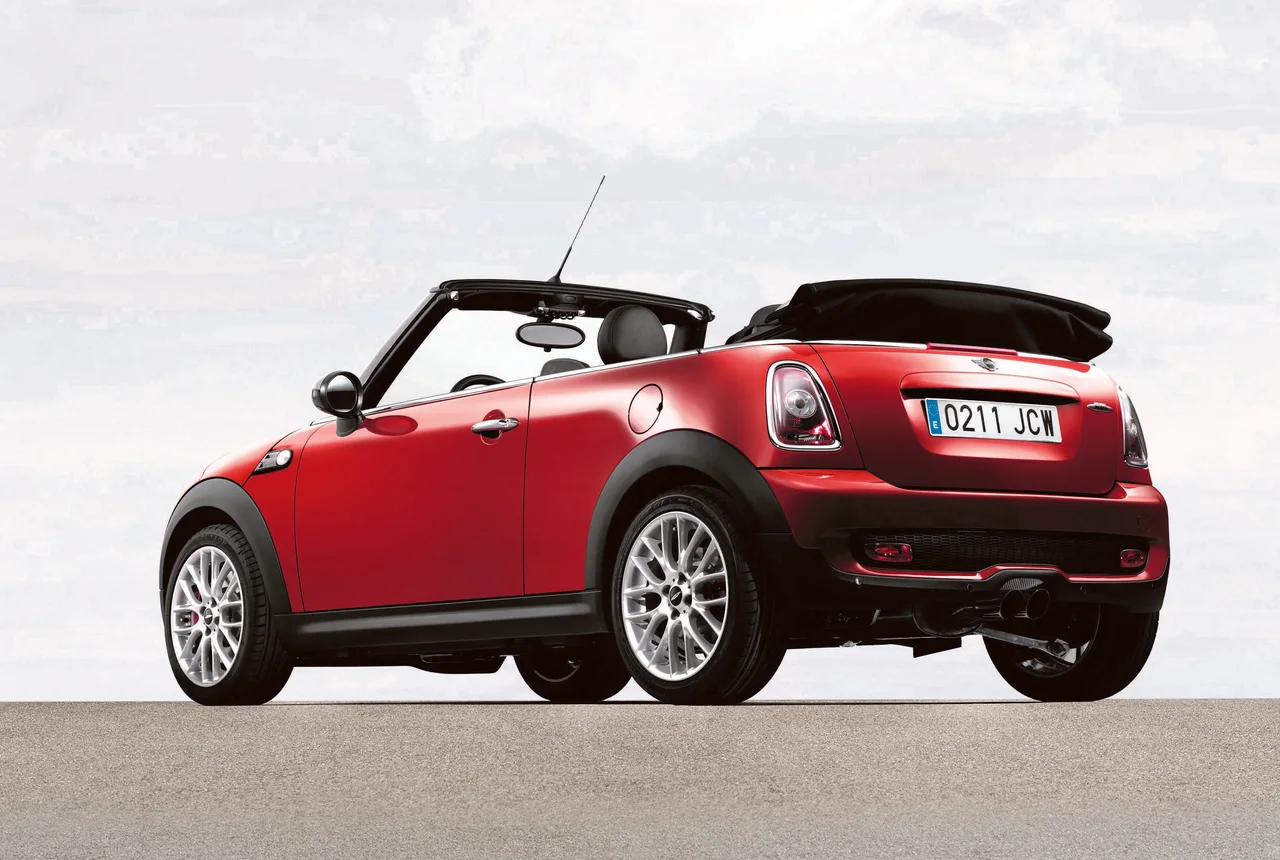

2010 Mini Cooper John Cooper Works

United KingdomGasolineFWDConvertible

Photos

Specifications

Vehicle Details

Year
2010
Make
Mini
Model
Cooper
Variant
John Cooper Works
Body Style
Convertible
Generation
R56
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
John Cooper Works Convertible Manual
Engine Configuration
Inline
Power (hp)
211 hp
Power (kW)
155 kW
Torque
260 Nm (192 lb-ft)
Top speed
235 km/h (146 mph)
0–60 mph
6.6 seconds (estimated)
0–100 km/h
6.9 seconds
Displacement
1,598 cc

Dimensions

Length
3,699 mm (145.6 in)
Width
1,683 mm (66.3 in)
Height
1,414 mm (55.7 in)
Wheelbase
2,467 mm (97.1 in)
Curb weight
1,305 kg (2,877 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
1,850 - 5,700 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Engine Configuration
Bore
77 mm (3.0 in)
Stroke
85.8 mm (3.4 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Turbocharger
Twin-scroll
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
DOHC
Service Intervals
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
4 years

Transmission & Drivetrain

Gear Ratio
1st Gear
3.3 :1
2nd Gear
2.13 :1
3rd Gear
1.48 :1
4th Gear
1.14 :1
5th Gear
0.95 :1
6th Gear
0.81 :1
Final Drive
3.64 :1
Reverse
3.23 :1

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
316 mm (12.4 in)
Width
22 mm (0.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
280 mm (11.0 in)
Width
10 mm (0.4 in)

Performance

Drag Coefficient
0.37

Fuel

General
Tank Volume
50 litres
Emission
Emission Standard
Euro 5
Fuel Consumption NEDC
City
9.3 litres / 100 km
Highway
5.8 litres / 100 km
Combined
7.1 litres / 100 km
Emission NEDC
CO₂, Combined
169 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,913 mm (75.3 in)
Track, Front
1,453 - 1,459 mm (57.2 - 57.4 in)
Track, Rear
1,461 - 1,467 mm (57.5 - 57.8 in)
Overhang, Front
682 - 667 mm (26.9 - 26.3 in)
Overhang, Rear
565 mm (22.2 in)
Turning Circle
10.7 m
Ground Clearance
138 - 139 mm (5.4 - 5.5 in)

Interior

Head Room, Front
976 mm (38.4 in)
Head Room, Rear
978 mm (38.5 in)
Hip Room, Front
1,278 mm (50.3 in)
Hip Room, Rear
996 mm (39.2 in)
Shoulder Room, Front
1,349 mm (53.1 in)
Shoulder Room, Rear
1,128 mm (44.4 in)

Weight

Gross Weight
1,660 kg (3,660 lb)
Cargo Capacity
355 kg (783 lb)
Max Roof Load
0 kg (0 lb)

Exterior

Chassis & Body

Chassis
Chassis
Cabriolet Soft-top
Pillars
A
Doors
Front Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Optional
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Windows › Heated Windows
Front
Optional
Other Equipment
Antenna
Whip

Lights

Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Optional
Special Features
Come Home/Leaving Lights
Special Features
Adaptive Headlights
Optional
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
4 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
56.1
Fastening Type
Lug Bolts
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
  • Analogue
  • Digital
Tachometer
Analogue
Fuel Gauge
Digital
Climate Control
Number of Climate Zones
1
Air Condition
Yes
Micro Filter
Yes
Number of Vents, Front
4 pcs
Connectivity
Radio
  • AM
  • FM
App-Connect
Optional
Bluetooth
Optional
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
CD
Yes
Connectivity › Media Inputs
AUX
Yes
USB
Optional
Connectivity › Bluetooth
Phone
Optional
Displays
Center Display
6.5"
Speakers
Total Number of Speakers
6 - 10 pcs
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Yes
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Lights
Read Light
Optional
Guide Light
Yes
Lights › Read Light
Front
Optional
Other Equipment
Make-up Mirror
Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Yes
Adjustments
Tilt
Colour
Black
Steering Ratio
14.1 :1
Voice Command
Optional
Answer Phone
Optional
Channels
Yes
Volume
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
170 litres
Volume, Back Seat Collapsed
660 litres
Volume (Roof Folded)
125 litres

Design

Interior Decor Colour
Black
Interior Decor Colour
Blue
Optional
Brown
Optional
Grey
Optional
Red
Optional
Silver
Optional
White
Optional
Yellow
Optional

Seats

Colour & Material
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Front Seats
Heated Seats
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
2

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Garage Remote Control
Optional
Cruise Control
Optional
Phone
Optional

Other Features

GPS
Optional
Start & Stop
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Hill Start Assist (HSA)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes

Safety Testing

General
Test Year
2007
Adult Occupant
5/5 stars
Child Occupant
3/5 stars
Pedestrian
2/4 stars

Airbags

Feature
Frontal Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
  • B-Pillar, Left
  • B-Pillar, Right

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
Supermini
Australian Classification
Light Car
European Segment
  • A-Segment
  • B-Segment
Car.info Classification
Small Family Car

Spare Parts BETA

Bulb Types
Low Beam
  • D1S (xenon)
  • H4
Main Beam
H4
Bi-Xenon
D1S
Fog Light, Front
H8
Fog Light, Rear
W2.1×9.5d (W16W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
  • BA15s (P21W)
  • BAU15s (PY21W)
Turn Indicators, Side
W2.1×9.5d (W5W)
Turn Indicators, Rear
BAU15s (PY21W)
Glove Compartment
SV8.5 (C5W)
Read Light
SV8.5 (C5W)
Trunk
SV8.5 (C5W)
License Plate Light
SV8.5 (C5W)
