2009 Dodge Journey

United StatesDieselFWDSUV

Photos

Specifications

Vehicle Details

Year
2009
Make
Dodge
Model
Journey
Body Style
SUV
Generation
JC49
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

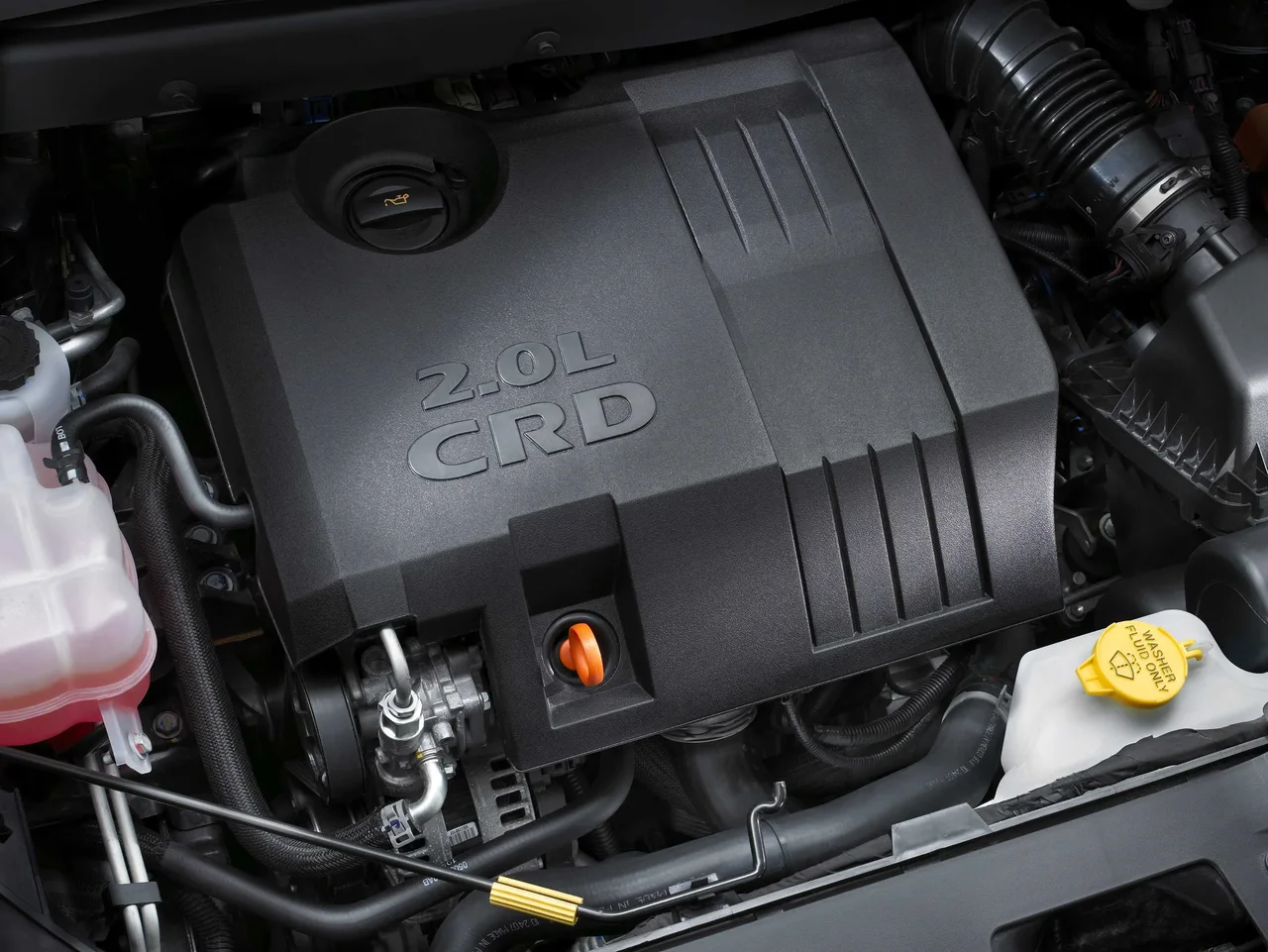

Engine Name
2.0 CRD
Engine Configuration
Inline
Power (hp)
140 hp
Power (kW)
103 kW
Torque
310 Nm (229 lb-ft)
Top speed
188 km/h (117 mph)
0–60 mph
10.0 seconds (estimated)
0–100 km/h
10.5 seconds
Displacement
1,968 cc

Dimensions

Length
4,890 mm (192.5 in)
Width
1,840 mm (72.4 in)
Height
1,690 mm (66.5 in)
Wheelbase
2,890 mm (113.8 in)
Curb weight
1,760 kg (3,880 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,750 - 2,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
  • 15W-40
  • 20W-40
Engine Oil, Volume
4 litres
Engine Configuration
Bore
81 mm (3.2 in)
Stroke
91.5 mm (3.6 in)
Compression Ratio
18 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Timing Interval
120,000 km (74,565 mi)
Fuel Filter
45,000 km (27,962 mi)
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
15,000 km (9,321 mi)

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes

Fuel

General
Tank Volume
77 litres
Fuel Consumption NEDC
City
8.2 – 8.4 litres / 100 km
Highway
5.1 – 5.4 litres / 100 km
Combined
6.2 – 6.5 litres / 100 km
Emission NEDC
CO₂, Combined
170 – 172 g/km

Dimensions & Weight

Exterior

Track, Front
1,570 mm (61.8 in)
Track, Rear
1,580 mm (62.2 in)
Turning Circle
11.7 m
Ground Clearance
185 mm (7.3 in)

Interior

Head Room, Front
1,036 mm (40.8 in)
Head Room, Rear
1,013 mm (39.9 in)
Leg Room, Front
1,036 mm (40.8 in)
Leg Room, Rear
838 mm (33.0 in)
Hip Room, Front
1,346 mm (53.0 in)
Hip Room, Rear
1,381 mm (54.4 in)
Shoulder Room, Front
1,447 mm (57.0 in)
Shoulder Room, Rear
1,445 mm (56.9 in)

Weight

Gross Weight
2,480 kg (5,467 lb)
Max Trailer Load, braked 12%
1,360 kg (2,998 lb)
Max Trailer Load, unbraked
450 kg (992 lb)
Cargo Capacity
710 – 720 kg (1,565 – 1,587 lb)
Max Roof Load
68 kg (150 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
House Colour
Same as Car
Windscreen Wipers
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Tinted Windows
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Optional
Antenna
Roof-integrated

Lights

Main Beam
Halogen
Low Beam
Halogen
Fog Lights
Yes
Fog Lights
Rear
Yes
Special Features
Headlight Range Adjustment
Manual

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
127
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
71.6
Fastening Type
Lug Nuts
Rim Material
Aluminium
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Yes

Interior

Equipment

Instrument Cluster
Trip Computer
Optional
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Optional
Connectivity
Radio
  • AM
  • FM
Media Format
  • MP3
  • WMA
Connectivity › Media Format
CD
Multiple CD Changer
DVD
Multiple DVD Changer
Connectivity › Media Inputs
AUX
Yes
Speakers
Total Number of Speakers
6 pcs
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Lockable
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Lights
Read Light
  • Front
  • Rear
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
12V Outlet
  • Front
  • Rear
Carpets
Optional
Ashtray
Yes
Cigarette Lighter
Yes
Other Equipment › Make-up Mirror
Make-up Light
Optional

Steering Wheel

Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
4
Colour
Black
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Cover
Foldable
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
780 litres
Volume, Back Seat Collapsed
1,460 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Heated Seats
Optional
Armrest
Middle
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Third/Fourth Seat Row
Third Seat Row
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Seat Belt Colour
Black

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes
Trailer Stability Assist (TSA)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Yes
Child Safety Locks
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
IIHS
Test Year
2015
Small Overlap Front: Driver Side
Poor
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Headlight
Poor
Latch Ease of Use
Marginal
Teknikens Världs Moose Test
Test Year
2009
Speed
70 km/h (43 mph)

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
Next to

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment
Car.info Classification
Large SUV
