2010 Mazda CX-7

JapanDieselAWDSUV

Photos

Specifications

Vehicle Details

Year
2010
Make
Mazda
Model
CX-7
Body Style
SUV
Generation
ER Facelift
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
2.2 MZR-CD AWD Manual
Engine Configuration
Inline
Power (hp)
173 hp
Power (kW)
127 kW
Torque
400 Nm (295 lb-ft)
Top speed
200 km/h (124 mph)
0–60 mph
10.8 seconds (estimated)
0–100 km/h
11.3 seconds
Displacement
2,184 cc

Dimensions

Length
4,698 mm (185.0 in)
Width
1,870 mm (73.6 in)
Height
1,645 mm (64.8 in)
Wheelbase
2,750 mm (108.3 in)
Curb weight
1,775 kg (3,913 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,500 rpm
Rev. at Max Torque
2,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-30
Semi-synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
4.7 litres
Engine Configuration
Bore
86 mm (3.4 in)
Stroke
94 mm (3.7 in)
Compression Ratio
16.3 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Air Filter
60,000 km (37,282 mi)
Fuel Filter
60,000 km / 3 years
Brake Fluid
40,000 km / 2 years
Oil Change & Engine Filter
20,000 km / 1 years
Interior Filter
40,000 km / 2 years

Transmission & Drivetrain

Gear Ratio
1st Gear
3.82 :1
2nd Gear
2.05 :1
3rd Gear
1.29 :1
4th Gear
0.93 :1
5th Gear
0.85 :1
6th Gear
0.71 :1
Reverse
4.14 :1

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
320 mm (12.6 in)
Cooling
Ventilated
Rear Brakes
Diameter
302 mm (11.9 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
69 litres
Emission
Emission Standard
Euro 5
Fuel Consumption NEDC
City
9.1 litres / 100 km
Highway
6.6 litres / 100 km
Combined
7.5 litres / 100 km
Emission NEDC
CO₂, Combined
199 g/km

Performance

Drag Coefficient
0.34

Dimensions & Weight

Exterior

Track, Front
1,615 mm (63.6 in)
Track, Rear
1,610 mm (63.4 in)
Turning Circle
11.4 m
Ground Clearance
208 mm (8.2 in)

Interior

Head Room, Front
1,009 mm (39.7 in)
Head Room, Rear
998 mm (39.3 in)
Leg Room, Front
1,059 mm (41.7 in)
Leg Room, Rear
925 mm (36.4 in)
Hip Room, Front
1,392 mm (54.8 in)
Hip Room, Rear
1,346 mm (53.0 in)
Shoulder Room, Front
1,472 mm (58.0 in)
Shoulder Room, Rear
1,417 mm (55.8 in)

Weight

Gross Weight
2,430 kg (5,357 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, braked 8%
2,000 kg (4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
655 kg (1,444 lb)
Max Roof Load
100 kg (220 lb)
Permitted Axle Load, front
1,304 kg (2,875 lb)
Permitted Axle Load, rear
1,227 kg (2,705 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Swing-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Number of Wiper Speeds
2
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Tinted Windows
Front
Optional
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Spoiler
Fixed
Antenna
Whip
Number of Exhaust Pipes
1
Electric
Optional

Lights

Rear Lights
Halogen
Fog Lights
Optional
Fog Lights
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts
Tightening Torque
88 - 118 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Yes

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
5 pcs
Number of Vents, Rear
2 pcs
Connectivity
Radio
  • AM
  • FM
Bluetooth
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Connectivity › Media Inputs
AUX
Yes
Connectivity › Bluetooth
Phone
Optional
Displays
Center Display
Yes
Speakers
Total Number of Speakers
4 - 9 pcs
Speakers Max. Watt
240 W
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Back Pocket
Yes
Total Number of Compartments
5 pcs
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
  • Make-up Light
Clock
Digital
12V Outlet
Front
Carpets
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
Yes

Trunk

Rear Trunk
Yes
Barrier Net/Grid
Optional
Light
Yes
Rear Trunk
Volume
455 litres
Volume, Back Seat Collapsed
1,348 litres
Depth
983 mm (38.7 in)
Width
1,450 mm (57.1 in)
Height
879 mm (34.6 in)
Sill Height
764 mm (30.1 in)

Design

Interior Decor Material
Leather
Transmission Knob Material
Leather
Colour
Black

Seats

Front Seats › Adjustments, Driver
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Number of Passenger Seat Adjustments, Powered
8
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Yes
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Optional
Parking Heater
Optional
Cameras
Yes
Cameras
Rear
Optional

Other Features

GPS
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Centre Rear Seat
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional

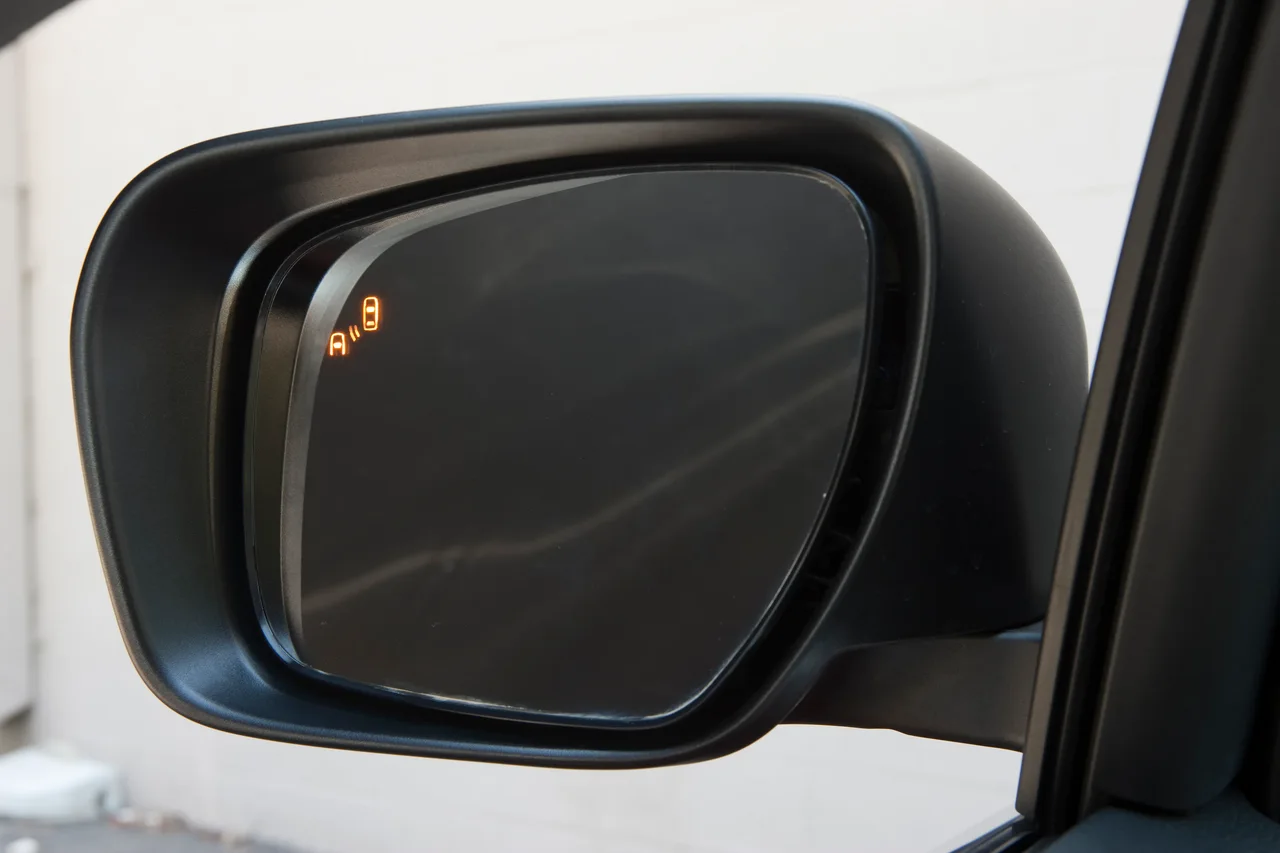

Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Yes
Child Safety Locks
Yes

Safety Testing

General
Test Year
2010
Adult Occupant
76 %
Child Occupant
79 %
Vulnerable Road Users
43 %
Safety Assist
71 %
Overall
4/5 stars
Overall Score
32.66
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
12.66
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
2
NHTSA
Rollver
4/5 stars
IIHS
Test Year
2008
Moderate Overlap Front
Good
Side
Good
Roof Strength
Marginal
Head Restraints & Seats
Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Passenger Seat
in Front of

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment
Car.info Classification
Large SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D2S (xenon)
  • H7
Main Beam
HB3
Fog Light, Front
H11
Positioning-/Parking Lights, Front Side
W2.1×9.5d (W5W)
Positioning-/Parking Lights, Rear Side
W2.1×9.5d (W5W)
Rear/Brake Light
W3×16q (W21/5W)
Reversing Light
W3×16d (W21W)
Turn Indicators, Rear
WX3×16d (WY21W)
Read Light
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)
