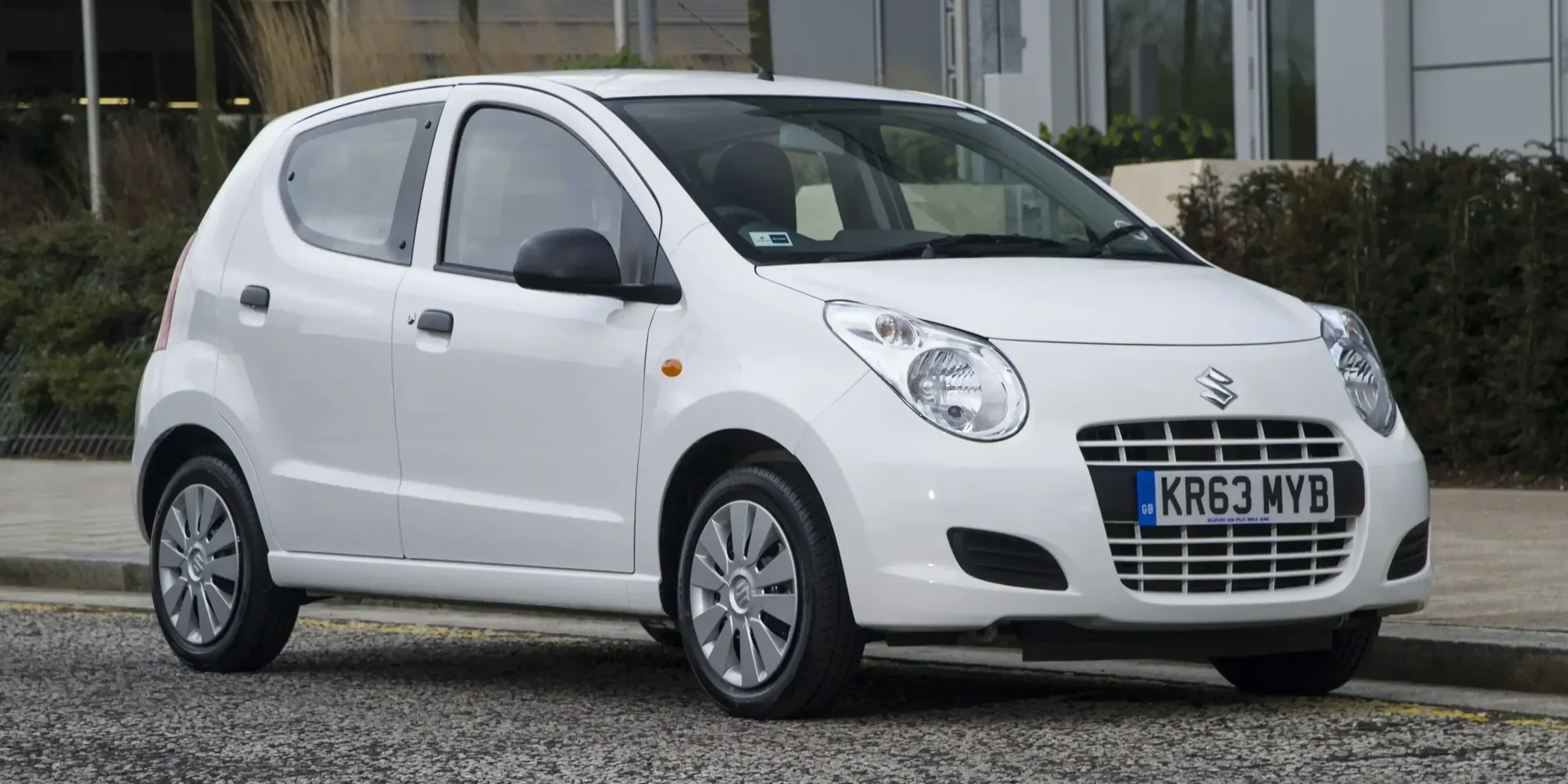

2009 Suzuki Alto

JapanGasolineFWDHatchback

Photos

Specifications

Vehicle Details

Year
2009
Make
Suzuki
Model
Alto
Body Style
Hatchback
Generation
GF
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 4
  • 5-speed

Powertrain

Engine Name
1.0 DOHC 12V VVT
Engine Configuration
Inline
Power (hp)
68 hp
Power (kW)
50 kW
Torque
90 Nm (66 lb-ft)
Top speed
150 km/h (93 mph)
0–60 mph
13.3 seconds (estimated)
0–100 km/h
14 seconds
Displacement
996 cc

Dimensions

Length
3,500 mm (137.8 in)
Width
1,600 mm (63.0 in)
Height
1,470 mm (57.9 in)
Wheelbase
2,360 mm (92.9 in)
Curb weight
885 kg (1,951 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
4,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-30
  • 10W-30
Engine Oil, Volume
3.6 litres
Engine Configuration
Bore
73 mm (2.9 in)
Stroke
79.4 mm (3.1 in)
Compression Ratio
11 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Air Filter
45,000 km / 3 years
Spark Plug
105,000 km / 7 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
45,000 km / 3 years
Interior Filter
45,000 km / 3 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 4
  • 5-speed

Brakes

Front Brakes
Disc Brakes

Fuel

General
Tank Volume
35 litres
Emission
Emission Standard
Euro 5
Fuel Consumption NEDC
City
5.2 – 6.5 litres / 100 km
Highway
3.8 – 4.3 litres / 100 km
Combined
4.3 – 5.1 litres / 100 km
Emission NEDC
CO₂, Combined
99 – 118 g/km

Dimensions & Weight

Exterior

Track, Front
1,405 mm (55.3 in)
Track, Rear
1,400 mm (55.1 in)
Turning Circle
9 m
Ground Clearance
150 mm (5.9 in)

Interior

Head Room, Front
1,000 mm (39.4 in)

Weight

Gross Weight
1,250 kg (2,756 lb)
Max Trailer Load, braked 12%
200 kg (441 lb)
Max Trailer Load, unbraked
100 kg (220 lb)
Cargo Capacity
380 – 420 kg (838 – 926 lb)
Max Roof Load
35 kg (77 lb)
Max Towbar Download
50 kg (110 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Windscreen Wipers
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Other Equipment
Normal Roof
Yes
Antenna
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen

Rims & Tires

Number of Bolts
4 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M12x1.25
Central Bore (CB), front
54.1
Fastening Type
Lug Nuts
Tightening Torque
85 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Tachometer
Analogue
Climate Control
Air Condition
Optional
Number of Vents, Front
4 pcs
Connectivity
Radio
Optional
Connectivity › Radio
AM
Optional
FM
Optional
Interior Storage › Storage Compartments
Glove Compartment
Yes
Lights
Guide Light
Yes
Other Equipment
12V Outlet
Front
Cigarette Lighter
Yes

Steering Wheel

Material
Plastic
Colour
Grey

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
129 litres
Volume, Back Seat Collapsed
774 litres

Design

Interior Decor Colour
Grey
Colour
Grey

Seats

Colour & Material
Upholstery
Textile
Seat Colour
Grey
Stitching Colour
Grey
Front Seats › Adjustments, Driver
Seat Depth
Yes
Backrest Angle
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Optional

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Optional

Other Features

Central Locking
Yes

Safety Testing

General
Test Year
2009
Adult Occupant
55 %
Child Occupant
46 %
Vulnerable Road Users
35 %
Safety Assist
29 %
Overall
3/5 stars
Adult Occupant
Total Points
19.7 /38
Frontal Impact
10.4 /16
Lateral Impact
7.1 /16
Rear Impact
2.3 /4
Child Occupant
Total Points
22.6 /49
Safety Features
2 /13
CRS Installation Check
8 /12
Vulnerable Road Users
Total Points
12.8 /49
Pedestrian
  • 9.5
  • 0
  • 3.3

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Centre
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
City Car
Australian Classification
Microcar
European Segment
A-Segment
Car.info Classification
Mini Car
