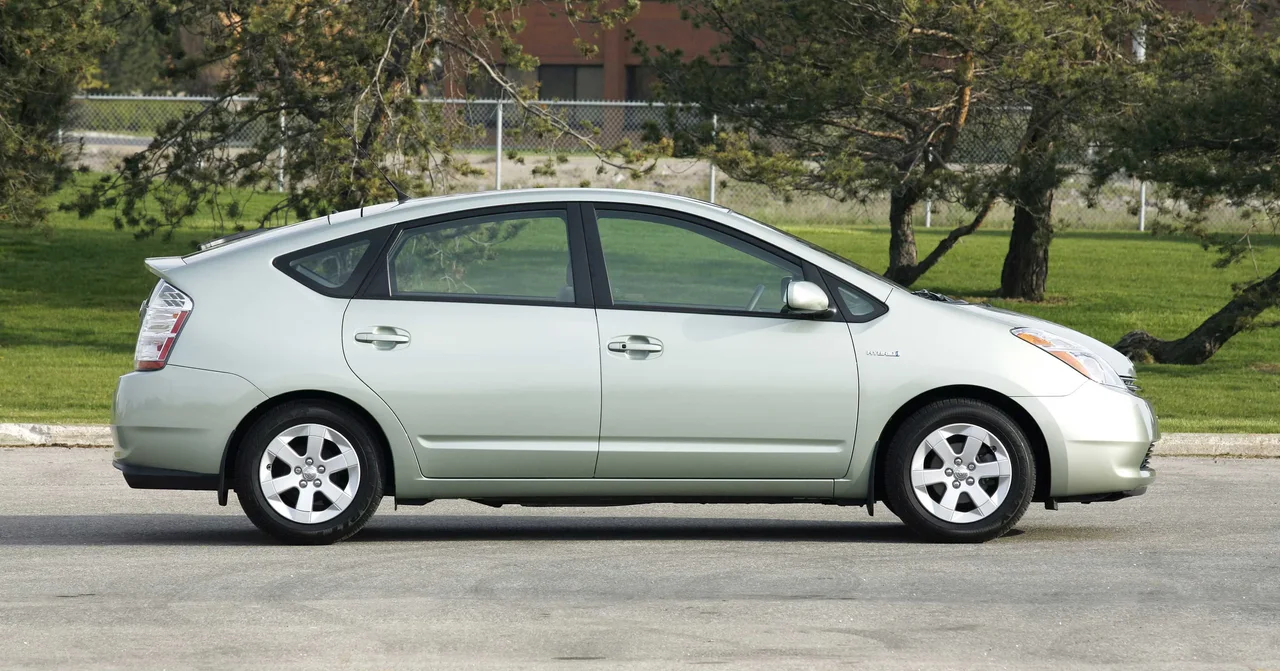

2009 Toyota Prius

JapanHybrid GasolineFWDHatchback

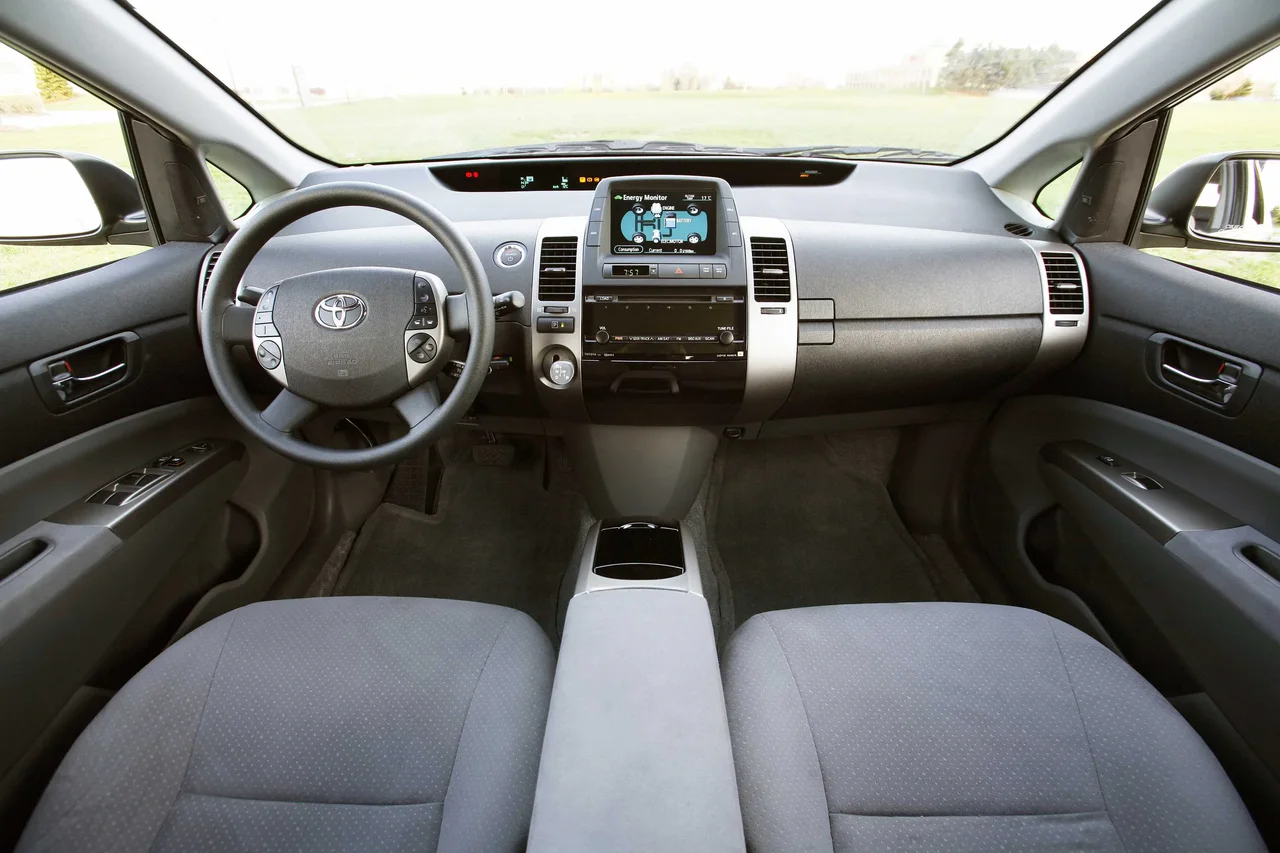

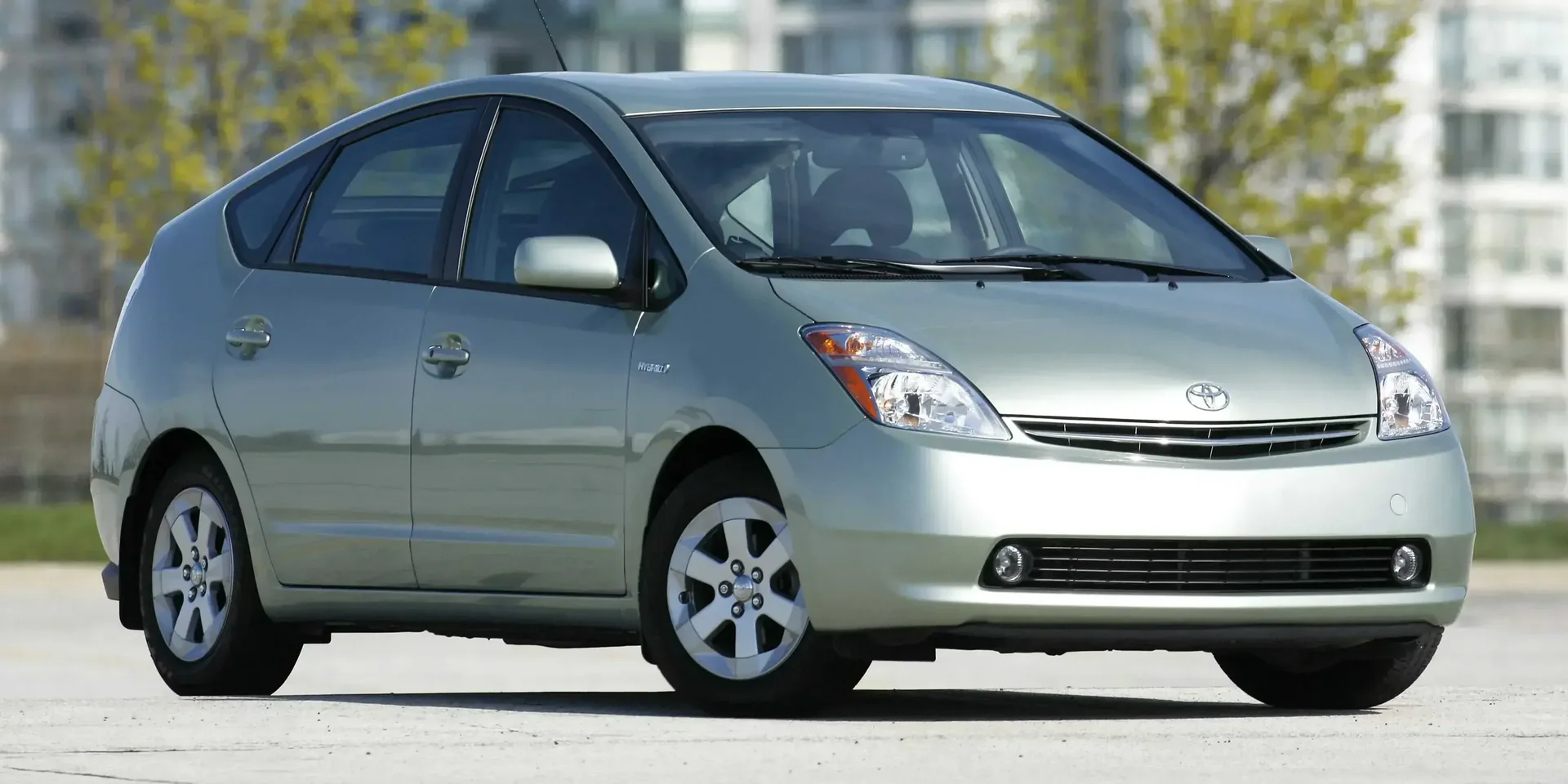

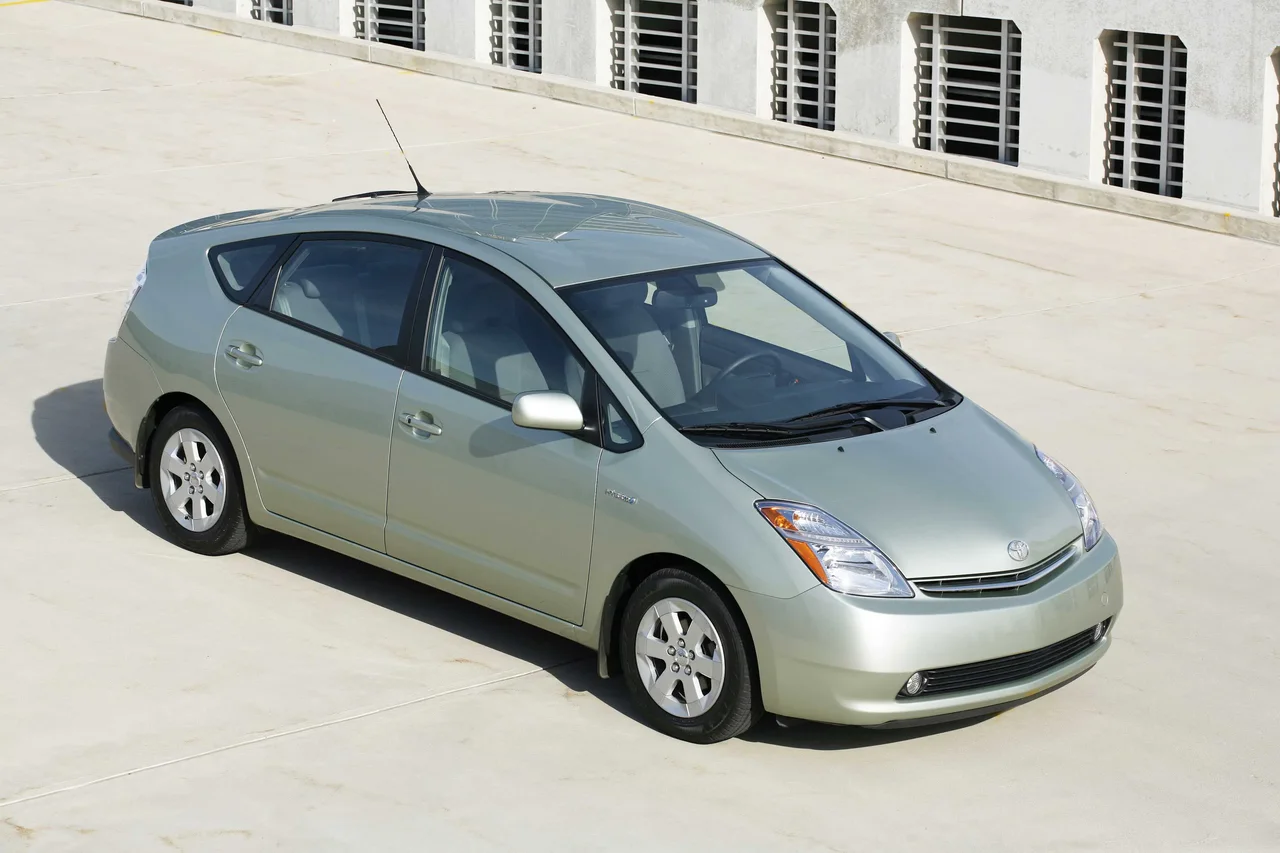

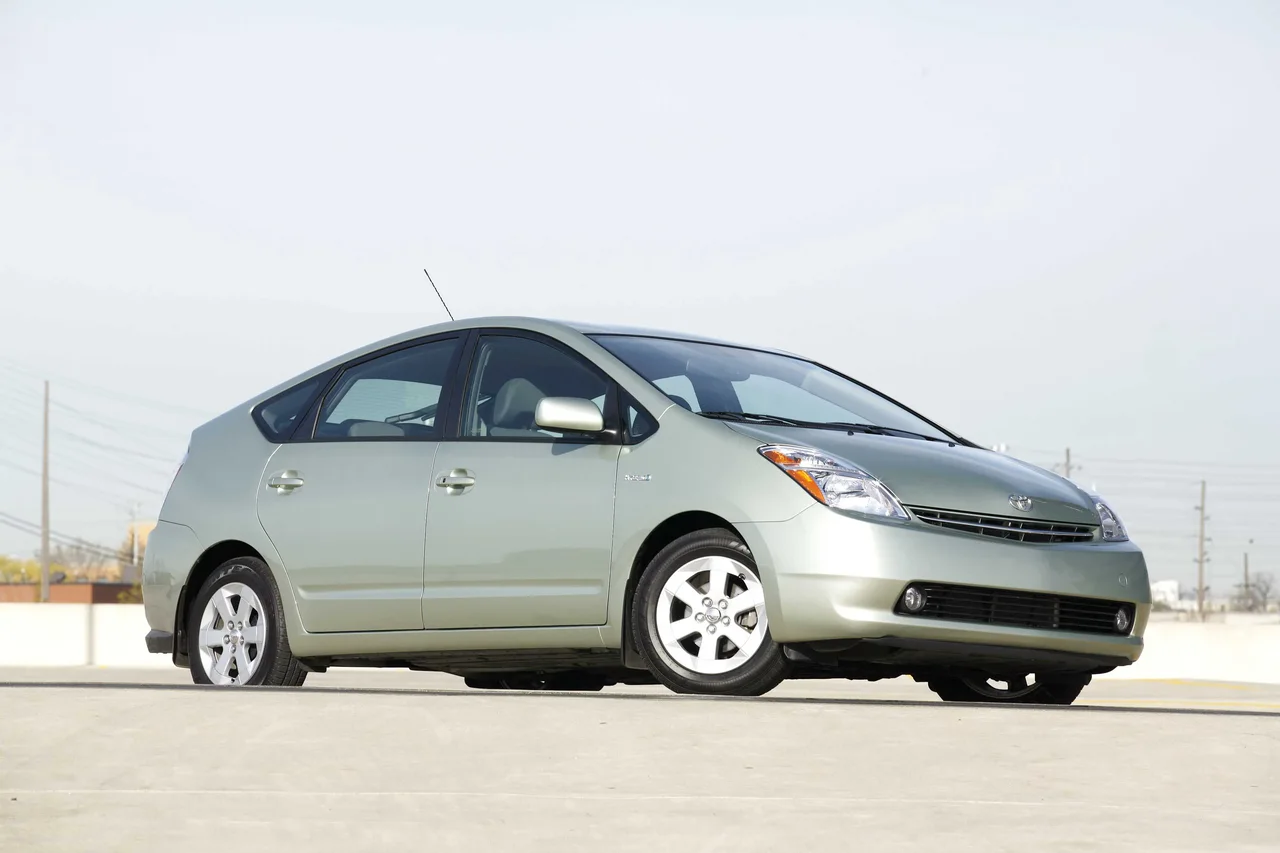

Photos

Specifications

Vehicle Details

Year
2009
Make
Toyota
Model
Prius
Body Style
Hatchback
Generation
XW20
Seats
5
Doors
5
Fuel
Hybrid Gasoline
Drivetrain
FWD
Transmission
Automatic (Continuously variable)

Powertrain

Engine Name
1.5 VVT-i + 3CM CVT
Engine Configuration
Inline
Power (hp)
112 hp
Power (kW)
82 kW
Torque
400 Nm (295 lb-ft)
Top speed
170 km/h (106 mph)
0–60 mph
10.4 seconds
0–100 km/h
10.9 seconds
Displacement
1,496 cc

Dimensions

Length
4,450 mm (175.2 in)
Width
1,725 mm (67.9 in)
Height
1,490 mm (58.7 in)
Wheelbase
2,700 mm (106.3 in)
Curb weight
1,300 kg (2,866 lb)

Engine & Performance

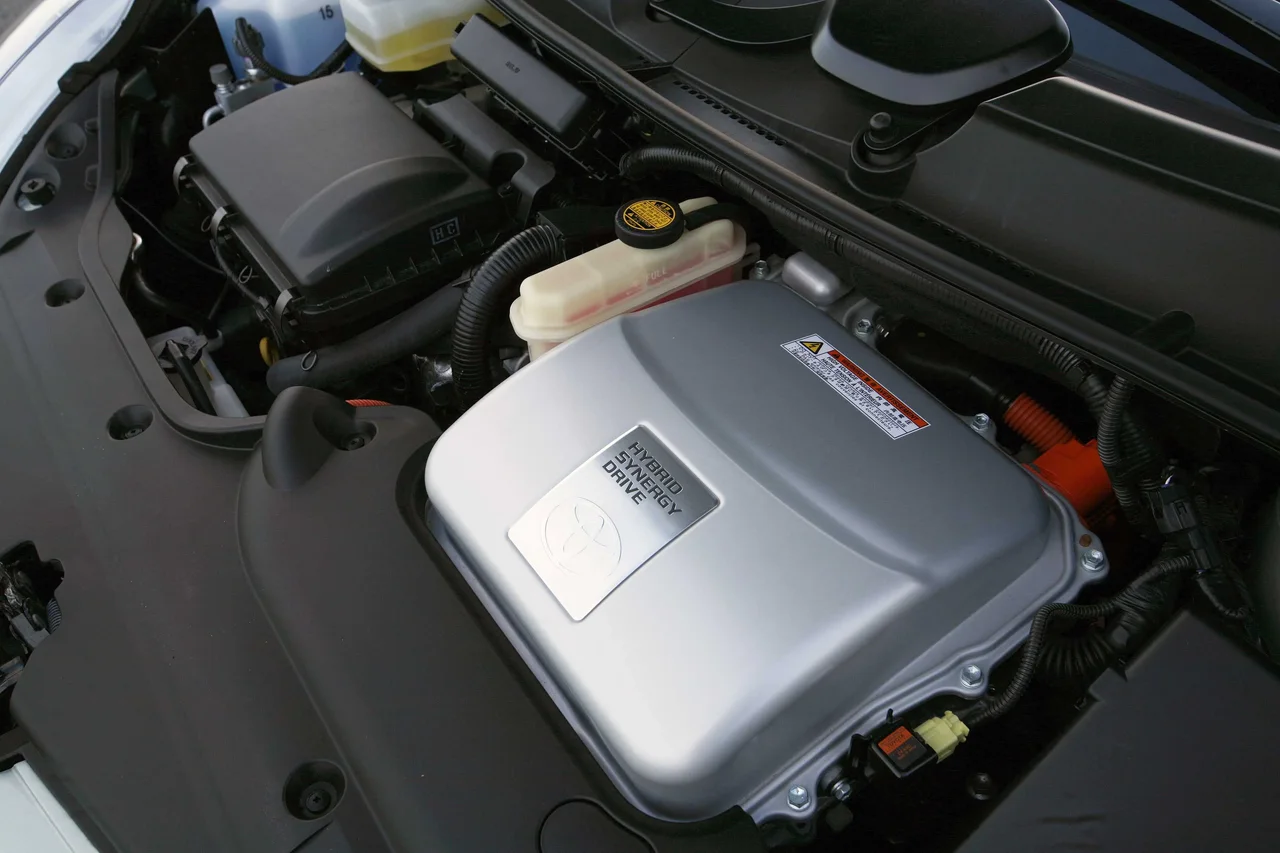

Engine

Engine Fluids
Synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
3.7 litres
Configuration Combustion
Bore
75 mm (3.0 in)
Stroke
84.7 mm (3.3 in)
Compression Ratio
13 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Configuration Combustion › ICE Specifications
Power
57 kW
Horsepower (Metric)
78 hp (76 bhp)
Torque
400 Nm (295 lb-ft)
Configuration Electric
Type of Electric Car
Hybrid
Electric Engine Power
50 kW
Electric Engine Horsepower (Metric)
68 hp (67 bhp)
Front Engines
Yes
Configuration Electric › Front Engines
Power (kW)
50 kW
Service Intervals
Spark Plug
90,000 km (55,923 mi)
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
150,000 km (93,206 mi)
Interior Filter
30,000 km (18,641 mi)

Transmission & Drivetrain

Transmission
Automatic (Continuously variable)

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
45 litres
Emission
Emission Standard
Euro 4
Fuel Consumption NEDC
City
5 litres / 100 km
Highway
4 litres / 100 km

Dimensions & Weight

Exterior

Width, with Mirrors
2,015 mm (79.3 in)
Track, Front
1,510 mm (59.4 in)
Track, Rear
1,480 mm (58.3 in)
Turning Circle
10.2 m
Ground Clearance
145 mm (5.7 in)

Interior

Head Room, Front
1,000 mm (39.4 in)

Weight

Max Roof Load
45 kg (99 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Platform
Toyota Platform
MC Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Heated
Optional
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Normal Roof
Yes
Spoiler
Yes

Lights

Main Beam
Halogen
Low Beam
Halogen
Fog Lights
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
54.1
Fastening Type
Lug Nuts
Rim Type
Disc Wheel
Spare Wheel
Yes

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
  • AM
  • FM
Bluetooth
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Connectivity › Media Inputs
AUX
Optional
Connectivity › Bluetooth
Phone
Optional
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Speakers
Total Number of Speakers
6 - 9 pcs
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
  • Make-up Light

Steering Wheel

Multifunction Steering Wheel
Yes
Adjustments
Tilt
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
408 litres

Seats

Colour & Material
Seat Colour
Grey
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Front Seats
Armrest
Yes
Second Seat Row
Armrest
Yes
Collapsible
Yes

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Optional
Cameras
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional

Safety Testing

General
Test Year
2004
Adult Occupant
5/5 stars
Child Occupant
4/5 stars
Pedestrian
2/4 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Hybrid Components
100,000 km / 5 years
EV Battery
100,000 km / 5 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Pillar
B-Pillar, Right

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
H4
Main Beam
H4
Fog Light, Front
HB4
Fog Light, Rear
W3×16d (W21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
W3×16d (W21W)
Reversing Light
W3×16d (W21W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Side
W2.1×9.5d (W5W)
Turn Indicators, Rear
WX3×16d (WY21W)
Read Light
W2.1×9.5d (W5W)
Trunk
SV8.5 (C5W)
License Plate Light
W2.1×9.5d (W5W)

Awards

European Car of the Year
2005
North American
Car of the Year
2004
Motor Trend
Car of the Year
2004
