2009 Toyota Verso

JapanGasolineFWDMinivan

Photos

Specifications

Vehicle Details

Year
2009
Make
Toyota
Model
Verso
Body Style
Minivan
Generation
AR20
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
1.6 Valvematic Manual
Engine Configuration
Inline
Power (hp)
132 hp
Power (kW)
97 kW
Torque
160 Nm (118 lb-ft)
Top speed
185 km/h (115 mph)
0–60 mph
11.1 seconds (estimated)
0–100 km/h
11.7 seconds
Displacement
1,598 cc

Dimensions

Length
4,440 mm (174.8 in)
Width
1,790 mm (70.5 in)
Height
1,620 mm (63.8 in)
Wheelbase
2,780 mm (109.4 in)
Curb weight
1,395 kg (3,075 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,400 rpm
Rev. at Max Torque
4,400 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-20
  • 5W-30
Semi-synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
4.2 litres
Engine Configuration
Bore
80.5 mm (3.2 in)
Stroke
78.5 mm (3.1 in)
Compression Ratio
10.7 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Air Filter
60,000 km / 4 years
Spark Plug
90,000 km (55,923 mi)
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
90,000 km (55,923 mi)
Interior Filter
30,000 km (18,641 mi)

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
60 litres
Emission
Emission Standard
Euro 4
Fuel Consumption NEDC
City
8.6 litres / 100 km
Highway
5.7 litres / 100 km
Combined
6.7 litres / 100 km
Emission NEDC
CO₂, Combined
158 g/km

Dimensions & Weight

Exterior

Track, Front
1,540 mm (60.6 in)
Track, Rear
1,540 mm (60.6 in)
Turning Circle
10.8 m
Ground Clearance
145 - 150 mm (5.7 - 5.9 in)

Interior

Head Room, Front
1,000 mm (39.4 in)
Head Room, Rear
980 mm (38.6 in)
Head Room, Third Row
920 mm (36.2 in)
Leg Room, Front
1,050 mm (41.3 in)
Leg Room, Rear
900 mm (35.4 in)
Leg Room, Third Row
750 mm (29.5 in)

Weight

Gross Weight
2,125 kg (4,685 lb)
Max Trailer Load, braked 12%
1,300 kg (2,866 lb)
Max Trailer Load, unbraked
450 kg (992 lb)
Cargo Capacity
730 kg (1,609 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
55 kg (121 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Toyota Platform
MC Platform (New MC)

Equipment

Side Mirrors
Folding
Manual
Turning Signal
Yes
Windscreen Wipers
Number of Wiper Speeds
2
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Other Equipment
Normal Roof
Yes

Lights

Main Beam
Halogen
Low Beam
Halogen
Fog Lights
Optional
Special Features
Come Home/Leaving Lights

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
60.1
Fastening Type
Lug Nuts
Tightening Torque
103 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Optional
Connectivity
Radio
Yes
Media Format
  • CD
  • MP3
  • WMA

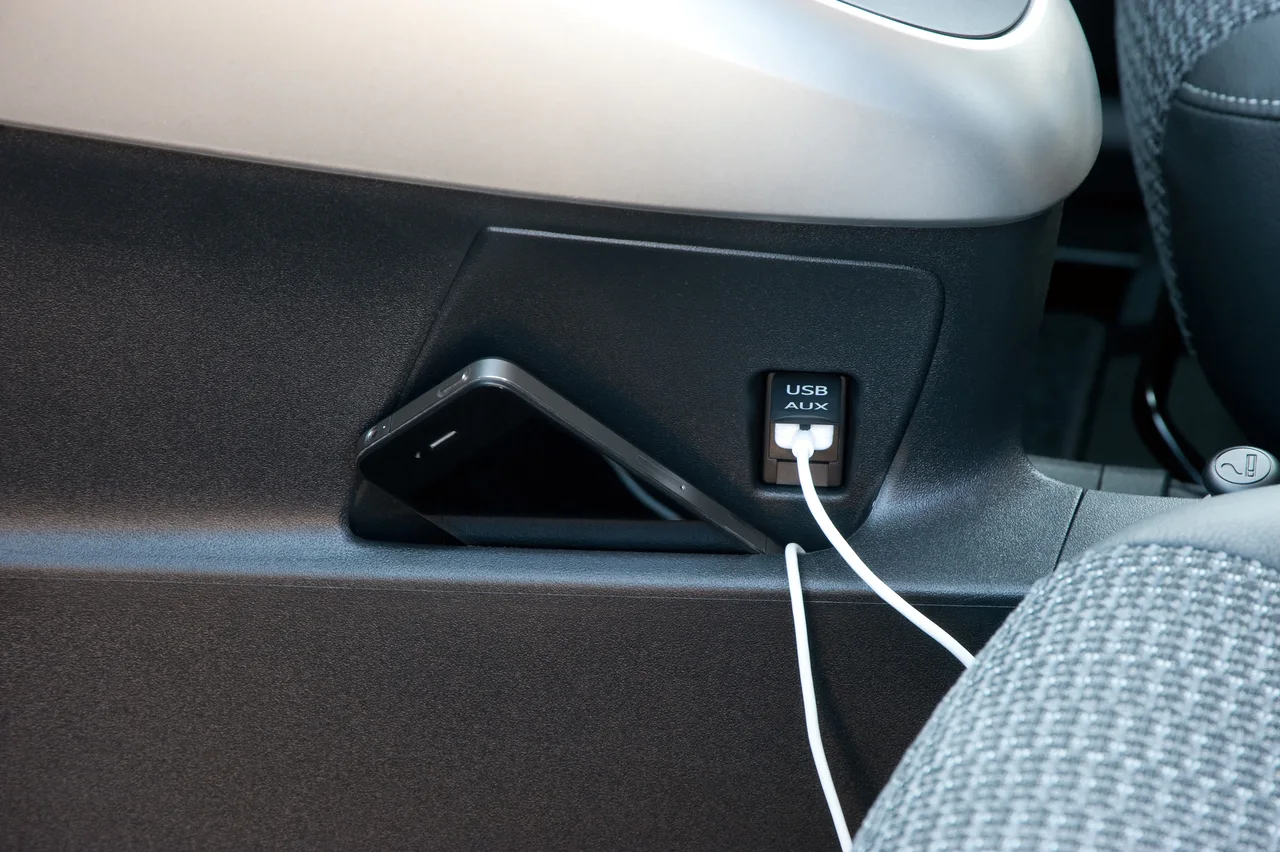

Media Inputs
USB
Bluetooth
Optional
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Yes
Displays › Center Display
Touchscreen
Optional
Interior Storage › Storage Compartments
Armrest Hatch
Front
Lights
Guide Light
Yes

Steering Wheel

Multifunction Steering Wheel
Yes

Trunk

Rear Trunk
Yes
Cover
Yes
Light
Yes
Rear Trunk
Volume
484 litres
Volume, Back Seat Collapsed
1,740 litres
Depth
925 mm (36.4 in)
Width
1,370 mm (53.9 in)
Width, Between Wheel Arches
960 mm (37.8 in)

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black

Seats

Front Seats › Adjustments, Driver
Headrest, Height
Yes
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Third/Fourth Seat Row
Third Seat Row
Optional
Colour & Material
Upholstery
Textile

Features

Comfort Features

Rear
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Front Seats
Seat Belt Colour
Black
Feature
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Central Locking
Remote
Active Headrests
Yes

Safety Testing

General
Test Year
2010
Adult Occupant
89 %
Child Occupant
75 %
Vulnerable Road Users
69 %
Safety Assist
86 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Body Protection
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
3 years

Identification

VIN Location
Engine Compartment, Bulkhead
Centre
Engine Compartment, Inner Wing
Right
Passenger Seat
in Front of

Car Classification

American Classification
MPV
British Classification
Compact MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Medium MPV

Spare Parts BETA

Bulb Types
Low Beam
  • D4R (xenon)
  • H11
Main Beam
HB3
Bi-Xenon
D4R
Fog Light, Front
  • H11
  • H16
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
  • BAU15s (PY21W)
  • WX3×16d (WY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Read Light
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)
