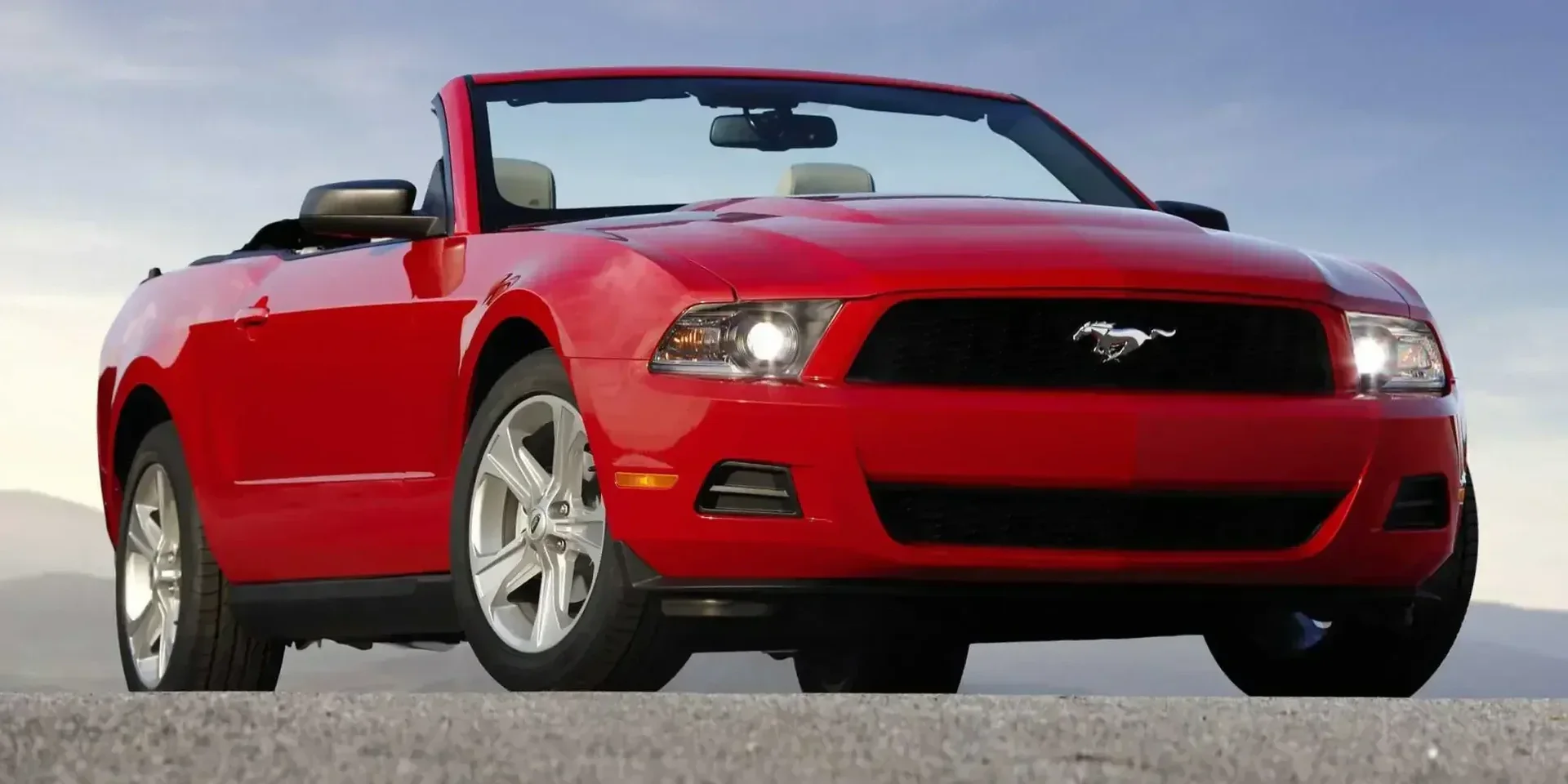

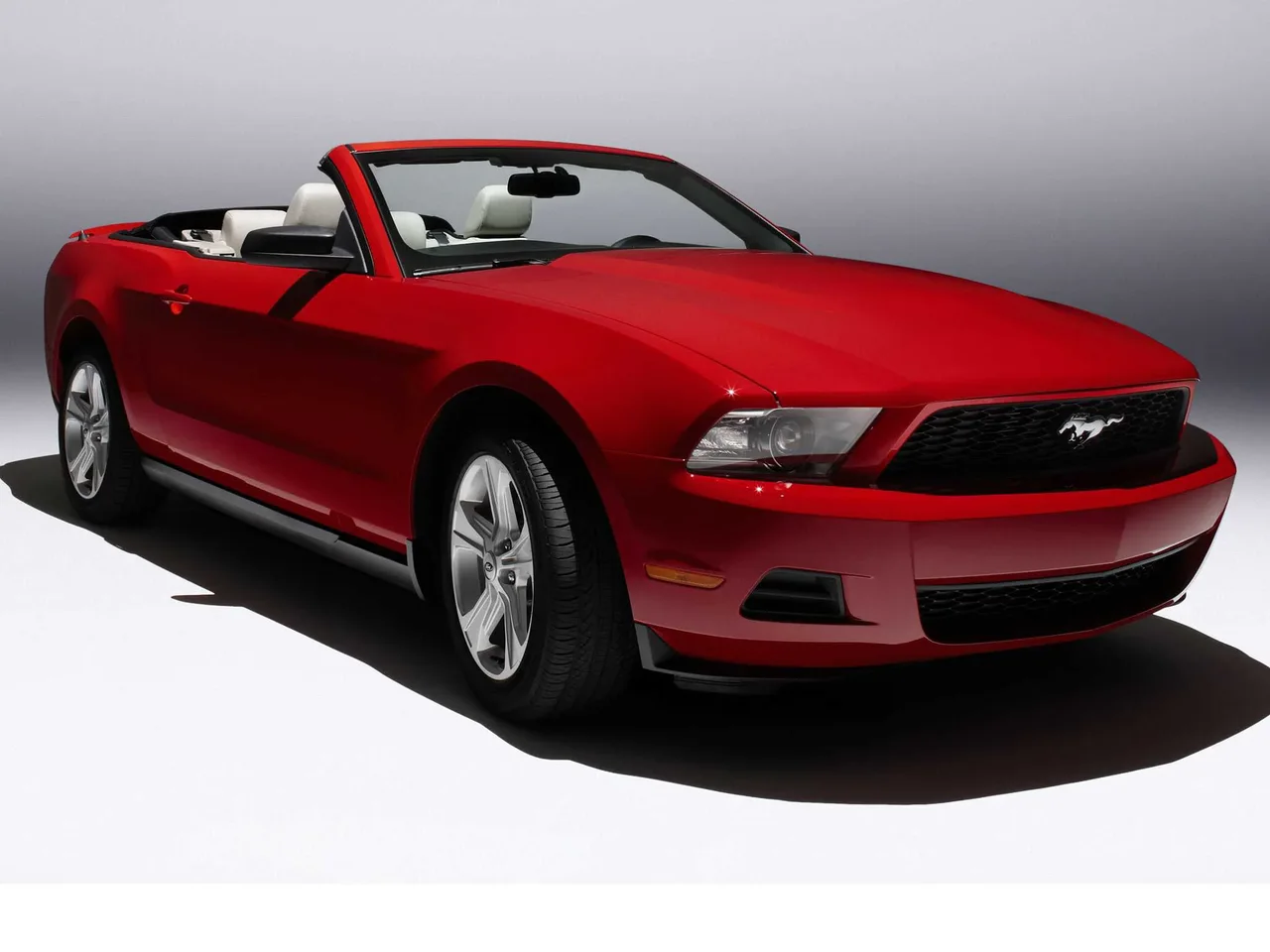

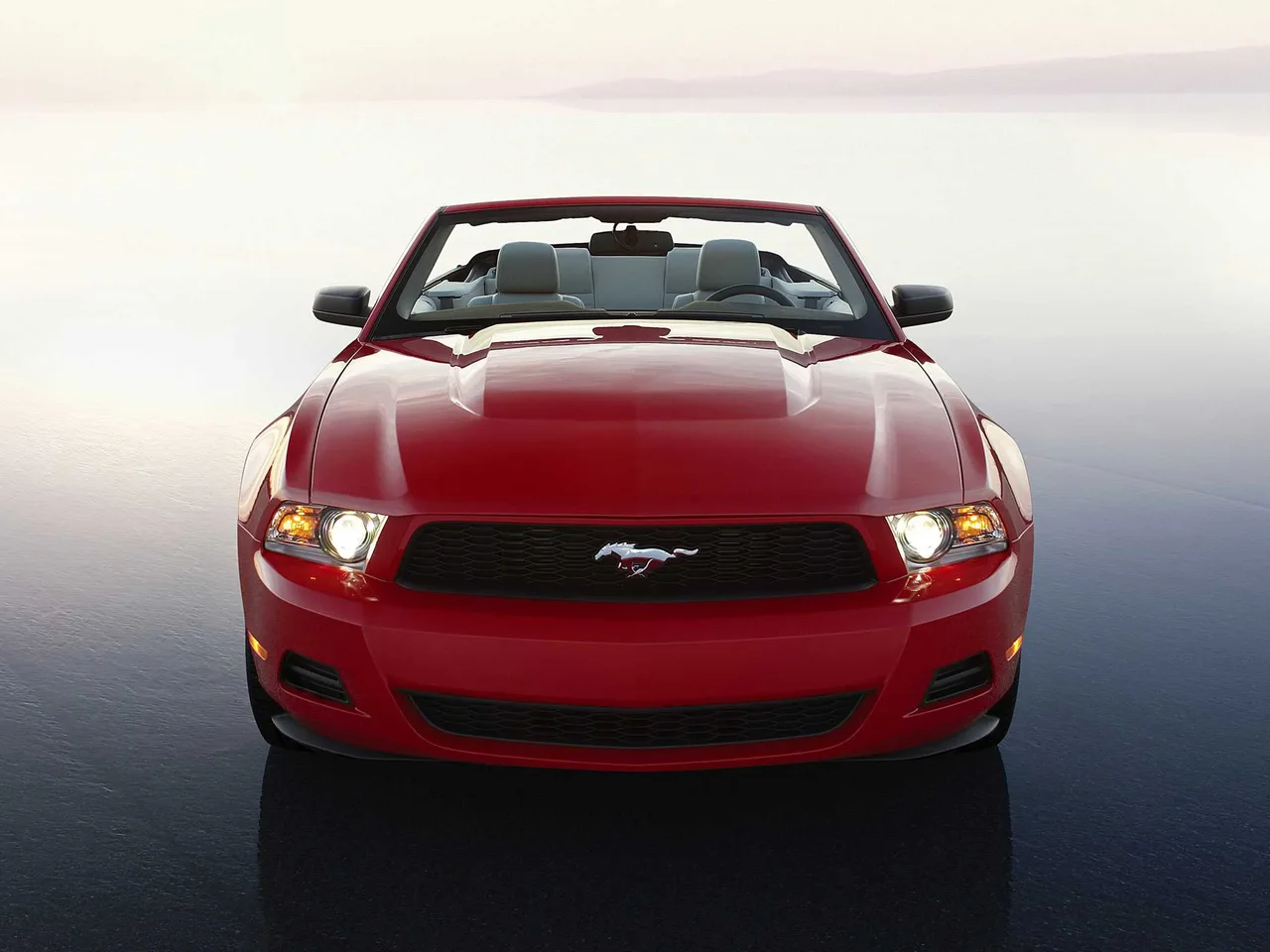

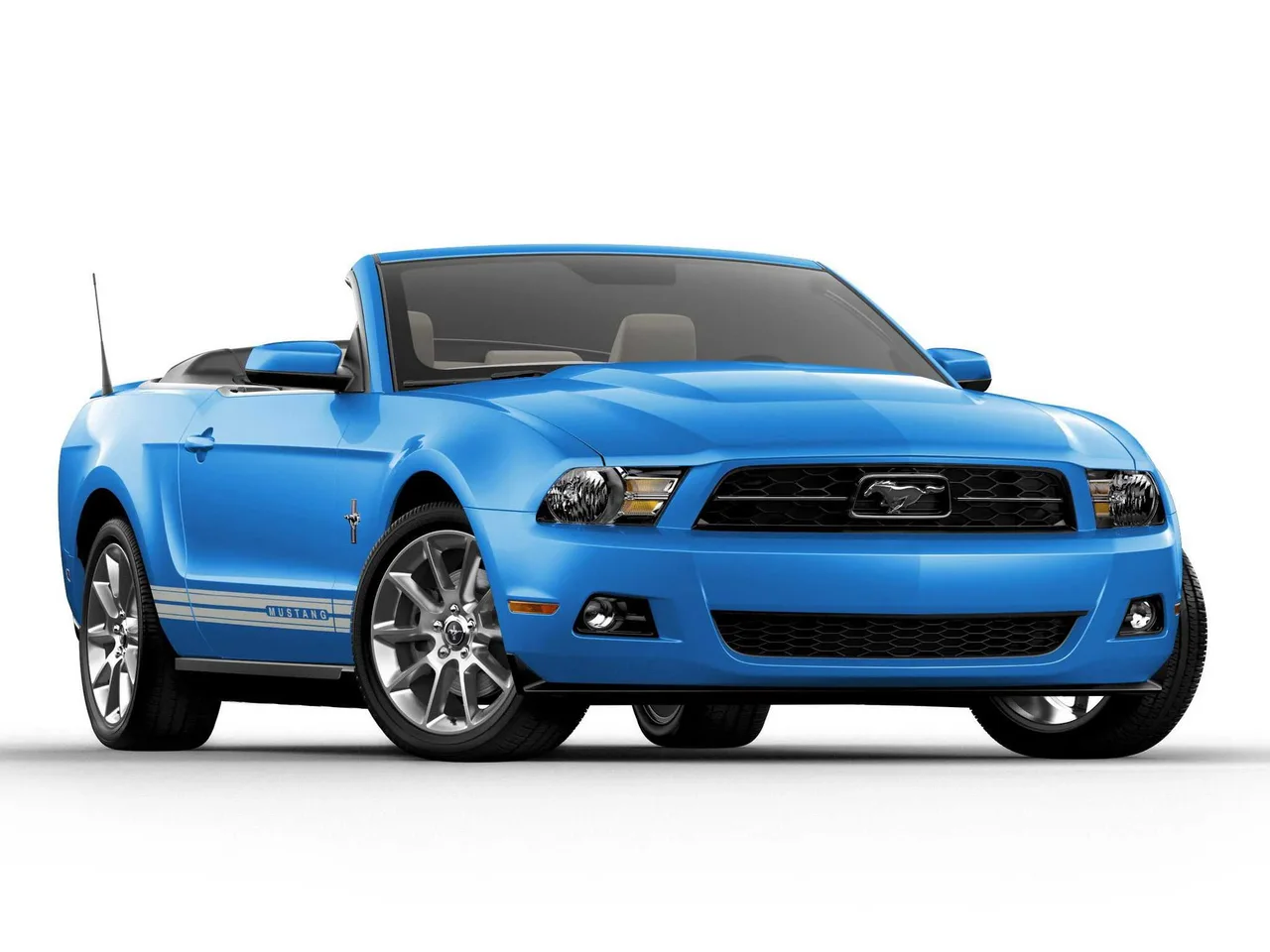

2010 Ford Mustang V6

United StatesGasolineRWDConvertible

Photos

Specifications

Vehicle Details

Year
2010
Make
Ford
Model
Mustang
Variant
V6
Body Style
Convertible
Generation
5th Generation 1st Facelift (S197 II)
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic
  • Manual, 5-speed

Powertrain

Engine Name
V6 Convertible
Engine Configuration
V
Power (hp)
213 hp
Power (kW)
157 kW
Torque
325 Nm (240 lb-ft)
Displacement
4,009 cc

Dimensions

Length
4,765 mm (187.6 in)
Width
1,877 mm (73.9 in)
Height
1,415 mm (55.7 in)
Wheelbase
2,720 mm (107.1 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,300 rpm
Rev. at Max Torque
5,300 rpm
Engine Configuration
Bore
100.3 mm (3.9 in)
Stroke
84.3 mm (3.3 in)
Compression Ratio
9.7 :1
Engine Configuration
V-Engine
Type of Combustion Engine
Piston

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 5-speed

Fuel

General › Fuel Cap Position
Rear
Left

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Dimensions & Weight

Exterior

Track, Front
1,585 mm (62.4 in)
Track, Rear
1,600 mm (63.0 in)
Ground Clearance
127 mm (5.0 in)

Interior

Head Room, Front
986 mm (38.8 in)
Head Room, Rear
927 mm (36.5 in)
Leg Room, Front
1,077 mm (42.4 in)
Leg Room, Rear
757 mm (29.8 in)
Shoulder Room, Front
1,405 mm (55.3 in)
Shoulder Room, Rear
1,143 mm (45.0 in)

Weight

Max Roof Load
0 kg (0 lb)

Exterior

Chassis & Body

Chassis
Chassis
Cabriolet Soft-top
Pillars
A
Chassis Construction
Unibody
Roof Material
Vinyl
Chassis › Roof Material
Textile
Optional
Doors
Front Doors
Conventional
Door Handles
Pull-up
Platform
Ford Motor Company
D2C Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Windscreen Wipers
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
Windows › Window Lifts, Features
One-touch up/down
  • Driver
  • Passenger
Other Equipment
Antenna
Whip

Lights

Rear Lights
LED
Fog Lights
Optional

Colour

Cabriolet Top Colour
Black

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
114.3
Central Bore (CB), front
70.3
Tightening Torque
135 Nm
Rim Material
Aluminium
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Buttons
Connectivity
Radio
  • AM
  • FM
Connectivity › Radio
XM
Optional
HD Radio
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Hard Drive
10 GB
MP3
Optional
Connectivity › Media Inputs
AUX
Armrest Hatch/Mid-console
Displays
Center Display
8"
Displays › Center Display
Touchscreen
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Coin Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Entry Guard
Ambient Light
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Carpets
Front
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Carpets
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
Tilt
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion
Answer Phone
Yes
Volume
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down
  • Resume

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
275 litres

Design

Interior Decor Colour
Black

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Optional
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Optional
Backrest Angle
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Second Seat Row
Number of Seats
2
Type of Seat
Adult

Features

Comfort Features

Keyless Entry
Yes
Remote Engine Start
Optional
Garage Remote Control
Optional
Cruise Control
Yes
Cameras
Optional
Voice Control
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional

Other Features

GPS
Optional
GPS
DVD
Optional
GPS › DVD
CD
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Emergency Assist
Yes

Brake Systems

Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Differential Lock
Limited Slip Differential (LSD)

Sensors

Parking Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
Frontal Crash
Front Driver Side
4/5 stars
Front Passenger Side
5/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
3/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
3/5 stars
Side Barrier Rating
4/5 stars
Overall Side Pole Star Rating
4/5 stars
Rollover
Rollover Resistance
8.7 %
Overall Safety Rating
4/5 stars
Overall Frontal Rating
4/5 stars
Overall Side Rating
4/5 stars
Rollver
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car
