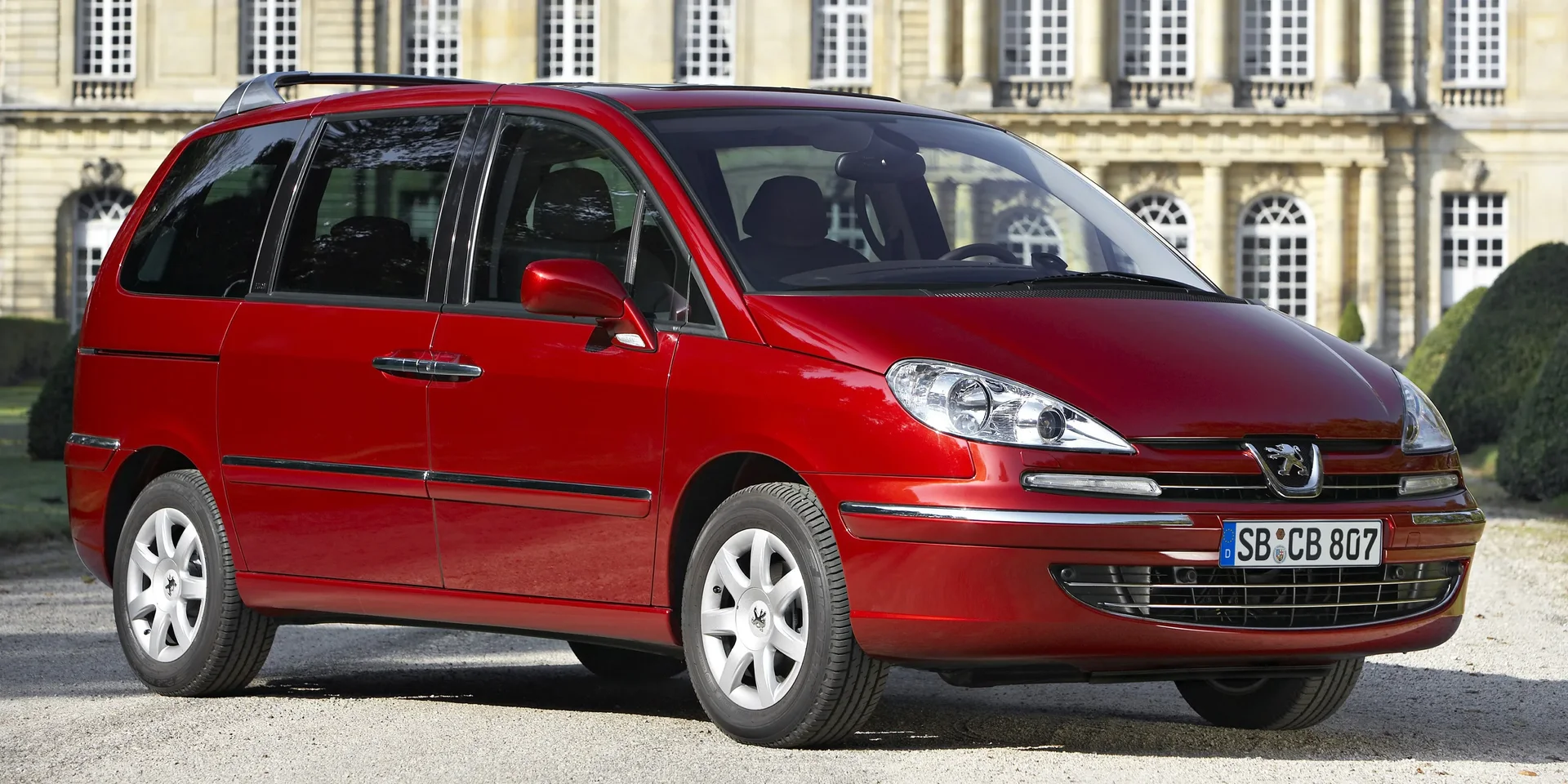

2010 Peugeot 807

FranceDieselFWDMinivan

Photos

Specifications

Vehicle Details

Year
2010
Make
Peugeot
Model
807
Body Style
Minivan
Generation
1st Generation Facelift
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

Engine Name
2.0 HDi FAP
Engine Configuration
Inline
Power (hp)
163 hp
Power (kW)
120 kW
Torque
340 Nm (251 lb-ft)
Top speed
196 km/h (122 mph)
0–60 mph
9.3 seconds (estimated)
0–100 km/h
9.8 seconds
Displacement
1,997 cc

Dimensions

Length
4,727 mm (186.1 in)
Width
1,850 mm (72.8 in)
Height
1,745 mm (68.7 in)
Wheelbase
2,823 mm (111.1 in)
Curb weight
1,896 kg (4,180 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,750 rpm
Rev. at Max Torque
2,000 rpm
Engine Fluids
Engine Oil, Volume
4.8 litres
Engine Configuration
Bore
85 mm (3.3 in)
Stroke
88 mm (3.5 in)
Compression Ratio
18 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Timing Interval
240,000 km / 10 years
Air Filter
60,000 km (37,282 mi)
Fuel Filter
30,000 km (18,641 mi)
Oil Change & Engine Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
80 litres
Emission
Emission Standard
Euro 5
Fuel Consumption NEDC
City
7.4 – 9.5 litres / 100 km
Highway
5 – 5.9 litres / 100 km
Combined
5.9 – 7.2 litres / 100 km
Emission NEDC
CO₂, Combined
155 – 189 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,194 mm (86.4 in)
Track, Front
1,570 mm (61.8 in)
Track, Rear
1,548 mm (60.9 in)
Overhang, Front
1,013 mm (39.9 in)
Overhang, Rear
891 mm (35.1 in)
Turning Circle
10.9 m
Ground Clearance
130 mm (5.1 in)

Interior

Head Room, Front
970 mm (38.2 in)
Hip Room, Front
1,530 mm (60.2 in)
Hip Room, Rear
1,600 mm (63.0 in)
Hip Room, Third Row
1,430 mm (56.3 in)
Shoulder Room, Front
1,680 mm (66.1 in)
Shoulder Room, Rear
1,686 mm (66.4 in)
Shoulder Room, Third Row
1,630 mm (64.2 in)

Weight

Gross Weight
2530 – 2590 kg (5,578 – 5,710 lb)
Max Trailer Load, braked 12%
1790 – 1850 kg (3,946 – 4,079 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
583 – 634 kg (1,285 – 1,398 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
76 kg (168 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Sliding (Left | Right)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Heated
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Front
Noise Reducing Windows
Front
Tinted Windows
  • Second Row
  • Rear Window
Front
Optional
Second Row Windows
Yes
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Roof Railing
Optional
Spoiler
Optional
Other Equipment › Spoiler
Fixed
Optional

Lights

Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Yes
Special Features
Come Home/Leaving Lights
Fog Lights
Front
Yes
Rear
Yes
Special Features
Automatic Headlight Activation
  • Yes
  • Optional
Headlight Washers
Optional
Headlight Range Adjustment
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
98
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
58.1
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
100 Nm
Rim Material
  • Alloy
  • Steel
Rim Type
Disc Wheel
Spare Wheel
Yes

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
Media Inputs
USB
Bluetooth
  • Yes
  • Optional
Connectivity › Media Format
DVD
Optional
WMA
  • Yes
  • Optional
Connectivity › Media Inputs
AUX
Yes
Connectivity › Bluetooth
Phone
  • Yes
  • Optional
Displays
Center Display
  • Yes
  • Optional
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
Light
Back Pocket
Yes
Coin Holder
Yes
Card Holder
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Rear
2
Lights
Read Light
Front
Guide Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
  • Make-up Light
Clock
Digital
12V Outlet
Front
Carpets
Yes
Ashtray
Front
Cigarette Lighter
Yes

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Cruise Control
Yes
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Barrier Net/Grid
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
480 litres
Volume, Back Seat Collapsed
2,948 litres
Depth
360 mm (14.2 in)
Depth, Back Seat Collapsed
1,960 mm (77.2 in)
Width
1,168 mm (46.0 in)
Sill Height
590 mm (23.2 in)

Design

Accent
Chrome
Transmission Knob Material
Leather

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Collapsible
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
  • Driver
  • Passenger
Second Seat Row
Collapsible
Manual
Foldable Table
On Backrest
Height Adjustment
Yes
Tilt Adjustment
Yes
Second Seat Row › Collapsible
Heated Seats
Optional
Third/Fourth Seat Row
Third Seat Row
Optional

Features

Comfort Features

Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Yes

Other Features

GPS
  • Yes
  • Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Yes

Safety Testing

General
Test Year
2003
Adult Occupant
5/5 stars
Pedestrian
1/4 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Right Side Casing of Window
Yes
Pillar
  • B-Pillar, Left
  • B-Pillar, Right

Car Classification

American Classification
Minivan
British Classification
Large MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Large MPV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Fog Light, Front
H1
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front Side
W2.1×9.5d (W5W)
Rear/Brake Light
  • BAY15d (P21/5W)
  • W2.1×9.5d (W5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Side Mirrors
W2.1×9.5d (WY5W)
Turn Indicators, Rear
BAU15s (PY21W)
License Plate Light
W2.1×9.5d (W5W)
