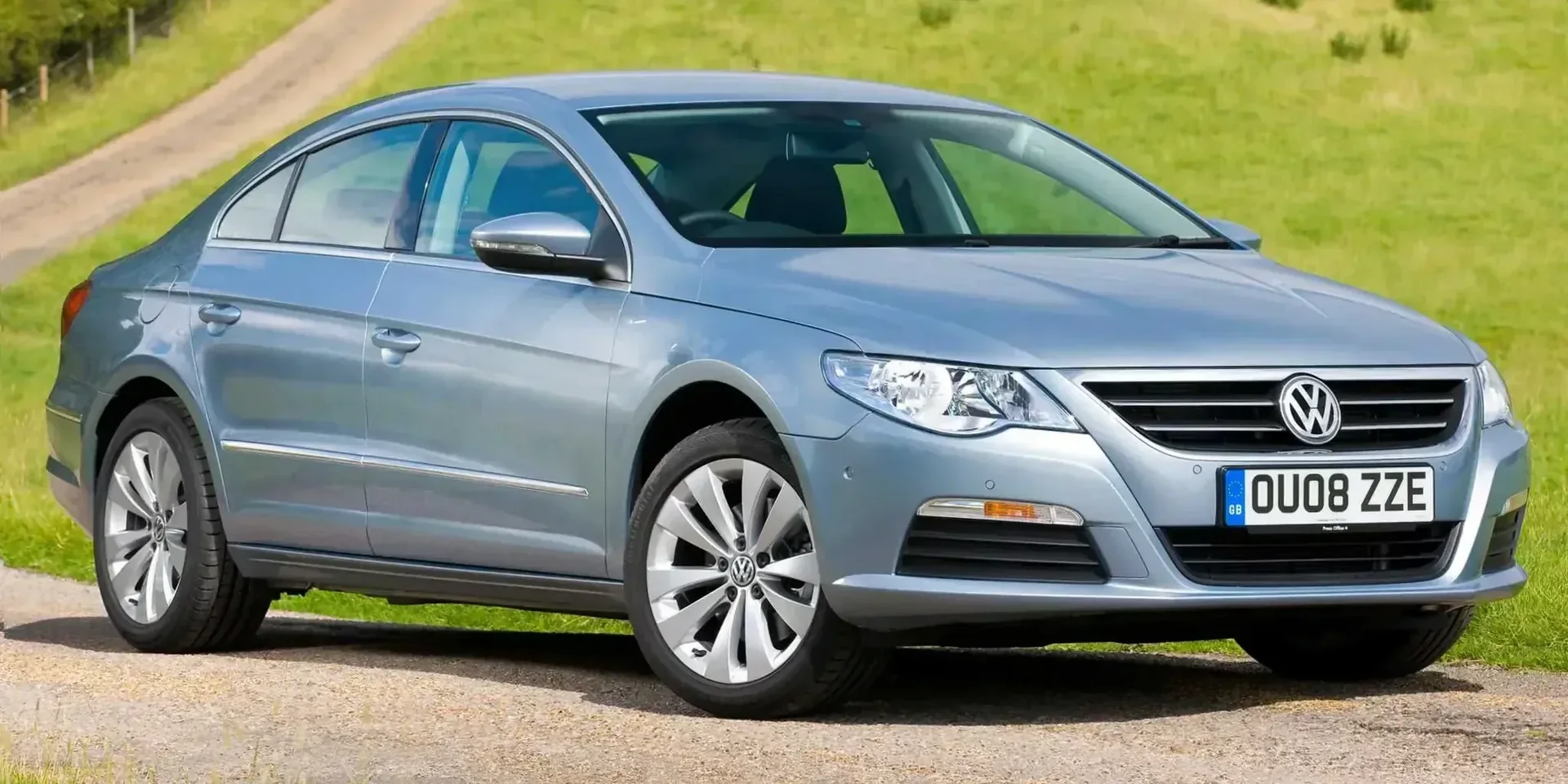

2010 Volkswagen CC Passat CC 4-seater

GermanyGasolineFWDCoupe

Photos

Specifications

Vehicle Details

Year
2010
Make
Volkswagen
Model
CC
Variant
Passat CC 4-seater
Body Style
Coupe
Generation
B6 (Typ 357)
Seats
4
Doors
4
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Powertrain

Engine Name
Passat CC 4-seater 1.8 TSI
Engine Configuration
Inline
Power (hp)
160 hp
Power (kW)
118 kW
Torque
250 Nm (184 lb-ft)
Top speed
220 km/h (137 mph)
0–60 mph
8.1 seconds (estimated)
0–100 km/h
8.5 seconds
Displacement
1,798 cc

Dimensions

Length
4,799 mm (188.9 in)
Width
1,855 mm (73.0 in)
Height
1,417 mm (55.8 in)
Wheelbase
2,711 mm (106.7 in)
Curb weight
1,430 kg (3,153 lb)

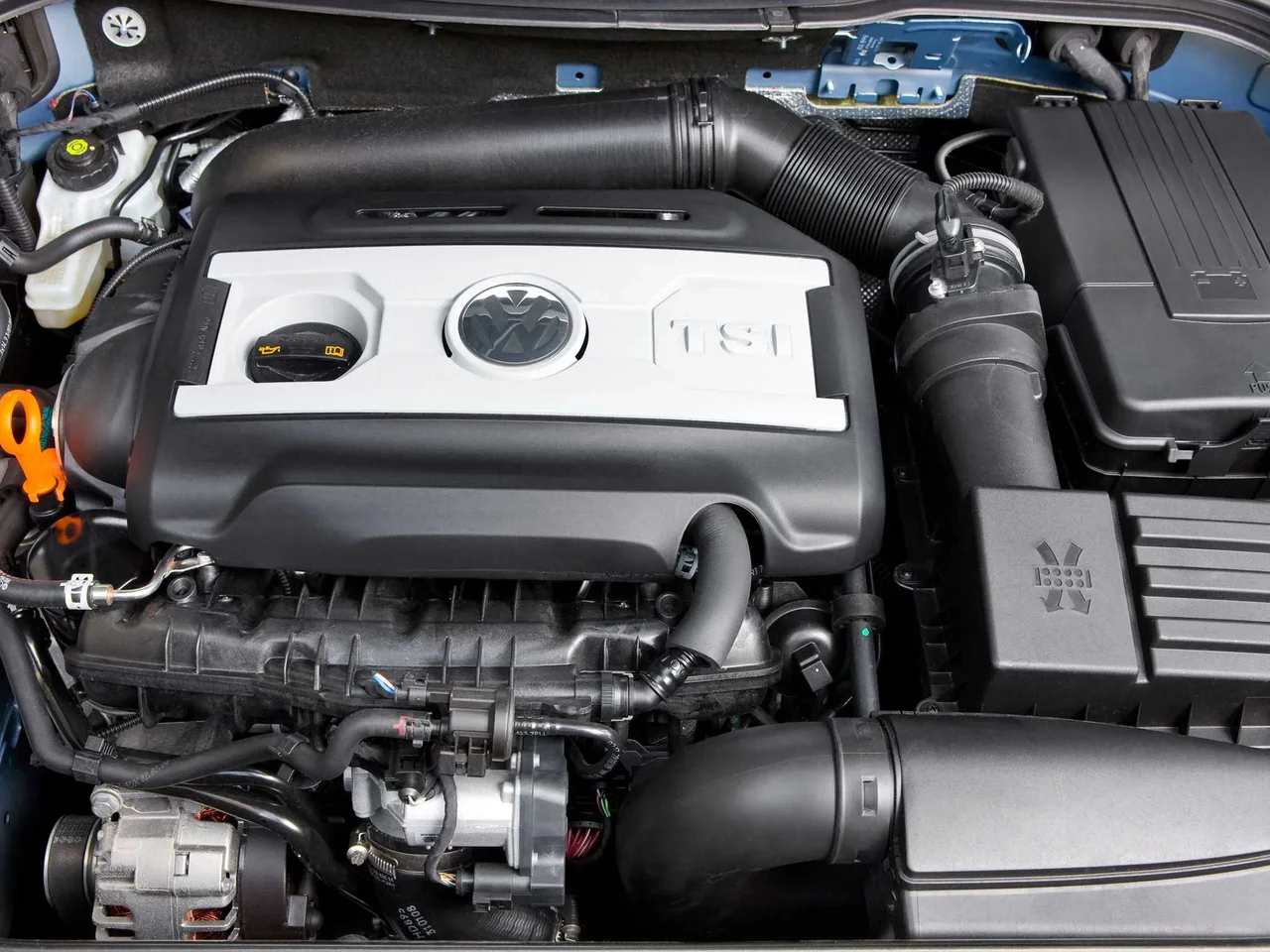

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 - 6,200 rpm
Rev. at Max Torque
1,500 - 4,200 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
4.7 litres
Car Battery
Voltage
12 V
Battery Capacity
70 Ah
Alternator Charge Current
140 A
Alternator Voltage
14 V
Engine Configuration
Bore
82.5 mm (3.2 in)
Stroke
84.2 mm (3.3 in)
Compression Ratio
9.6 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
90,000 km / 6 years
Spark Plug
90,000 km / 6 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
70 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 4
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption NEDC
City
9.6 – 10.2 litres / 100 km
Highway
5.9 - 5.9 – 6 litres / 100 km
Combined
7.3 - 7.3 – 7.6 litres / 100 km
Emission NEDC
CO₂, Combined
172 - 172 – 178 g/km

Performance

Acceleration
0-80 km/h
6 sec
80-120 km/h
12.5 sec
Drag Coefficient
0.3

Dimensions & Weight

Exterior

Width, with Mirrors
2,090 mm (82.3 in)
Width, open Doors
3,739 mm (147.2 in)
Height (Bonnet Open)
1,750 mm (68.9 in)
Track, Front
1,552 mm (61.1 in)
Track, Rear
1,559 mm (61.4 in)
Overhang, Front
981 mm (38.6 in)
Overhang, Rear
1,105 mm (43.5 in)
Approach Angle
13 °
Breakover Angle
10
Departure Angle
12.6 °
Turning Circle
11.4 m
Ground Clearance
127 mm (5.0 in)

Interior

Head Room, Front
949 - 955 mm (37.4 - 37.6 in)
Head Room, Rear
930 mm (36.6 in)
Leg Room, Front
1,057 mm (41.6 in)
Leg Room, Rear
947 mm (37.3 in)
Knee Room, Rear
82 mm (3.2 in)
Hip Room, Front
1,461 mm (57.5 in)
Hip Room, Rear
1,497 mm (58.9 in)
Shoulder Room, Front
1,422 mm (56.0 in)
Shoulder Room, Rear
1,389 mm (54.7 in)

Weight

Gross Weight
1920 – 1940 kg (4,233 – 4,277 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, braked 8%
1,700 kg (3,748 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
490 – 502 kg (1,080 – 1,107 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
90 kg (198 lb)
Permitted Axle Load, front
1040 – 1060 kg (2,293 – 2,337 lb)
Permitted Axle Load, rear
930 kg (2,050 lb)

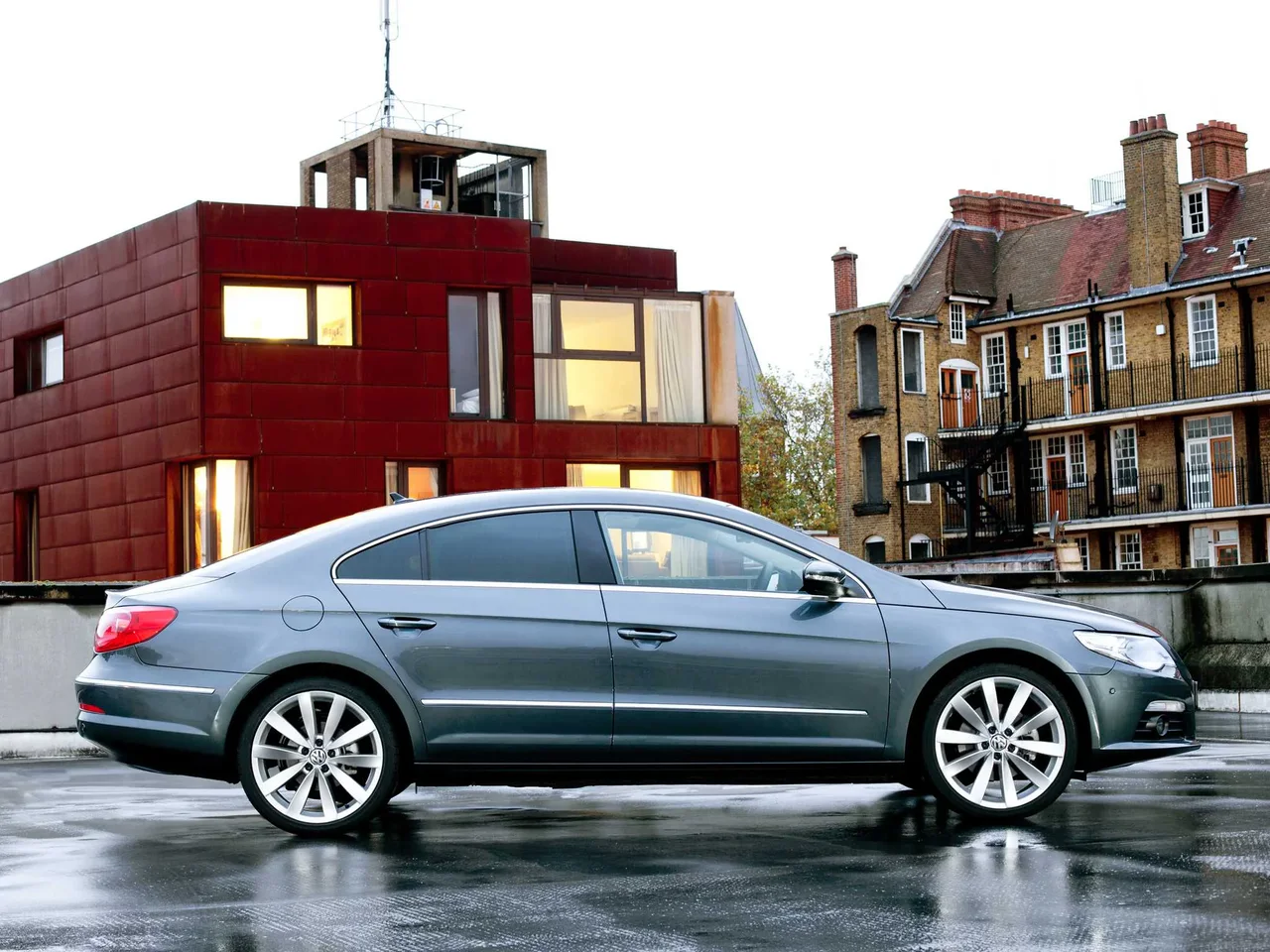

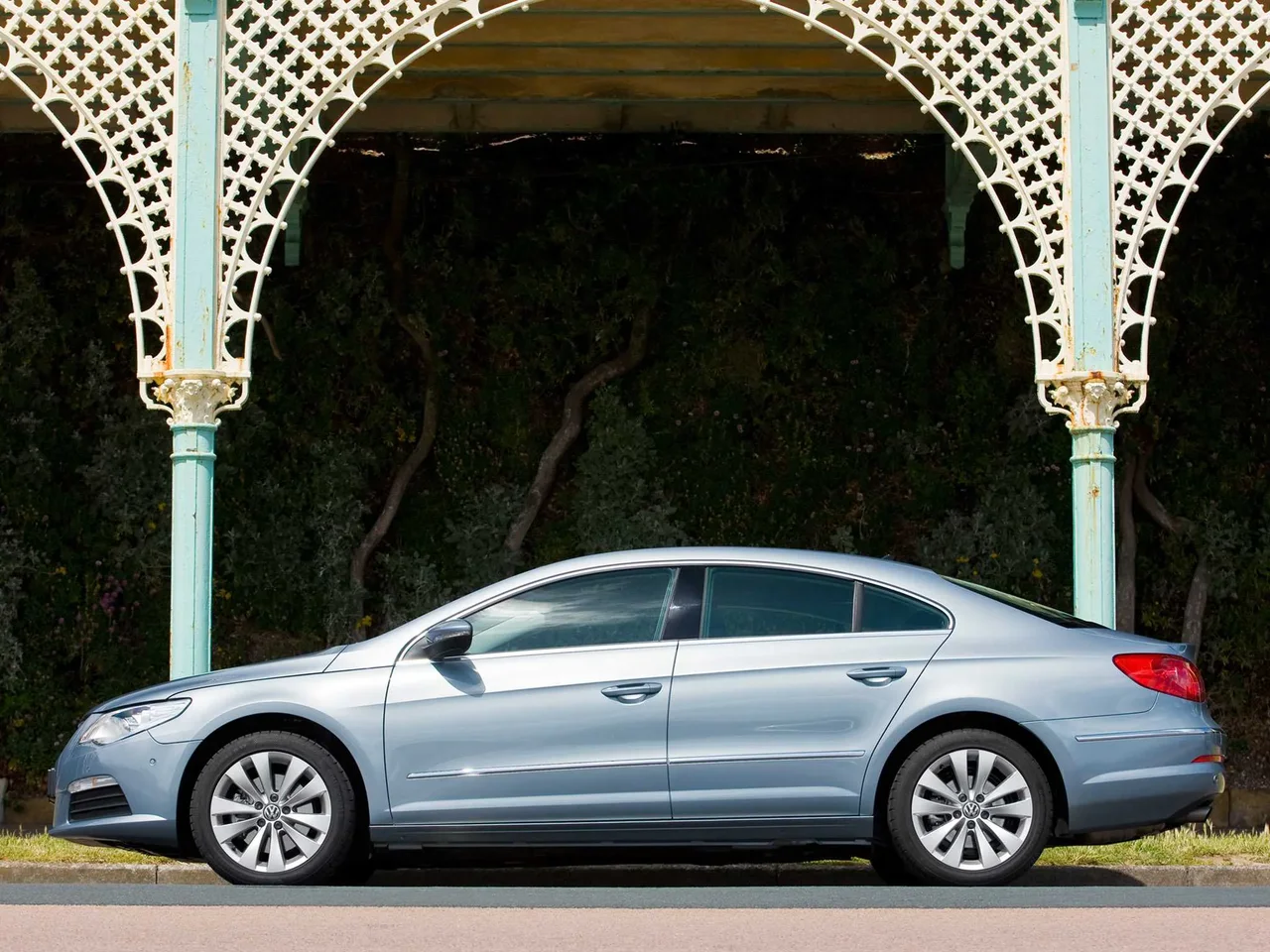

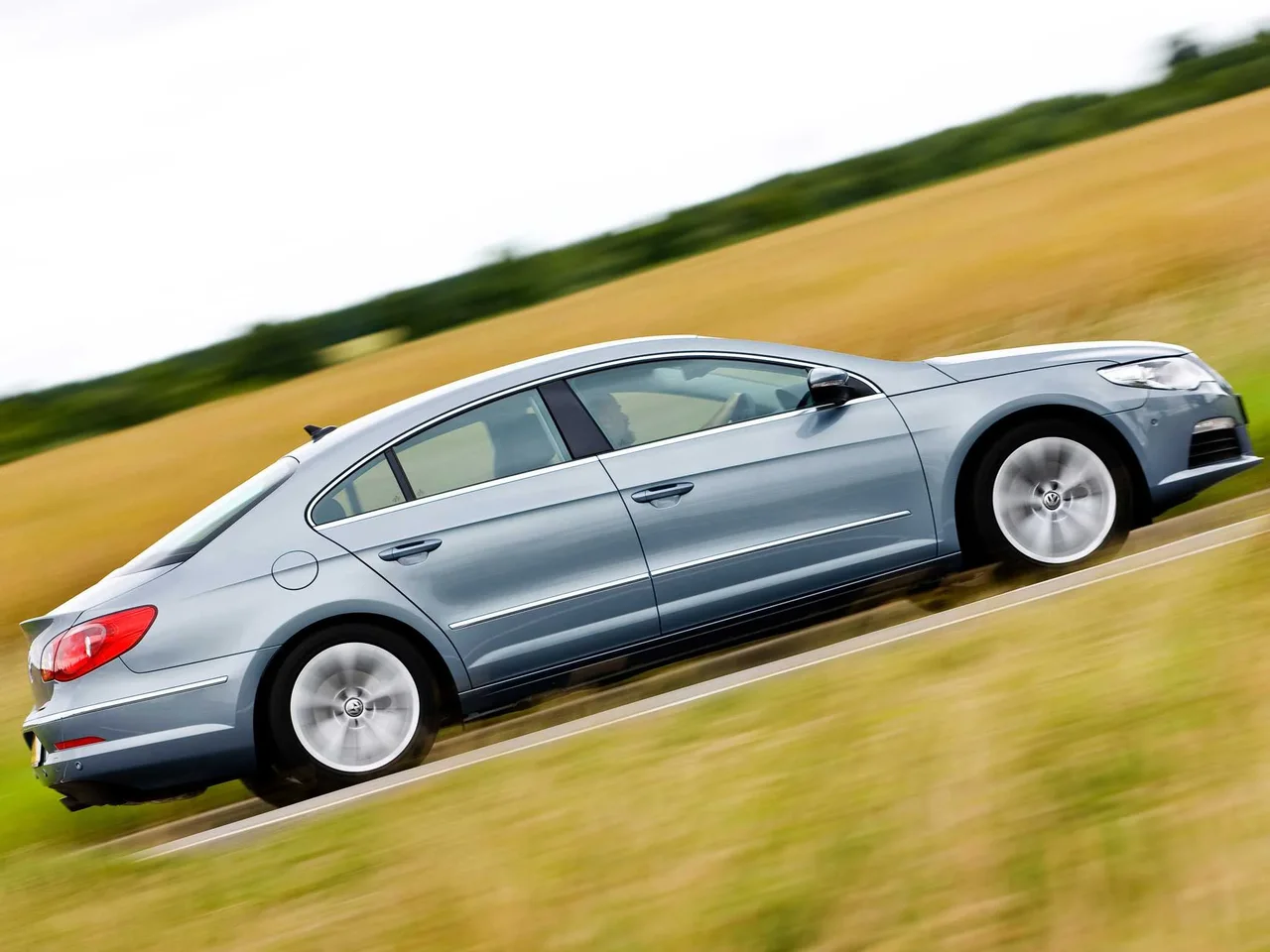

Exterior

Chassis & Body

Chassis
Chassis
Coupé
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Soft Close
Optional
Door Handles
Pull-out
Platform
Volkswagen Group
A6/PQ46

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Frameless Windows
  • First Row
  • Second Row
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Fog Lights
Yes
Fog Lights
Rear
Yes
Special Features
Automatic Headlight Activation
Optional
Adaptive Headlights
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Dynamic | Semi-Static)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Fastening Type
Lug Bolts
Tightening Torque
120 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Tire Pressure Monitoring System (TPMS)
Indirect
Optional
Spare Wheel
Full-size
Optional
Temporary
Optional
Spare Wheel › Full-size
Alloy
Optional
Steel
Optional

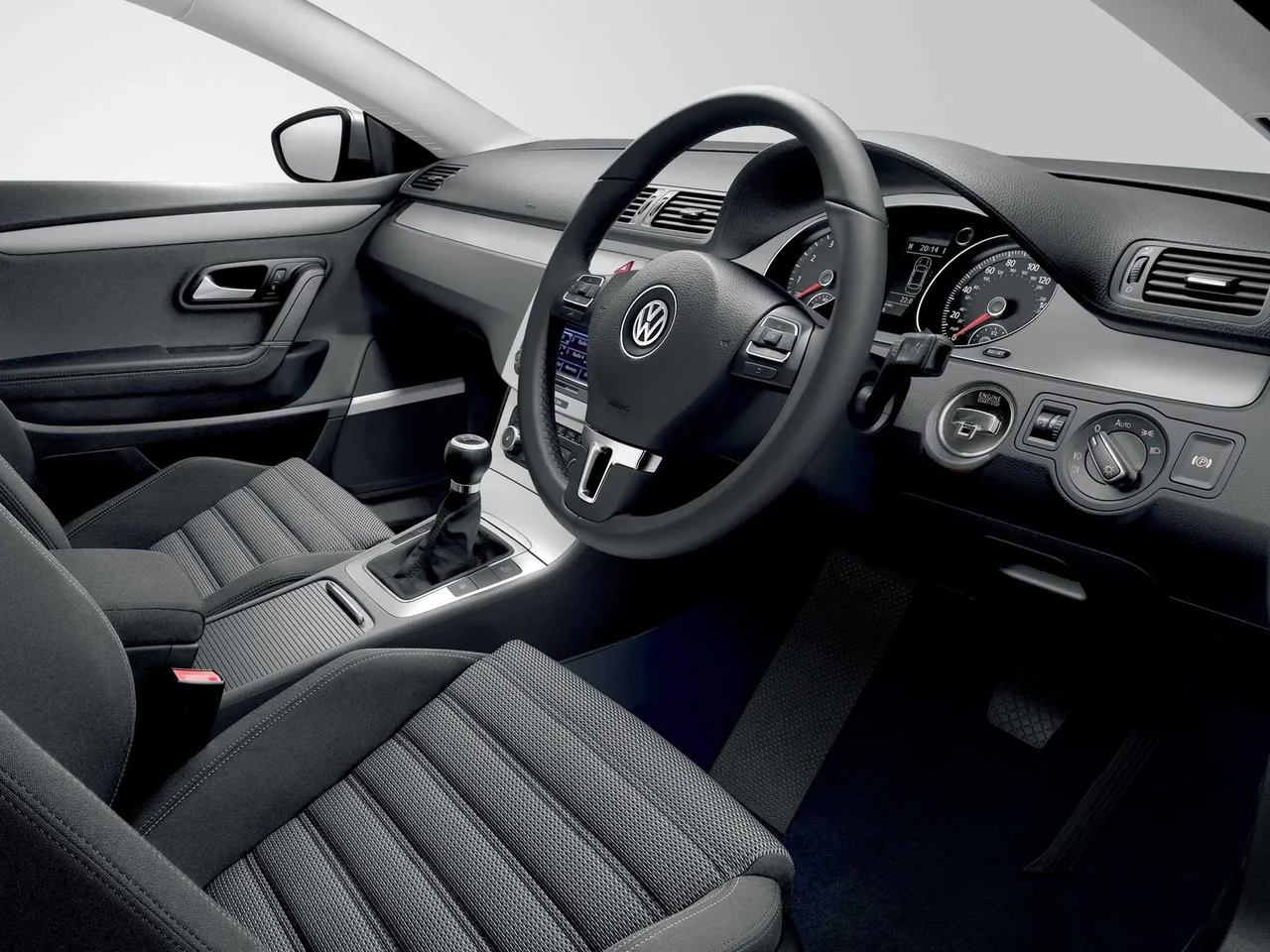

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
Media Format
  • MP3
  • WMA
Bluetooth
  • Phone
  • Audio
Connectivity › Media Format
CD
Yes
DVD
Optional
Memory Card Reader
SD
Connectivity › Media Inputs
AUX
Yes
USB
Optional
Connectivity › Media Inputs › USB
Front
Optional
USB-A
Optional
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Analogue
Dashboard
Digital
Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Carpet
Optional
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
532 litres
Depth
1,184 mm (46.6 in)
Depth, Back Seat Collapsed
1,949 mm (76.7 in)
Width, Between Wheel Arches
996 mm (39.2 in)
Height
450 mm (17.7 in)
Trunk Door Opening Height
1,792 mm (70.6 in)
Carpet
Rubber
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Number of Heat Levels
3
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
2
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Optional
Parking Heater
Optional
Cameras
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2009
Overall Score
33.99
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
13.99
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Not Assessed
Pedestrian
Protection (Assessment)
Marginal
Safety Assist
Seat Belt Reminders
2
IIHS
Test Year
2012
Small Overlap Front: Driver Side
Marginal
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Headlight
Acceptable
Latch Ease of Use
Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Trunk
on Floor

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car

Similar coupes

Suggested vehicles
