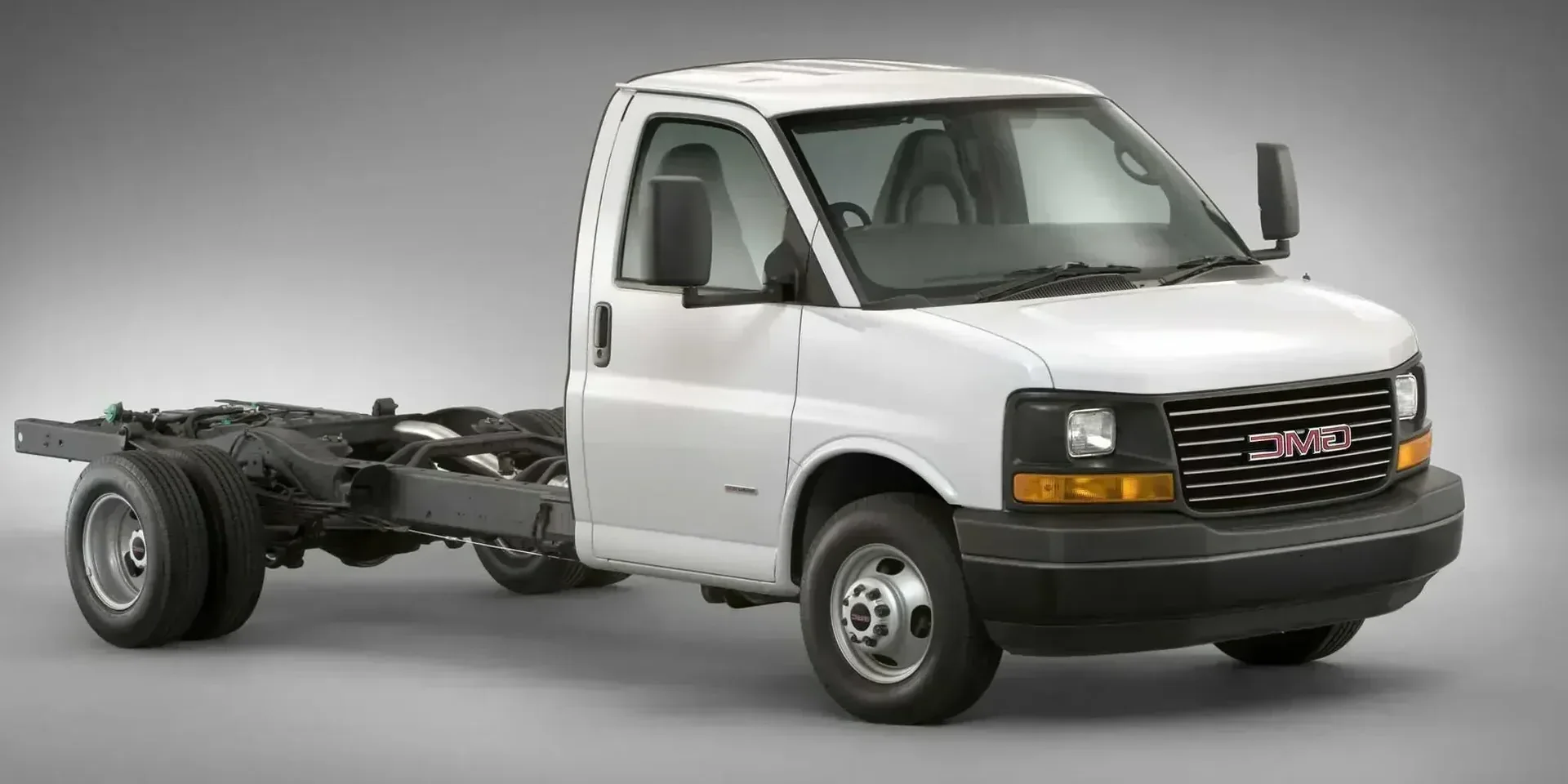

2011 GMC Savana G4500

United StatesDieselRWDLCV

Photos

Specifications

Vehicle Details

Year
2011
Make
GMC
Model
Savana
Variant
G4500
Body Style
LCV
Generation
GMT610 Facelift
Seats
1
Doors
2
Fuel
Diesel
Drivetrain
RWD
Transmission
Automatic (Electrohydraulic), 6-speed

Powertrain

Engine Name
G4500 Cutaway Van Hydra-Matic
Engine Configuration
V
Power (hp)
264 hp
Power (kW)
194 kW
Torque
727 Nm (536 lb-ft)
Displacement
6,599 cc

Dimensions

Width
2,018 mm (79.4 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,100 rpm
Rev. at Max Torque
1,600 rpm
Redline
3,450 rpm
Engine Fluids
Semi-synthetic Oil (viscosity)
  • 10W-30
  • 15W-40
Engine Oil, Volume
9.8 litres
Engine Coolant, Volume
18.9 litres
Full Synthetic Viscosity
10W-30
Engine Fluids › Engine Coolant
OAT
GM OE DEX-COOL
Car Battery
Voltage
12 V
Battery Capacity
61 Ah
Cold Start Power
770 A
Alternator Charge Current
145 A
Alternator Voltage
14 V
Engine Configuration
Bore
103 mm (4.1 in)
Stroke
99 mm (3.9 in)
Compression Ratio
16.8 :1
Engine Configuration
V-Engine
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
OHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
72,000 km / 4 years
Fuel Filter
36,210 km (22,500 mi)
Oil Change & Engine Filter
12,070 km / 1 years
Engine Coolant
240,000 km / 5 years
Transmission, Fluid
80,000 km (49,710 mi)
Transmission, Fluid Filter
80,000 km (49,710 mi)
Accessory Belt
240,000 km (149,129 mi)

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 6-speed
Gear Selector
Stalk
Gear Selector Location
Steering Column
Overdrive
Yes
Gear Ratio
1st Gear
4.03 :1
2nd Gear
2.36 :1
3rd Gear
1.53 :1
4th Gear
1.15 :1
5th Gear
0.85 :1
6th Gear
0.67 :1
Final Drive
3.73 :1
Reverse
3.06 :1

Fuel

General
Tank Volume
125 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Catalyst
  • Particle Filter
  • Exhaust Gas Recirculation
Emission › Emission Control
Selective Catalyst Reduction (SCR)
Yes
Emission › Emission Control › Selective Catalyst Reduction (SCR)
Tank Volume (DEF)
20 litres

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
345 mm (13.6 in)
Width
40 mm (1.6 in)
Cooling
Ventilated
Rear Brakes
Diameter
330 mm (13.0 in)
Width
30 mm (1.2 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Leaf (Longitudinal Spring)
Anti-roll Bar
Yes
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Dependent
Beam Axle (Dead Axle)
Anti-roll Bar
Front
35 mm (1.4 in)

Dimensions & Weight

Exterior

Track, Front
1,721 mm (67.8 in)
Track, Rear
1,721 mm (67.8 in)
Overhang, Front
1,008 mm (39.7 in)
Ground Clearance
173 - 178 mm (6.8 - 7.0 in)

Interior

Head Room, Front
1,021 mm (40.2 in)
Leg Room, Front
1,049 mm (41.3 in)
Hip Room, Front
1,664 mm (65.5 in)
Shoulder Room, Front
1,748 mm (68.8 in)

Weight

Max Towbar Download
181 kg (399 lb)
Permitted Axle Load, front
2,087 kg (4,601 lb)
Permitted Axle Load, rear
4,354 kg (9,599 lb)

LCV Specific

General
Version
  • L2H1
  • L3H1
Dimensions › Length
L2
6,774 mm (266.7 in)
L3
7,234 mm (284.8 in)
Dimensions › Height
L2H1
2,106 mm (82.9 in)
L3H1
2,106 mm (82.9 in)
Dimensions › Wheel Base
L2
4,039 mm (159.0 in)
L3
4,496 mm (177.0 in)

Exterior

Chassis & Body

Chassis
Chassis
LCV (LCV Chassis)
Pillars
A-B
Chassis Construction
Body-on-Frame (Ladder Frame)
Body Material
Steel
Doors
Front Doors
Conventional
Door Handles
Pull-up
Platform
General Motors Platforms
GMT Platform (GMT610)

Equipment

Side Mirrors
Mirror Type
Conventional
Folding
Manual
Heated
Optional
Turning Signal
Optional
Windscreen Wipers
Number of Wiper Speeds
2
Integrated Water Nozzles in Wipers
Yes
Intermittent Control
Yes
Windows
Window Lifts, Front
Manual
Heat-Insulating Windows
  • Front
  • First Row
Tinted Windows
Optional
Windows › Window Lifts, Front
Powered
  • Yes
  • Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Other Equipment
Antenna
Optional
Air Intakes
1-port
Number of Exhaust Pipes
1
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Daytime Running Light
Halogen

Colour

Bumper
Optional
Door Handles
Non-painted

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
8 pcs
Nut/Bolt Dimensions
M14x1.5
Fastening Type
Lug Nuts
Tightening Torque
190 Nm
Rim Material
Steel
Rim Type
Disc Wheel
Spare Wheel
Optional
Dual Rear Wheels
Optional
Spare Wheel
Full-size
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Voltmeter
Analogue
Oil Pressure
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Compass
Optional
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Air Condition
Optional
Outside Temperature Indicator
Optional
Number of Vents, Front
5 pcs
Controls
Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
900 g
Connectivity
Radio
Optional
Bluetooth
Optional
WiFi
Optional
Connectivity › Radio
AM
Optional
FM
Optional
XM
Optional
RDS
Optional
CD
Optional
DVD
Optional
MP3
Optional
WMA
Optional
Connectivity › Media Inputs
AUX
Optional
USB
Optional
Connectivity › Media Inputs › USB
USB-A
Optional
Number of Ports
1 pcs
Connectivity › Bluetooth
Phone
Optional
Displays
Equalizer
Optional
Speakers
Total Number of Speakers
2 pcs
Interior Storage › Storage Compartments
Door
  • Driver Side
  • Passenger Side
Total Number of Compartments
12 pcs
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
3
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Optional
Lights › Read Light
Front
Optional
Other Equipment › Make-up Mirror
Driver Side
Optional
Passenger Side
Optional
Make-up Light
Optional
Other Equipment
Clock
Yes
12V Outlet
Front
110V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Clock
Digital
Dashboard
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Hydraulic
Number of Spokes
4
Material
Plastic
Colour
Black
Steering Ratio
17.2 :1
Steering Mechanism
Recirculating Ball
Multifunction Steering Wheel
Number of Buttons
7 - 11 pcs
Power Steering
Tilt
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Manual
Front Seats
Number of Driver Seat Adjustments, Manual
2 - 4
Number of Driver Seat Adjustments, Powered
6
Number of Driver Seat Adjustments, Total
4 - 8
Number of Passenger Seat Adjustments, Manual
2 - 4
Number of Passenger Seat Adjustments, Powered
6
Number of Passenger Seat Adjustments, Total
4 - 8
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Armrest
  • Driver
  • Passenger
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Manual

Design

Interior Decor Material
Plastic
Transmission Knob Material
Plastic
Entry Guard Material
Plastic

Features

Comfort Features

Keyless Entry
Optional
Remote Engine Start
Optional
Cruise Control
Optional
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Optional
Parking Heater
Engine Heater
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional

Accessories

Tool Kit and Jack
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Yes
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Central Locking
Optional
Emergency Call
Optional
Reversing Alarm
Optional
Number of Remote Keys
2
Number of Standard Keys
2
Total Number of Keys
4
Central Locking
Remote
Optional

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Curtain Airbag
Airbag cut-off Switch

Other

Identification

VIN Location
Left Side Casing of Window
Yes
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

European Segment
M-Segment
Car.info Classification
Commercial Chassis
