2015–2020
Specifications
Vehicle Details
- Year
- 2014
- Make
- Ram
- Model
- ProMaster
- Body Style
- LCV
- Generation
- VF
- Seats
- 1
- Doors
- 4
- Fuel
- Gasoline
- Drivetrain
- FWD
- Transmission
- Automatic (Electrohydraulic), 6-speed
Powertrain
- Engine Name
- 3.6 V6 Automatic
- Engine Configuration
- V
- Power (hp)
- 284 hp
- Power (kW)
- 209 kW
- Torque
- 353 Nm (260 lb-ft)
- Displacement
- 3,604 cc
Dimensions
- Width
- 2,050 mm (80.7 in)
- Curb weight
- 2,068 kg (4,559 lb)
Engine
Engine Specification
- Rev. at Max Power
- 6,400 rpm
- Rev. at Max Torque
- 4,175 rpm
Engine Fluids
- Synthetic Oil (viscosity)
- 5W-20
- Engine Oil, Volume
- 5.6 litres
- Engine Coolant, Volume
- 10 litres
Engine Fluids › Engine Coolant
- OAT
- Yes
Car Battery
- Voltage
- 12 V
- Battery Capacity
- 95 Ah
- Alternator Charge Current
- 180 - 220 A
- Alternator Voltage
- 14 V
Engine Configuration
- Bore
- 96 mm (3.8 in)
- Stroke
- 83 mm (3.3 in)
- Compression Ratio
- 10.2 :1
- Engine Configuration
- V-Engine
- Naturally Aspirated
- Yes
- Synchronization
- Timing Chain
- Engine Placement
- Front
- Engine Mount
- Transversally
- Type of Combustion Engine
- Piston
- Fuel System
- Electronic (Multi-Point) Fuel Injection
- Camshaft Type
- DOHC
- Engine Block
- Aluminium
- Engine Heads
- Aluminium
- Engine Cooling
- Liquid Cooling
Service Intervals
- Air Filter
- 48,000 km / 3 years
- Spark Plug
- 160,000 km (99,419 mi)
- Brake Fluid
- 2 years
- Oil Change & Engine Filter
- 16,000 km / 1 years
- Engine Coolant
- 240,000 km / 10 years
- Transmission, Fluid
- 96,000 km / 6 years
- Transmission, Fluid Filter
- 96,000 km / 6 years
- Interior Filter
- 32,000 km / 2 years
Transmission & Drivetrain
- Transmission
- Automatic (Electrohydraulic), 6-speed
- Overdrive
- Yes
Gear Ratio
- 1st Gear
- 3.9 :1
- 2nd Gear
- 2.69 :1
- 3rd Gear
- 2.16 :1
- 4th Gear
- 1.37 :1
- 5th Gear
- 0.95 :1
- 6th Gear
- 0.65 :1
- Final Drive
- 3.16 :1
- Reverse
- 3.04 :1
Fuel
General
- Tank Volume
- 90 litres
General › Fuel Cap Position
- Front
- Left
Emission
- Emission Control
- Catalyst
- Evaporative Control System
- Exhaust Gas Recirculation
- Positive Crankcase Ventilation
Brakes
Parking Brake
- Manual
- Lever
Parking Brake › Manual
- Material
- Plastic
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
Front Brakes
- Diameter
- 300 mm (11.8 in)
- Width
- 32 mm (1.3 in)
- Cooling
- Ventilated
Rear Brakes
- Diameter
- 279 mm (11.0 in)
- Width
- 16 mm (0.6 in)
Suspensions
- Spring, Front
- Coil
- Spring, Rear
- Leaf (Longitudinal Spring)
- Anti-roll Bar
- Front
Suspension, Front
- Independent
- MacPherson Strut
Suspension, Rear
- Dependent
- Beam Axle (Dead Axle)
Exterior
- Width, with Mirrors
- 2,690 mm (105.9 in)
Weight
- Max Trailer Load, braked 12%
- 2,313 kg (5,099 lb)
- Max Trailer Load, unbraked
- 453 kg (999 lb)
- Gross Train Weight
- 5,216 kg (11,499 lb)
- Cargo Capacity
- 1,706 - 1,810 kg (3,761 - 3,990 lb)
- Permitted Axle Load, front
- 2,100 kg (4,630 lb)
- Permitted Axle Load, rear
- 2,400 kg (5,291 lb)
LCV Specific
General
- Version
- L1H1
- L2H1
- L2H2
Dimensions › Length
- L1
- 4,963 mm (195.4 in)
- L2
- 5,412 mm (213.1 in)
Dimensions › Height
- L1H1
- 2,253 mm (88.7 in)
- L1H2
- 2,525 mm (99.4 in)
Dimensions › Wheel Base
- L1
- 2,997 mm (118.0 in)
- L2
- 3,454 mm (136.0 in)
Dimensions › Turning Circle
- L1
- 11.06 m
- L2
- 12.4 m
Side Door › Side Door Height
- H1
- 1,486 mm (58.5 in)
- H2
- 1,753 mm (69.0 in)
Side Door › Side Door Width
- L1
- 1,074 mm (42.3 in)
- L2
- 1,250 mm (49.2 in)
Rear Doors › Rear Doors Height
- L1H1
- 1,519 mm (59.8 in)
- H2
- 1,791 mm (70.5 in)
Cargo Space › Cargo Volume
- L1H1
- 7,340 litres
- L2H1
- 8,600 litres
- L2H2
- 9,993 litres
Cargo Space › Depth
- L1
- 2,670 mm (105.1 in)
- L2
- 3,119 mm (122.8 in)
Cargo Space › Height
- H1
- 1,699 mm (66.9 in)
- H2
- 1,958 mm (77.1 in)
Cargo Space
- Space Width
- 1,920 mm (75.6 in)
Cargo Space › Space Width, Between Wheel Arches
- L1
- 1,422 mm (56.0 in)
Weight
- Curb Weight
- 2068
- 2117
- 2169 kg (4,782 lb)
Weight › Gross Weight
- L1H1
- 3,878 kg (8,550 lb)
- L2H1
- 3,878 kg (8,550 lb)
- L2H2
- 3,878 kg (8,550 lb)
Chassis & Body
Chassis
- Chassis
- LCV (Panel Van)
- Pillars
- A-D
- Chassis Construction
- Unibody
- Body Material
- Steel
Doors
- Front Doors
- Conventional
- Rear Doors
- Sliding (Left | Right)
- Door Handles
- Pull-out
Equipment
Side Mirrors
- Mirror Type
- Conventional
- Heated
- Optional
- Turning Signal
- Yes
- House Colour
- Non-painted
- Mirror Shape, Driver side
- Convex
- Flat
- Mirror Shape, Passenger side
- Convex
- Flat
Windscreen Wipers
- Number of Wiper Speeds
- 2
- Speed Sensing Intermittent
- Optional
- Intermittent Control
- Yes
Windows
- Window Lifts, Front
- Powered
- Heated Windows
- Optional
- Heat-Insulating Windows
- Front
- First Row
- Tinted Windows
- Optional
- Safety Glass
- Yes
Windows › Window Lifts, Features
- Pinch Protection
- Driver
- Passenger
- One-touch up/down
- Optional
Windows › Window Lifts, Features › One-touch up/down
- Driver
- Optional
Windows › Heated Windows
- Rear
- Optional
Windows › Tinted Windows
- Second Row
- Optional
- Rear Window
- Optional
Windows › Safety Glass
- Front
- Laminated
- Side
- Tempered
Other Equipment
- Tow Hook
- Front
- Rear
- Normal Roof
- Yes
- Antenna
- Whip
- Air Intakes
- 1-port
- Number of Exhaust Pipes
- 1
- Mud Flaps
- Optional
- Side Steps
- Optional
Other Equipment › Mud Flaps
- Front
- Optional
- Rear
- Optional
Other Equipment › Side Steps
- Stationary
- Optional
Lights
- Main Beam
- Halogen
- Low Beam
- Halogen
- Rear Lights
- Halogen
- LED
- Fog Lights
- Optional
- Special Features
- Come Home/Leaving Lights
Special Features
- Automatic Headlight Activation
- Optional
- Headlight Washers
- Optional
- Headlight Range Adjustment
- Manual (Electric)
Colour
- Non-painted
- Bumper (Front | Rear)
Rims & Tires
- Tire Pressure Monitoring System (TPMS)
- Direct
- Number of Bolts
- 5 pcs
- Nut/Bolt Dimensions
- M16x1.5
- Fastening Type
- Lug Nuts
- Tightening Torque
- 197 Nm
- Rim Colour
- Silver
- Rim Type
- Disc Wheel
- Spare Wheel
- Full-size (Steel)
Equipment
Instrument Cluster
- Trip Computer
- Yes
- Speedometer
- Analogue
- Tachometer
- Analogue
- Fuel Gauge
- Analogue
- Coolant Temperature
- Analogue
- Odometer Limit
- 1,000,000 km/miles
Instrument Cluster › Trip Computer
- Display
- Yes
Instrument Cluster › Trip Computer › Display
- Type
- Monochrome
- Shape
- Square
Climate Control
- Air Condition
- Optional
- Number of Vents, Front
- 4 pcs
- Controls
- Buttons
- Faders
Climate Control › Air Condition
- Refrigerant
- R134A
Connectivity
- Radio
- AM
- FM
- Media Format
- MP3
- Bluetooth
- Optional
Connectivity › Radio
- XM
- Optional
Connectivity › Media Format
- CD
- Optional
Connectivity › Media Inputs
- AUX
- Yes
- USB
- USB-A
Connectivity › Media Inputs › USB
- Number of Ports
- 2 pcs
Connectivity › Bluetooth
- Phone
- Optional
Displays
- Center Display
- 5"
- Center Display Controls
- Touchscreen
- Rotary Dial
- Equalizer
- Yes
Displays › Center Display Controls
- Buttons
- Yes
Displays › Center Display Controls › Buttons
- Side of Screen
- 9 pcs
Speakers
- Total Number of Speakers
- 4 pcs
Rear-view Mirror
- Adjustments
- Mechanical
- Rear-view Mirror: Mirror Type
- Standard
Interior Storage › Storage Compartments
- Glove Compartment
- Yes
- Under Seats
- Optional
- Door
- Driver Side
- Passenger Side
- Total Number of Compartments
- 8 pcs
Interior Storage › Storage Compartments › Glove Compartment
- Lockable
- Optional
Interior Storage › Storage Compartments › Under Seats
- Front
- Optional
Interior Storage
- Cup Holders
- Yes
Interior Storage › Cup Holders
- Front
- 3
Interior Storage › Cup Holders › Front
- Placement
- Middle Console
Lights
- Read Light
- Front
- Guide Light
- Entry Guard
Other Equipment › Make-up Mirror
- Driver Side
- Optional
- Passenger Side
- Optional
- Make-up Light
- Optional
Other Equipment
- Clock
- Yes
- 12V Outlet
- Front
- Carpets
- Optional
- Ashtray
- Optional
- Cigarette Lighter
- Optional
Other Equipment › Clock
- Digital
- Center Display
Other Equipment › 12V Outlet
- Rear
- Optional
Other Equipment › Carpets
- Front
- Optional
Other Equipment › Ashtray
- Front
- Optional
Steering Wheel
- Multifunction Steering Wheel
- Yes
- Power Steering
- Hydraulic
- Adjustments
- Telescope
- Number of Spokes
- 4
- Colour
- Black
- Steering Mechanism
- Rack and Pinion
Multifunction Steering Wheel
- Menu Navigation
- Buttons
- Media
- Yes
- Number of Buttons
- 6 pcs
Multifunction Steering Wheel › Media
- Voice Command
- Yes
- Answer Phone
- Yes
- Channels
- Yes
- Volume
- Buttons
- Mute Audio
- Yes
Trunk
- Barrier Net/Grid
- Optional
- Cargo Hooks
- Yes
- Carpet
- Optional
- Light
- Yes
- Hatch Opening Type
- Two-parted Doors
Carpet
- Rug
- Optional
Design
- Interior Decor Material
- Plastic
- Interior Decor Colour
- Black
- Transmission Knob Material
- Plastic
- Entry Guard Material
- Plastic
Seats
Front Seats › Adjustments, Driver
- Seat Depth
- Manual
- Seat Height
- Manual
- Backrest Angle
- Manual
- Lumbar Support
- Optional
- Headrest, Height
- Manual
Front Seats
- Number of Driver Seat Adjustments, Manual
- 4 - 6
- Number of Driver Seat Adjustments, Powered
- 4 - 6
- Number of Driver Seat Adjustments, Total
- 4 - 6
- Number of Passenger Seat Adjustments, Manual
- 4 - 6
- Number of Passenger Seat Adjustments, Powered
- 4 - 6
- Number of Passenger Seat Adjustments, Total
- 4 - 6
- Heated Seats
- Optional
- Armrest
- Optional
Front Seats › Adjustments, Passenger
- Seat Depth
- Manual
- Seat Height
- Manual
- Backrest Angle
- Manual
- Lumbar Support
- Optional
- Headrest, Height
- Manual
Front Seats › Heated Seats
- Cushion
- Optional
- Number of Heat Levels
- 1
Front Seats › Heated Seats › Cushion
- Backrest
- Optional
Colour & Material
- Seat Colour
- Black
Comfort Features
- Keyless Entry
- Yes
- Remote Engine Start
- Optional
- Cruise Control
- Optional
- Speed Limiter
- Yes
- Parking Heater
- Optional
- Cameras
- Optional
- Voice Control
- Phone
Parking Heater
- Cabin Heater
- Optional
Parking Heater › Cabin Heater
- Engine Heater
- Optional
- Remote
- Optional
- Timer
- Optional
Cameras
- Rear
- Optional
Other Features
- GPS
- Optional
- Horn
- Dual Note
Accessories
- Tool Kit and Jack
- Yes
- Tire Repair Kit
- Optional
- Compressor
- Optional
- Fire Extinguisher
- Optional
- Warning Triangle
- Optional
- First Aid Kit
- Optional
Seat Belt
- Emergency Locking Retractor
- Yes
- Height Adjustable Retractor
- Yes
- Seat Belt Colour
- Black
Feature
Driver
Passenger
Rear
Seat Belt Reminder
Yes
Optional
-
Belt Pretensioner
Yes
Optional
-
Belt Load Limiter
Yes
Optional
-
Height Adjustable Retractor
- Manual
- Yes
Type of Belt
- Three-Point-Belt
- Front Seats
Type of Belt › Three-Point-Belt
- Centre Rear Seat
- Optional
Assist Systems
- Electronic Stability Control (ESC)
- Yes
- Hill Start Assist (HSA)
- Yes
- Trailer Stability Assist (TSA)
- Yes
Brake Systems
- Power Brakes
- Yes
- Anti-lock Braking System (ABS)
- Yes
- Traction Control System (TCS)
- Yes
- Electronic Brake Assist (BA/EBA)
- Yes
- Brake Pad Wear Indicator
- Yes
Sensors
- Parking Sensors
- Optional
Parking Sensors
- Rear
- Optional
Other Features
- Immobiliser
- Yes
- Anti-theft Alarm
- Optional
- Central Locking
- Remote
- Emergency Call
- Yes
- Reversing Alarm
- Optional
Immobiliser
- Electronic
- Yes
Airbags
Feature
Driver
Passenger
Rear
Frontal Airbag
Yes
Yes
-
Side Chest Airbag
Yes
Yes
-
Curtain Airbag
Yes
Yes
-
Identification
VIN Location
- Left Side Casing of Window
- Yes
- On-board Diagnostic, Port Location
- Steering Wheel, Lower Left
Car Classification
- American Classification
- Cargo Van
- British Classification
- Van
- Australian Classification
- Van
- European Segment
- M-Segment
- Car.info Classification
- Cargo Van
Similar lcvs
Suggested vehicles
2012–2021
2012 Nissan NV
2013–2014
2013 GMC Savana G1500
2016–2023
2016 Mercedes-Benz Metris Cargo
2014–2015

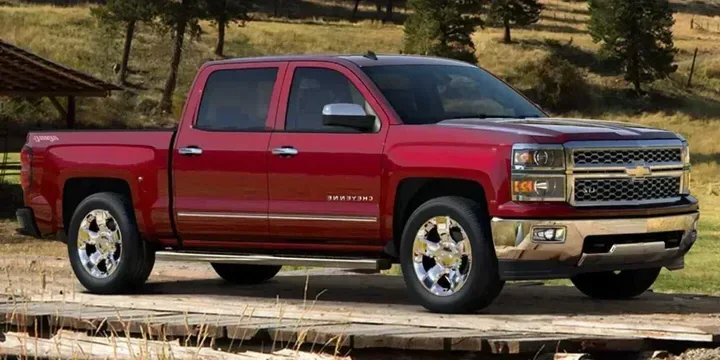

2014 Chevrolet Cheyenne
2017–2020
2017 Land Rover Discovery
2014–2017
2014 Iveco Daily
2011–2023
2011 JAC Sunray LWB
2008–2009
2008 Chevrolet Express G3500
2015–2020
2015 Citroën Jumper
2013–2014
2013 Mini Clubman Cooper Clubvan
2014–2018
