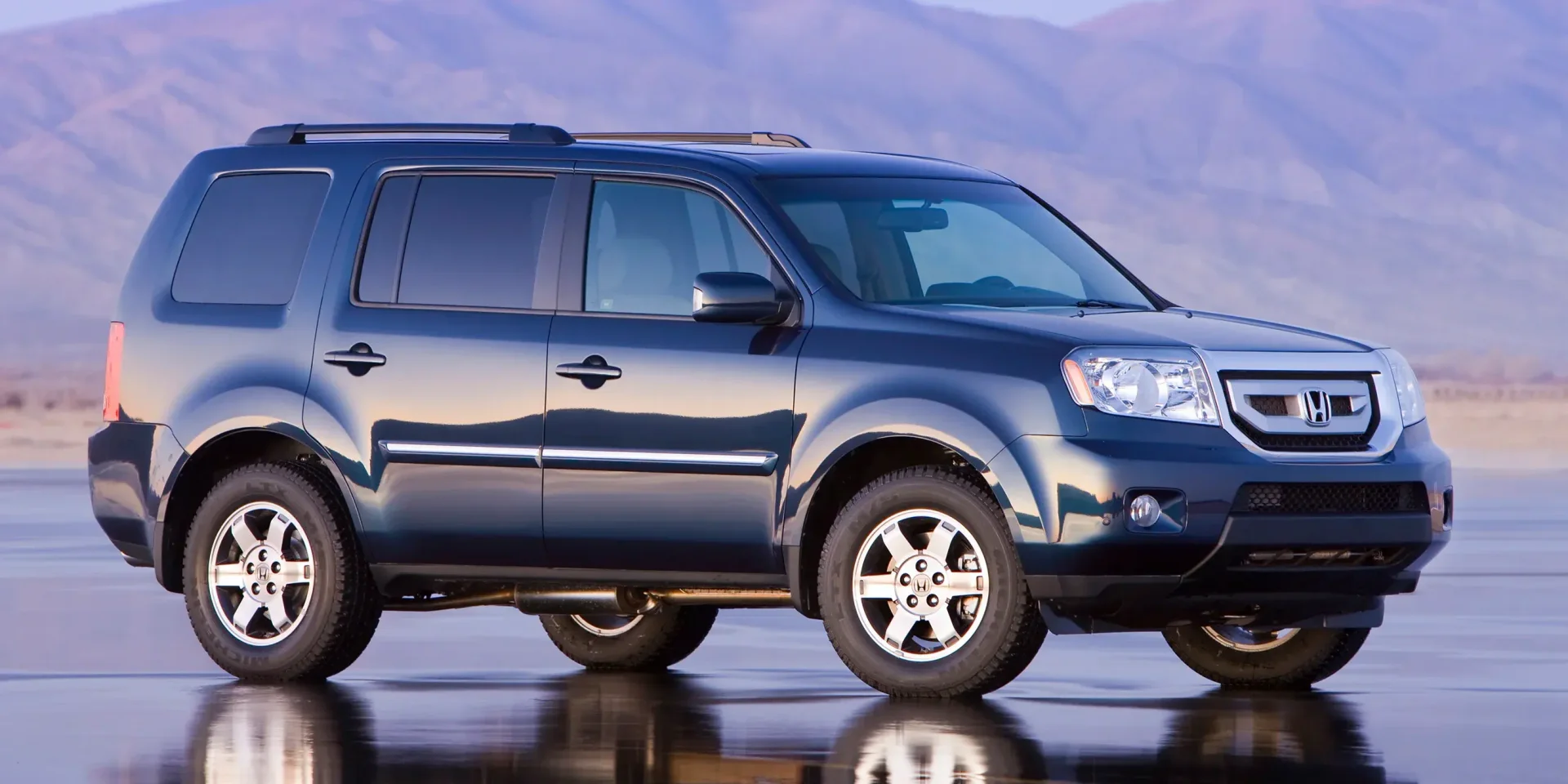

2011 Honda Pilot

JapanGasoline4WDSUV

Photos

Specifications

Vehicle Details

Year
2011
Make
Honda
Model
Pilot
Body Style
SUV
Generation
2nd Generation
Seats
8
Doors
5
Fuel
Gasoline
Drivetrain
4WD
Transmission
Automatic, 5-speed

Powertrain

Engine Name
3.5 VTEC 4WD Automatic
Engine Configuration
V
Power (hp)
250 hp
Power (kW)
190 kW
Torque
343 Nm (253 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
9.4 seconds (estimated)
0–100 km/h
9.9 seconds
Displacement
3,471 cc

Dimensions

Length
4,875 mm (191.9 in)
Width
1,995 mm (78.5 in)
Height
1,845 mm (72.6 in)
Wheelbase
2,780 mm (109.4 in)
Curb weight
2,062 kg (4,546 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,700 rpm
Rev. at Max Torque
4,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-20
Engine Configuration
Bore
89 mm (3.5 in)
Stroke
93 mm (3.7 in)
Compression Ratio
10 :1
Engine Configuration
V-Engine
Turbocharger
Yes
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
Automatic, 5-speed

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
79.5 litres
General › Fuel Cap Position
Rear
Yes
Emission
Emission Standard
Euro 4
Fuel Consumption NEDC
City
16.3 litres / 100 km
Highway
9.2 litres / 100 km
Combined
11.8 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,725 mm (67.9 in)
Track, Rear
1,740 mm (68.5 in)
Overhang, Front
970 mm (38.2 in)
Overhang, Rear
1,125 mm (44.3 in)
Turning Circle
11.26 m
Ground Clearance
200 mm (7.9 in)

Interior

Head Room, Front
1,016 mm (40.0 in)
Head Room, Rear
1,011 mm (39.8 in)
Leg Room, Front
1,051 mm (41.4 in)
Leg Room, Rear
978 mm (38.5 in)
Hip Room, Front
1,489 mm (58.6 in)
Hip Room, Rear
1,446 mm (56.9 in)
Shoulder Room, Front
1,563 mm (61.5 in)
Shoulder Room, Rear
1,580 mm (62.2 in)

Weight

Gross Weight
2,765 kg (6,096 lb)
Max Trailer Load, braked 12%
2,045 kg (4,508 lb)
Max Trailer Load, unbraked
455 kg (1,003 lb)
Cargo Capacity
703 kg (1,550 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
205 kg (452 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Windscreen Wipers
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Tinted Windows
  • Second Row
  • Rear Window
Safety Glass
Yes
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hitch
Tow Hitch
Roof Railing
Optional
Antenna
Yes

Lights

Main Beam
Halogen
Low Beam
Halogen
Fog Lights
Optional

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
64.1
Fastening Type
Lug Nuts
Tightening Torque
130 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Digital
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
  • AM
  • FM
Media Format
  • MP3
  • WMA
Bluetooth
Optional
Connectivity › Media Format
CD
Yes
DVD
Optional
Connectivity › Media Inputs
AUX
Yes
USB
Optional
Displays
Center Display
Yes
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Lights
Read Light
Front
Guide Light
Entry Guard
Other Equipment
12V Outlet
Front
Carpets
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes

Trunk

Rear Trunk
Yes

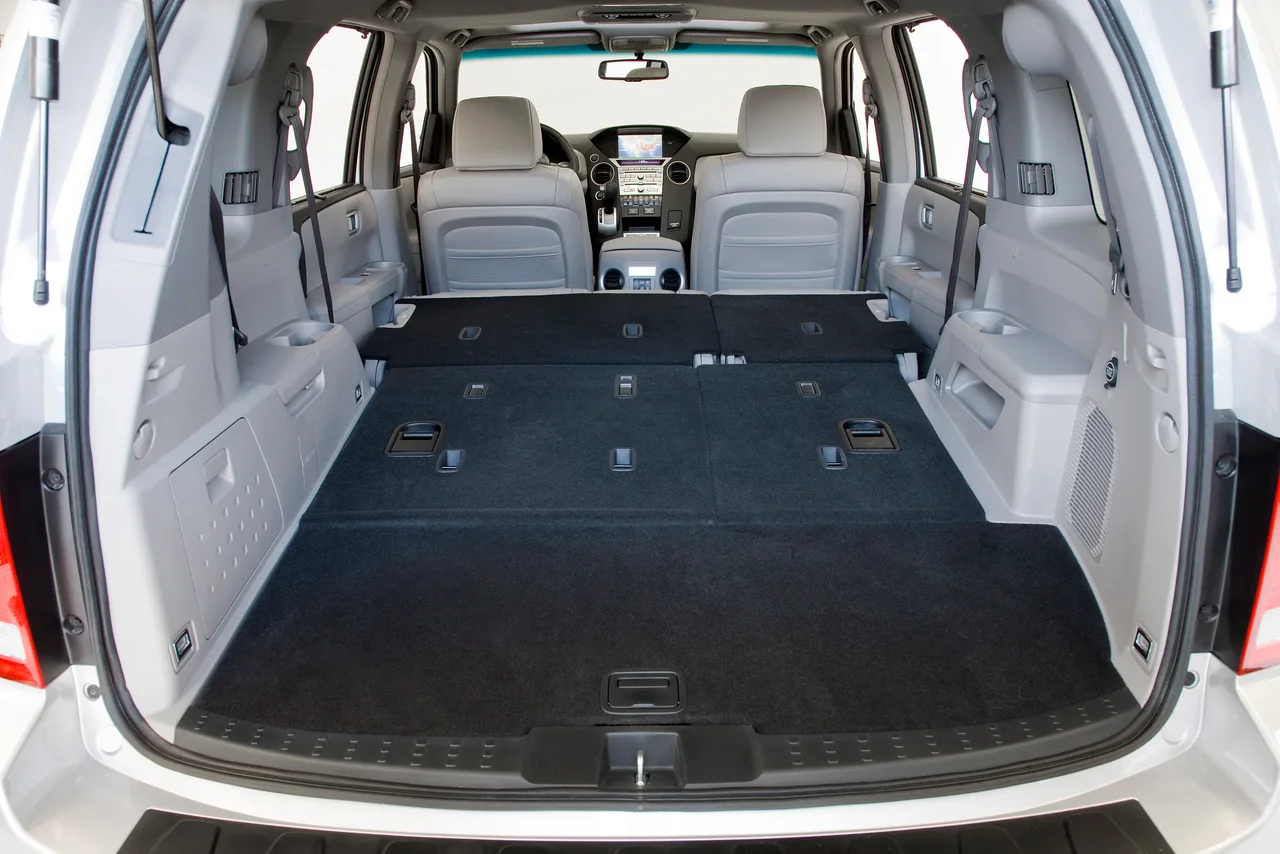

Rear Trunk
Volume
509 litres
Volume, Back Seat Collapsed
2,463 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional

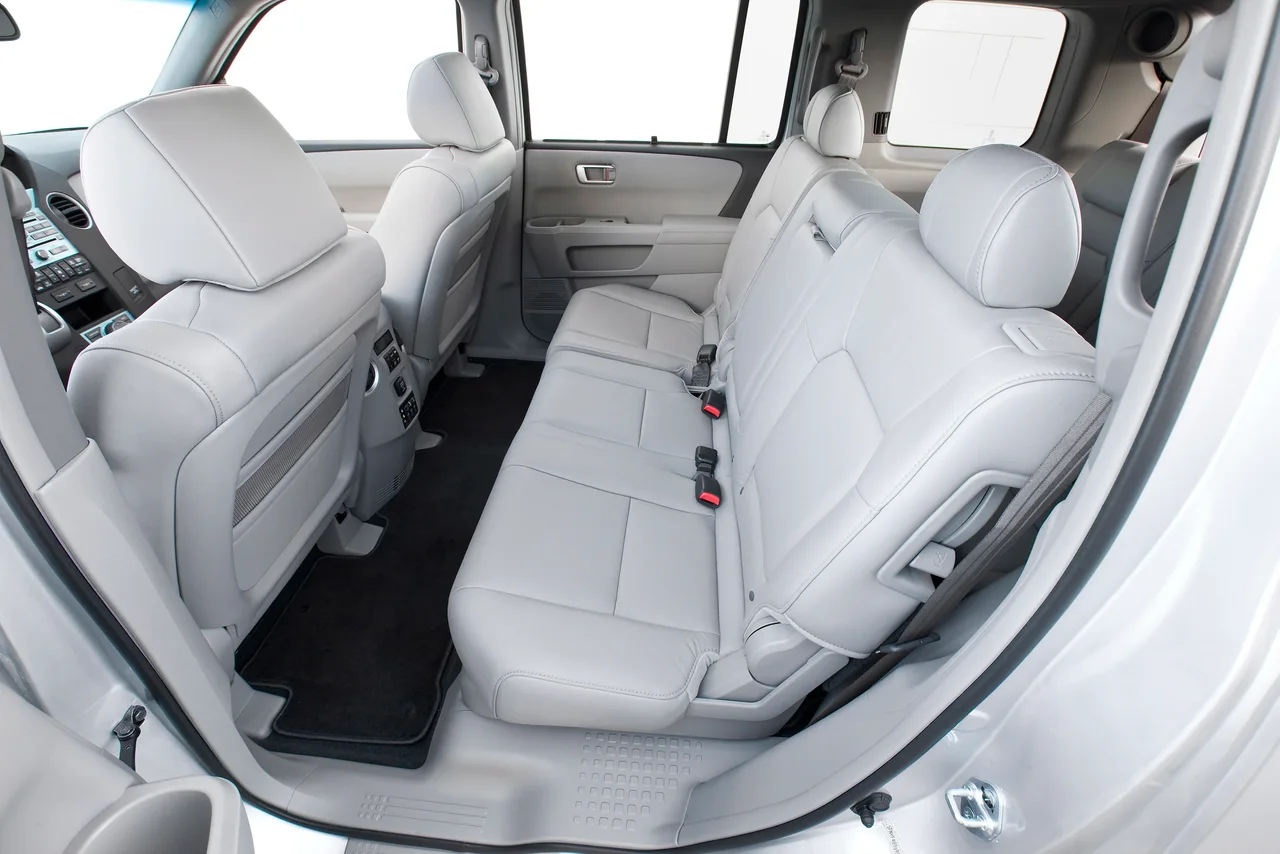

Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Third/Fourth Seat Row
Third Seat Row
Yes
Third/Fourth Seat Row › Third Seat Row
Type of Seat
Adult

Features

Comfort Features

Keyless Entry
Yes
Cruise Control
Yes
Cruise Control
Rear
Optional

Other Features

GPS
Optional

Accessories

Tool Kit and Jack
Optional
Compressor
Optional
Warning Triangle
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Type of Belt
Two-Point-Belt (Lap Belt)
  • Front Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
4/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
4/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
17.4 %
Overall Safety Rating
4/5 stars
Overall Frontal Rating
4/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment
Car.info Classification
Large SUV
