2011 Volkswagen Eos

Germany Gasoline FWD Convertible

Photos

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 2011
Make: Volkswagen
Model: Eos
Body Style: Convertible

Photos

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 2011
Make: Volkswagen
Model: Eos
Body Style: Convertible

Generation

Typ 1F

Seats

4

Doors

2

Fuel

Gasoline

Drivetrain

FWD

Transmission

Manual, 6-speed

Powertrain

Engine Name: 1.4 TSI Manual
Engine Configuration: Inline
Power (hp): 160 hp
Power (kW): 118 kW
Torque: 240 Nm (177 lb-ft)
Top speed: 215 km/h (134 mph)
0–60 mph: 8.4 seconds (estimated)
0–100 km/h: 8.8 seconds
Displacement

Dimensions

Length: 4,407 mm (173.5 in)
Width: 1,791 mm (70.5 in)
Height: 1,443 mm (56.8 in)
Wheelbase: 2,578 mm (101.5 in)
Curb weight: 1,487 kg (3,278 lb)

Engine & Performance

Engine

Engine Specification

Rev. at Max Power: 6,000 rpm
Rev. at Max Torque: 1,750 - 4,500 rpm

Engine Fluids

Synthetic Oil (viscosity): 0W-30
0W-40
5W-30
5W-40
10W-30
10W-40
10W-60
Semi-synthetic Oil (viscosity)

Similar convertibles

Suggested vehicles

View all

2012 Abarth 595

1,390 cc

5W-30

5W-40

10W-30

10W-40

10W-50

10W-60

15W-40

20W-40

20W-50

Engine Oil, Volume

3.6 litres

Engine Configuration

Bore: 76.5 mm (3.0 in)
Stroke: 75.6 mm (3.0 in)
Compression Ratio: 9.7 :1
Engine Configuration: Inline
Supercharger: Yes
Turbocharger: Single-turbo
Synchronization: Timing Chain
Engine Placement: Front
Engine Mount

Service Intervals

Air Filter: 90,000 km / 6 years
Spark Plug: 60,000 km / 4 years
Brake Fluid: 2 years
Oil Change & Engine Filter: 15,000 km / 1 years
Interior Filter: 60,000 km / 2 years

Transmission & Drivetrain

Gear Selector: Stick
Gear Selector Location: Mid-Console

Brakes

Parking Brake

Manual: Lever

Parking Brake › Manual

Material: Leather

Front Brakes: Disc Brakes
Rear Brakes: Disc Brakes
Brake Caliper Pistons: Front
Rear
Brakes Material

Suspensions

Spring, Front: Coil
Spring, Rear: Coil
Anti-roll Bar: Front
Rear

Suspension, Front

Independent: MacPherson Strut

Suspension, Rear

Independent: Multi-link

Fuel

General

Tank Volume: 55 litres

General › Fuel Cap Position

Rear: Right

Emission

Emission Standard: Euro 5
Emission Control: Catalyst
Evaporative Control System
Exhaust Gas Recirculation
Positive Crankcase Ventilation

Fuel Consumption NEDC

Performance

Acceleration

0-80 km/h: 6.1 sec
80-120 km/h: 11.5 sec

Drag Coefficient: 0.32

Dimensions & Weight

Exterior

Width, with Mirrors: 2,009 mm (79.1 in)
Width, open Doors: 4,153 mm (163.5 in)
Height (Bonnet Open): 1,775 mm (69.9 in)
Height (Roof Opening): 1,935 mm (76.2 in)
Track, Front: 1,545 mm (60.8 in)
Track, Rear

Exterior

Chassis & Body

Chassis

Chassis: Coupé-Cabriolet
Pillars: A
Chassis Construction: Unibody
Body Material: Aluminium
Roof Material: Steel

Doors

Interior

Equipment

Instrument Cluster

Trip Computer: Yes
Speedometer: Analogue
Tachometer: Analogue
Fuel Gauge: Analogue
Odometer Limit: 1,000,000 km/miles

Instrument Cluster › Trip Computer

Features

Comfort Features

Cruise Control: Optional

Accessories

Tool Kit and Jack: Yes
Tire Repair Kit: Optional
Compressor: Optional
Fire Extinguisher: Optional

Safety & Security

Seat Belt

Height Adjustable Retractor: Yes
Seat Belt Colour: Black

Feature

Driver

Passenger

Rear

Seat Belt Reminder

Driver

Other

Identification

VIN Location

Engine Compartment, Bulkhead: Right
Trunk: on Floor

Car Classification

Australian Classification: Sports Car
European Segment: S-Segment
Car.info Classification

Transversally

Type of Combustion Engine

Piston

Fuel System

Electronic (Direct) Fuel Injection

Camshaft Type

DOHC

Engine Block

Cast Iron

Engine Heads

Aluminium

Engine Cooling

Liquid Cooling

Cast Iron

Front Brakes

Diameter: 312 mm (12.3 in)
Width: 25 mm (1.0 in)
Cooling: Ventilated

Rear Brakes

Diameter: 253 - 312 mm (10.0 - 12.3 in)
Cooling: Solid

City

8.5 - 8.6 litres / 100 km

Highway

5.6 - 5.7 litres / 100 km

Combined

6.7 - 6.8 litres / 100 km

Emission NEDC

CO₂, Combined: 159 g/km

1,553 mm (61.1 in)

Approach Angle

14.4 °

Breakover Angle

10.7

Departure Angle

14.4 °

Turning Circle

10.9 m

Ground Clearance

106 mm (4.2 in)

Interior

Head Room, Front: 952 mm (37.5 in)
Head Room, Rear: 909 mm (35.8 in)
Leg Room, Front: 1,060 mm (41.7 in)
Leg Room, Rear: 826 mm (32.5 in)
Hip Room, Front: 1,435 mm (56.5 in)
Hip Room, Rear: 1,070 mm (42.1 in)
Shoulder Room, Front: 1,390 mm (54.7 in)

Weight

Gross Weight: 1,940 - 1,980 kg (4,277 - 4,365 lb)
Max Trailer Load, braked 12%: 1,400 kg (3,086 lb)
Max Trailer Load, braked 8%: 1,600 kg (3,527 lb)
Max Trailer Load, unbraked: 750 kg (1,653 lb)
Cargo Capacity: 484 - 493 kg (1,067 - 1,087 lb)
Max Roof Load: 0 kg (0 lb)
Max Towbar Download

Front Doors

Conventional

Door Handles

Pull-out

Platform

Volkswagen Group: A Platform (PQ35)

Equipment

Side Mirrors

Mirror Type: Conventional
Adjustments: Electrical
Heated: Yes
Turning Signal: Yes
House Colour: Same as Car
Mirror Shape, Driver side: Aspheric

Windscreen Wipers

Speed Sensing Intermittent

Lights

Rear Lights: Halogen
Fog Lights: Yes

Fog Lights

Front: Yes

Special Features

Main Beam Assist: Optional
Dynamic Cornering Lights: Optional
Headlight Washers: Optional

Rims & Tires

Nut/Bolt Dimensions: M14x1.5
Fastening Type: Lug Bolts
Rim Type: Disc Wheel

Display

Yes

Climate Control

Air Condition: Yes
Pollen Filter: Yes
Outside Temperature Indicator: Yes

Connectivity

Radio: AM
FM
Media Format: MP3

Connectivity › Media Format

CD: Yes
DVD: Optional
USB: Optional

Interior Storage › Storage Compartments

Glove Compartment: Cooled
Light
Lockable (Manual)
Back Pocket: Yes
Card Holder: Yes
Under Seats: Optional
Door: Driver Side
Passenger Side

Interior Storage › Storage Compartments › Under Seats

Front: Optional

Interior Storage

Cup Holders: Yes

Interior Storage › Cup Holders

Front: 2

Interior Storage › Cup Holders › Front

Placement: Middle Console

Lights

Read Light: Front
Guide Light: Entry Guard

Lights › Guide Light

Footwell: Optional
Side Mirrors: Optional

Other Equipment

Make-up Mirror: Driver Side
Passenger Side
Clock: Yes
12V Outlet: Front
Carpets: Optional
Ashtray: Optional
Cigarette Lighter: Optional

Other Equipment › Make-up Mirror

Make-up Light: Driver
Passenger

Other Equipment › Clock

Digital: Instrument Cluster

Other Equipment › Ashtray

Front: Optional

Steering Wheel

Multifunction Steering Wheel: Optional
Power Steering: Electro-mechanical
Adjustments: Tilt
Telescope
Colour: Black
Steering Mechanism: Rack and Pinion
Channels: Optional
Volume: Optional
Mute Audio: Optional

Trunk

Total Trunk Volume: 380 litres
Rear Trunk: Yes
Hatch Through Rear Seats: Yes
Hatch Opening Type: Under Rear Window

Rear Trunk

Volume (Roof Folded): 205 litres
Depth: 839 mm (33.0 in)
Width: 1,373 mm (54.1 in)

Seats

Front Seats › Adjustments, Driver

Seat Depth: Manual
Seat Height: Manual
Backrest Angle: Manual
Headrest, Height: Manual
Headrest, Tilt: Manual

Front Seats › Adjustments, Passenger

Seat Depth: Manual
Seat Height

Warning Triangle

Yes

First Aid Kit

Optional

Yes

PassengerYes

Rear-

Belt Pretensioner

DriverYes

PassengerYes

Rear-

Height Adjustable Retractor

Manual: Yes

Type of Belt

Three-Point-Belt: Front Seats
Outer Rear Seats

Assist Systems

Electronic Stability Control (ESC): Yes

Brake Systems

Anti-lock Braking System (ABS): Yes
Traction Control System (TCS): Yes
Electronic Brake Assist (BA/EBA): Yes

Sensors

Parking Sensors: Rear

Other Features

Immobiliser: Yes
Anti-theft Alarm: Yes
Central Locking: Yes

Safety Testing

General

Test Year: 2007
Adult Occupant: 4/5 stars
Child Occupant: 4/5 stars
Pedestrian: 2/4 stars
Test Year: 2007
Overall Score: 31.35
ANCAP Safety Rating: 4

Adult Occupant

Airbags

Feature

Driver

Passenger

Rear

Frontal Airbag

DriverYes

PassengerYes

Rear-

Side Chest Airbag

Driver

Child Protection

Isofix: Passenger: -
Rear: Yes

Sports Car

Spare Parts BETA

Bulb Types

Low Beam: D1S (xenon)
H7
Main Beam: H7
Bi-Xenon: D1S
Datyime Running Light: W3×16d (W21W)
Fog Light, Front: HB4
Fog Light, Rear: BA15s (P21W)
Positioning-/Parking Lights, Front: W2.1×9.5d (W5W)
Reversing Light

Eos

8.9

€67,000

MSRP · EUR

Body

Shoulder Room, Rear

1,055 mm (41.5 in)

75 kg (165 lb)

Permitted Axle Load, front

1,040 kg (2,293 lb)

Permitted Axle Load, rear

970 kg (2,138 lb)

Yes

Intermittent Control

Yes

Rear Wiper

Yes

Windscreen Wipers: Connector type, Front

Push Button

Number of Windscreen Wipers, Front

2

Windows

Window Lifts, Front: Powered
Window Lifts, Rear: Powered
Heated Windows: Rear
Heat-Insulating Windows: Front
First Row
Second Row
Rear
Frameless Windows: First Row
Second Row

Other Equipment

Tow Hook: Front
Rear
Antenna: Glass-integrated

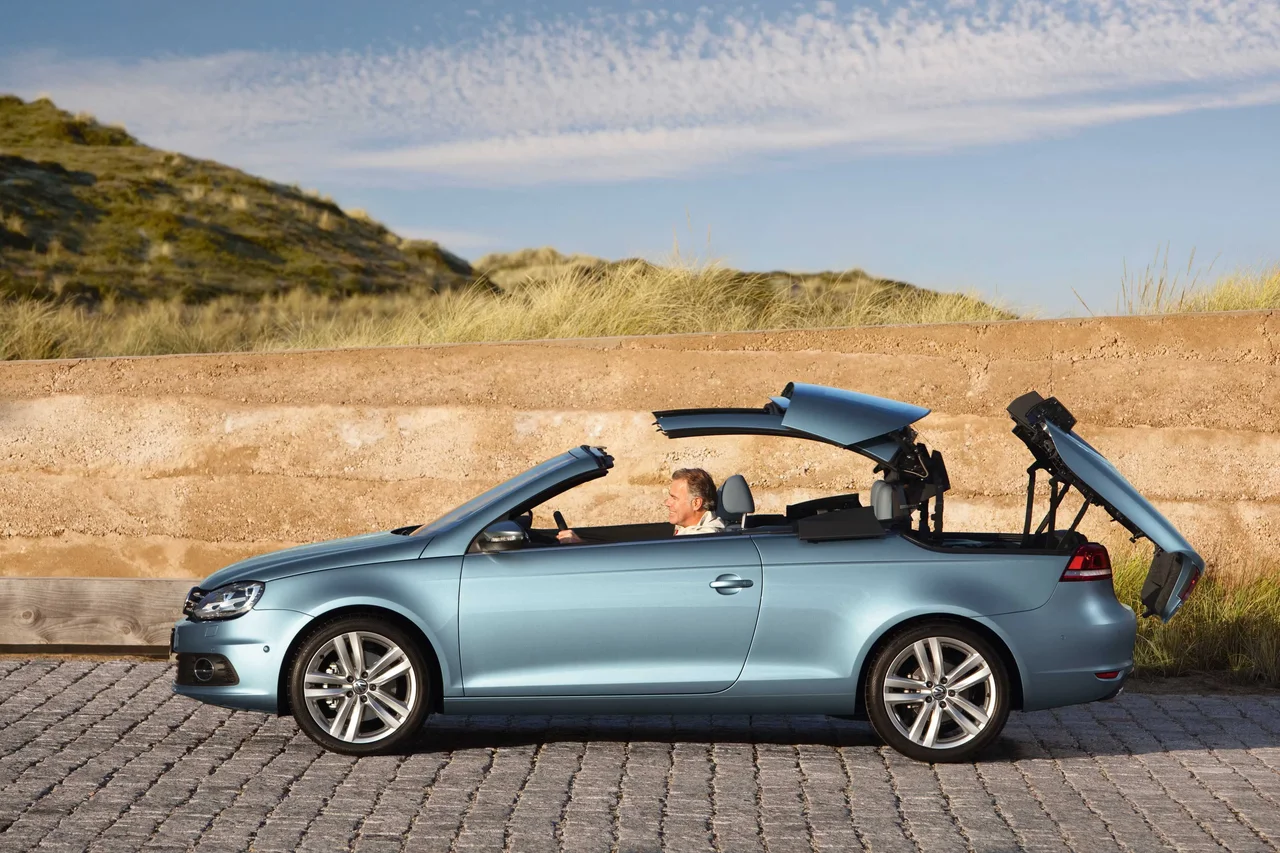

Cabriolet Roof Opening: Powered
Windblocker: Optional
Mud Flaps: Optional

Other Equipment › Mud Flaps

Front: Optional
Rear: Optional

Headlight Range Adjustment

Optional

Width, Between Wheel Arches

792 mm (31.2 in)

Height

537 mm (21.1 in)

Trunk Door Opening Height

1,935 mm (76.2 in)

Optional

Backrest Angle

Manual

Headrest, Height

Manual

Headrest, Tilt

Manual

Front Seats

Power Seat, Driver: Optional
Power Seat, Passenger: Optional

Second Seat Row › Headrests

Outer Seats: Yes

Second Seat Row

Number of Seats: 3
Type of Seat: Adult

Frontal Offset

12.35

Side Impact

16

Pole

1

Whiplash Protection (Assessment)

Not Assessed

Pedestrian

Protection (Assessment): Marginal

Safety Assist

Seat Belt Reminders: 2

IIHS

Test Year: 2007
Moderate Overlap Front: Good
Side: Good
Head Restraints & Seats: Good

Yes

PassengerYes

RearYes

Side Head Airbag

DriverYes

PassengerYes

Rear-

Curtain Airbag

DriverYes

PassengerYes

RearYes

Airbag cut-off Switch

Driver-

PassengerYes

Rear-

BA15s (P21W)

Turn Indicators, Front

BAU15s (PY21W)

Turn Indicators, Side

W2.1×9.5d (W5W)

Glove Compartment

W2.1×9.5d (W5W)

Read Light

W2.1×9.5d (W5W)

License Plate Light

SV8.5 (C5W)

Convertible

Variant

Eos Standard2006–2014

Eos Convertible Generations1 of 4

Year

Powertrain

Horsepower

160 hp

Drivetrain

FWD

Fuel

Gasoline

Transmission

Manual, 6-speed

Similar convertibles

Suggested vehicles

View all

2012 Abarth 595

2012–2016

2012 Abarth 595

2011 Mini Cooper

2011–2016

2011 Mercedes-Benz SLK-Class SLK

2011–2016

2012 Lancia Flavia

2012–2013

2012 Mini Roadster Cooper S

2012–2015

2012 Mini 2012-mini-concept-cooper-s-roadster main image

2009–2010

2014–2017

2010–2013

2010–2012

2008 Chrysler Sebring

2008–2010

2015 Mercedes-Benz C-Class

2015–2019

2009 Lexus IS

2009–2013
