2013 Toyota Auris Sports

JapanGasolineFWDWagon

Photos

Specifications

Vehicle Details

Year
2013
Make
Toyota
Model
Auris
Variant
Sports
Body Style
Wagon
Generation
E180
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

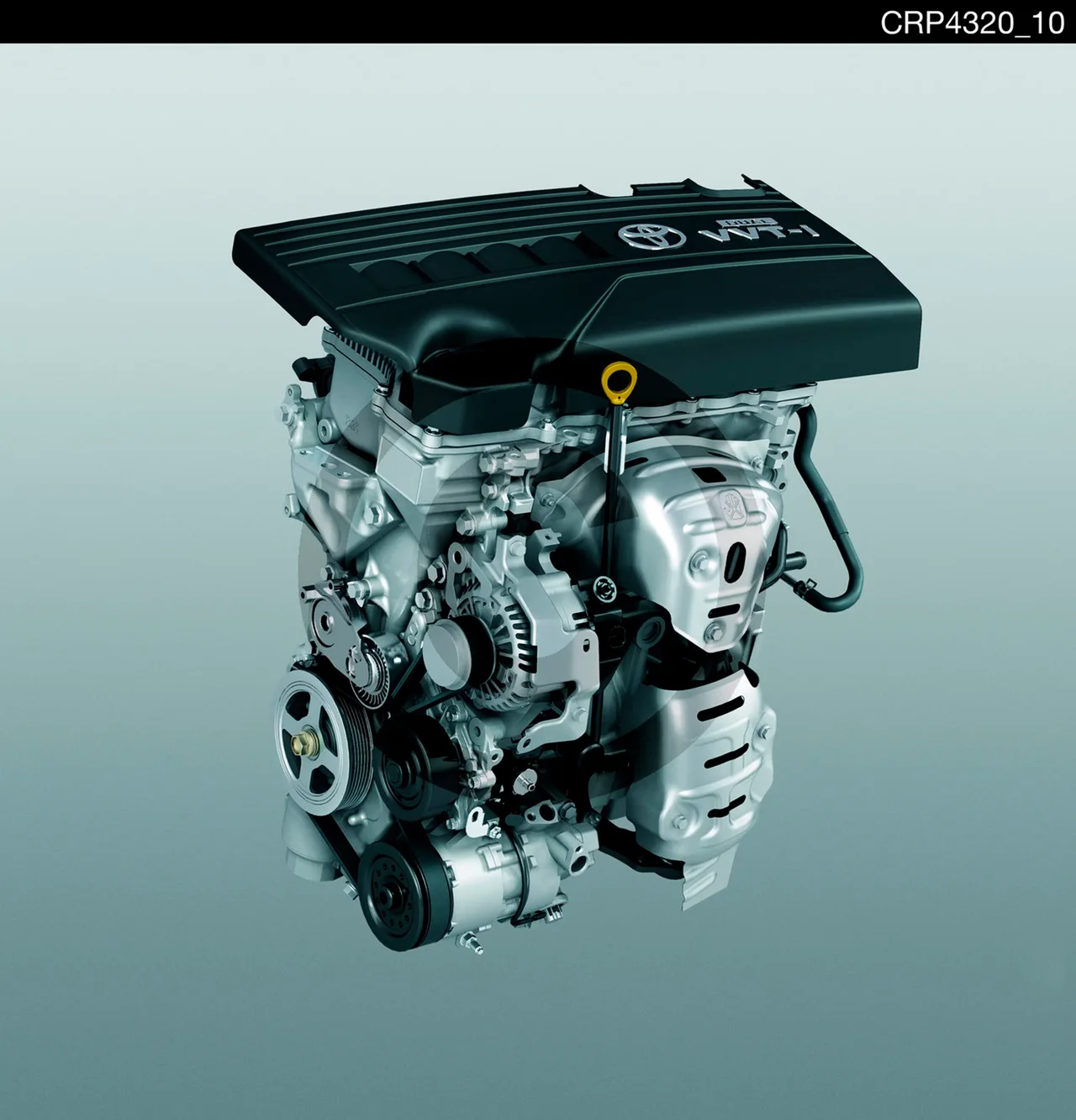

Engine Name
1.33 Dual VVT-i Manual
Engine Configuration
Inline
Power (hp)
99 hp
Power (kW)
73 kW
Torque
128 Nm (94 lb-ft)
Top speed
175 km/h (109 mph)
0–60 mph
12.0 seconds (estimated)
0–100 km/h
12.6 seconds
Displacement
1,329 cc

Dimensions

Length
4,560 mm (179.5 in)
Width
1,760 mm (69.3 in)
Height
1,460 mm (57.5 in)
Wheelbase
2,600 mm (102.4 in)
Curb weight
1,175 kg (2,590 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
3,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-30
  • 5W-40
  • 10W-30
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 15W-40
  • 20W-50
Engine Oil, Volume
3.4 litres
Engine Configuration
Bore
72.5 mm (2.9 in)
Stroke
80.5 mm (3.2 in)
Compression Ratio
11.5 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Service Intervals
Oil Change & Engine Filter
15,000 km / 1 years

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
50 litres
Emission
Emission Standard
Euro 5
Fuel Consumption NEDC
City
7.1 litres / 100 km
Highway
4.8 litres / 100 km
Combined
5.5 litres / 100 km
Emission NEDC
CO₂, Combined
127 g/km

Dimensions & Weight

Exterior

Track, Front
1,530 mm (60.2 in)
Track, Rear
1,521 mm (59.9 in)
Turning Circle
11 m
Ground Clearance
140 mm (5.5 in)

Weight

Gross Weight
1,765 kg (3,891 lb)
Max Trailer Load, braked 12%
1,000 kg (2,205 lb)
Max Trailer Load, unbraked
450 kg (992 lb)
Cargo Capacity
590 kg (1,301 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
55 kg (121 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Swing-out
Platform
Toyota Platform
MC Platform (New MC)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Manual
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
Yes
Other Equipment
Roof Railing
Yes
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Silver

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Daytime Running Light
  • Halogen
  • LED
Fog Lights
Optional
Special Features
Come Home/Leaving Lights

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
60.1
Fastening Type
Lug Nuts
Tightening Torque
103 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Oil Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Cockpit
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Yes
Controls
Buttons
Connectivity
Radio
  • AM
  • FM
Bluetooth
Optional
Connectivity › Radio
RDS
Optional
CD
Optional
MP3
Optional
WMA
Optional
Connectivity › Media Inputs
AUX
Optional
USB
Optional
Connectivity › Media Inputs › USB
USB-A
Optional
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Displays
Center Display
Yes
Center Display Controls
Buttons
Displays › Center Display Controls
Touchscreen
Optional
Rear-view Mirror
Anti-glare
Automatic
Seatbelt Warning Indicator
Yes
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Back Pocket
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
Carpets
Optional
Cigarette Lighter
Yes
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Multifunction Steering Wheel
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Barrier Net/Grid
Yes
Light
Yes
Rear Trunk
Volume
530 litres
Volume, Back Seat Collapsed
1,660 litres
Depth
1,115 mm (43.9 in)
Width
1,350 mm (53.1 in)
Width, Between Wheel Arches
950 mm (37.4 in)

Seats

Colour & Material
Upholstery
Textile
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40

Features

Comfort Features

Cruise Control
Optional
Cameras
Optional
Voice Control
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional

Other Features

GPS
Optional
Start & Stop
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Speed Assist
Optional
Hill Start Assist (HSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2013
Adult Occupant
92 %
Child Occupant
84 %
Vulnerable Road Users
68 %
Safety Assist
66 %
Overall
5/5 stars
Adult Occupant
Total Points
33.3 /38
Frontal Impact
15 /16
Lateral Impact
15 /16
Rear Impact
3.3 /4
Child Occupant
Total Points
41.6 /49
Safety Features
6 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 16.8
  • 2
  • 6

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
3 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
  • D4S (xenon)
  • HIR2
Main Beam
HIR2
Bi-Xenon
D4S
Fog Light, Front
H16
Fog Light, Rear
W3×16d (W21W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Side
W2.1×9.5d (W5W)
Turn Indicators, Rear
W3×16d (W21W)
Read Light
W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

ACRISS

Category
Compact (C)
Type
Wagon/Estate (W)
