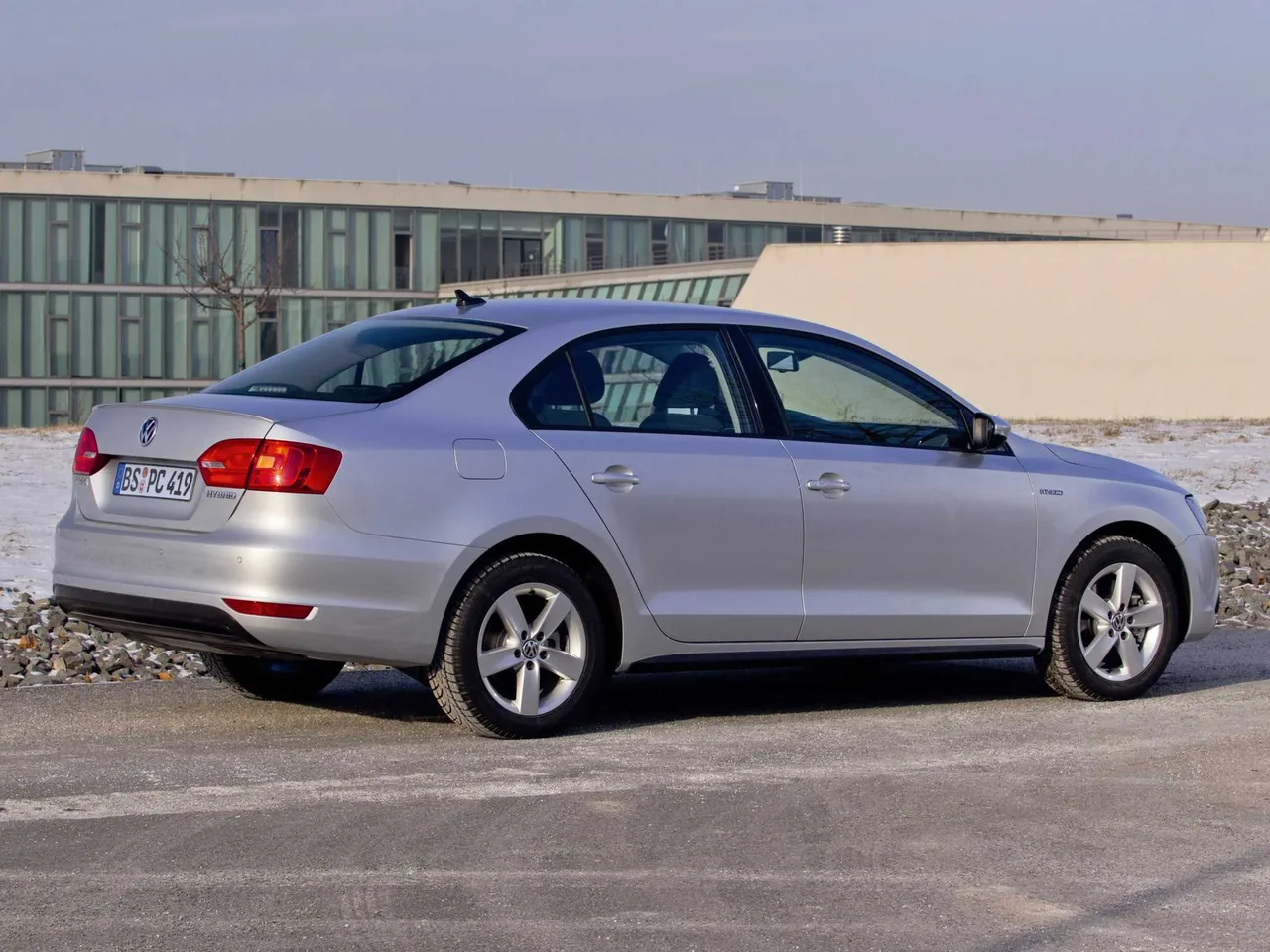

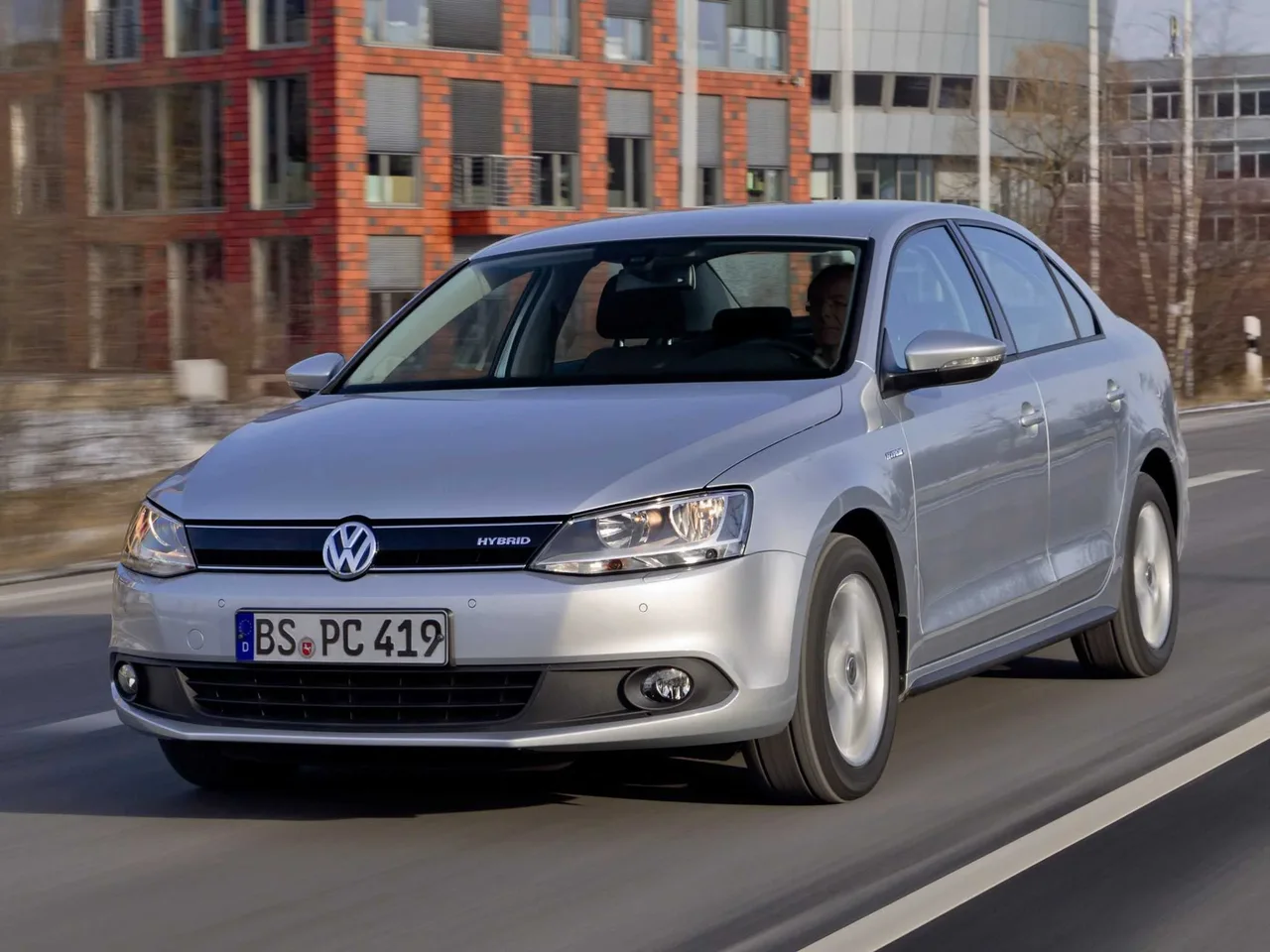

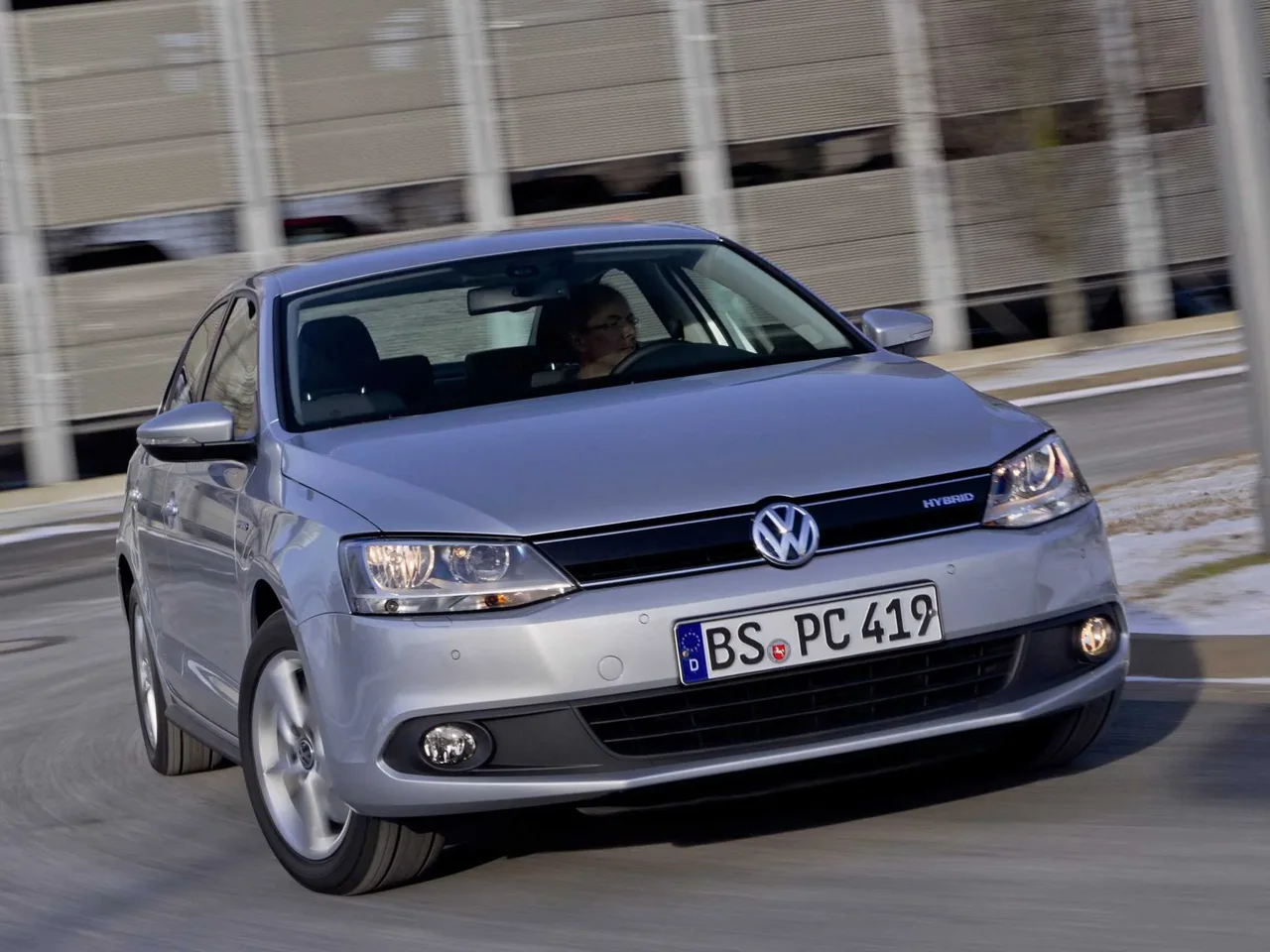

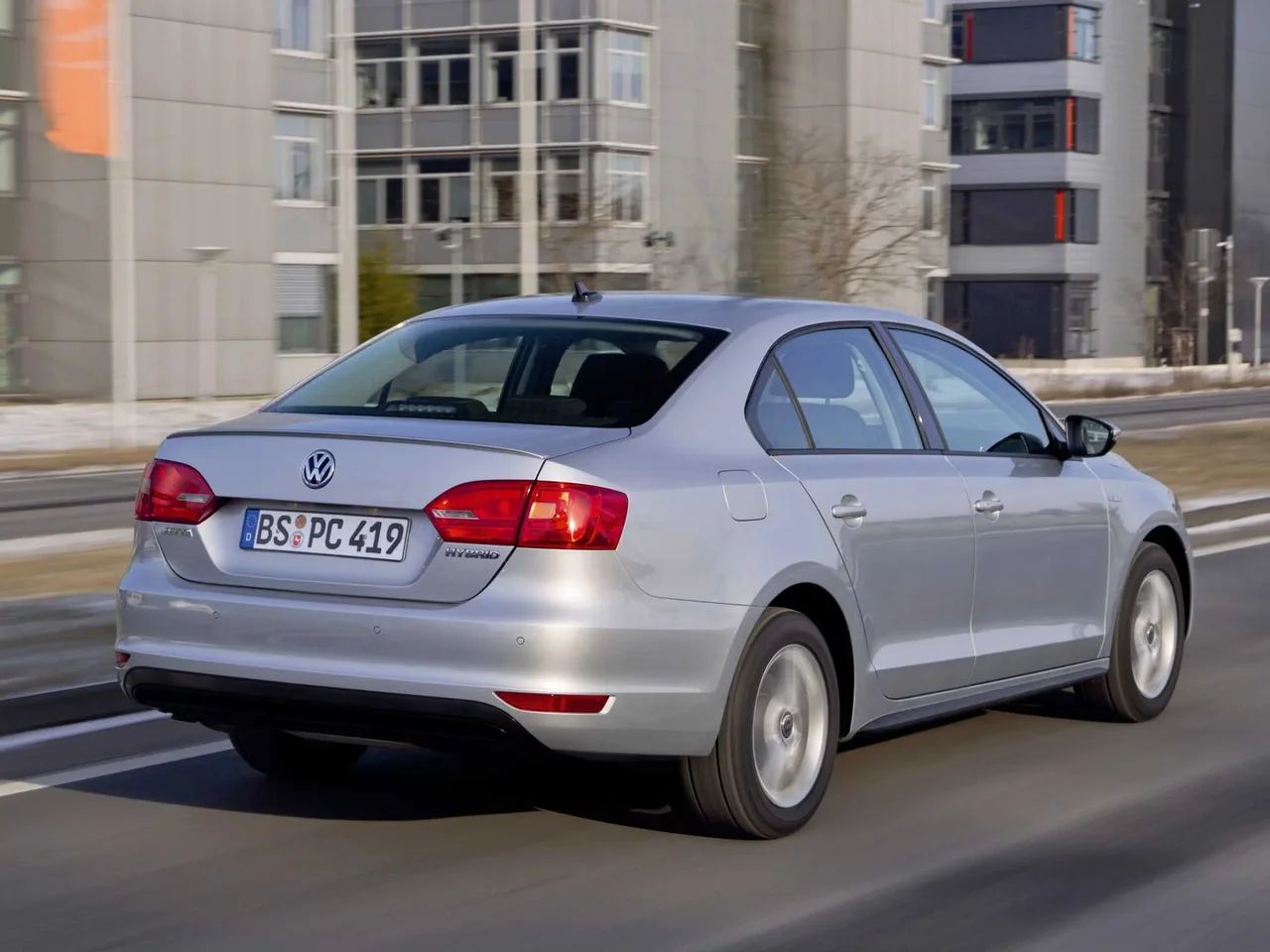

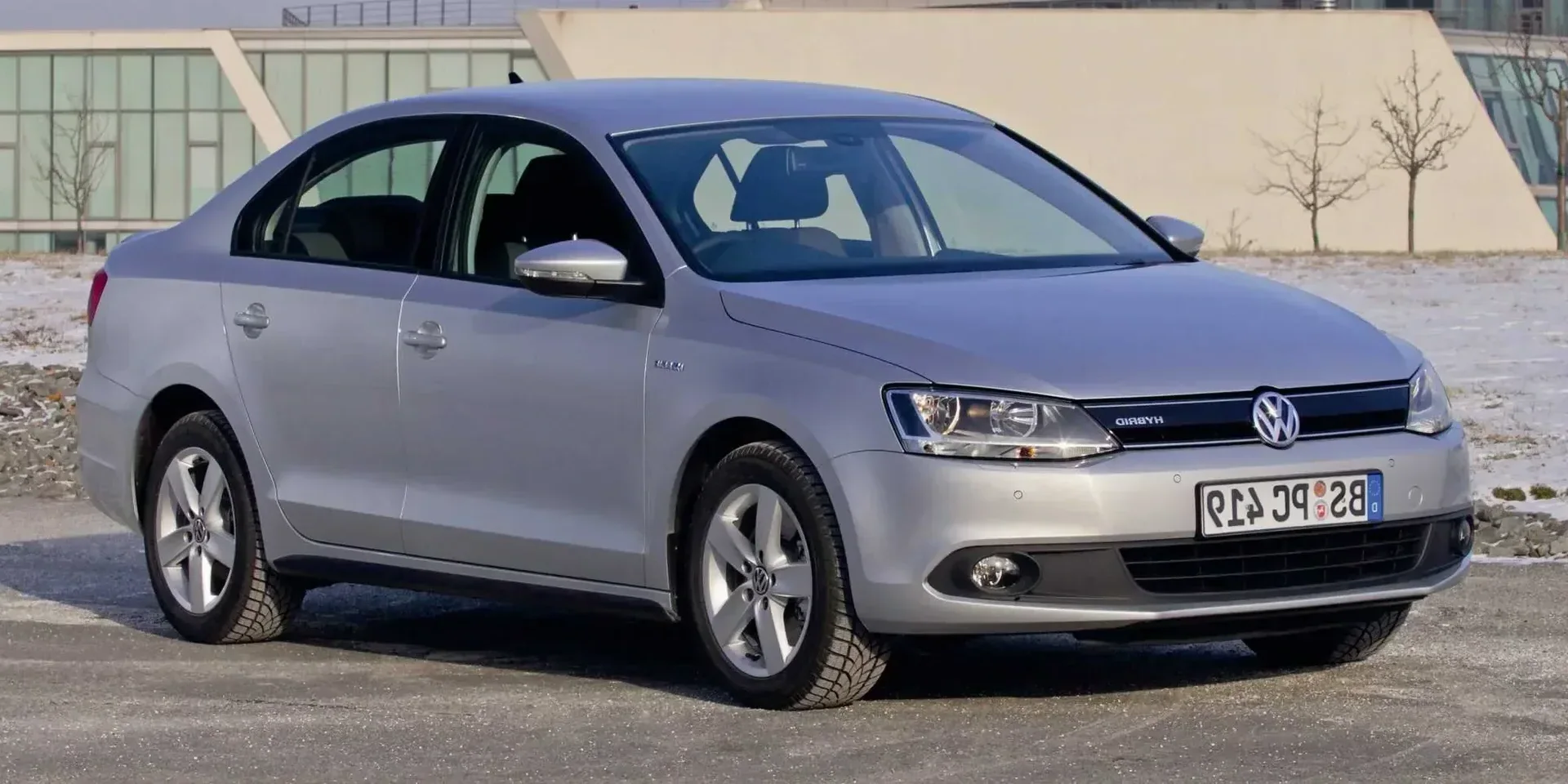

2013 Volkswagen Jetta

GermanyHybrid GasolineFWDSedan

Photos

Specifications

Vehicle Details

Year
2013
Make
Volkswagen
Model
Jetta
Body Style
Sedan
Generation
A6 (Type 16)
Seats
5
Doors
4
Fuel
Hybrid Gasoline
Drivetrain
FWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
Hybrid DSG Sequential
Engine Configuration
Inline
Power (hp)
170 hp
Power (kW)
125 kW
Torque
250 Nm (184 lb-ft)
Top speed
210 km/h (130 mph)
0–60 mph
8.2 seconds (estimated)
0–100 km/h
8.6 seconds
Battery
1.1 kWh
Displacement
1,395 cc

Dimensions

Length
4,644 mm (182.8 in)
Width
1,778 mm (70.0 in)
Height
1,482 mm (58.3 in)
Wheelbase
2,651 mm (104.4 in)
Curb weight
1,505 kg (3,318 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,800 - 6,000 rpm
Rev. at Max Torque
1,600 - 3,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
Yes
Semi-synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
4 litres
Configuration Combustion
Bore
74.5 mm (2.9 in)
Stroke
80 mm (3.1 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Configuration Combustion › ICE Specifications
Power
110 kW
Horsepower (Metric)
150 hp (148 bhp)
Torque
250 Nm (184 lb-ft)
Configuration Electric
Type of Electric Car
Hybrid
Electric Engine Power
20 kW
Electric Engine Horsepower (Metric)
27 hp (27 bhp)
Front Engines
Yes
Battery Capacity, Gross
1.1 kWh
Number of Batterycells
60
Type of Battery
Li-ion
Configuration Electric › Front Engines
Power (kW)
20 kW
Horsepower
27 hp
RPM at Max Power
2,500 rpm
Number of Engines
1
Service Intervals
Timing Interval, No Definite Interval
Yes
Air Filter
90,000 km / 6 years
Spark Plug
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years
Service Intervals › Timing Interval, No Definite Interval
Check Status, First time
230,000 km (142,915 mi)

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Leather
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
45 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Emission Class
A+
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption NEDC
City
4.4 litres / 100 km
Highway
3.9 litres / 100 km
Combined
4.1 litres / 100 km
Emission NEDC
CO₂, Combined
95 g/km

Performance

Acceleration
0-80 km/h
6.2 sec
Drag Coefficient
0.28

Dimensions & Weight

Exterior

Width, with Mirrors
2,020 mm (79.5 in)
Width, open Doors
3,689 mm (145.2 in)
Track, Front
1,535 mm (60.4 in)
Track, Rear
1,538 mm (60.6 in)
Overhang, Front
889 mm (35.0 in)
Overhang, Rear
1,104 mm (43.5 in)
Approach Angle
14 °
Breakover Angle
10.9
Departure Angle
12.8 °
Turning Circle
11.1 m
Ground Clearance
134 mm (5.3 in)

Interior

Head Room, Front
941 - 970 mm (37.0 - 38.2 in)
Head Room, Rear
941 - 943 mm (37.0 - 37.1 in)
Leg Room, Front
1,046 mm (41.2 in)
Leg Room, Rear
968 mm (38.1 in)
Hip Room, Front
1,447 mm (57.0 in)
Hip Room, Rear
1,434 mm (56.5 in)

Weight

Gross Weight
2,020 kg (4,453 lb)
Cargo Capacity
590 kg (1,301 lb)
Max Roof Load
75 kg (165 lb)
Permitted Axle Load, front
990 kg (2,183 lb)
Permitted Axle Load, rear
1,080 kg (2,381 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Roof Material
Aluminium
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
A Platform (PQ35)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Optional
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Side
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Glass-integrated
Mud Flaps
Optional
Electric
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Fog Lights
Yes
Fog Lights
Rear
Yes
Special Features
Automatic Headlight Activation
Optional
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
120 Nm
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel
Tire Pressure Monitoring System (TPMS)
Indirect
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Shape
Square
Secondary Display
Yes
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Rotary Dials
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
Bluetooth
Phone
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
CD
Yes
Memory Card Reader
Optional
WMA
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Yes
USB
USB-A
Displays
Center Display
Optional
Displays › Center Display
Touchscreen
Optional
Buttons
Optional
Rotary Dial
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Optional
Card Holder
Optional
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Carpet
Optional
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
374 litres
Depth
1,058 mm (41.7 in)
Depth, Back Seat Collapsed
1,884 mm (74.2 in)
Height
347 mm (13.7 in)
Trunk Door Opening Height
1,756 mm (69.1 in)
Automatic Open
Button on Trunk Door
Optional
Carpet
Rubber
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Rear Camera Preparation
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2011
Adult Occupant
94 %
Child Occupant
86 %
Vulnerable Road Users
56 %
Safety Assist
71 %
Overall
5/5 stars
Test Year
2011
Overall Score
35.2
Adult Occupant
Total Points
33.7 /38
Frontal Impact
15.2 /16
Lateral Impact
15.1 /16
Rear Impact
3.3 /4
Frontal Offset
15.2
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Not Assessed
Child Occupant
Total Points
42 /49
Safety Features
6 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 11.7
  • 2.5
  • 6
Safety Assist
Speed Assistance (points)
0 /3
Seat Belt Reminder (points)
2 /2
Seat Belt Reminders
2
Pedestrian
Protection (Assessment)
Acceptable
Frontal Crash
Front Driver Side
4/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
4/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
4/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
12.1 %
Overall Safety Rating
4/5 stars
Overall Frontal Rating
4/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
  • Centre
  • Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
  • D3S (xenon)
  • H7
Main Beam
H7
Bi-Xenon
D3S
Datyime Running Light
BA15s (P21W)
Fog Light, Front
HB4
Fog Light, Rear
BA15s (P21W)
Cornering Light
H7
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
  • BA15s (P21W)
  • W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
  • BA15s (P21W)
  • WX3×16d (WY21W)
Glove Compartment
W2.1×9.5d (W3W)
Read Light
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

Similar sedans

Suggested vehicles
