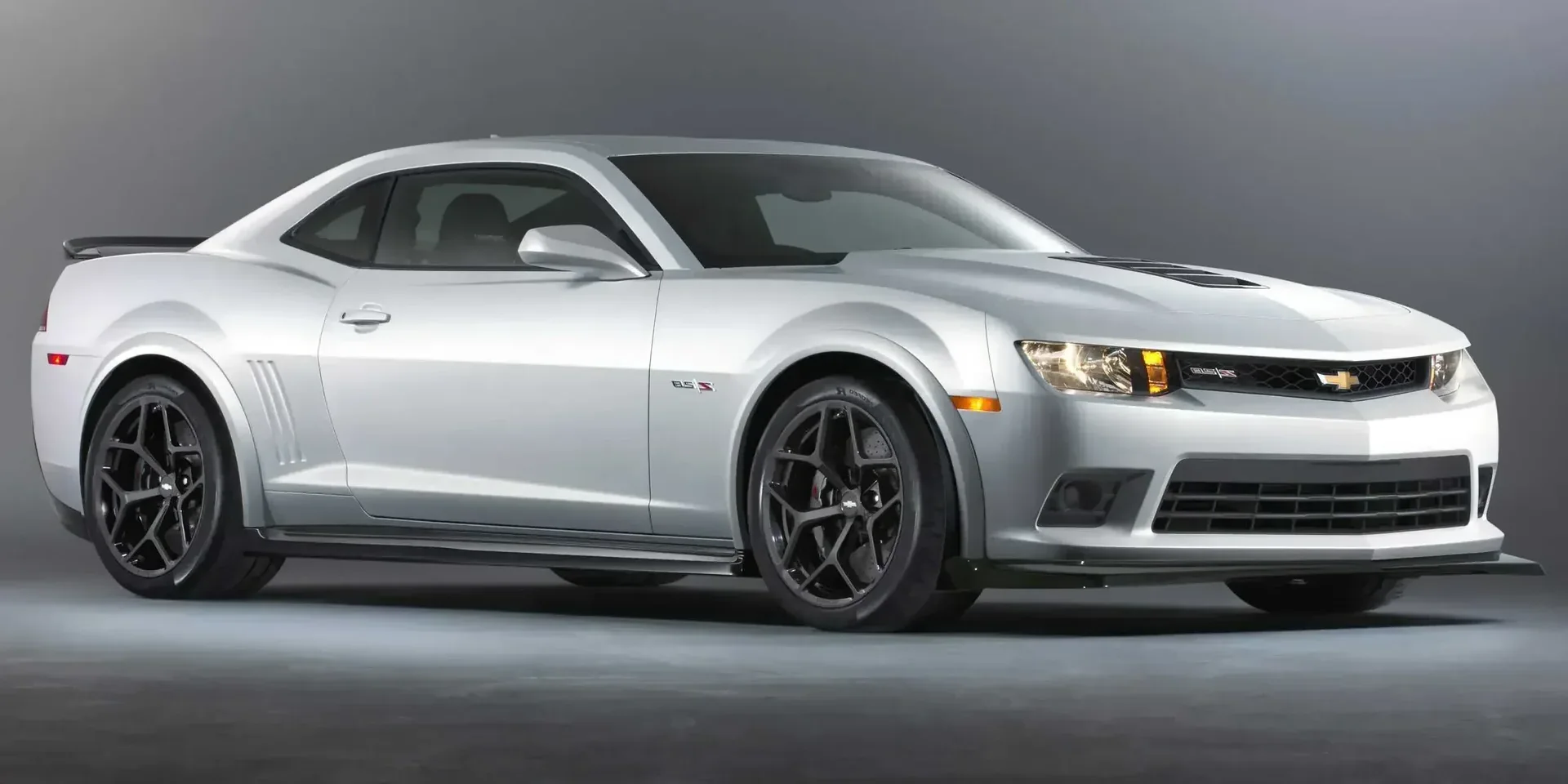

2014 Chevrolet Camaro Z28

United StatesGasolineRWDCoupe

Photos

Specifications

Vehicle Details

Year
2014
Make
Chevrolet
Model
Camaro
Variant
Z28
Body Style
Coupe
Generation
5th Generation Facelift
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
Z28 Manual
Engine Configuration
V
Power (hp)
507 hp
Power (kW)
373 kW
Torque
637 Nm (470 lb-ft)
Top speed
282 km/h (175 mph)
0–60 mph
4.2 seconds
0–100 km/h
4.4 seconds
Displacement
7,011 cc

Dimensions

Length
4,841 mm (190.6 in)
Width
1,918 mm (75.5 in)
Height
1,376 mm (54.2 in)
Wheelbase
2,852 mm (112.3 in)
Curb weight
1,761 kg (3,882 lb)

Engine & Performance

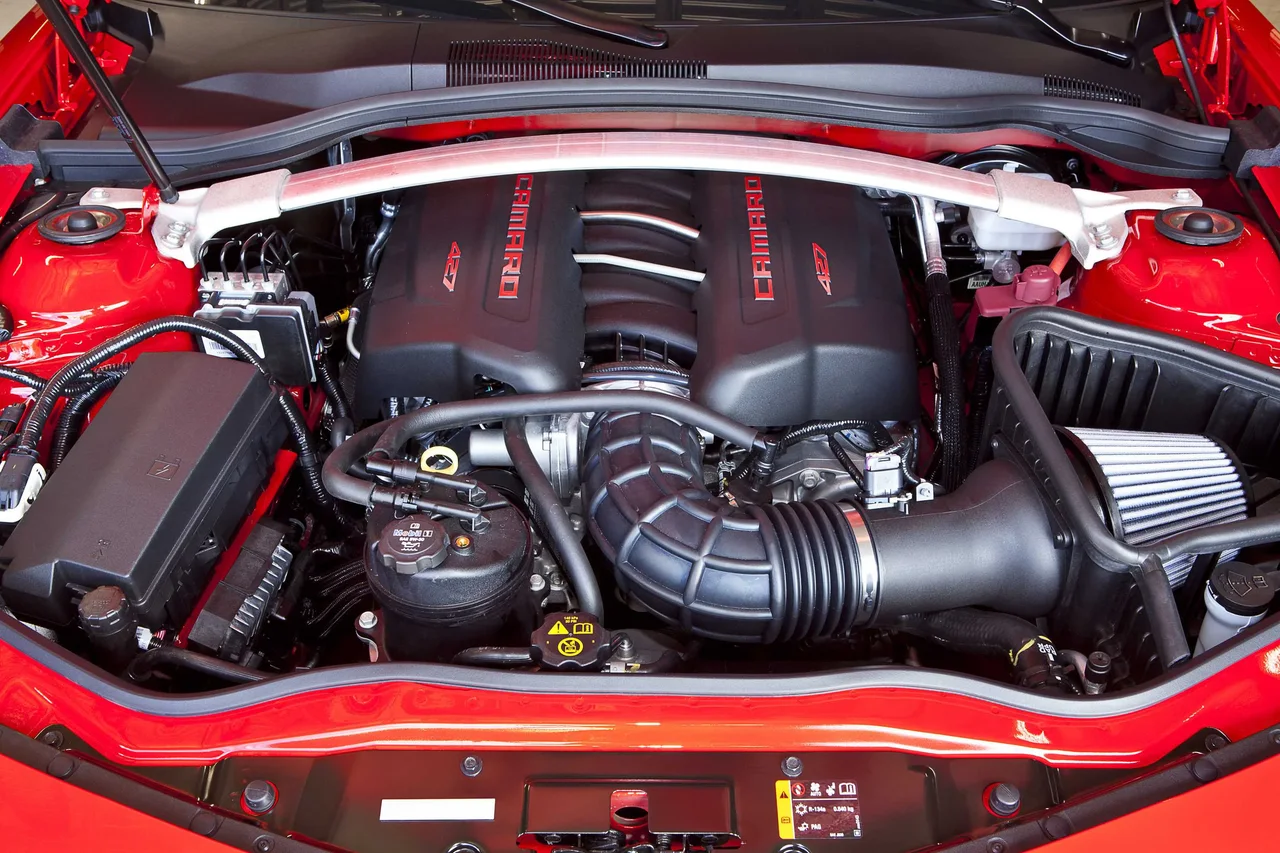

Engine

Engine Specification
Rev. at Max Power
6,500 rpm
Rev. at Max Torque
4,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
  • 10W-50
  • 15W-40
  • 20W-40
  • 20W-50
Engine Oil, Volume
4.7 litres
Engine Configuration
Bore
104.8 mm (4.1 in)
Stroke
101.6 mm (4.0 in)
Compression Ratio
11 :1
Engine Configuration
V-Engine
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
OHC

Transmission & Drivetrain

Gear Selector
Stick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
2.66 :1
2nd Gear
1.78 :1
3rd Gear
1.3 :1
4th Gear
1 :1
5th Gear
0.8 :1
6th Gear
0.63 :1
Final Drive
3.91 :1
Reverse
2.9 :1

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Carbon Ceramic
Front Brakes
Diameter
394 mm (15.5 in)
Width
36 mm (1.4 in)
Cooling
Ventilated
Rear Brakes
Width
32 mm (1.3 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
Rear
Suspension, Front
Independent
Multi-link
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
72 litres
General › Fuel Cap Position
Rear
Right
Fuel Consumption NEDC
City
18.1 litres / 100 km
Highway
12.4 litres / 100 km
Combined
15.7 litres / 100 km
Fuel Consumption EPA
City
13 MPG
Highway
19 MPG
Combined
15 MPG

Performance

Braking
100-0 km/h
34.7 m
Quarter Mile
12.4 sec
Drag Coefficient
0.37

Dimensions & Weight

Exterior

Track, Front
1,618 mm (63.7 in)
Track, Rear
1,628 mm (64.1 in)
Turning Circle
11.5 m
Ground Clearance
102 mm (4.0 in)

Interior

Head Room, Front
950 mm (37.4 in)
Head Room, Rear
897 mm (35.3 in)
Leg Room, Front
1,077 mm (42.4 in)
Leg Room, Rear
759 mm (29.9 in)
Shoulder Room, Front
1,445 mm (56.9 in)
Shoulder Room, Rear
1,281 mm (50.4 in)

Weight

Max Roof Load
60 kg (132 lb)
Weight Distribution, front
53 %
Weight Distribution, rear
47 %

Exterior

Chassis & Body

Chassis
Chassis
Coupé
Pillars
A-C
Chassis Construction
Monocoque
Body Material
  • Aluminium
  • Steel
Roof Material
Aluminium
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Yes
Rear
Yes
Sides
Bottom-Strip
Doors
Door Handles
Pull-out
Platform
General Motors Platforms
Zeta Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
House Colour
Same as Car
Windscreen Wipers
Windscreen Wipers: Connector type, Front
Hook
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Other Equipment
Normal Roof
Yes
Spoiler
Fixed
Antenna
Yes
Air Intakes
1-port
Number of Exhaust Pipes
2

Lights

Main Beam
Halogen
Low Beam
Halogen

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts
Tightening Torque
190 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Black

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Number of Climate Zones
1
Air Condition
Optional
Micro Filter
Yes
Outside Temperature Indicator
Optional
Number of Vents, Front
7 pcs
Number of Vents, Rear
7 pcs
Connectivity
Radio
Optional
Bluetooth
Yes
Connectivity › Radio
CD
Optional
MP3
Optional
Displays
Center Display: Size
7"
Speakers
Total Number of Speakers
1 pcs
Interior Storage › Storage Compartments
Glove Compartment
Cooled
Total Number of Compartments
4 pcs
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Lights
Read Light
  • Front
  • Rear
Other Equipment
12V Outlet
Front

Steering Wheel

Multifunction Steering Wheel
Yes
Adjustments
  • Tilt
  • Telescope
Colour
Black
Steering Ratio
16 :1
Answer Phone
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
320 litres
Depth
480 mm (18.9 in)
Depth, Back Seat Collapsed
890 mm (35.0 in)
Width, Between Wheel Arches
1,000 mm (39.4 in)
Opening Width
1,050 mm (41.3 in)
Sill Height
750 mm (29.5 in)

Design

Transmission Knob Material
Leather

Seats

Colour & Material
Upholstery
  • Leather
  • Suede Microfiber
Front Seats › Adjustments, Driver
Seat Height
Yes
Cushion Tilt
Optional
Backrest Angle
Yes
Headrest, Height
Yes
Second Seat Row
Collapsible
Yes
Number of Seats
2

Features

Comfort Features

Keyless Entry
Yes
Cruise Control
Yes

Other Features

Horn
Single Note

Accessories

Tire Repair Kit
Yes
Compressor
Yes

Safety & Security

Airbags

Total Number of Airbags
8
Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Light Sensor
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Yes
Emergency Call
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left

Car Classification

American Classification
Supercar
British Classification
Supercar
Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car
UNECE Category
M1

Lap Time

Nürburgring, Lap Time
7:37:4 min-sec-ms
Nürburgring, Year of Record
2013
