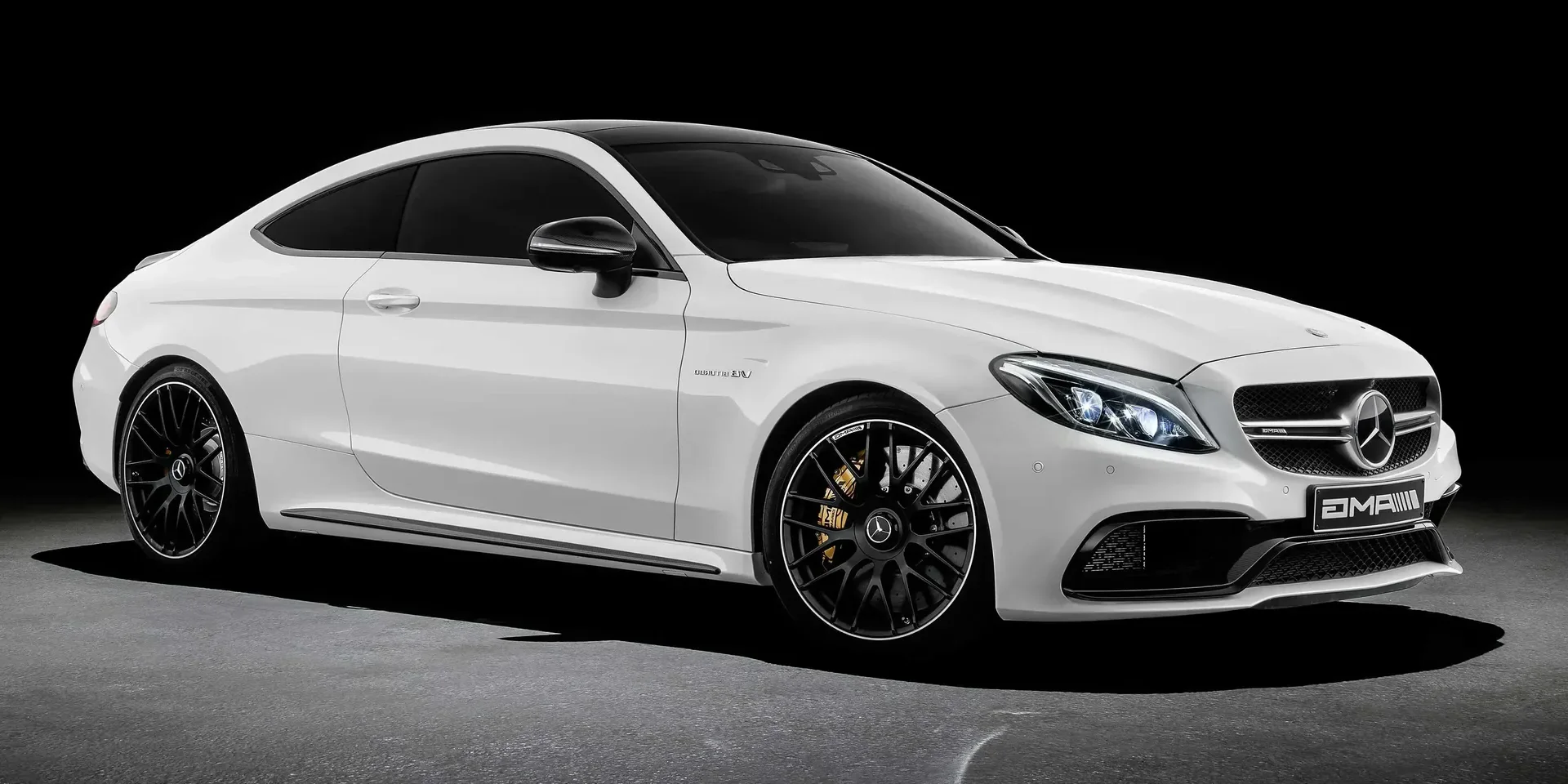

2016 Mercedes-Benz C-Class AMG C

GermanyGasolineRWDCoupe

Photos

Specifications

Vehicle Details

Year
2016
Make
Mercedes-Benz
Model
C-Class
Variant
AMG C
Body Style
Coupe
Generation
W205
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
AMG C 63 S Coupé AMG SpeedShift MCT 7-speed
Engine Configuration
V
Power (hp)
510 hp
Power (kW)
375 kW
Torque
700 Nm (516 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
3.7 seconds (estimated)
0–100 km/h
3.9 seconds
Displacement
3,982 cc

Dimensions

Length
4,686 mm (184.5 in)
Width
1,810 mm (71.3 in)
Height
1,405 mm (55.3 in)
Wheelbase
2,840 mm (111.8 in)
Curb weight
1,725 kg (3,803 lb)

Engine & Performance

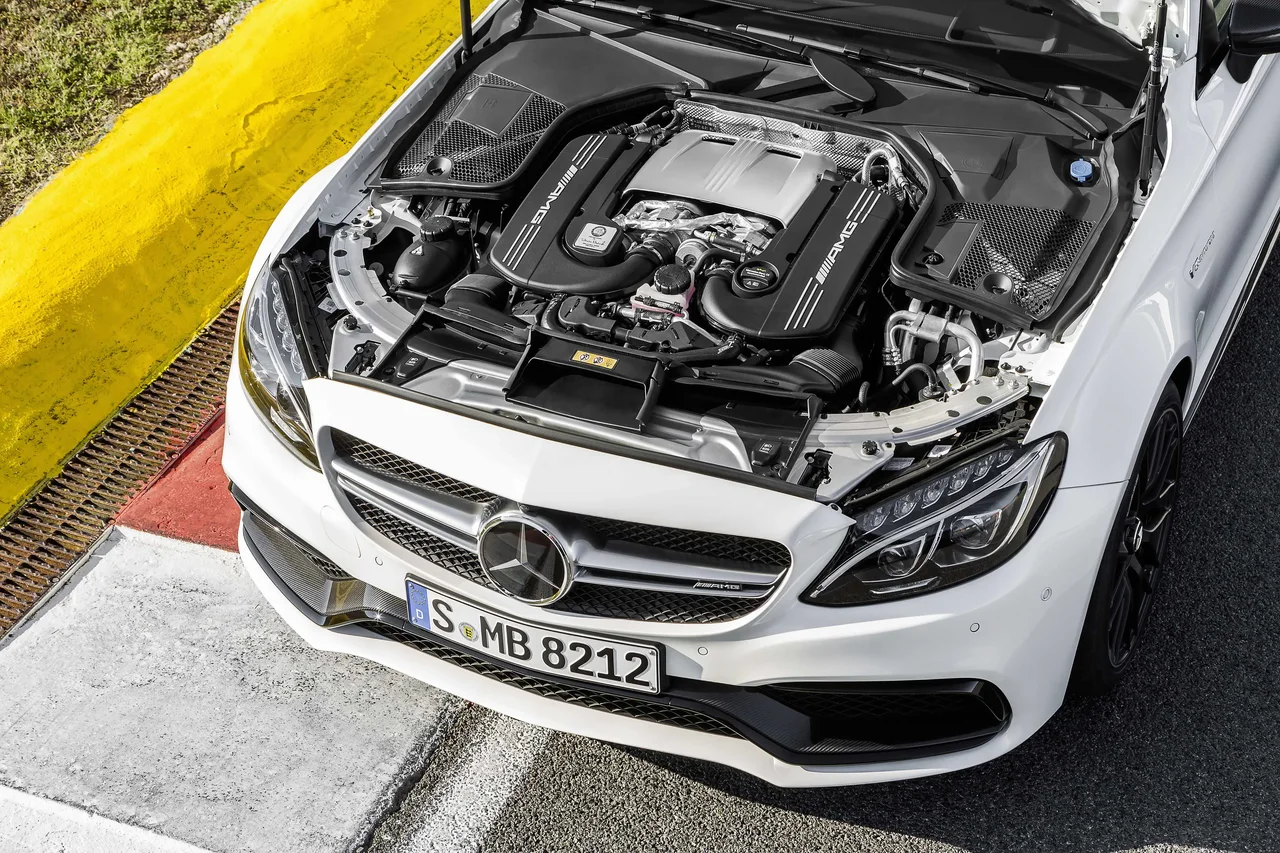

Engine

Engine Specification
Rev. at Max Power
5,500 - 6,250 rpm
Rev. at Max Torque
1,750 - 4,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
Engine Oil, Volume
9 litres
Engine Configuration
Bore
83 mm (3.3 in)
Stroke
92 mm (3.6 in)
Compression Ratio
10.5 :1
Engine Configuration
V-Engine
Turbocharger
Twin-turbo
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
80,000 km / 4 years
Fuel Filter
200,000 km / 10 years
Brake Fluid
2 years
Oil Change & Engine Filter
20,000 km / 1 years
Engine Coolant
200,000 km / 10 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
66 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Emission Class
E
Fuel Consumption NEDC
City
11.4 litres / 100 km
Highway
6.9 litres / 100 km
Combined
8.6 litres / 100 km
Emission NEDC
CO₂, Combined
200 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,016 mm (79.4 in)
Track, Front
1,563 mm (61.5 in)
Track, Rear
1,546 mm (60.9 in)
Overhang, Front
790 mm (31.1 in)
Overhang, Rear
1,056 mm (41.6 in)
Turning Circle
11.2 m
Ground Clearance
92 mm (3.6 in)

Interior

Head Room, Front
1,023 mm (40.3 in)
Head Room, Rear
905 mm (35.6 in)
Hip Room, Front
1,472 mm (58.0 in)
Hip Room, Rear
1,358 mm (53.5 in)
Shoulder Room, Front
1,392 mm (54.8 in)
Shoulder Room, Rear
1,312 mm (51.7 in)

Weight

Gross Weight
2,160 kg (4,762 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
435 kg (959 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé
Pillars
A-B
Chassis Construction
Unibody
Body Material
Aluminium
Roof Material
Aluminium
Doors
Front Doors
Conventional
Door Handles
Pull-out
Platform
Mercedes-Benz Platforms
MRA

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Heated Water Tank
Optional
Windscreen Wipers: Connector type, Front
Mercedes-Benz Fit
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Tinted Windows
  • Front
  • Second Row
  • Rear Window
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Antenna
Glass-integrated

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Main Beam Assist
Fog Lights
Front
Yes
Rear
Yes
Special Features
Dynamic Cornering Lights
Optional
Headlight Range Adjustment
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
130 Nm
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
5.5"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
App-Connect
Yes
Bluetooth
  • Phone
  • Audio
Phone Preparation
Optional
Cellular Network
Optional
Connectivity › Radio
DAB
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › Media Format
CD
Optional
DVD
Optional
Memory Card Reader
Optional
MP3
Optional
WMA
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Yes
USB
USB-A
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Connectivity › Cellular Network
4G
Optional
Displays
Center Display
7"
Center Display Controls
Touchpad
Displays › Center Display
Type
Colour
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Sunglass Compartment
Yes
Card Holder
Yes
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell
Ambient Light
Optional
Lights › Guide Light
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
230V Outlet
Optional
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Front
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Release Button
Yes
Barrier Net/Grid
Yes
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
400 litres
Automatic Open
Button on Trunk Door
Optional
From Inside Car
Optional

Design

Transmission Knob Material
Leather
Colour
Silver
Colour
Brown
Optional

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Powered
Cushion Edge
Optional
Cushion Tilt
Optional
Backrest Angle
Powered
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Powered
Backrest Angle
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Type of Seat
Sport Seats
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
2
Type of Seat
Adult

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Optional
Voice Control
Optional
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional
Voice Control
Climate Control
Optional
Media
Optional
Navigation
Optional
Phone
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Collision Avoidance System
Yes
Active Bonnet
Yes
Emergency Call
Yes
Speed Sensitive
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2014
Adult Occupant
92 %
Child Occupant
84 %
Vulnerable Road Users
77 %
Safety Assist
70 %
Overall
5/5 stars
Overall Score
36.46
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
15.46
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
  • Medium Executive Car
  • Sports Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
WP3.3×14.5 (PWY24W)
Turn Indicators, Rear
BAU15s (PY21W)

ACRISS

Type
Coupe (E)

Awards

World
Car of the Year
2015
Japan Import Car of the Year
2015 - 2014

Similar coupes

Suggested vehicles
