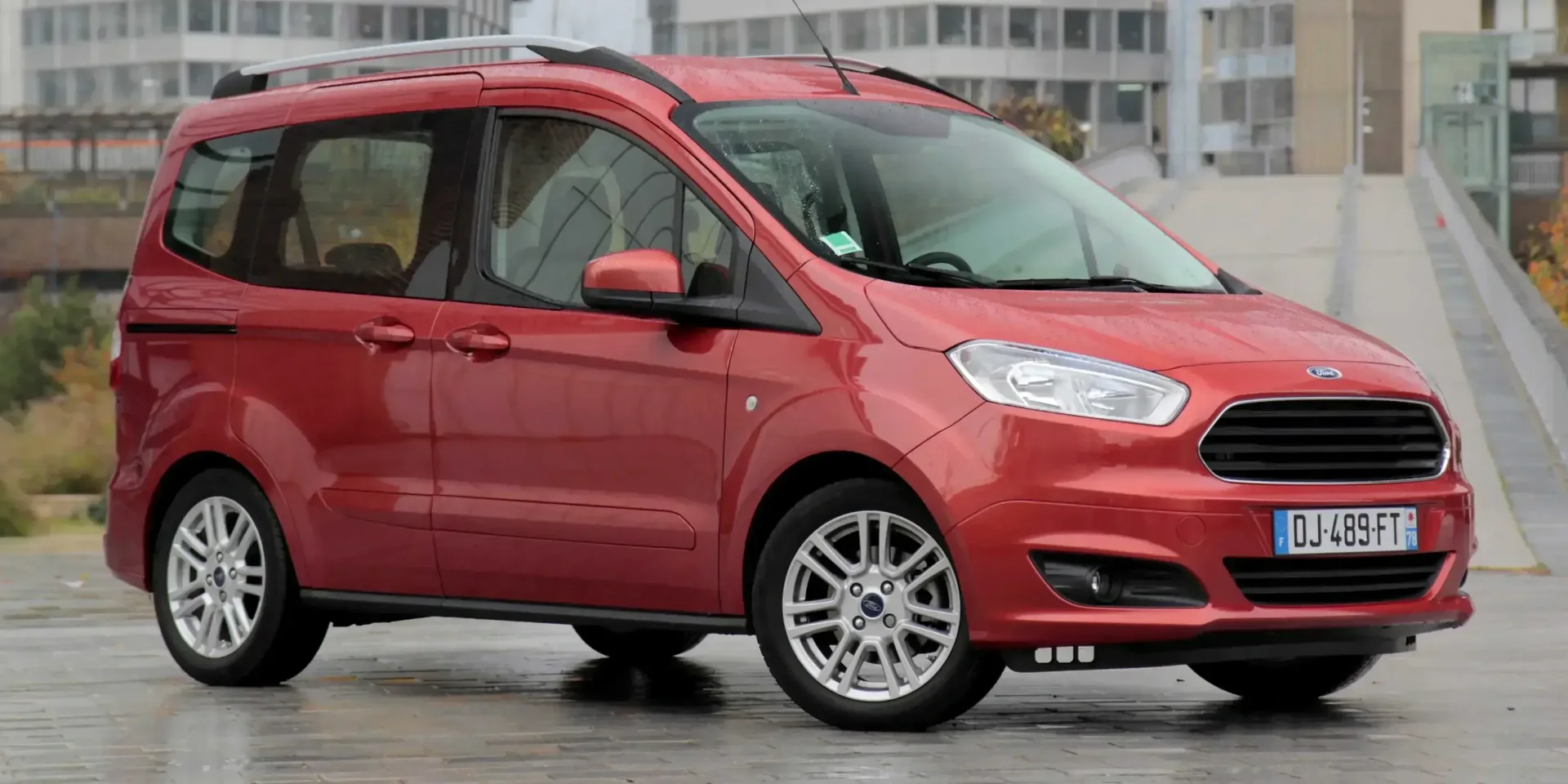

2014 Ford Transit Tourneo Courier

United StatesGasolineFWDLCV

Photos

Specifications

Vehicle Details

Year
2014
Make
Ford
Model
Transit
Variant
Tourneo Courier
Body Style
LCV
Generation
JU2
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 5-speed

Powertrain

Engine Name
1.0 EcoBoost Manual
Engine Configuration
Inline
Power (hp)
100 hp
Power (kW)
74 kW
Torque
170 Nm (125 lb-ft)
Displacement
998 cc

Dimensions

Length
4,157 mm (163.7 in)
Width
1,976 mm (77.8 in)
Height
1,726 mm (68.0 in)
Wheelbase
2,489 mm (98.0 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
1,400 - 4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-20
Engine Configuration
Bore
71.9 mm (2.8 in)
Stroke
82 mm (3.2 in)
Compression Ratio
10 :1
Engine Configuration
Inline
Turbocharger
Yes
Type of Combustion Engine
Piston

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Leather
Optional
Front Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Dimensions & Weight

Exterior

Width, with Mirrors
2,060 mm (81.1 in)
Track, Front
1,494 mm (58.8 in)
Track, Rear
1,479 mm (58.2 in)
Overhang, Front
819 mm (32.2 in)
Overhang, Rear
849 mm (33.4 in)
Turning Circle
10.5 m
Ground Clearance
145 mm (5.7 in)

Interior

Head Room, Front
1,152 mm (45.4 in)
Head Room, Rear
1,118 mm (44.0 in)
Leg Room, Front
1,091 mm (43.0 in)
Leg Room, Rear
928 mm (36.5 in)

Exterior

Chassis & Body

Chassis
Chassis
LCV (Minibus)
Doors
Front Doors
Conventional
Rear Doors
Sliding (Left | Right)
Platform
Ford Motor Company
B3 Platform (Global B Platform)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Mechanical
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Heat-Insulating Windows
  • Front
  • First Row
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Roof Railing
Optional
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Optional
Special Features
Main Beam Assist
Optional
Headlight Range Adjustment
Manual

Colour

Door Handles
Non-painted

Rims & Tires

Nut/Bolt Dimensions
M12x1.5
Fastening Type
Lug Nuts
Tightening Torque
133 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Optional
Outside Temperature Indicator
Yes
Connectivity
Radio
Optional
App-Connect
Optional
Bluetooth
Optional
Connectivity › Radio
AM
Optional
FM
Optional
CD
Optional
MP3
Optional
USB
Optional
Displays
Center Display
Optional
Displays › Center Display
Touchscreen
Optional
Interior Storage › Storage Compartments
Glove Compartment
Yes
Door
  • Driver Side
  • Passenger Side
Other Equipment
Carpets
Optional
Other Equipment › Carpets
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Yes
Material
Plastic
Colour
Black
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
708 litres
Volume, Back Seat Collapsed
1,656 litres
Depth
837 mm (33.0 in)
Depth, Back Seat Collapsed
1,107 mm (43.6 in)
Width
1,345 mm (53.0 in)
Height
1,200 mm (47.2 in)

Design

Interior Decor Material
Plastic
Transmission Knob Material
Plastic
Colour
Black

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Front Seats
Heated Seats
Optional
Second Seat Row
Collapsible
Yes

Features

Comfort Features

Cruise Control
Optional
Cruise Control
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Rain Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes

Safety Testing

General
Test Year
2014
Adult Occupant
84 %
Child Occupant
84 %
Vulnerable Road Users
74 %
Safety Assist
56 %
Overall
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Passenger Seat
in Front of
B-Pillar, Right
Yes

Car Classification

American Classification
Passenger Van
British Classification
Minibus
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Passenger Van

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H15
Datyime Running Light
H15
Fog Light, Front
H11
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
License Plate Light
W2.1×9.5d (W5W)
