2014 Kia Sorento

South KoreaGasolineFWDSUV

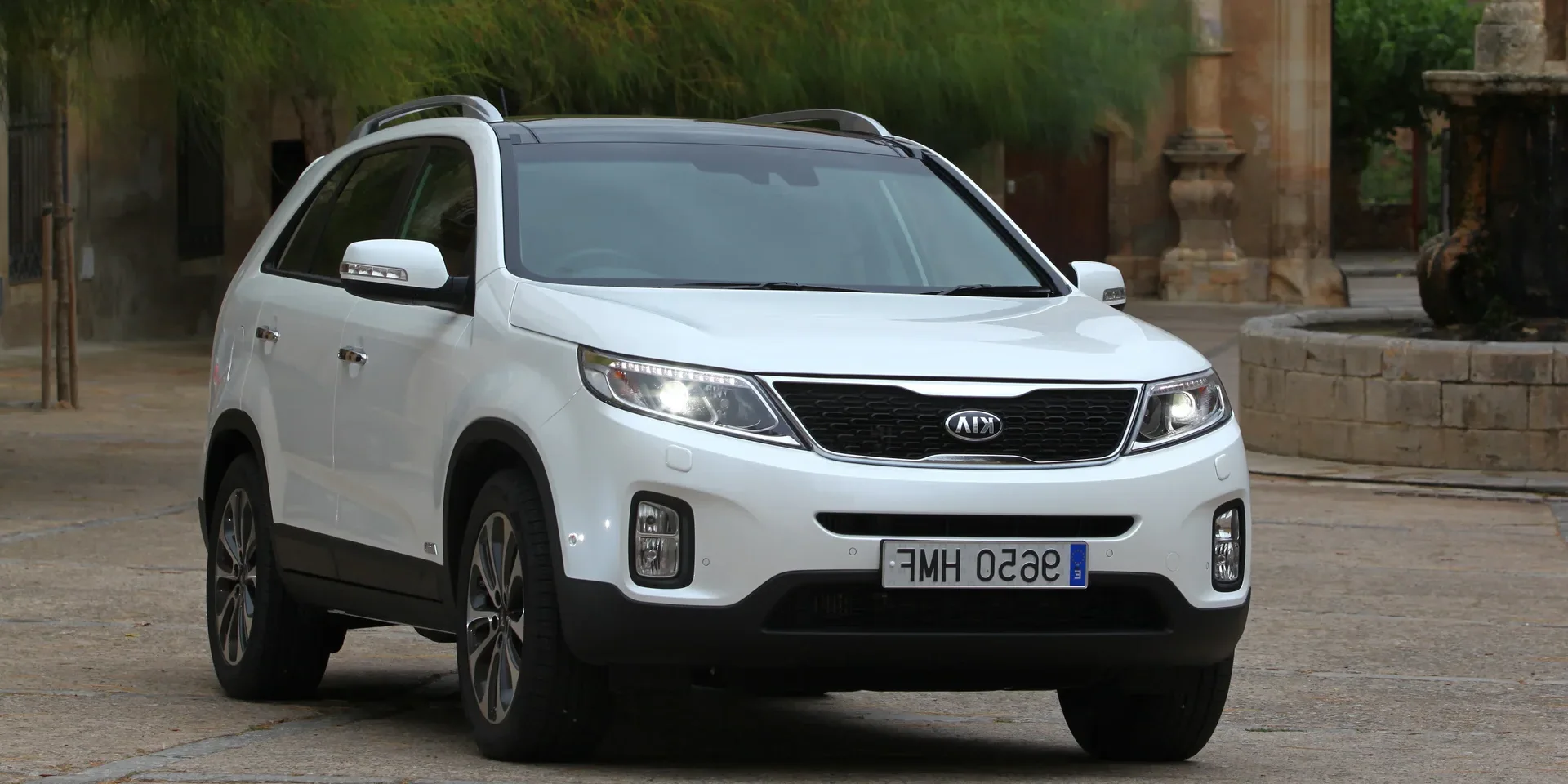

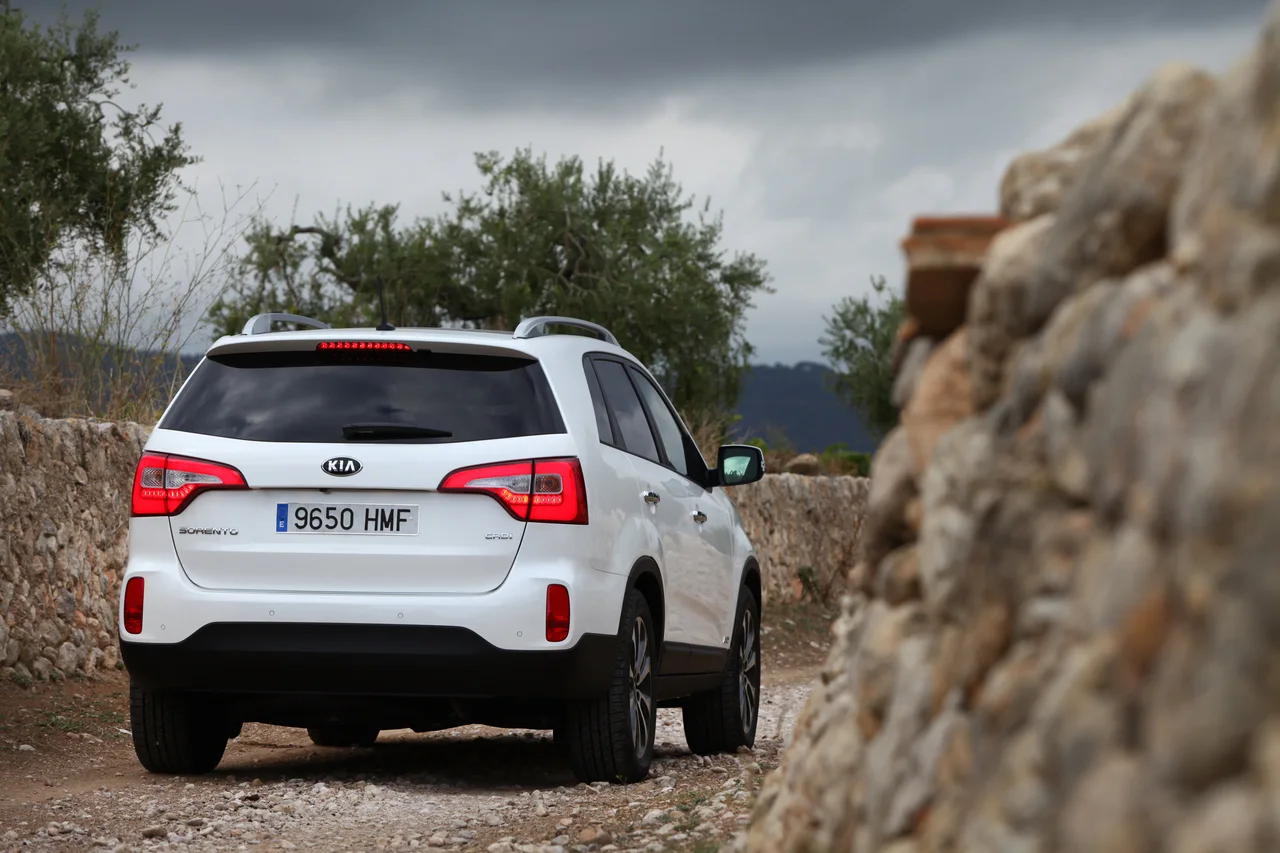

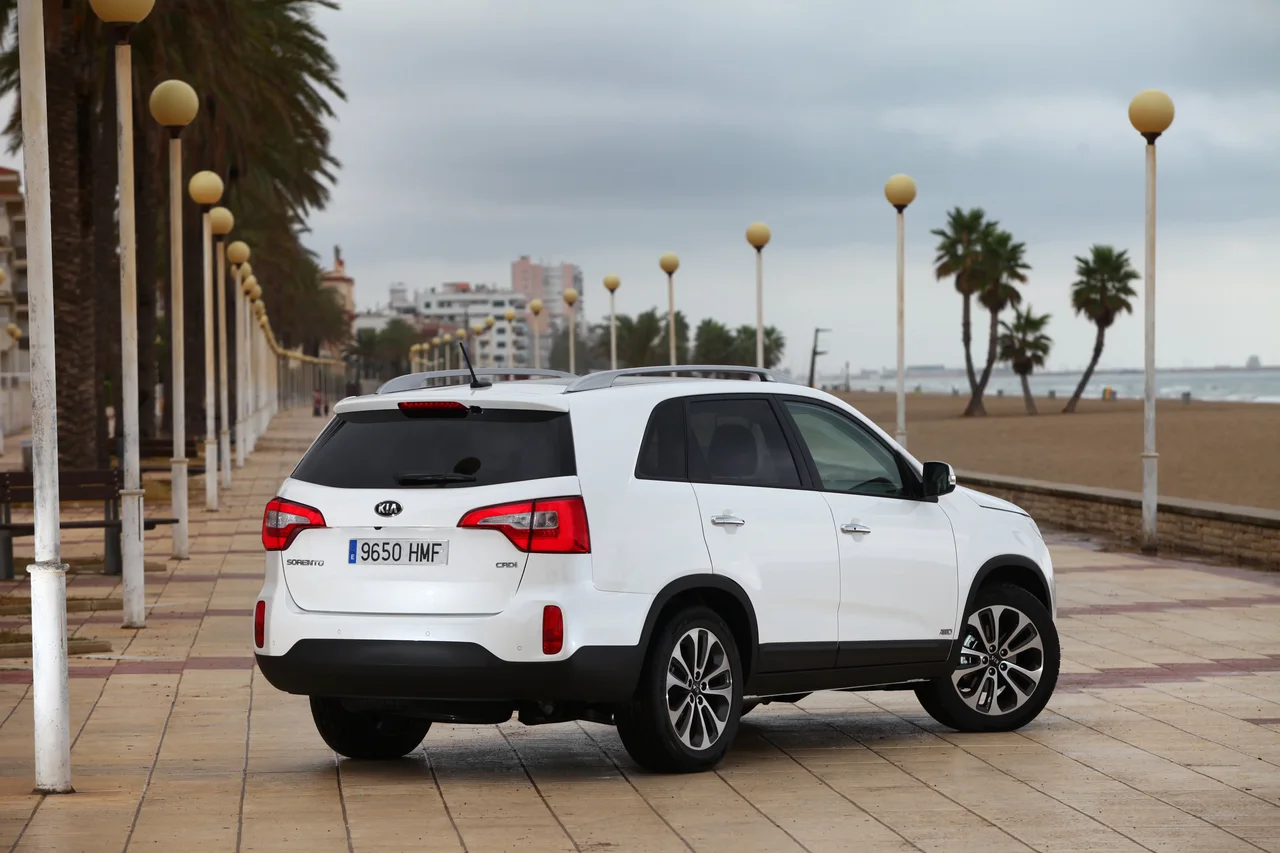

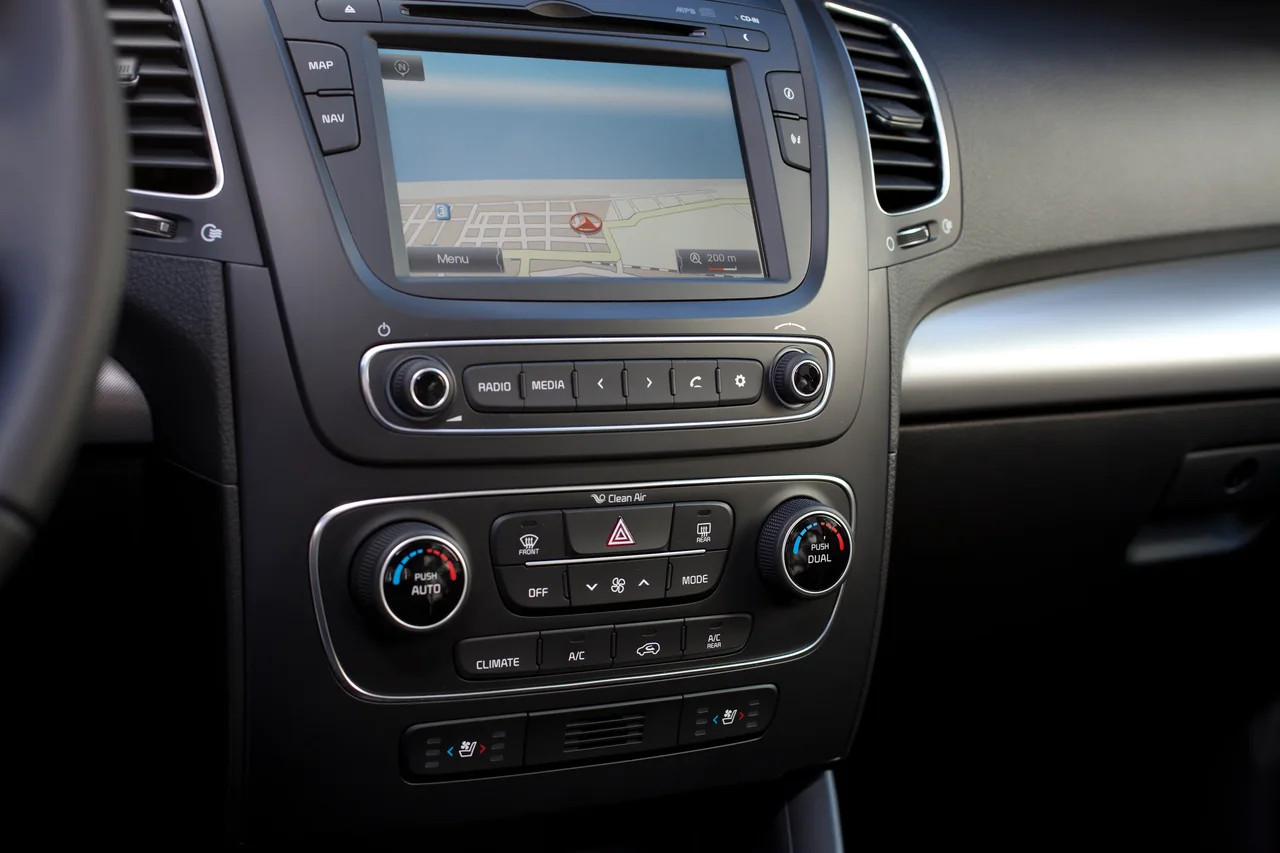

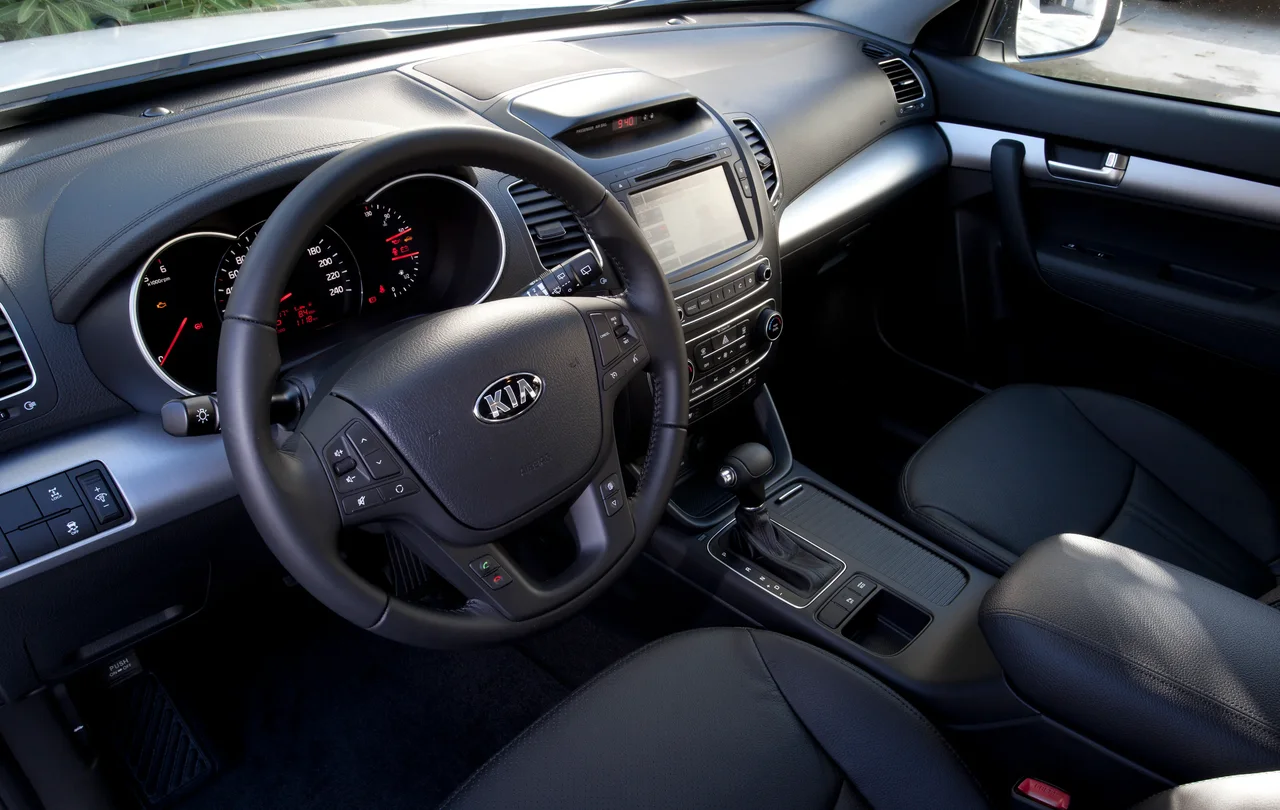

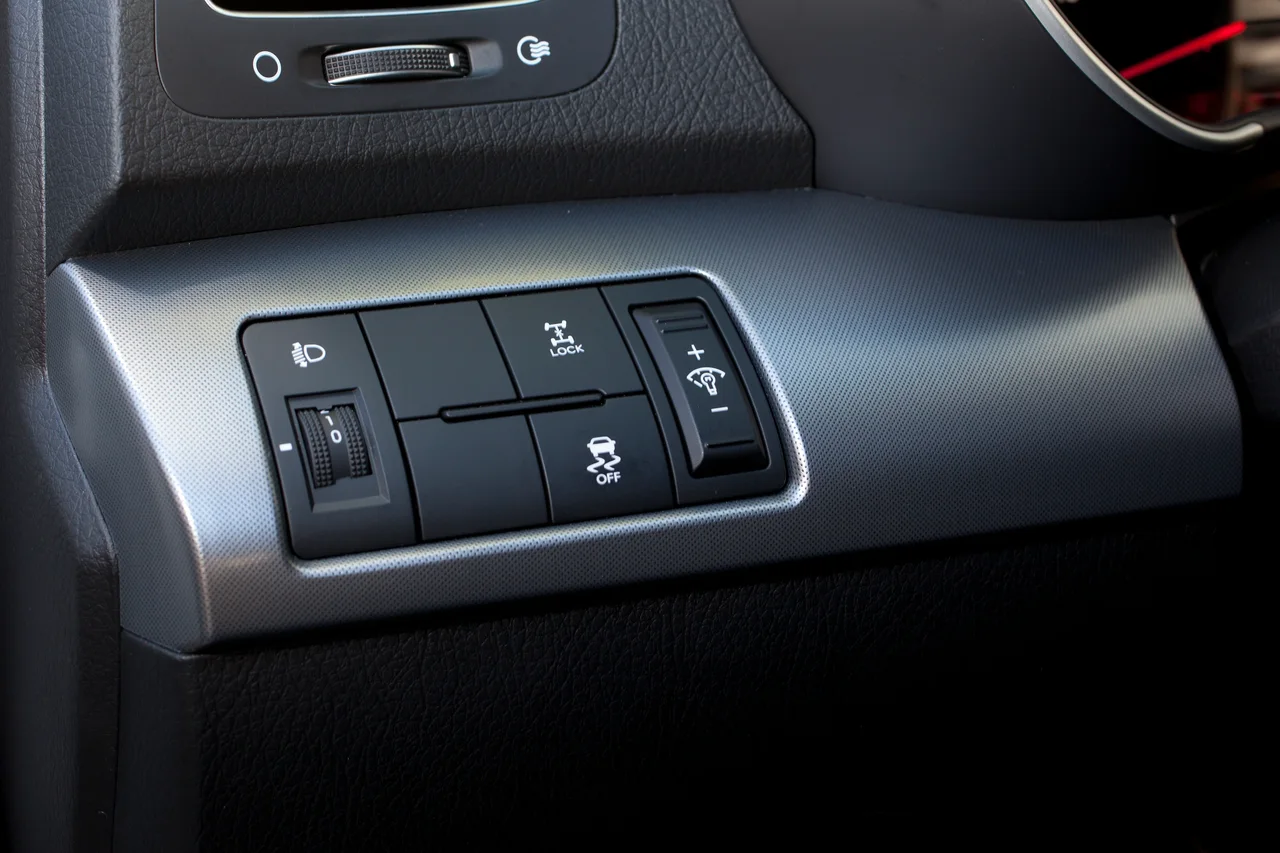

Photos

Specifications

Vehicle Details

Year
2014
Make
Kia
Model
Sorento
Body Style
SUV
Generation
XM Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic, 6-speed

Powertrain

Engine Name
3.5 V6 Automatic
Engine Configuration
V
Power (hp)
277 hp
Power (kW)
204 kW
Torque
335 Nm (247 lb-ft)
Displacement
3,470 cc

Dimensions

Length
4,685 mm (184.4 in)
Width
1,885 mm (74.2 in)
Height
1,700 mm (66.9 in)
Wheelbase
2,700 mm (106.3 in)
Curb weight
1,831 kg (4,037 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,400 rpm
Rev. at Max Torque
3,500 rpm
Engine Fluids
Engine Oil, Volume
5.2 litres
Engine Configuration
Engine Configuration
V-Engine
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
Automatic, 6-speed

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Suspension, Front
Independent
MacPherson Strut

Fuel

General
Tank Volume
66 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Left
Fuel Consumption NEDC
City
13.7 litres / 100 km
Highway
7.7 litres / 100 km
Combined
9.8 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,626 mm (64.0 in)
Track, Rear
1,623 mm (63.9 in)
Turning Circle
10.9 m
Ground Clearance
184 mm (7.2 in)

Interior

Head Room, Front
996 mm (39.2 in)
Head Room, Rear
995 mm (39.2 in)
Head Room, Third Row
906 mm (35.7 in)
Leg Room, Front
1,048 mm (41.3 in)
Leg Room, Rear
985 mm (38.8 in)
Leg Room, Third Row
804 mm (31.7 in)
Hip Room, Front
1,431 mm (56.3 in)
Hip Room, Rear
1,421 mm (55.9 in)
Hip Room, Third Row
1,128 mm (44.4 in)
Shoulder Room, Front
1,506 mm (59.3 in)
Shoulder Room, Rear
1,491 mm (58.7 in)
Shoulder Room, Third Row
1,045 mm (41.1 in)

Weight

Gross Weight
2,540 kg (5,600 lb)
Max Trailer Load, braked 12%
1,587 kg (3,499 lb)
Cargo Capacity
709 kg (1,563 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Hyundai-Kia Platforms
Y Platform (Y6)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Heated Washer Nozzles
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Heated Water Tank
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
Driver
Windows › Window Lifts, Features › One-touch up/down
Passenger
Optional
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Colour
Silver
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Special Features
Headlight Range Adjustment
Manual

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts
Tightening Torque
88 - 107 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
  • WMA
Media Inputs
USB
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Yes
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
230V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
Tilt
Colour
Black
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Release Button
Yes
Cover
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
258 litres
Volume, Back Seat Collapsed
2,052 litres

Design

Interior Decor Material
Plastic

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Front Seats
Armrest
Middle
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Third/Fourth Seat Row
Third Seat Row
Optional
Colour & Material
Seat Colour
Black
Stitching Colour
Black

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
No
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
No
Reverse
No
Pedestrian
No
Cyclist
No
City
No
Inter-urban
No

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Active Bonnet
No
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2009
Adult Occupant
87 %
Child Occupant
84 %
Vulnerable Road Users
44 %
Safety Assist
71 %
Overall
5/5 stars
Overall Score
33.21
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
13.25
Side Impact
15.96
Pole
2
Safety Assist
Seat Belt Reminders
2
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
17.8 %
Overall Safety Rating
4/5 stars
Overall Frontal Rating
4/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Warranty

Manufacturer
7 years
12V Battery
2 years
Paintwork
150,000 km / 5 years
Rust Damage
150,000 km / 7 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
150,000 km (93,206 mi)

Identification

VIN Location
Left Side Casing of Window
Yes
Right Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of
Front of Hood
Optional

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment
Car.info Classification
Large SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D3S (xenon)
  • H7
Main Beam
H7
Positioning-/Parking Lights, Rear Side
W2.1×9.5d (W5W)
Rear/Brake Light
P27/8W
Turn Indicators, Front
PY28/8W
Turn Indicators, Rear
PY27W
Read Light
W2.1×9.5d (W10W)

Similar suvs

Suggested vehicles
