2016 Honda Pilot

JapanGasolineFWDSUV

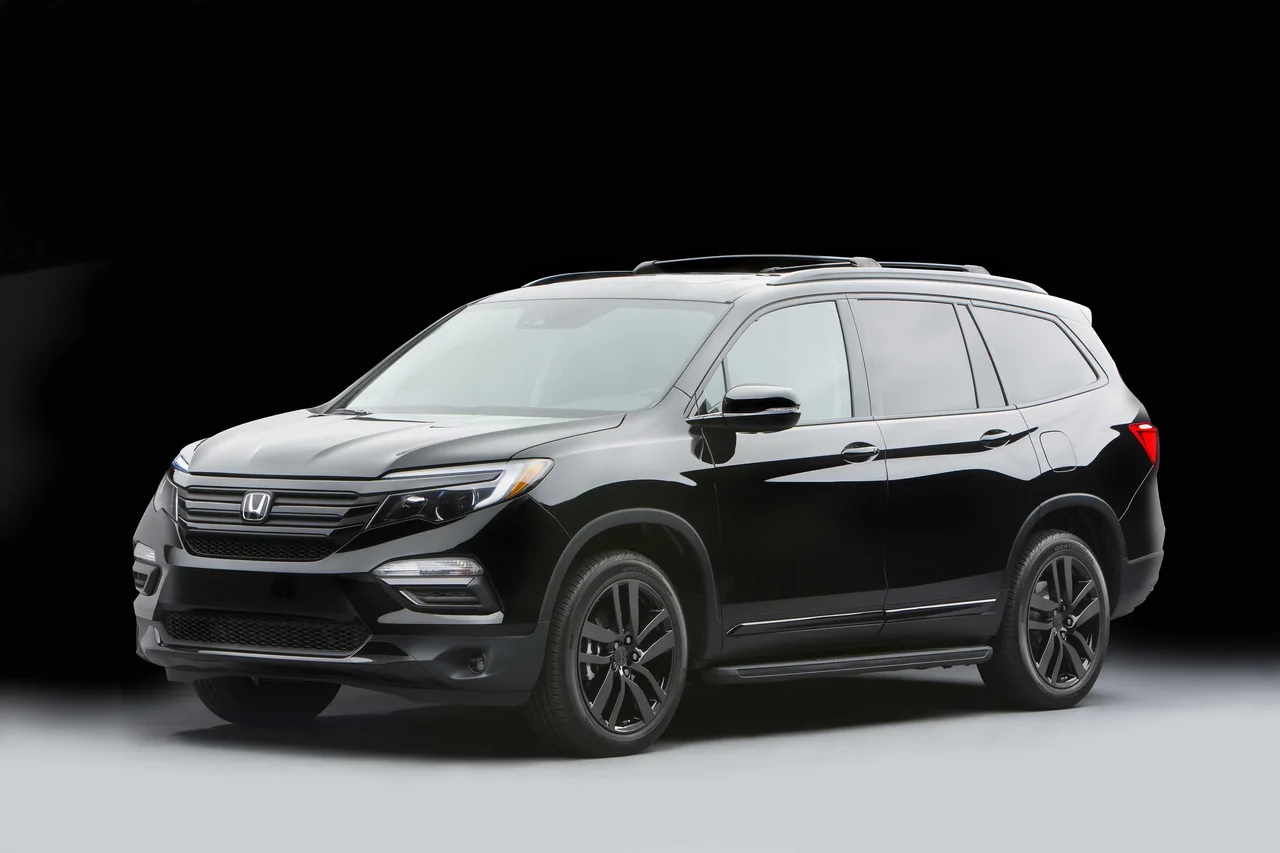

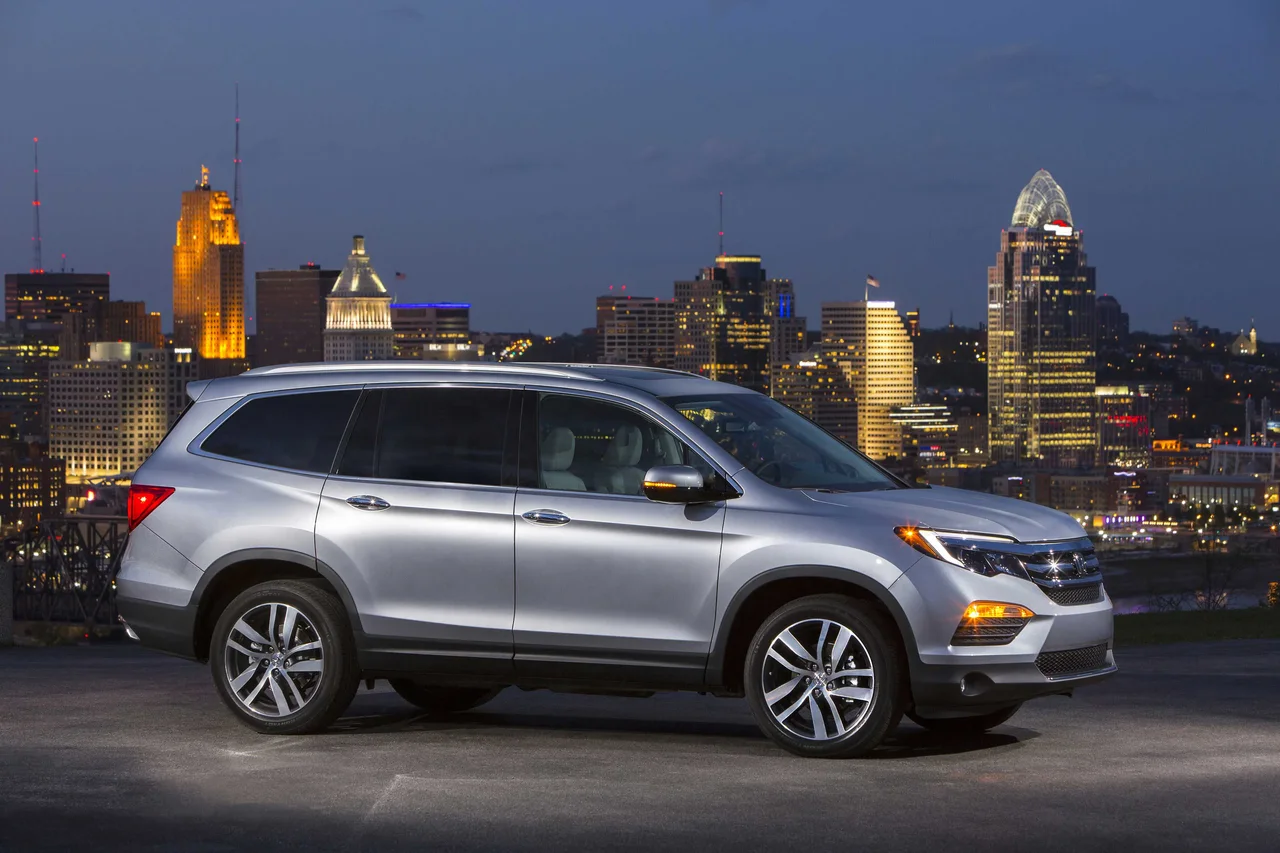

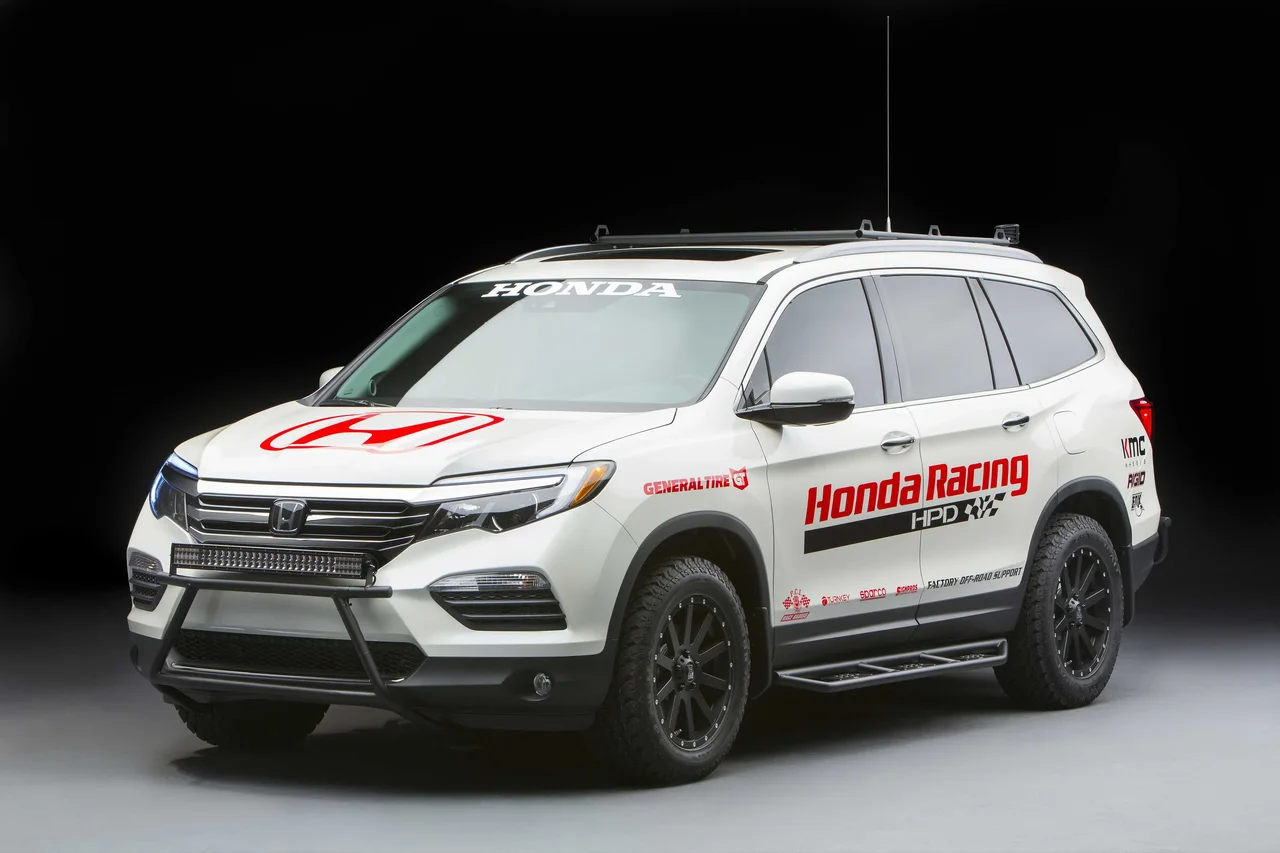

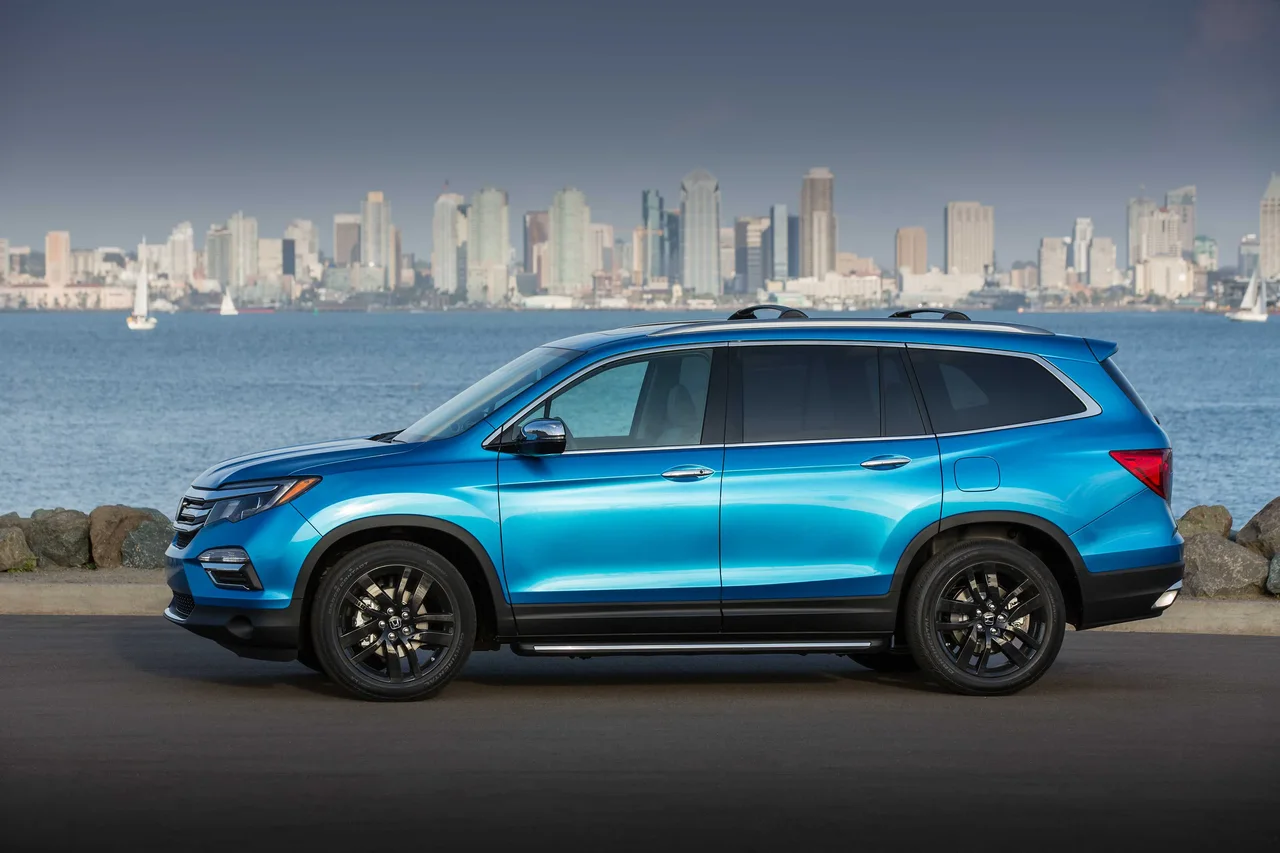

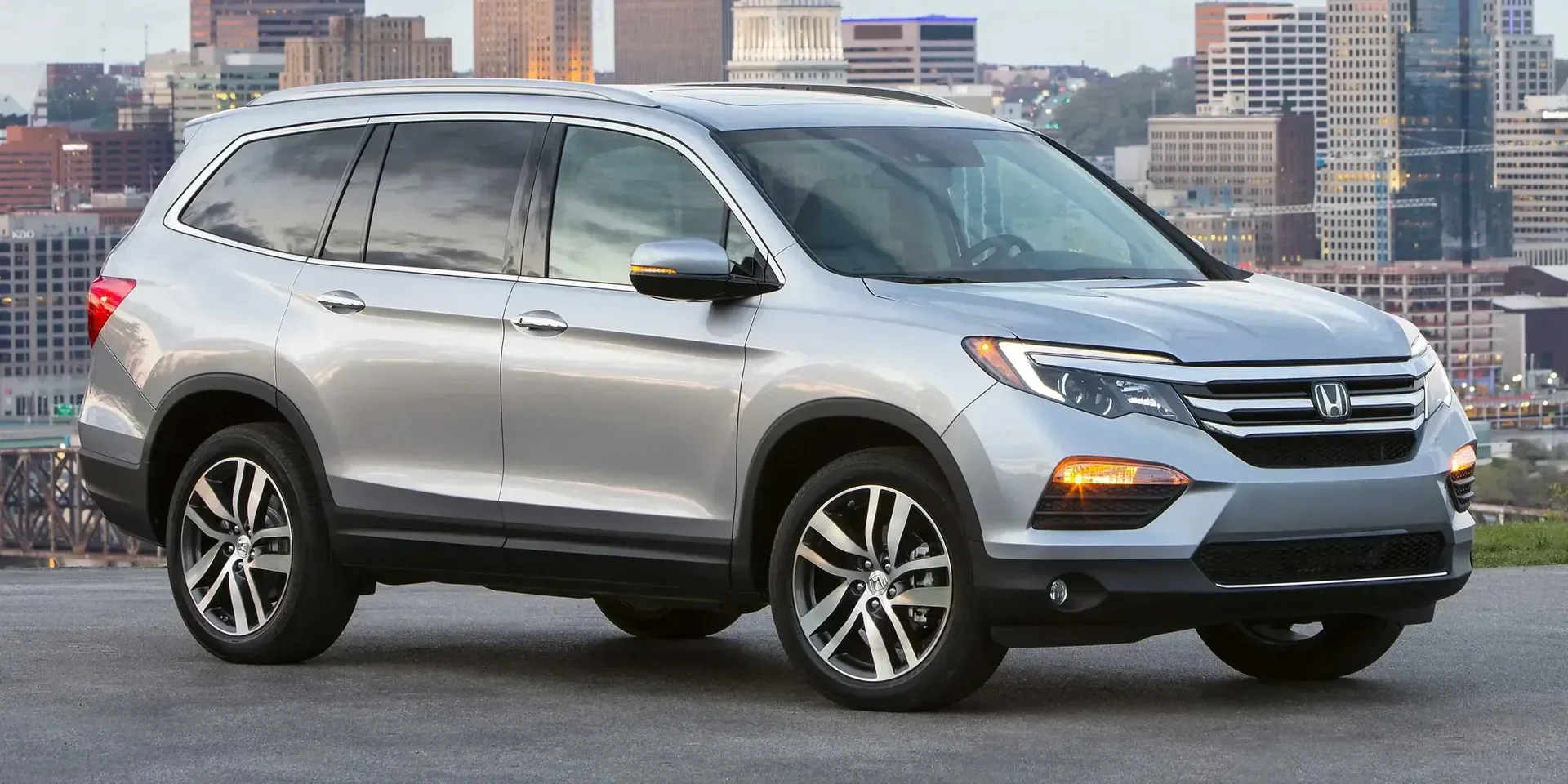

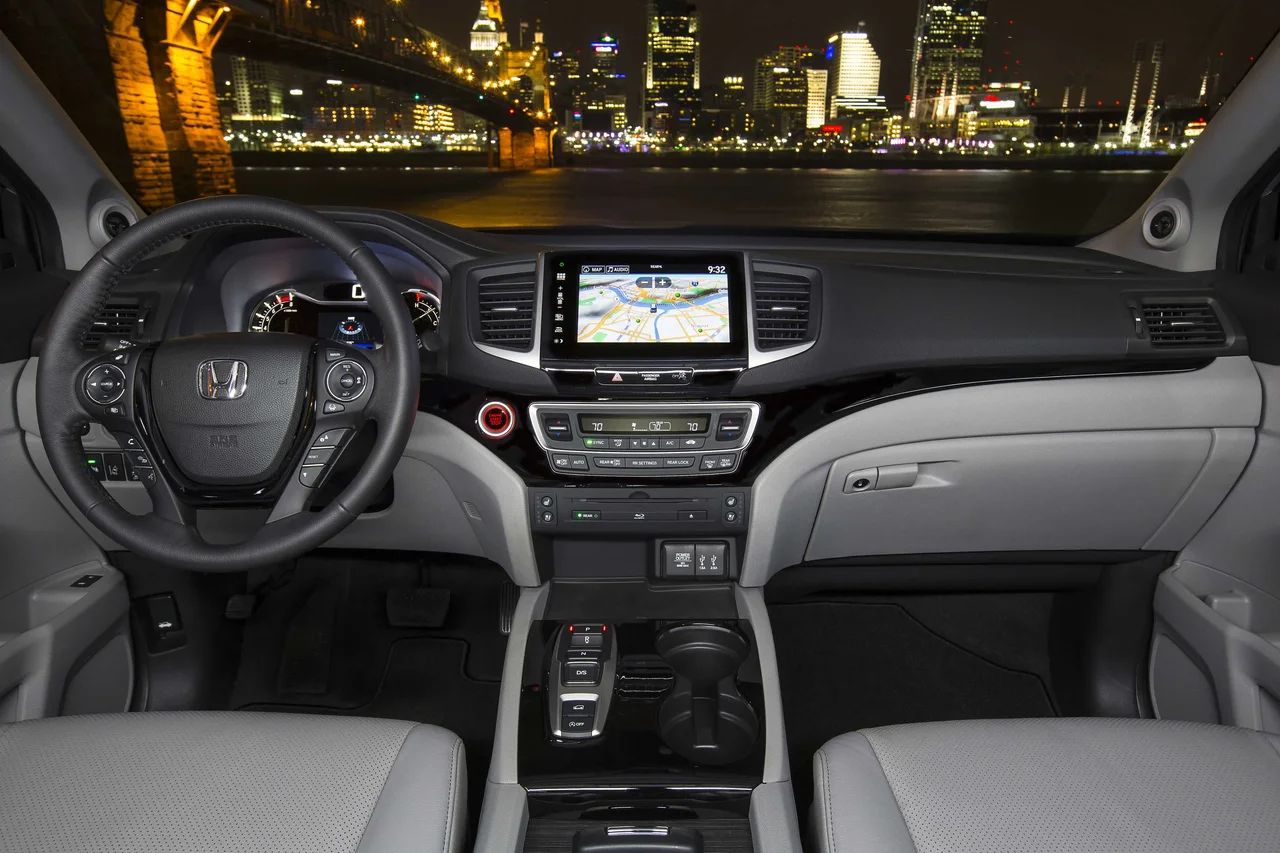

Photos

Specifications

Vehicle Details

Year
2016
Make
Honda
Model
Pilot
Body Style
SUV
Generation
3rd Generation
Seats
7
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic, 6
  • 9-speed

Powertrain

Engine Name
3.5 V6
Engine Configuration
V
Power (hp)
280 hp
Power (kW)
206 kW
Torque
355 Nm (262 lb-ft)
Displacement
3,471 cc

Dimensions

Length
4,991 mm (196.5 in)
Width
2,000 mm (78.7 in)
Height
1,770 mm (69.7 in)
Wheelbase
2,820 mm (111.0 in)
Curb weight
1,840 kg (4,057 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
4,700 rpm
Engine Configuration
Bore
89 mm (3.5 in)
Stroke
93 mm (3.7 in)
Compression Ratio
11.5 :1
Engine Configuration
V-Engine
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
  • Automatic, 6
  • 9-speed
Gear Ratio
1st Gear
3.36 – 4.71 :1
2nd Gear
2.1 – 2.84 :1
3rd Gear
1.49 – 1.91 :1
4th Gear
1.07 – 1.38 :1
5th Gear
0.75 – 1 :1
6th Gear
0.56 – 0.81 :1
7th Gear
0.7 :1
8th Gear
0.58 :1
Final Drive
4.25 – 4.33 :1
Reverse
2.27 – 3.83 :1

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
74 litres
General › Fuel Cap Position
Rear
Yes
Fuel Consumption NEDC
City
11.8 – 12.4 litres / 100 km
Highway
8.7 litres / 100 km
Combined
10.2 – 10.7 litres / 100 km

Dimensions & Weight

Exterior

Width, with Mirrors
2,296 mm (90.4 in)
Track, Front
1,680 mm (66.1 in)
Track, Rear
1,680 mm (66.1 in)
Overhang, Front
995 mm (39.2 in)
Overhang, Rear
1,140 mm (44.9 in)
Turning Circle
12.9 m
Ground Clearance
190 mm (7.5 in)

Interior

Head Room, Front
1,019 mm (40.1 in)
Head Room, Rear
1,020 mm (40.2 in)
Head Room, Third Row
989 mm (38.9 in)
Leg Room, Front
1,040 mm (40.9 in)
Leg Room, Rear
976 mm (38.4 in)
Leg Room, Third Row
810 mm (31.9 in)
Hip Room, Front
1,501 mm (59.1 in)
Hip Room, Rear
1,456 mm (57.3 in)
Shoulder Room, Front
1,576 mm (62.0 in)
Shoulder Room, Rear
1,576 mm (62.0 in)

Weight

Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Optional
Turning Signal
Yes
Windscreen Wipers
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Tinted Windows
  • Second Row
  • Rear Window
Safety Glass
Yes
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Roof Railing
Optional
Antenna
Yes
Electric
Optional

Lights

Rear Lights
LED
Fog Lights
Optional
Fog Lights
Main Beam Assist
Optional

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
64.1
Fastening Type
Lug Nuts
Tightening Torque
130 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
App-Connect
  • Yes
  • Optional
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
USB
Yes
Connectivity › Media Inputs › USB
Placement
Front
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
Yes
Displays › Center Display
Type
Colour
Touchscreen
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Door
  • Driver Side
  • Passenger Side
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope

Trunk

Rear Trunk
Yes
Automatic Open
Yes
Automatic Close
Yes
Carpet
Optional
Light
Yes
Rear Trunk
Volume
524 litres

Design

Accent
Painted Inserts

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Third/Fourth Seat Row
Third Seat Row
Yes
Third/Fourth Seat Row › Third Seat Row
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Adaptive Cruise Control
Parking Heater
Optional
Cameras
Rear
Cameras
View Location
Center Display

Other Features

GPS
Optional

Accessories

Tool Kit and Jack
Optional
Compressor
Optional
Warning Triangle
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Belt Load Limiter
  • Driver: Yes
  • Passenger: Yes
  • Rear: -
Type of Belt
Two-Point-Belt (Lap Belt)
  • Front Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Lane Assist System
Yes
Hill Start Assist (HSA)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Immobiliser
Electronic
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
17.5 %
Overall Safety Rating
5/5 stars
Overall Frontal Rating
4/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars
IIHS
Test Year
2016
Award
Top Safety Pick
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Acceptable
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Large SUV
