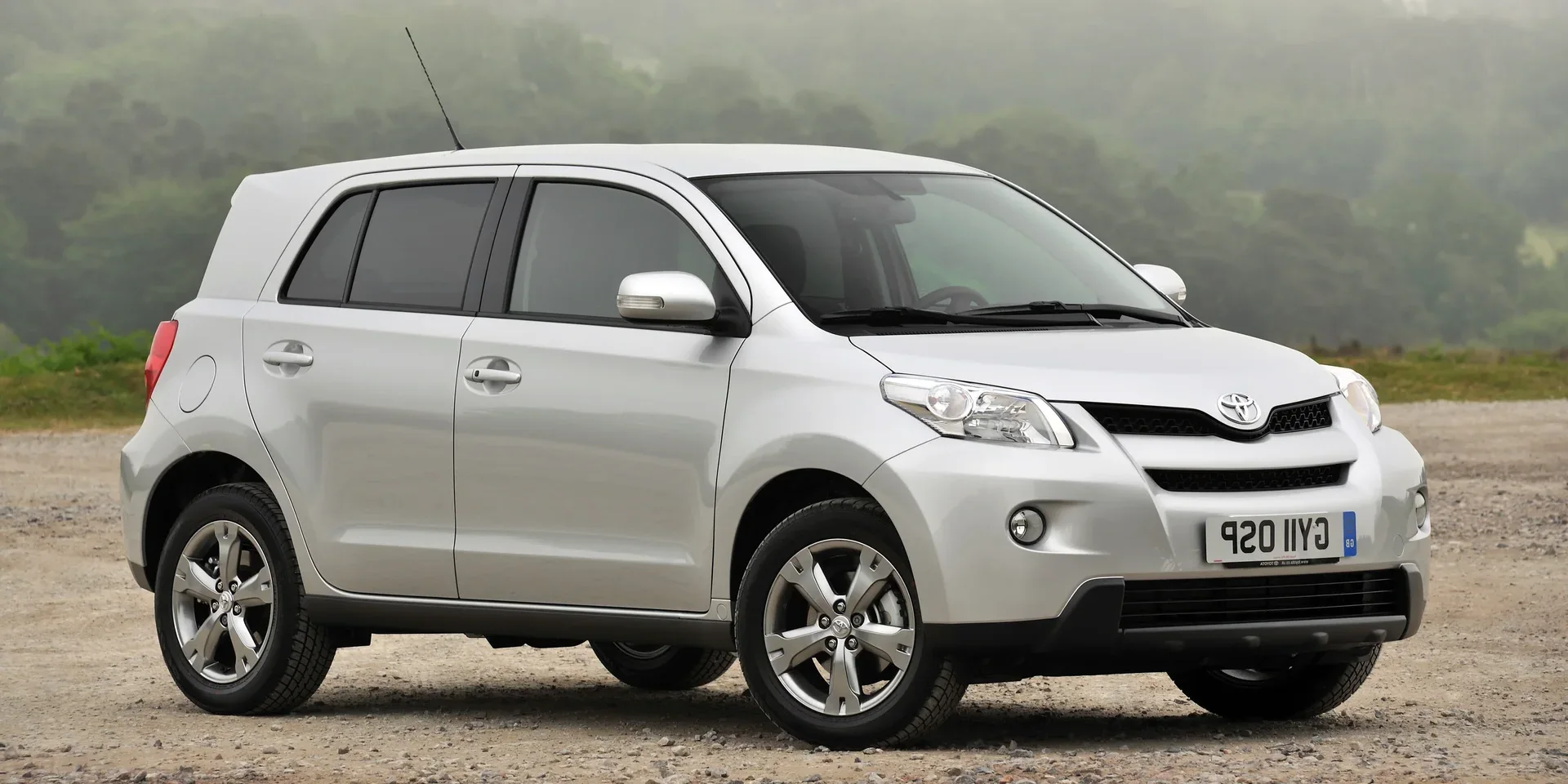

2014 Toyota Urban Cruiser

JapanGasolineFWDHatchback

Photos

Specifications

Vehicle Details

Year
2014
Make
Toyota
Model
Urban Cruiser
Body Style
Hatchback
Generation
XP110
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
1.33 Dual VVT-i Manual
Engine Configuration
Inline
Power (hp)
99 hp
Power (kW)
73 kW
Torque
128 Nm (94 lb-ft)
Top speed
175 km/h (109 mph)
0–60 mph
11.9 seconds (estimated)
0–100 km/h
12.5 seconds
Displacement
1,329 cc

Dimensions

Length
3,930 mm (154.7 in)
Width
1,725 mm (67.9 in)
Height
1,525 mm (60.0 in)
Wheelbase
2,460 mm (96.9 in)
Curb weight
1,105 kg (2,436 lb)

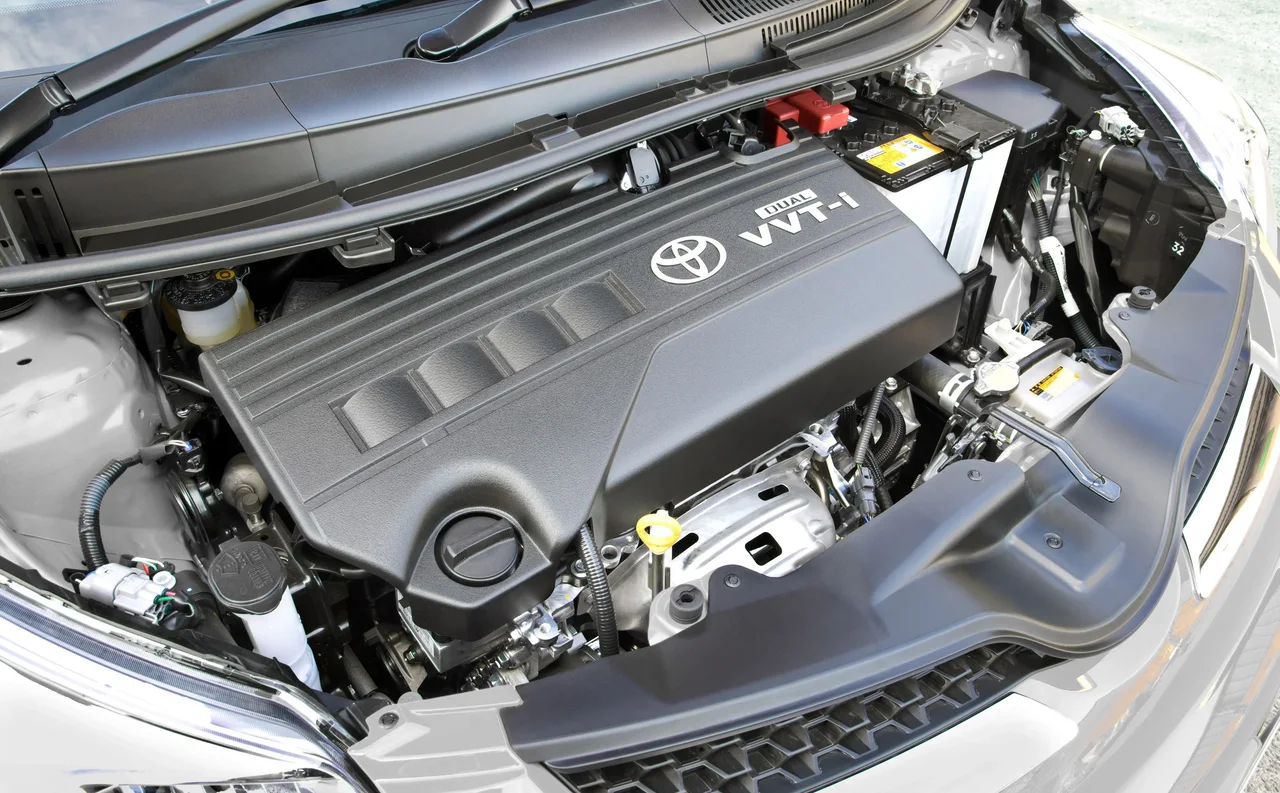

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
3,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-20
  • 5W-30
Semi-synthetic Oil (viscosity)
5W-30
Engine Configuration
Bore
72.5 mm (2.9 in)
Stroke
80.5 mm (3.2 in)
Compression Ratio
11.5 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Air Filter
60,000 km / 4 years
Spark Plug
90,000 km (55,923 mi)
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
90,000 km (55,923 mi)
Interior Filter
30,000 km (18,641 mi)

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
42 litres
Emission
Emission Standard
Euro 5
Fuel Consumption NEDC
City
6.6 litres / 100 km
Highway
4.9 litres / 100 km
Combined
5.5 litres / 100 km
Emission NEDC
CO₂, Combined
129 g/km

Dimensions & Weight

Exterior

Track, Front
1,485 mm (58.5 in)
Track, Rear
1,490 mm (58.7 in)
Turning Circle
11 m
Ground Clearance
198 mm (7.8 in)

Weight

Gross Weight
1,590 kg (3,505 lb)
Max Trailer Load, braked 12%
800 kg (1,764 lb)
Max Trailer Load, unbraked
550 kg (1,213 lb)
Cargo Capacity
485 kg (1,069 lb)
Max Roof Load
70 kg (154 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Turning Signal
Yes
Windows
Window Lifts, Front
Powered
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Normal Roof
Yes

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Optional

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
54.1
Fastening Type
Lug Nuts
Tightening Torque
103 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Digital
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
Yes
Media Format
  • CD
  • MP3
  • WMA
Bluetooth
Optional
Connectivity › Media Format
Memory Card Reader
Optional
Cassette
Optional
Connectivity › Media Inputs
AUX
Optional
USB
Optional
Displays
Center Display
Yes
Displays › Center Display
Touchscreen
Optional

Steering Wheel

Multifunction Steering Wheel
Yes

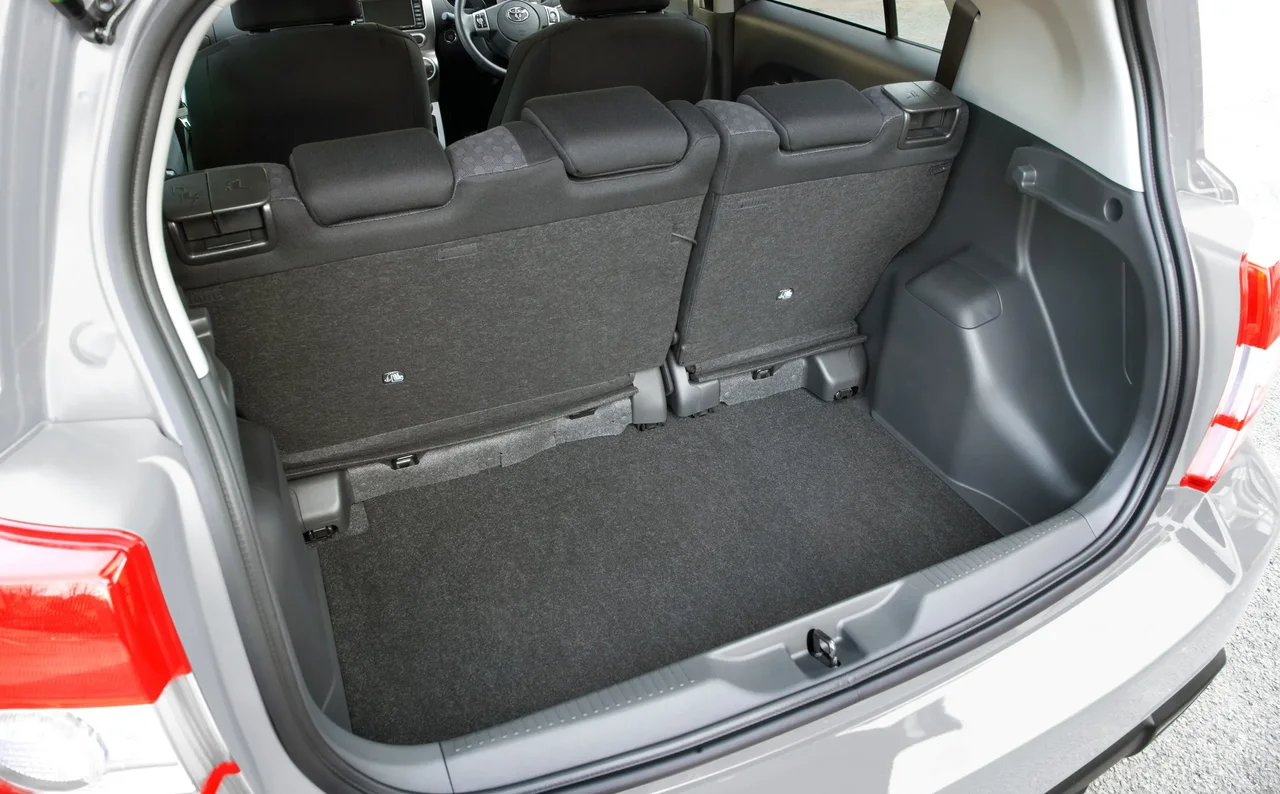

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
314 litres
Volume, Back Seat Collapsed
749 litres
Depth
650 mm (25.6 in)
Width
1,260 mm (49.6 in)
Height
935 mm (36.8 in)

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Headrest, Height
Yes
Second Seat Row
Collapsible
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Keyless Start
Rear
Optional

Other Features

GPS
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Active Headrests
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2009
Adult Occupant
58 %
Child Occupant
71 %
Vulnerable Road Users
53 %
Safety Assist
86 %
Overall
3/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Yes
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
3 years

Identification

VIN Location
Pillar
B-Pillar, Left
Passenger Seat
in Front of

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment
Car.info Classification
Small SUV

Spare Parts BETA

Bulb Types
Low Beam
H4
Main Beam
H4
Fog Light, Front
H11
Fog Light, Rear
W3×16d (W21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
W3×16q (W21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Rear
WX3×16d (WY21W)
License Plate Light
W2.1×9.5d (W5W)
