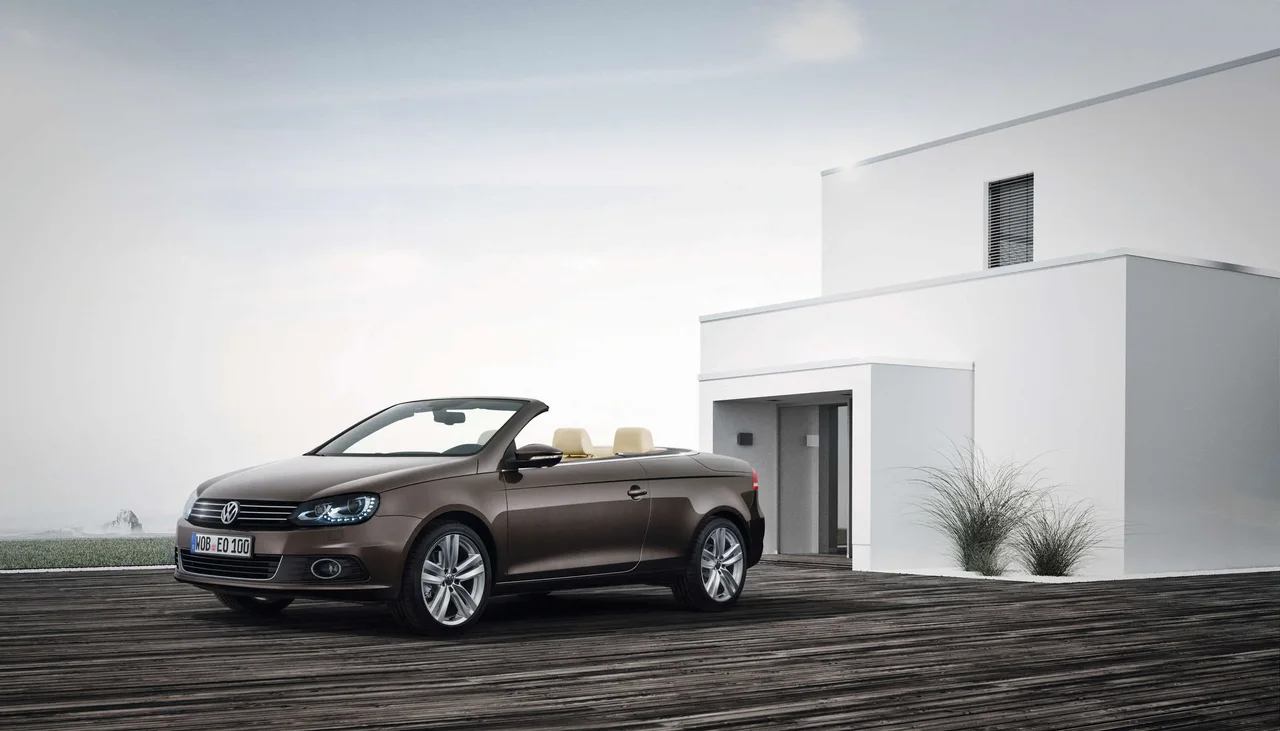

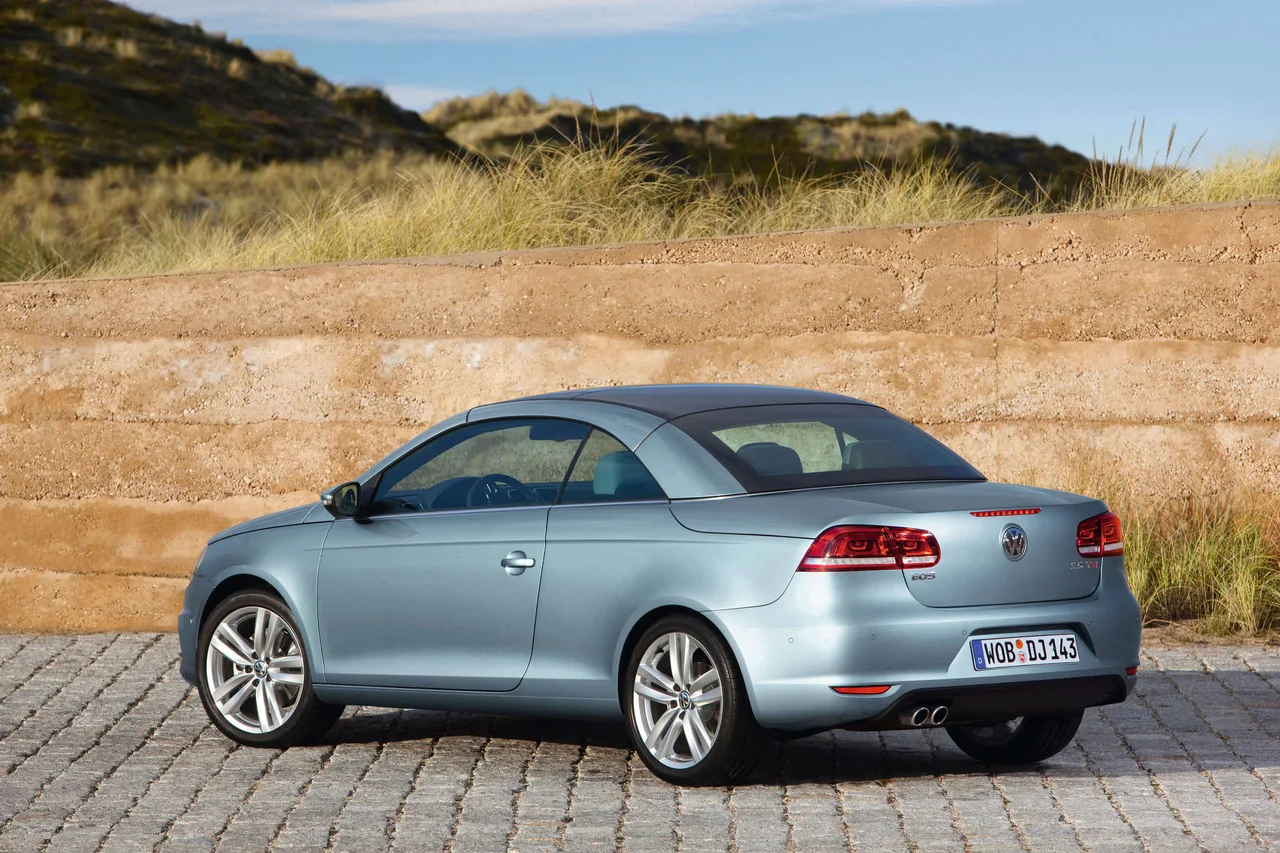

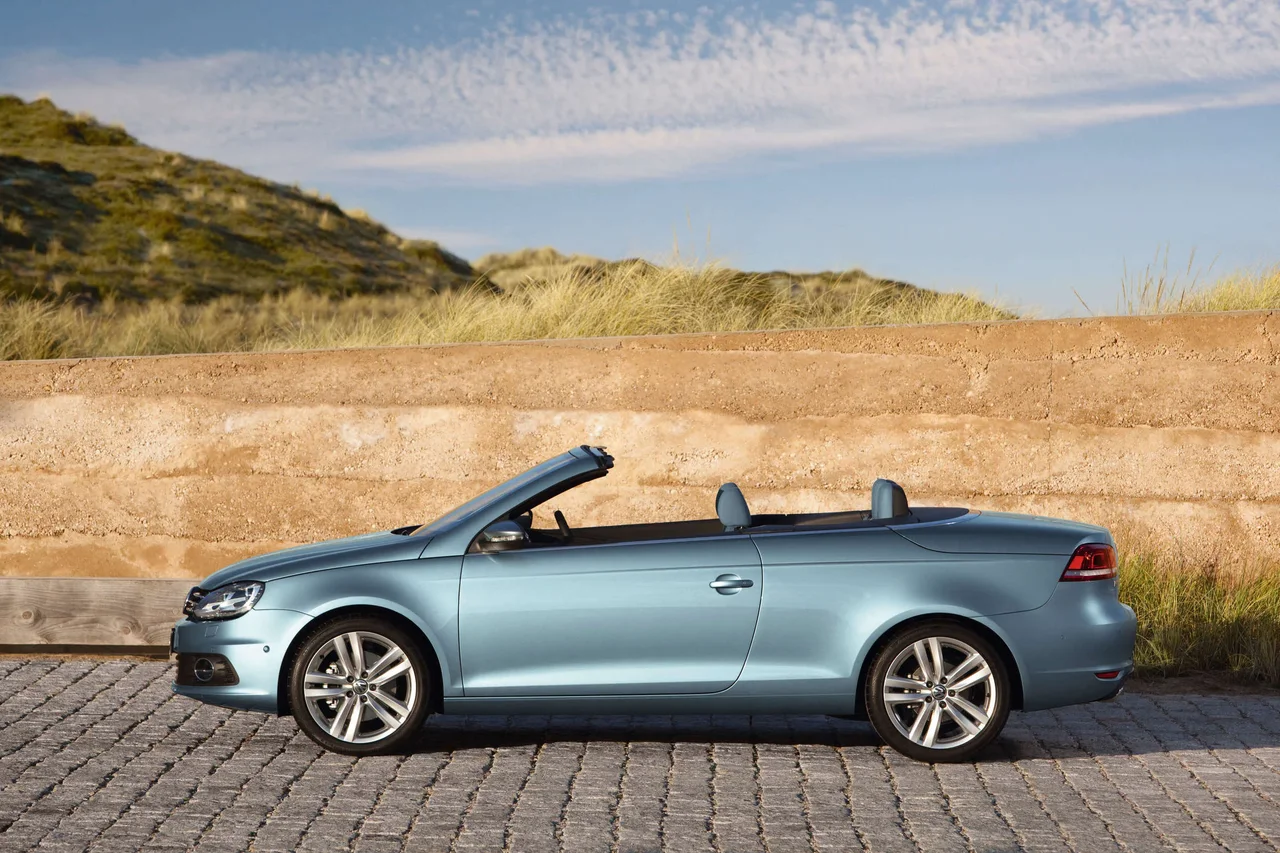

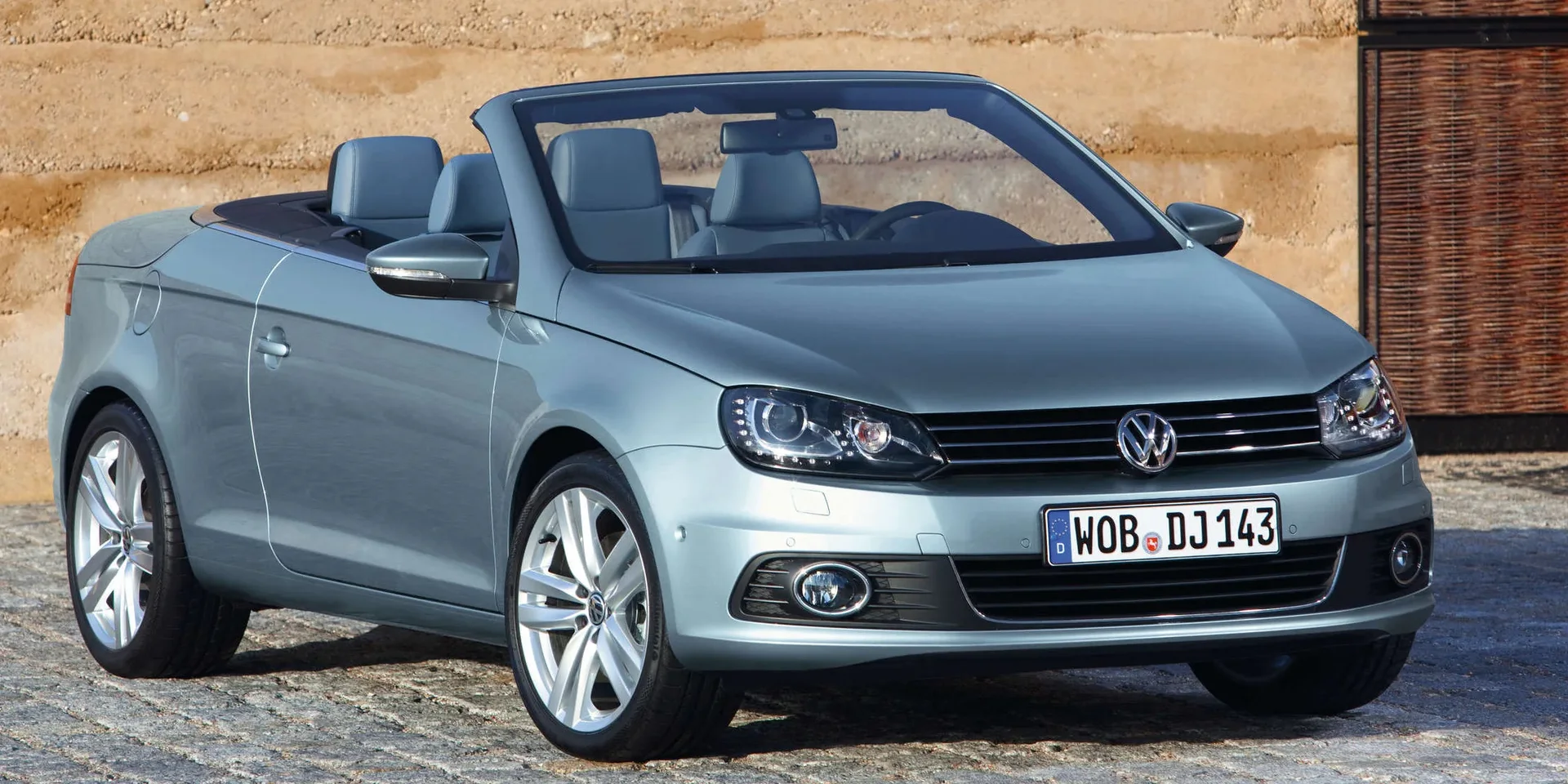

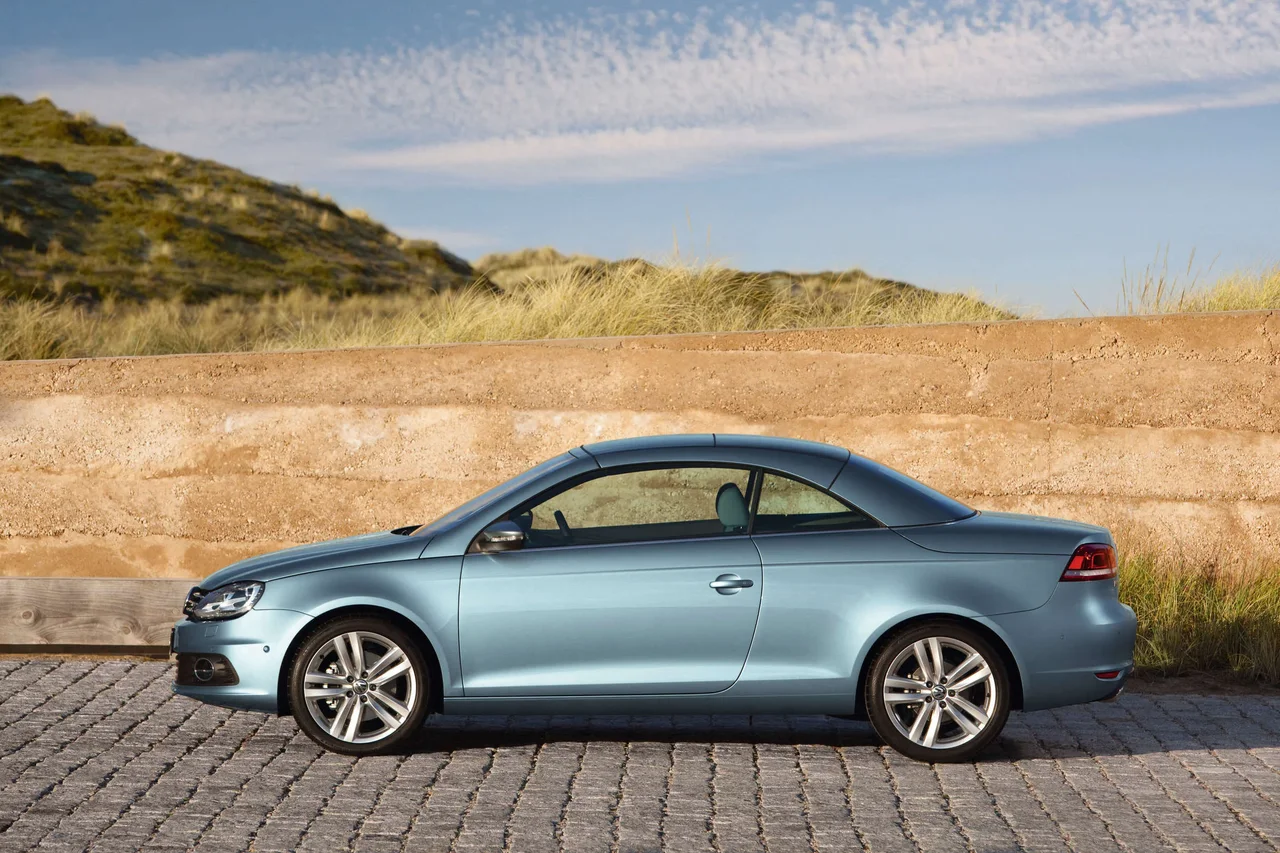

2014 Volkswagen Eos

GermanyGasolineFWDConvertible

Photos

Specifications

Vehicle Details

Year
2014
Make
Volkswagen
Model
Eos
Body Style
Convertible
Generation
Type 1F Facelift
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Dual-clutch
  • Manual, 6-speed

Powertrain

Engine Name
2.0 TSI
Engine Configuration
Inline
Power (hp)
211 hp
Power (kW)
155 kW
Torque
280 Nm (207 lb-ft)
Top speed
236 km/h (147 mph)
0–60 mph
7.4 seconds (estimated)
0–100 km/h
7.8 seconds
Displacement
1,984 cc

Dimensions

Length
4,423 mm (174.1 in)
Width
1,791 mm (70.5 in)
Height
1,444 mm (56.9 in)
Wheelbase
2,578 mm (101.5 in)
Curb weight
1,563 kg (3,446 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,300 - 6,200 rpm
Rev. at Max Torque
1,700 - 5,200 rpm
Engine Fluids
Engine Oil, Volume
4.7 litres
Engine Configuration
Bore
82.5 mm (3.2 in)
Stroke
92.8 mm (3.7 in)
Compression Ratio
9.6 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
30,000 km / 2 years
Spark Plug
30,000 km / 2 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Transmission, Fluid
60,000 km (37,282 mi)
Interior Filter
30,000 km / 1 years
Accessory Belt
60,000 km (37,282 mi)

Transmission & Drivetrain

Transmission
  • Automatic Dual-clutch
  • Manual, 6-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
55 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption NEDC
City
9.6 – 10.2 litres / 100 km
Highway
5.4 – 5.9 litres / 100 km
Combined
7.1 – 7.5 litres / 100 km
Emission NEDC
CO₂, Combined
165 – 174 g/km

Performance

Acceleration
0-80 km/h
5.4 sec
80-120 km/h
8 sec

Dimensions & Weight

Exterior

Width, with Mirrors
2,009 mm (79.1 in)
Width, open Doors
4,153 mm (163.5 in)
Height (Bonnet Open)
1,772 mm (69.8 in)
Height (Roof Opening)
1,944 mm (76.5 in)
Track, Front
1,545 mm (60.8 in)
Track, Rear
1,547 mm (60.9 in)
Approach Angle
12.8 °
Breakover Angle
10.9
Departure Angle
16.7 °
Turning Circle
10.9 m
Ground Clearance
107 mm (4.2 in)

Interior

Head Room, Front
952 mm (37.5 in)
Head Room, Rear
909 mm (35.8 in)
Leg Room, Front
1,060 mm (41.7 in)
Leg Room, Rear
826 mm (32.5 in)
Hip Room, Front
1,435 mm (56.5 in)
Hip Room, Rear
1,070 mm (42.1 in)
Shoulder Room, Front
1,390 mm (54.7 in)
Shoulder Room, Rear
1,055 mm (41.5 in)

Weight

Gross Weight
2000 – 2020 kg (4,409 – 4,453 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, braked 8%
1,700 kg (3,748 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
509 – 512 kg (1,122 – 1,129 lb)
Max Towbar Download
75 kg (165 lb)
Permitted Axle Load, front
1060 – 1080 kg (2,337 – 2,381 lb)
Permitted Axle Load, rear
990 kg (2,183 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé-Cabriolet
Pillars
A
Chassis Construction
Unibody
Body Material
Steel
Roof Material
Steel
Doors
Front Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
A Platform (PQ35)

Interior

Seats

Second Seat Row › Headrests
Outer Seats
Yes
Second Seat Row
Number of Seats
2
Type of Seat
Adult

Trunk

Rear Trunk
Yes
Hatch Through Rear Seats
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
380 litres
Volume (Roof Folded)
205 litres
Depth
839 mm (33.0 in)
Height
537 mm (21.1 in)
Trunk Door Opening Height
1,944 mm (76.5 in)

Other

Car Classification

Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car
