2015 BMW 2 Series

GermanyGasolineAWDMinivan

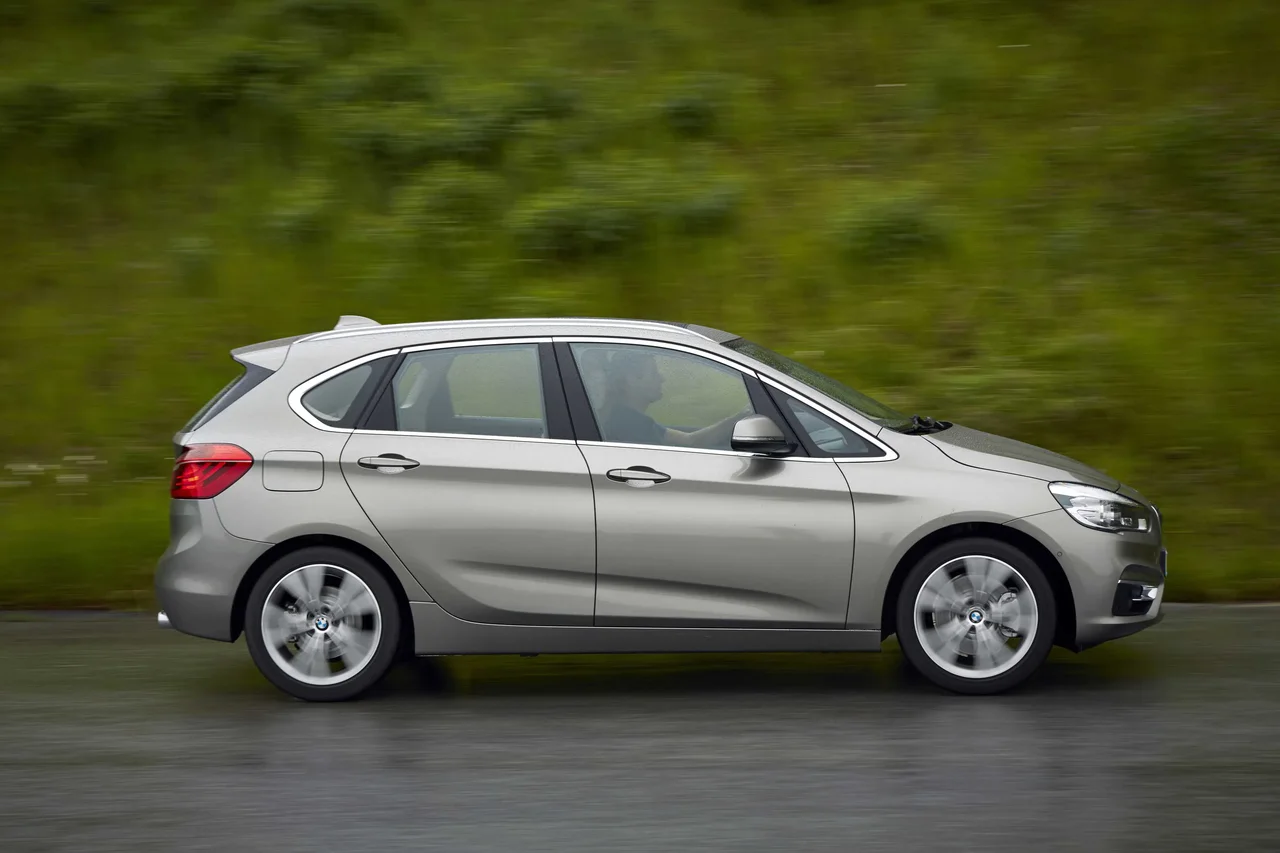

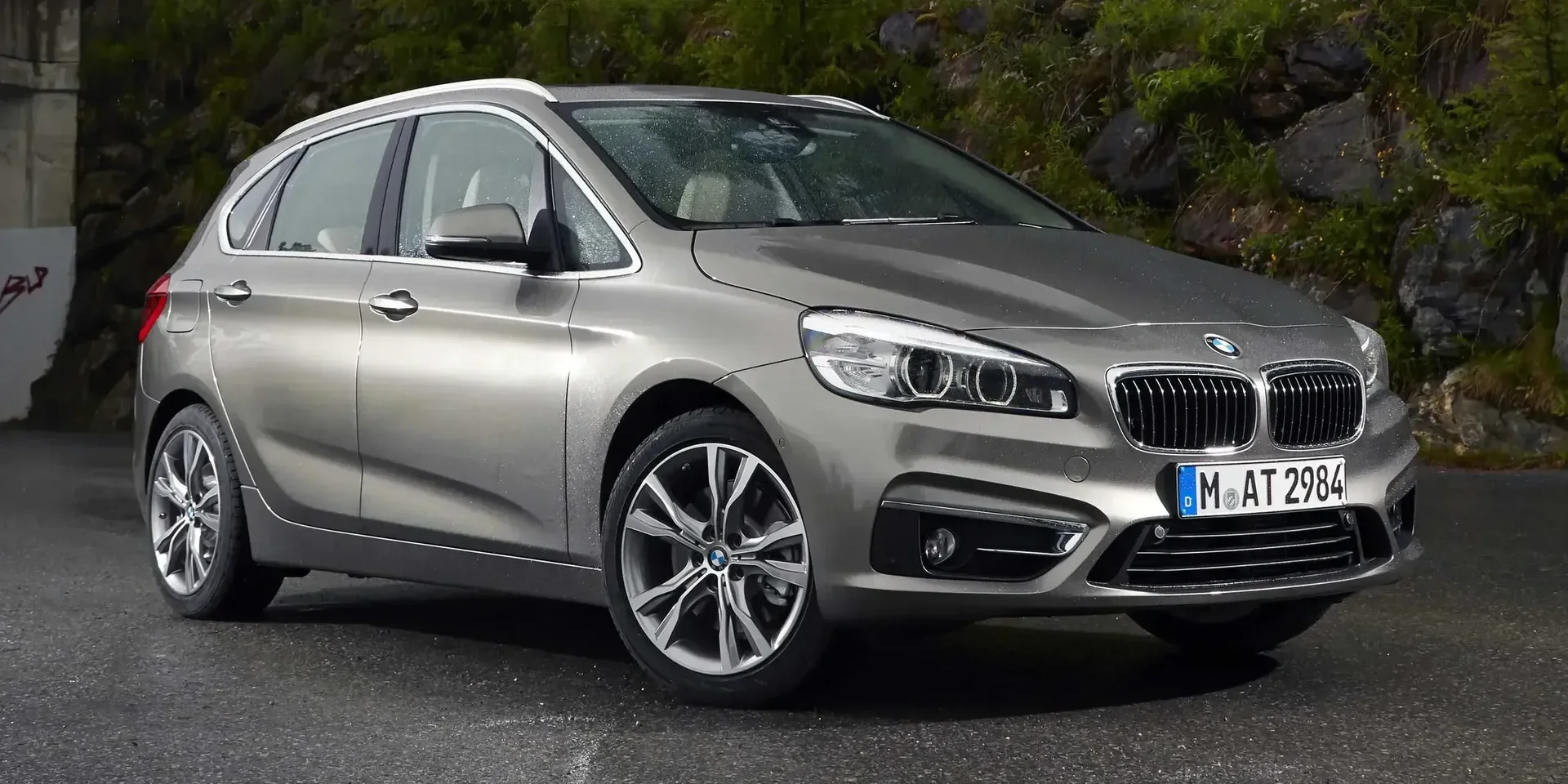

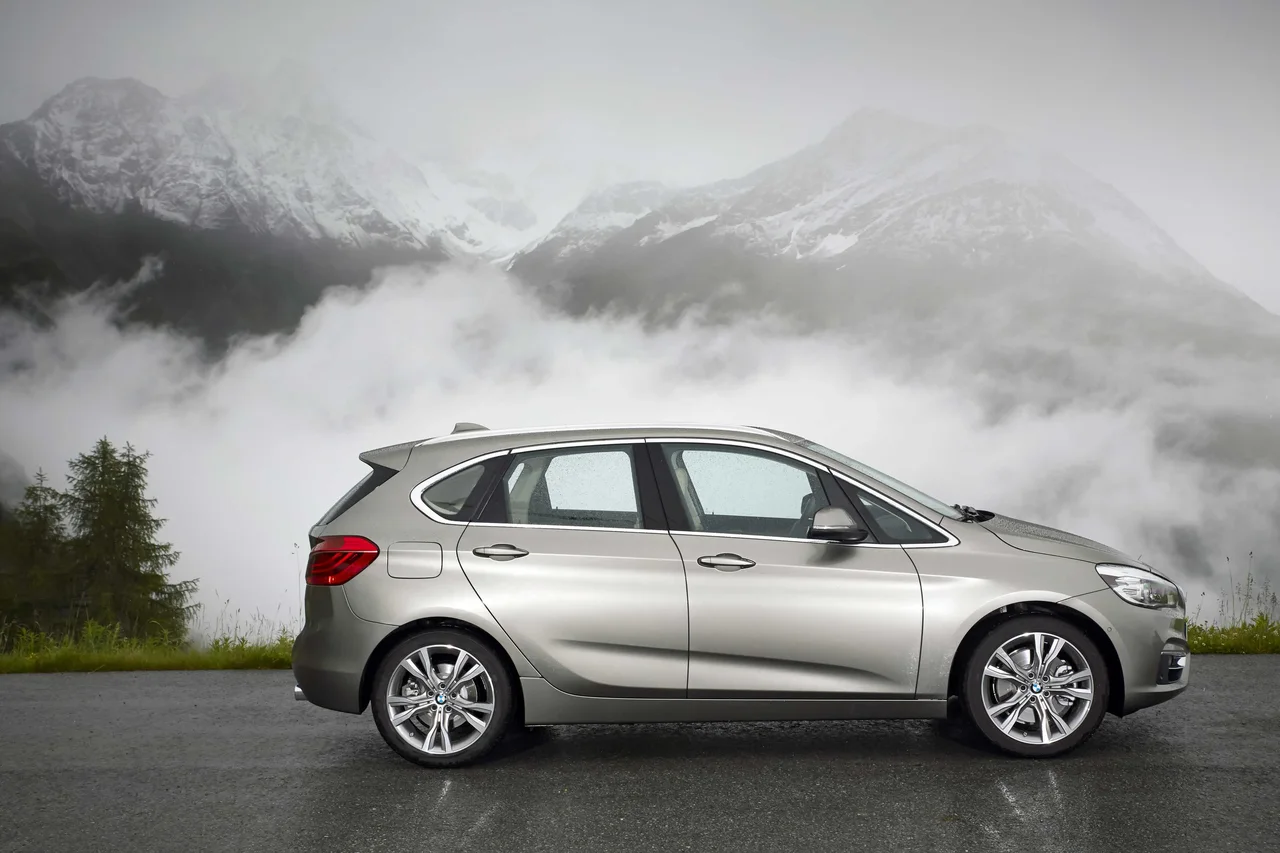

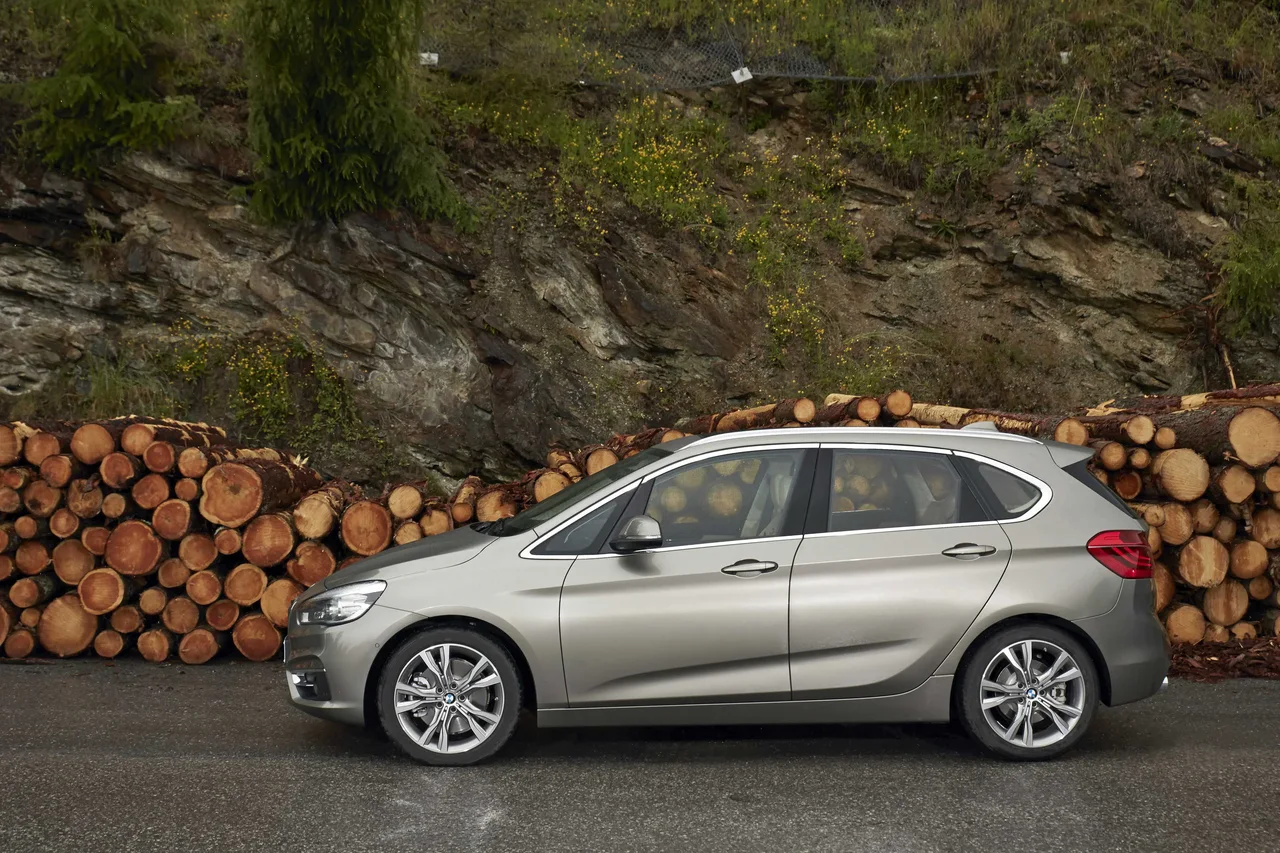

Photos

Specifications

Vehicle Details

Year
2015
Make
BMW
Model
2 Series
Body Style
Minivan
Generation
F45
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
225i xDrive Active Tourer Steptronic
Engine Configuration
Inline
Power (hp)
231 hp
Power (kW)
170 kW
Torque
350 Nm (258 lb-ft)
Top speed
237 km/h (147 mph)
0–60 mph
6.0 seconds (estimated)
0–100 km/h
6.3 seconds
Displacement
1,998 cc

Dimensions

Length
4,342 mm (170.9 in)
Width
1,800 mm (70.9 in)
Height
1,555 mm (61.2 in)
Wheelbase
2,670 mm (105.1 in)
Curb weight
1,585 kg (3,494 lb)

Engine & Performance

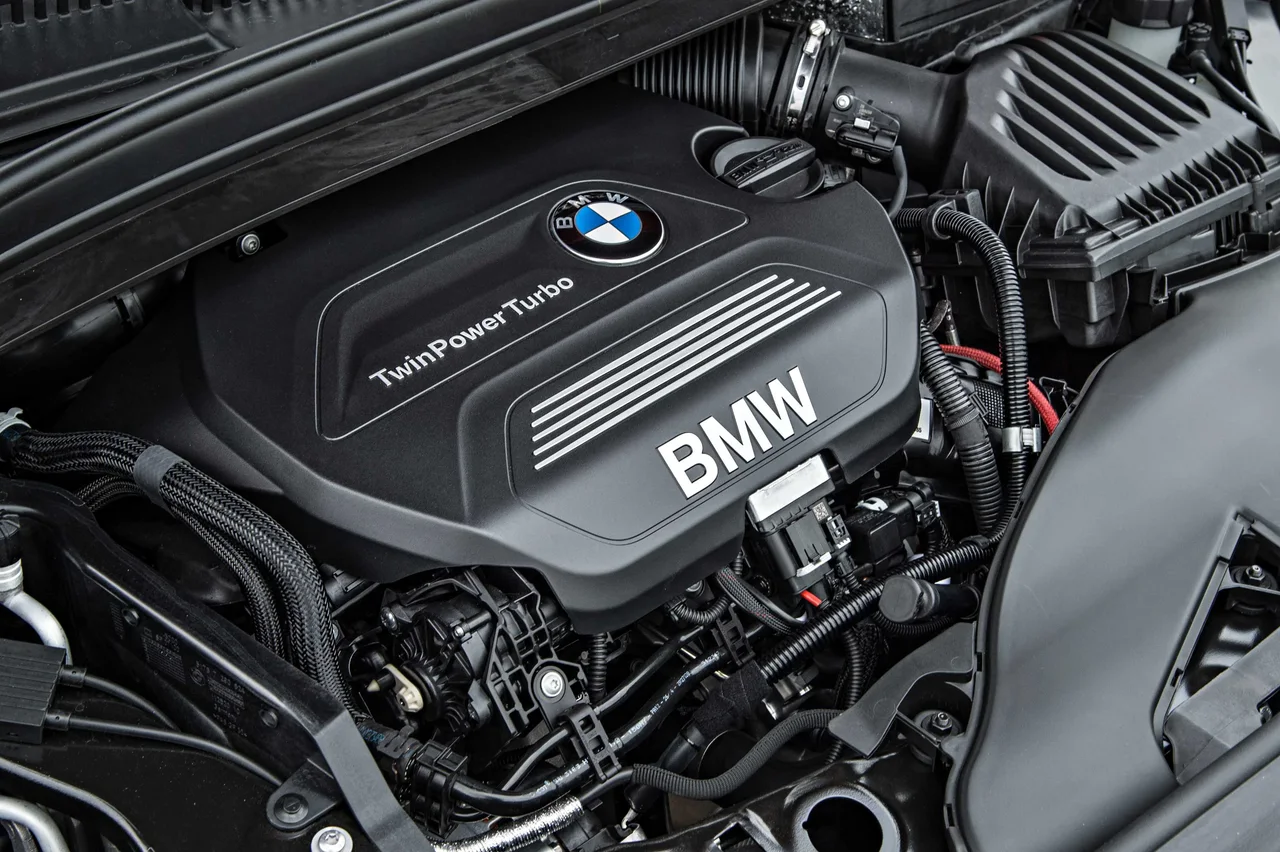

Engine

Engine Specification
Rev. at Max Power
5,000 rpm
Rev. at Max Torque
1,250 rpm
Engine Fluids
Engine Oil, Volume
5.25 litres
Car Battery
Voltage
12 V
Battery Capacity
80 Ah
Cold Start Power
150 A
Engine Configuration
Bore
82 mm (3.2 in)
Stroke
94.6 mm (3.7 in)
Compression Ratio
10.2 :1
Engine Configuration
Inline
Turbocharger
Twin-scroll
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
60,000 km / 2 years
Fuel Filter
60,000 km / 2 years
Spark Plug
60,000 km / 2 years
Brake Fluid
60,000 km (37,282 mi)
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
75,000 km / 3 years
Interior Filter
30,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed
Transmission
Paddles
Optional

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (1)
  • Rear (1)
Front Brakes
Diameter
330 mm (13.0 in)
Width
24 mm (0.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
300 mm (11.8 in)
Width
20 mm (0.8 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Sports Suspension
Optional
Suspension, Front
Independent
Yes
Suspension, Rear
Independent
Yes

Fuel

General
Tank Volume
51 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Emission Class
C
Fuel Consumption NEDC
City
8.1 - 8.3 litres / 100 km
Highway
5.4 - 5.5 litres / 100 km
Combined
6.4 - 6.5 litres / 100 km
Fuel Consumption EPA
City
34.9 MPG
Highway
52.3 MPG
Combined
43.5 MPG
Emission NEDC
CO₂, Combined
148 - 152 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,038 mm (80.2 in)
Track, Front
1,557 mm (61.3 in)
Track, Rear
1,558 mm (61.3 in)
Overhang, Front
848 mm (33.4 in)
Overhang, Rear
824 mm (32.4 in)
Turning Circle
11.3 m
Ground Clearance
156 - 165 mm (6.1 - 6.5 in)

Interior

Head Room, Front
1,040 mm (40.9 in)
Head Room, Rear
983 mm (38.7 in)
Shoulder Room, Front
1,440 mm (56.7 in)
Shoulder Room, Rear
1,450 mm (57.1 in)

Weight

Curb Weight (DIN)
1,510 kg (3,329 lb)
Gross Weight
2,045 kg (4,508 lb)
Max Trailer Load, braked 12%
1,600 kg (3,527 lb)
Max Trailer Load, braked 8%
1,600 kg (3,527 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
515 kg (1,135 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)
Permitted Axle Load, front
1,105 kg (2,436 lb)
Permitted Axle Load, rear
980 kg (2,161 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Yes
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Roof Railing
Optional
Number of Exhaust Pipes
2

Lights

Daytime Running Light
LED
Fog Lights
Yes
Special Features
Automatic Headlight Activation
Fog Lights
Front
Yes
Special Features
Main Beam Assist
Optional
Adaptive Headlights
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

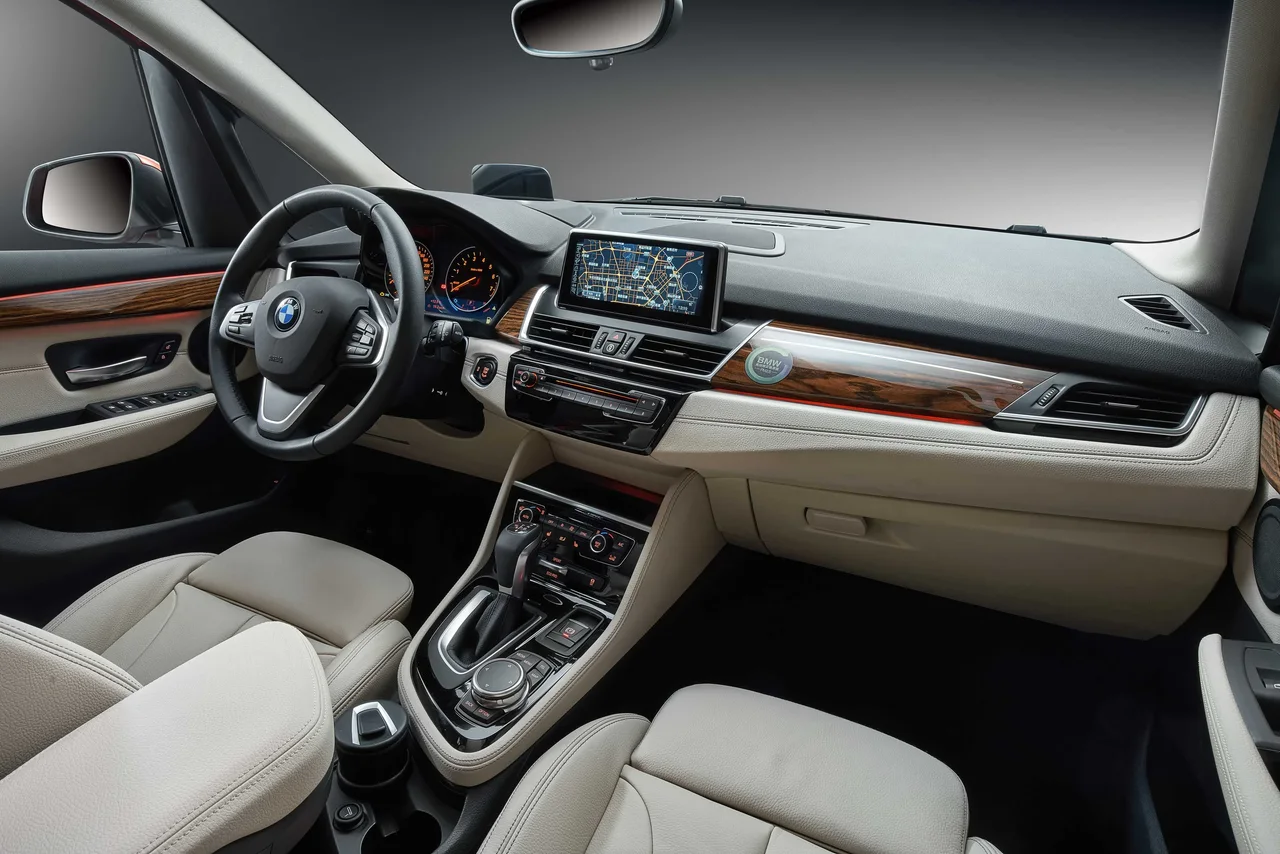

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Analogue
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
Media Inputs
USB
Bluetooth
Yes
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
CD
Optional
Displays
Center Display
6.5 - 8.8"
Displays › Center Display
Touchscreen
Optional
Speakers
Total Number of Speakers
6 - 12 pcs
Speakers Max. Watt
205 - 360 W
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Optional
Guide Light
Entry Guard
Ambient Light
Optional
Lights › Read Light
Front
Optional
Rear
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Number of Spokes
3
Material
Leather
Colour
Black
Steering Ratio
15.7 :1
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Barrier Net/Grid
Optional
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
468 litres
Volume, Back Seat Collapsed
1,510 litres
Automatic Open
Motion Activated
Optional

Design

Transmission Knob Material
Leather

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Optional
Speed Limiter
Optional
Cameras
Optional
Voice Control
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
Eco
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Collision Warning (RCW)
Yes
Front Cross-Traffic Alert (FCTA)
Optional
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Sign Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Yes
Immobiliser
Electronic
Yes
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2014
Adult Occupant
84 %
Child Occupant
85 %
Vulnerable Road Users
60 %
Safety Assist
70 %
Overall
5/5 stars
Adult Occupant
Total Points
31.9 /38
Frontal Impact
11.3 /16
Lateral Impact
16 /16
Rear Impact
2.5 /4
Child Occupant
Total Points
42 /49
Safety Features
6 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
21.7 /49
Pedestrian
  • 14.9
  • 2
  • 4.9
Safety Assist
Speed Assistance (points)
1.3 /3
Lane Support (points)
0 /4

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Manufacturer (NO)
5 years
Manufacturer (NO)
200,000 km (124,274 mi)

Car Classification

American Classification
MPV
British Classification
Compact MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Medium MPV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Fog Light, Front
H8
Fog Light, Rear
BA15s (P21W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BA15s (P21W)
Glove Compartment
W2.1×9.5d (W5W)
Read Light
W2.1×9.5d (W5W)
Entry Light
W2.1×9.5d (W5W)

Similar minivans

Suggested vehicles
