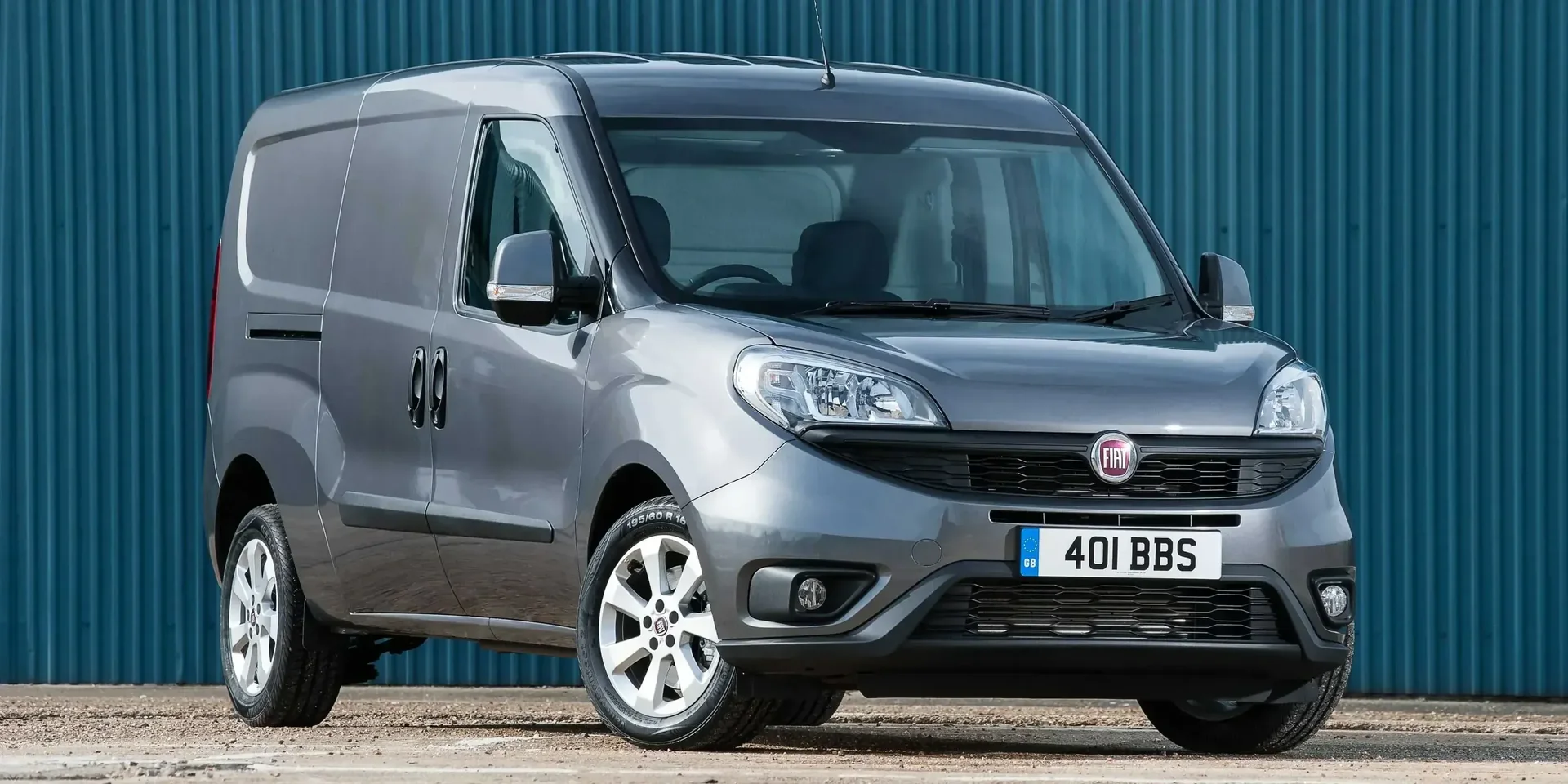

2015 Fiat Doblò Maxi

ItalyDieselFWDLCV

Photos

Specifications

Vehicle Details

Year
2015
Make
Fiat
Model
Doblò
Variant
Maxi
Body Style
LCV
Generation
Typ 263 Facelift
Doors
4
Fuel
Diesel
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
1.6 Multijet Manual
Engine Configuration
Inline
Power (hp)
105 hp
Power (kW)
77 kW
Torque
290 Nm (214 lb-ft)
Displacement
1,598 cc

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
4.9 litres
Engine Configuration
Bore
79.5 mm (3.1 in)
Stroke
80.5 mm (3.2 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Synchronization
Timing Belt
Service Intervals
Timing Interval
100,000 km / 4 years
Air Filter
35,000 km / 2 years
Fuel Filter
40,000 km (24,855 mi)
Brake Fluid
70,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
4 years
Interior Filter
30,000 km / 1 years

Fuel

General › Fuel Cap Position
Rear
Left

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Leatherette
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Dimensions & Weight

Exterior

Ground Clearance
180 mm (7.1 in)

Exterior

Chassis & Body

Chassis
Chassis
LCV
Pillars
A-B
Chassis Construction
Unibody
Body Material
Steel
Roof Material
Steel
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Bottom-Strip
Rear
Bottom-Strip
Sides
Mid-Strip
Colour
Non-Painted
Doors
Front Doors
Conventional
Rear Doors
Sliding (Left | Right)
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Manual
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Heat-Insulating Windows
  • Front
  • First Row
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
Driver
Windows › Tinted Windows
Windscreen, upper part
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Antenna
Whip

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Yes
Fog Lights
Rear
Halogen
Special Features
Headlight Washers
Optional
Headlight Range Adjustment
Manual (Electric)

Colour

Door Handles
Non-painted

Rims & Tires

Tightening Torque
85 - 120 Nm
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Full-size
Optional
Spare Wheel › Full-size
Steel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Air Condition
Optional
Micro Filter
Optional
Pollen Filter
Optional
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
Optional
Radio Preparation
Yes
Bluetooth
Optional
Connectivity › Radio
AM
Optional
FM
Optional
DAB
Optional
Connectivity › Radio Preparation
MP3
Optional
Connectivity › Media Inputs
AUX
Optional
USB
Optional
Connectivity › Media Inputs › USB
USB-A
Optional
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Displays
Center Display
3 - 5"
Displays › Center Display
Touchscreen
Optional
Buttons
Optional
Speakers
Total Number of Speakers
4 pcs
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Coin Holder
Optional
Card Holder
Optional
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Glove Compartment
Light
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
1
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Entry Guard
Other Equipment › Make-up Mirror
Driver Side
Optional
Passenger Side
Optional
Make-up Light
Optional
Other Equipment
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Hydraulic
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Headrest, Height
Manual
Front Seats
Heated Seats
Optional
Armrest
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional

Trunk

Rear Trunk
Yes
Cover
Optional
Hatch Opening Type
Two-parted Doors
Cover
Foldable
Optional

Design

Pedals
Standard
Pedals
Beige
Optional
Brown
Optional
Red
Optional

Features

Comfort Features

Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Cameras
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
GPS Preparation
Optional
Horn
Dual Note
GPS
USB
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Anti-theft Alarm
Optional
Central Locking
Remote
Active Headrests
Optional

Airbags

Feature
Frontal Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Other

Car Classification

European Segment
M-Segment
Car.info Classification
Cargo Van
