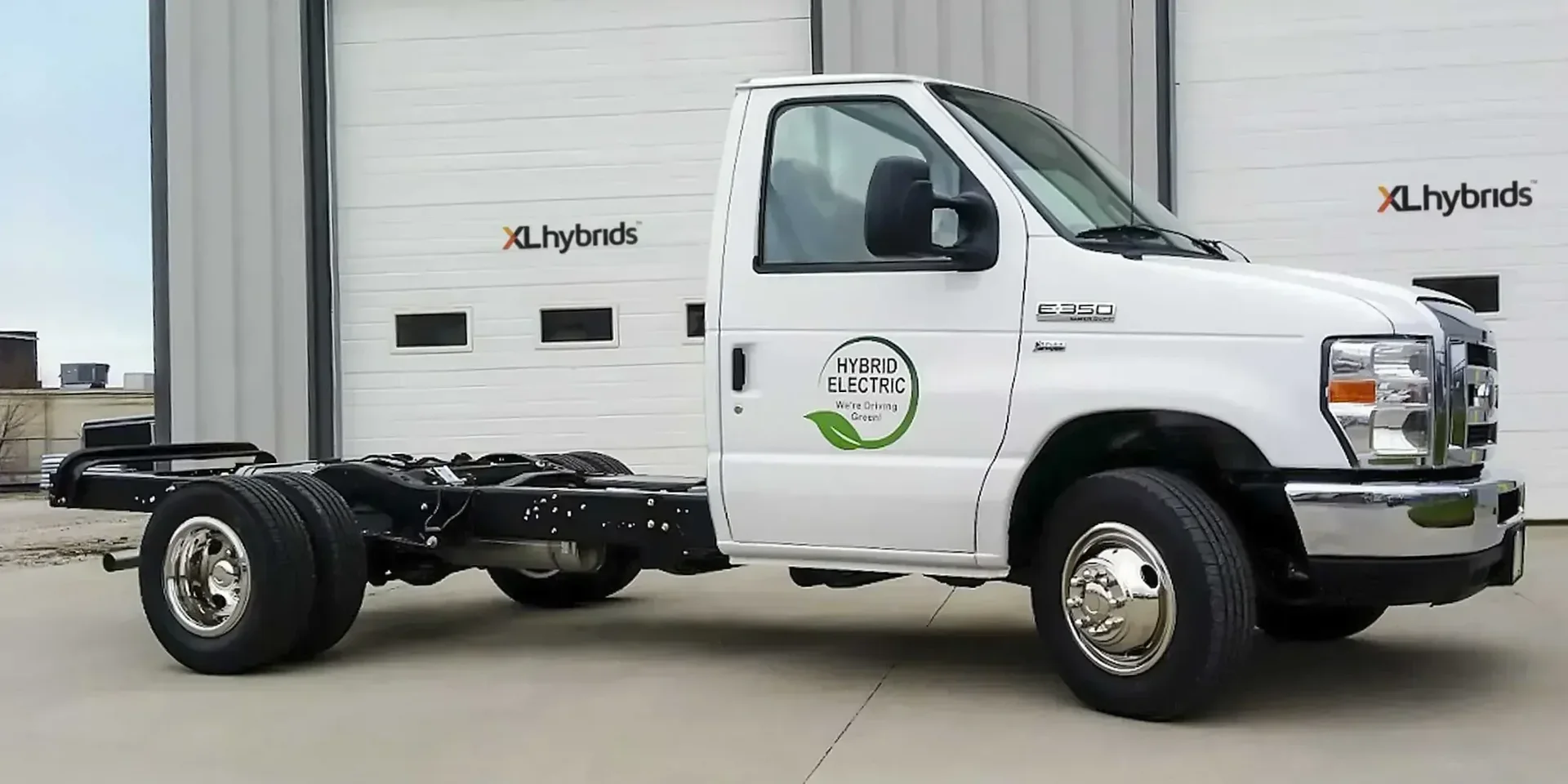

2015 Ford E-Series E-350 Super Duty

United StatesGasolineRWDLCV

Specifications

Vehicle Details

Year
2015
Make
Ford
Model
E-Series
Variant
E-350 Super Duty
Body Style
LCV
Generation
1st Generation 4th Facelift
Seats
1
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic (Electrohydraulic), 5
  • 6-speed

Powertrain

Engine Name
E-350 Super Duty 6.8 V10 SEFI 2V
Engine Configuration
V
Power (hp)
309 hp
Power (kW)
227 kW
Torque
569 Nm (420 lb-ft)
Displacement
6,760 cc

Dimensions

Width
2,017 mm (79.4 in)
Curb weight
2,222 kg (4,899 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,250 rpm
Rev. at Max Torque
3,250 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 5W-30
Engine Oil, Volume
5.7 litres
Engine Coolant, Volume
28.8 litres
Car Battery
Voltage
12 V
Battery Capacity
72 - 78 Ah
Cold Start Power
650 - 750 A
Secondary Battery
Optional
Alternator Charge Current
150 - 225 A
Alternator Voltage
14 V
Engine Configuration
Bore
90.2 mm (3.6 in)
Stroke
105.8 mm (4.2 in)
Compression Ratio
9 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
OHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
48,000 km (29,826 mi)
Spark Plug
157,000 km (97,555 mi)
Brake Fluid
2 years
Oil Change & Engine Filter
12,000 km (7,456 mi)
Engine Coolant
168,000 km / 6 years
Transmission, Fluid
96000 – 240000 km (59,652 – 149,129 mi)
Transmission, Fluid Filter
96000 – 240000 km (59,652 – 149,129 mi)
Rear Axle, Oil
157,000 km (97,555 mi)
Interior Filter
48,000 km (29,826 mi)
Accessory Belt
240,000 km (149,129 mi)

Transmission & Drivetrain

Transmission
  • Automatic (Electrohydraulic), 5
  • 6-speed
Gear Selector
Stalk
Gear Selector Location
Steering Column
Overdrive
Yes
Gear Ratio
1st Gear
3.11 – 3.97 :1
2nd Gear
2.11 – 2.31 :1
3rd Gear
1.51 – 1.55 :1
4th Gear
1 – 1.14 :1
5th Gear
0.71 – 0.85 :1
6th Gear
0.67 :1
Final Drive
4.1 :1
Reverse
2.88 – 3.12 :1

Fuel

General
Tank Volume
151 - 208 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
345 mm (13.6 in)
Width
12.42 mm (0.5 in)
Rear Brakes
Diameter
345 mm (13.6 in)
Width
12.42 mm (0.5 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Leaf (Longitudinal Spring)
Anti-roll Bar
Yes
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Dependent
Beam Axle (Dead Axle)
Anti-roll Bar
Front
23 - 25.4 mm (0.9 - 1.0 in)
Rear
28.6 mm (1.1 in)

Dimensions & Weight

Exterior

Track, Front
1,763 mm (69.4 in)
Track, Rear
1,831 - 1,915 mm (72.1 - 75.4 in)
Overhang, Front
879 mm (34.6 in)

Interior

Head Room, Front
1,067 mm (42.0 in)
Leg Room, Front
1,069 mm (42.1 in)
Hip Room, Front
1,666 mm (65.6 in)
Shoulder Room, Front
1,730 mm (68.1 in)

Weight

Gross Weight
4,559 - 5,670 kg (10,051 - 12,500 lb)
Max Trailer Load, braked 12%
4,536 kg (10,000 lb)
Cargo Capacity
2314 – 2337 - 3268 – 3291 kg (7,205 – 7,255 lb)
Permitted Axle Load, front
1,837 kg (4,050 lb)
Permitted Axle Load, rear
2,760 kg (6,085 lb)
Weight Distribution, front
59.4 – 59.8 %
Weight Distribution, rear
40.2 – 40.6 %

LCV Specific

General
Version
  • L1H1
  • L2H1
  • L3H1
Dimensions › Length
L1
6,124 mm (241.1 in)
L2
6,632 mm (261.1 in)
L3
6,632 mm (261.1 in)
Dimensions › Height
L1H1
2,040 mm (80.3 in)
Dimensions › Wheel Base
L1
3,505 mm (138.0 in)
L2
4,013 mm (158.0 in)
L3
4,470 mm (176.0 in)
Dimensions › Overhang, Rear
L1
1,740 mm (68.5 in)
L2
1,740 mm (68.5 in)
L3
1,283 mm (50.5 in)
Dimensions › Turning Circle
L1
14.81 m
L2
16.73 m
L3
18.38 m

Exterior

Chassis & Body

Chassis
Chassis
LCV (LCV Chassis)
Pillars
A-B
Chassis Construction
Body-on-Frame (Ladder Frame)
Body Material
Steel
Doors
Front Doors
Conventional
Door Handles
Pull-up
Platform
Ford Motor Company
VN Platform (VN58/VN127)

Equipment

Side Mirrors
Mirror Type
Conventional
Folding
Manual
House Colour
Non-painted
Mirror Shape, Driver side
  • Convex
  • Flat
Windscreen Wipers
Number of Wiper Speeds
2
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Other Equipment
Antenna
Whip
Air Intakes
1-port
Number of Exhaust Pipes
1
Mud Flaps
Optional
Side Steps
Optional
Other Equipment › Mud Flaps
Rear
Optional
Other Equipment › Side Steps
Stationary
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Special Features
Come Home/Leaving Lights

Colour

Non-painted
Bumper (Front | Rear)
Door Handles
Non-painted

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
8 pcs
Fastening Type
Lug Nuts
Tightening Torque
190 Nm
Rim Type
Disc Wheel
Spare Wheel
Optional
Dual Rear Wheels
Optional
Tire Pressure Monitoring System (TPMS)
Direct
Optional
Spare Wheel
Full-size
Optional
Spare Wheel › Full-size
Steel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Voltmeter
Analogue
Oil Pressure
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
  • Colour
  • Monochrome
Shape
Square
Climate Control
Air Condition
Optional
Number of Vents, Front
4 pcs
Controls
Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
850 g
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
  • WMA
Bluetooth
Optional
Connectivity › Radio
XM
Optional
HD Radio
Optional
Connectivity › Media Inputs
AUX
Yes
USB
Optional
Connectivity › Media Inputs › USB
USB-C
Optional
Number of Ports
1 pcs
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Speakers
Total Number of Speakers
2 - 4 pcs
Interior Storage › Storage Compartments
Glove Compartment
Yes
Door
  • Driver Side
  • Passenger Side
Total Number of Compartments
9 pcs
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
3
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Other Equipment › Make-up Mirror
Driver Side
Optional
Passenger Side
Optional
Make-up Light
Optional
Other Equipment
12V Outlet
Front
110V Outlet
Optional
Cigarette Lighter
Optional
Other Equipment › 110V Outlet
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Hydraulic
Adjustments
  • Tilt
  • Telescope
Number of Spokes
2
Material
Plastic
Colour
Black
Steering Ratio
17 :1
Steering Mechanism
Recirculating Ball
Multifunction Steering Wheel
Number of Buttons
5 - 7 pcs

Design

Interior Decor Material
Plastic
Transmission Knob Material
Plastic
Entry Guard Material
Plastic

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Manual
Lumbar Support
Optional
Front Seats
Number of Driver Seat Adjustments, Manual
4 - 6
Number of Driver Seat Adjustments, Powered
6
Number of Driver Seat Adjustments, Total
4 - 8
Number of Passenger Seat Adjustments, Manual
4 - 6
Number of Passenger Seat Adjustments, Powered
6
Number of Passenger Seat Adjustments, Total
4 - 8
Power Seat, Driver
Optional
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Manual
Lumbar Support
Optional
Colour & Material
Seat Colour
Grey

Features

Comfort Features

Cruise Control
Optional
Parking Heater
Optional
Cameras
Optional
Voice Control
Optional
Parking Heater
Engine Heater
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Phone
Optional

Other Features

GPS
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Belt Pretensioner
  • Driver: Yes
  • Passenger: Yes
  • Rear: -
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Assist Systems

Electronic Stability Control (ESC)
Optional
Hill Descent Control (HDC)
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Other Features

Immobiliser
Optional
Central Locking
Optional
Emergency Call
Yes
Reversing Alarm
Optional
Number of Remote Keys
2
Number of Standard Keys
2
Total Number of Keys
4
Central Locking
Remote
Optional

Airbags

Feature
Frontal Airbag
Airbag cut-off Switch

Other

Identification

VIN Location
Left Side Casing of Window
Yes
On-board Diagnostic, Port Location
Steering Wheel, Lower Middle

Car Classification

European Segment
M-Segment
Car.info Classification
Commercial Chassis
