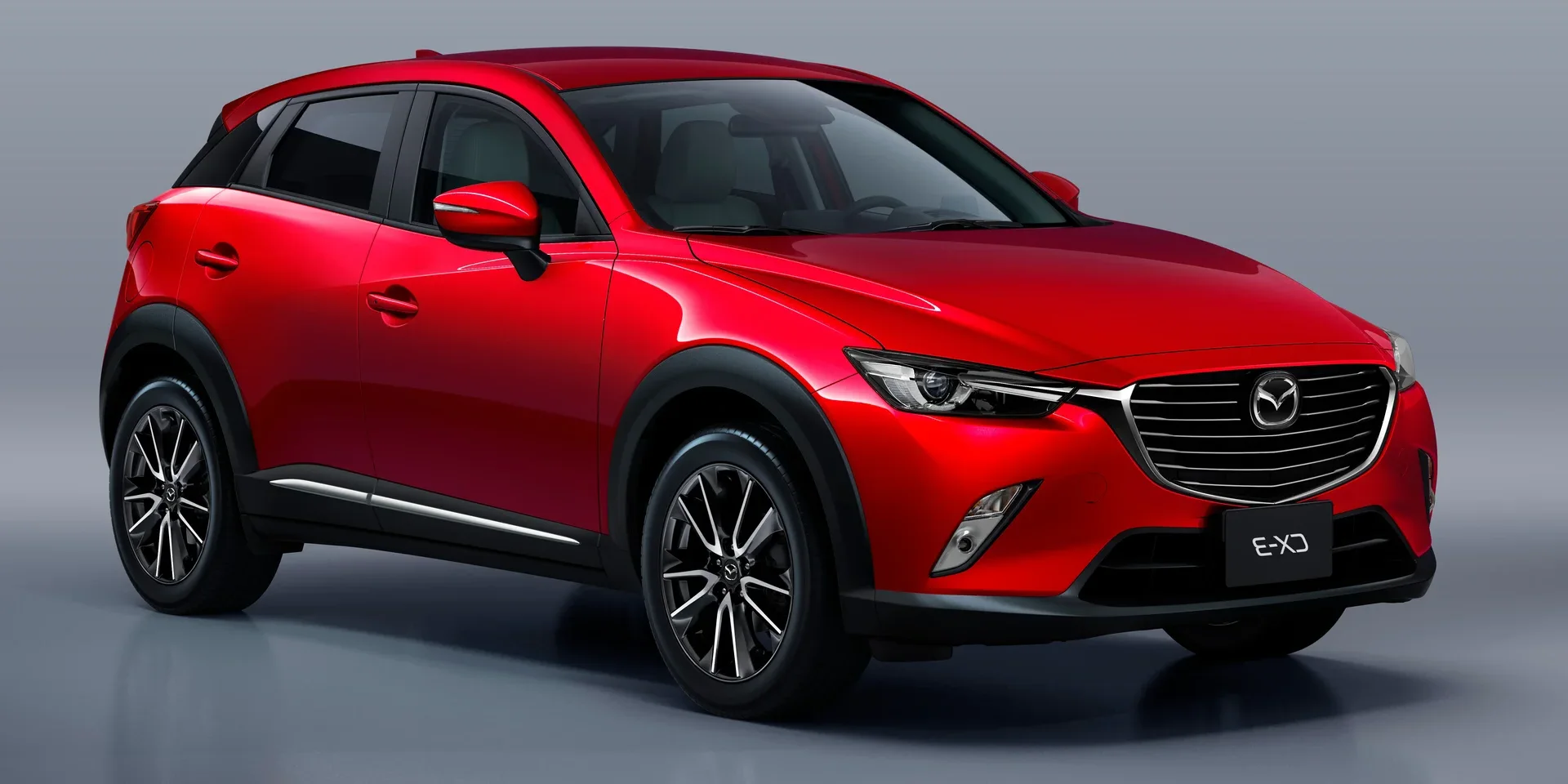

2015 Mazda CX-3

JapanDieselAWDHatchback

Photos

Specifications

Vehicle Details

Year
2015
Make
Mazda
Model
CX-3
Body Style
Hatchback
Generation
DK
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

Engine Name
1.5 SKYACTIV-D AWD
Engine Configuration
Inline
Power (hp)
105 hp
Power (kW)
77 kW
Torque
220 Nm (162 lb-ft)
Top speed
172 km/h (107 mph)
0–60 mph
10.0 seconds (estimated)
0–100 km/h
10.5 seconds
Displacement
1,499 cc

Dimensions

Length
4,280 mm (168.5 in)
Width
1,770 mm (69.7 in)
Height
1,540 mm (60.6 in)
Wheelbase
2,570 mm (101.2 in)
Curb weight
1,350 kg (2,976 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,400 - 3,200 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 5W-30
Engine Configuration
Bore
76 mm (3.0 in)
Stroke
82.6 mm (3.3 in)
Compression Ratio
14.8 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
DOHC
Service Intervals
Air Filter
60,000 km / 3 years
Fuel Filter
60,000 km / 3 years
Brake Fluid
40,000 km / 2 years
Oil Change & Engine Filter
20,000 km / 1 years
Engine Coolant
100,000 km / 5 years
Transmission, Fluid
180,000 km (111,847 mi)
Interior Filter
40,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed
Gear Ratio
1st Gear
3.55 :1
2nd Gear
2.02 :1
3rd Gear
1.45 :1
4th Gear
1 :1
5th Gear
0.71 :1
6th Gear
0.6 :1
Final Drive
3.81 :1
Reverse
3.89 :1

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
Front
Brakes Material
Steel
Front Brakes
Diameter
295 mm (11.6 in)
Width
25 mm (1.0 in)
Cooling
Ventilated
Rear Brakes
Diameter
281 mm (11.1 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Yes

Fuel

General
Tank Volume
44 litres
Emission
Emission Standard
Euro 6
Emission Class
  • B
  • C
Fuel Consumption NEDC
City
4.9 – 5.6 litres / 100 km
Highway
4.6 – 4.9 litres / 100 km
Combined
4.7 – 5.2 litres / 100 km
Emission NEDC
CO₂, Combined
123 – 136 g/km

Dimensions & Weight

Exterior

Track, Front
1,530 mm (60.2 in)
Track, Rear
1,520 mm (59.8 in)
Turning Circle
11.4 m
Ground Clearance
155 mm (6.1 in)

Interior

Head Room, Front
975 mm (38.4 in)
Head Room, Rear
945 mm (37.2 in)
Leg Room, Front
1,059 mm (41.7 in)
Leg Room, Rear
889 mm (35.0 in)
Hip Room, Front
1,328 mm (52.3 in)
Hip Room, Rear
1,245 mm (49.0 in)
Shoulder Room, Front
1,359 mm (53.5 in)
Shoulder Room, Rear
1,280 mm (50.4 in)

Weight

Gross Weight
1800 – 1815 kg (3,968 – 4,001 lb)
Max Trailer Load, braked 12%
1,200 kg (2,646 lb)
Max Trailer Load, braked 8%
1,200 kg (2,646 lb)
Max Trailer Load, unbraked
665 – 675 kg (1,466 – 1,488 lb)
Cargo Capacity
369 – 535 - 445 – 450 kg (981 – 992 lb)
Max Roof Load
50 kg (110 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Number of Wiper Speeds
2
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Front
  • Second Row
  • Rear Window
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Spoiler
Fixed
Antenna
Shark Fin

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Fog Lights
Front
Halogen

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts
Tightening Torque
108 - 147 Nm
Rim Material
Steel
Number of Spokes
10
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Oil Temperature
Digital
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Navigation
Yes
Climate Control
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
3 pcs
Controls
  • Buttons
  • Faders
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • DAB
Media Format
  • CD
  • MP3
Media Inputs
USB
Bluetooth
Phone
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
7"
Displays › Center Display
Touchscreen
Optional
Speakers
Total Number of Speakers
6 pcs
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Yes
Other Equipment
Clock
Yes
12V Outlet
Front
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
Speed Up/Down (Buttons)
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
350 litres
Volume, Back Seat Collapsed
1,260 litres
Depth
800 mm (31.5 in)
Width
1,000 mm (39.4 in)

Design

Interior Decor Material
Leather
Interior Decor Colour
Black
Accent
Aluminium
Transmission Knob Material
Plastic

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Heated Seats
Yes
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear
Cruise Control
Adaptive Cruise Control
Optional

Other Features

GPS
Optional
Horn
Single Note

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Yes
Hill Start Assist (HSA)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Central Locking
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
85 %
Child Occupant
79 %
Vulnerable Road Users
84 %
Safety Assist
64 %
Overall
4/5 stars
Overall Score
36.44
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
15.44
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
5/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
13.6 %
Overall Safety Rating
5/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars
IIHS
Test Year
2016
Award
Top Safety Pick
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JB-Segment
Car.info Classification
Small SUV

Spare Parts BETA

Bulb Types
Low Beam
H11
Main Beam
HB3
Datyime Running Light
HB3
Positioning-/Parking Lights, Front Side
W2.1×9.5d (W5W)
Positioning-/Parking Lights, Rear Side
W2.1×9.5d (W5W)
Rear/Brake Light
W3×16q (W21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Rear
WX3×16d (WY21W)
License Plate Light
W2.1×9.5d (W5W)

ACRISS

Category
Intermediate (I)
Type
Monoscape (M)

Awards

Canadian
Utility Vehicle of the Year
2016
