2013–2016

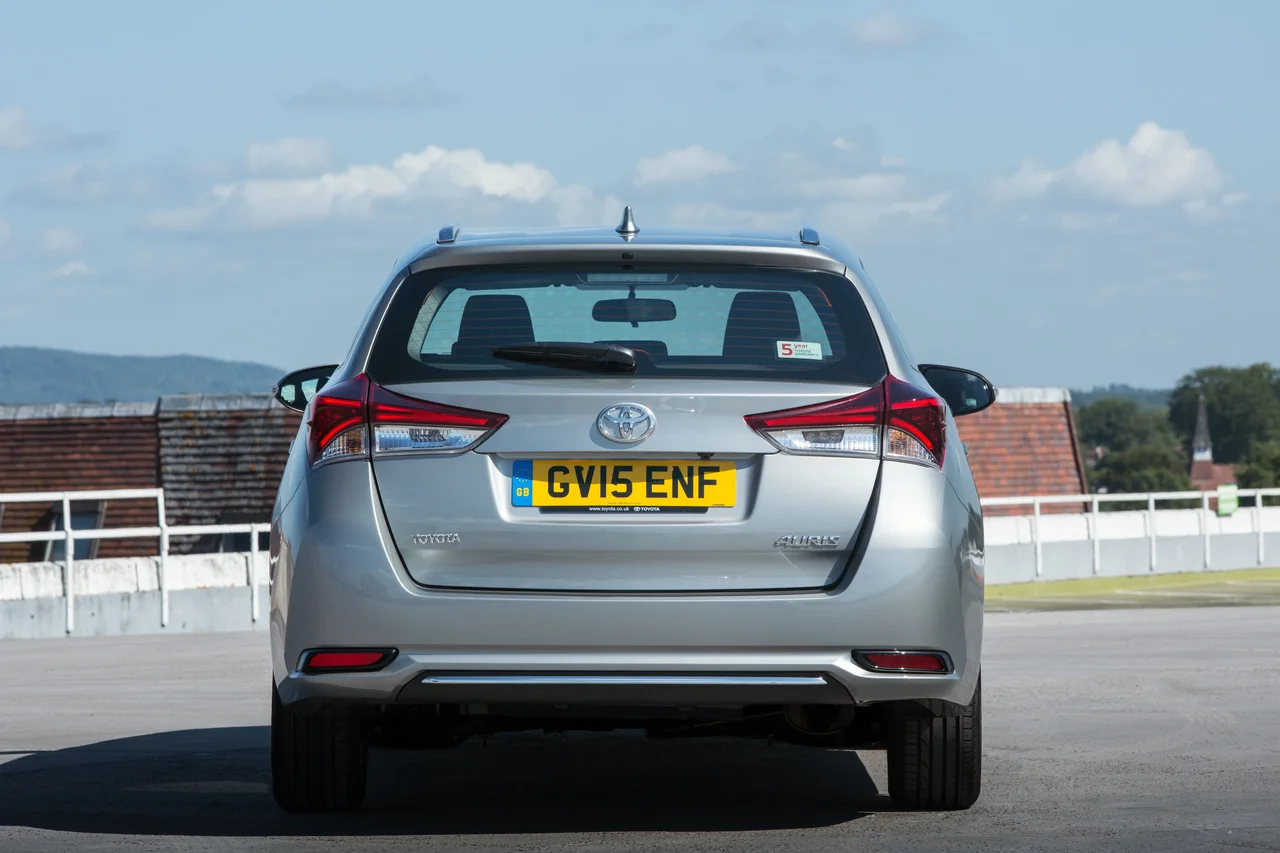

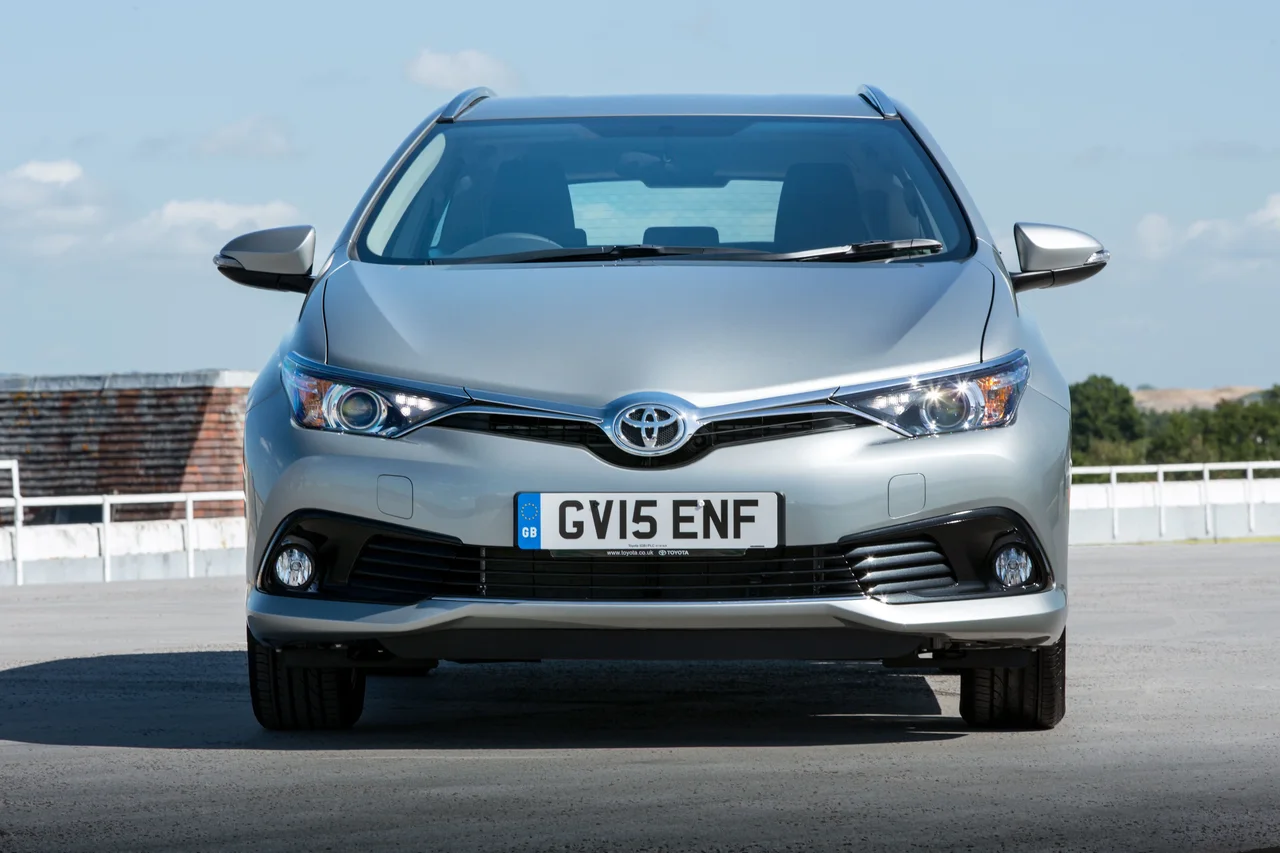

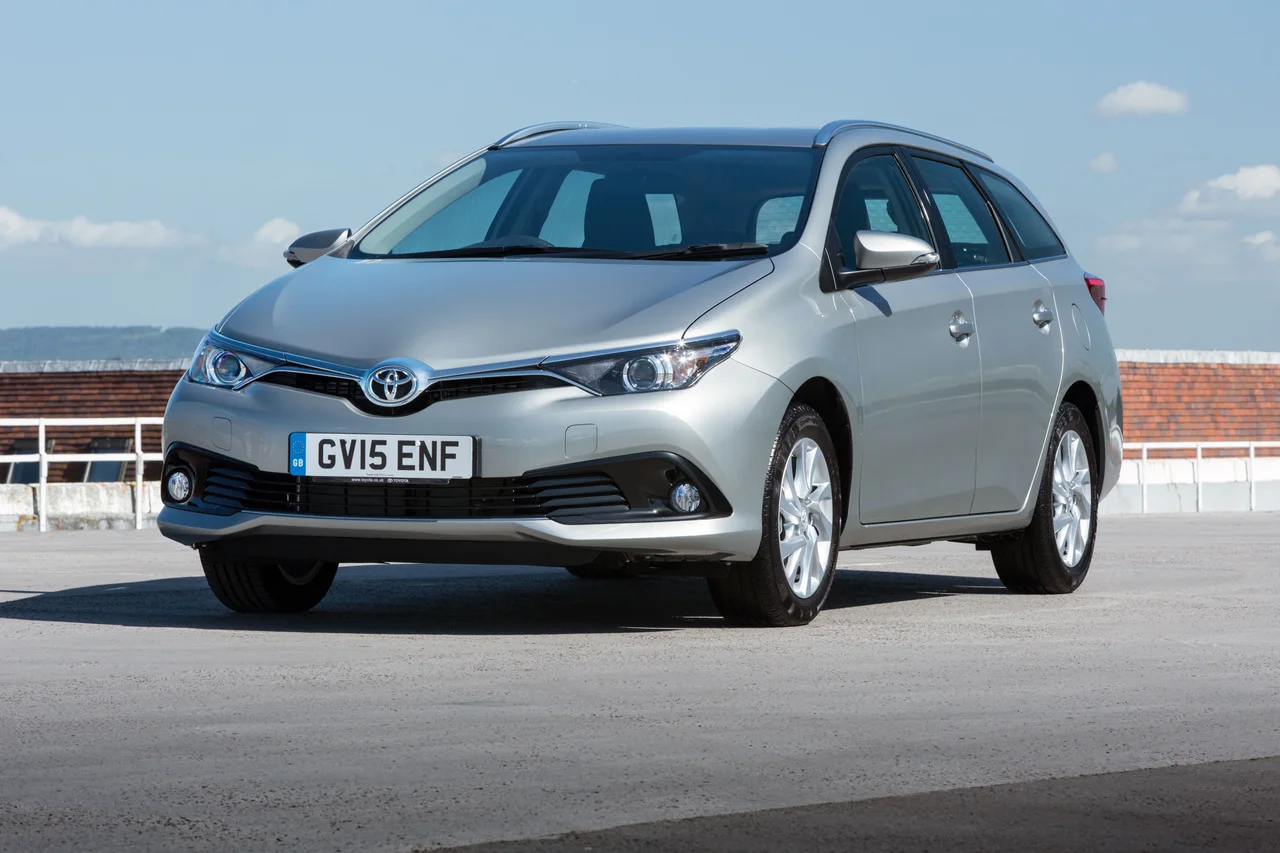

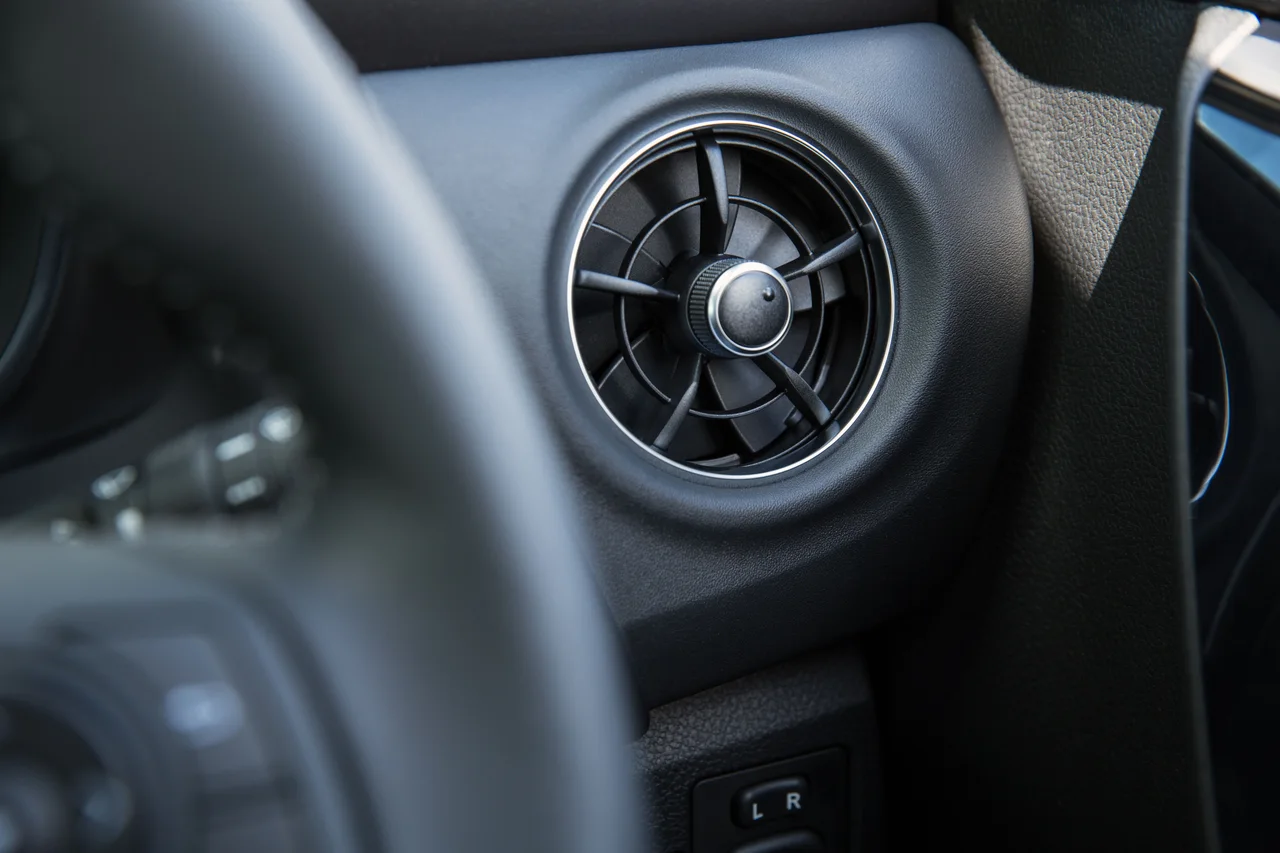

Photos
Specifications
Vehicle Details
- Year
- 2015
- Make
- Toyota
- Model
- Auris
- Variant
- Sports
- Body Style
- Wagon
- Generation
- E180 Facelift
- Seats
- 5
- Doors
- 5
- Fuel
- Gasoline
- Drivetrain
- FWD
- Transmission
- Manual, 6-speed
Powertrain
- Engine Name
- 1.33 Dual VVT-i Manual
- Engine Configuration
- Inline
- Power (hp)
- 99 hp
- Power (kW)
- 73 kW
- Torque
- 128 Nm (94 lb-ft)
- Top speed
- 175 km/h (109 mph)
- 0–60 mph
- 12.6 seconds (estimated)
- 0–100 km/h
- 13.2 seconds
- Displacement
- 1,329 cc
Dimensions
- Length
- 4,595 mm (180.9 in)
- Width
- 1,760 mm (69.3 in)
- Height
- 1,485 mm (58.5 in)
- Wheelbase
- 2,600 mm (102.4 in)
- Curb weight
- 1,250 kg (2,756 lb)
Engine
Engine Specification
- Rev. at Max Power
- 6,000 rpm
- Rev. at Max Torque
- 3,800 rpm
Engine Fluids
- Synthetic Oil (viscosity)
- 0W-20
- 5W-30
- 5W-40
- 10W-30
- Semi-synthetic Oil (viscosity)
- 5W-30
- 5W-40
- 10W-30
- 15W-40
- 20W-50
- Engine Oil, Volume
- 3.4 litres
Engine Configuration
- Bore
- 72.5 mm (2.9 in)
- Stroke
- 80.5 mm (3.2 in)
- Compression Ratio
- 11.5 :1
- Engine Configuration
- Inline
Service Intervals
- Air Filter
- 60,000 km / 4 years
- Spark Plug
- 90,000 km (55,923 mi)
- Brake Fluid
- 30,000 km / 2 years
- Oil Change & Engine Filter
- 15,000 km / 1 years
- Engine Coolant
- 150,000 km (93,206 mi)
- Interior Filter
- 30,000 km / 1 years
Brakes
Parking Brake
- Manual
- Lever
Parking Brake › Manual
- Material
- Plastic
- Front Brakes
- Disc Brakes
- Rear Brakes
- Disc Brakes
Front Brakes
- Cooling
- Ventilated
Fuel
General
- Tank Volume
- 50 litres
Emission
- Emission Standard
- Euro 6
Fuel Consumption NEDC
- City
- 7.1 litres / 100 km
- Highway
- 4.2 litres / 100 km
- Combined
- 5.6 litres / 100 km
Emission NEDC
- CO₂, Combined
- 130 g/km
Exterior
- Track, Front
- 1,525 mm (60.0 in)
- Track, Rear
- 1,525 mm (60.0 in)
- Turning Circle
- 11 m
- Ground Clearance
- 140 mm (5.5 in)
Interior
- Head Room, Front
- 930 - 1,000 mm (36.6 - 39.4 in)
- Head Room, Rear
- 940 mm (37.0 in)
- Hip Room, Front
- 1,470 mm (57.9 in)
- Hip Room, Rear
- 1,420 mm (55.9 in)
- Leg Room (est.), Rear
- 850 - 870 mm (33.5 - 34.3 in)
Weight
- Gross Weight
- 1,765 kg (3,891 lb)
- Max Trailer Load, braked 12%
- 1,000 kg (2,205 lb)
- Max Trailer Load, unbraked
- 450 kg (992 lb)
- Cargo Capacity
- 515 kg (1,135 lb)
- Max Roof Load
- 75 kg (165 lb)
- Max Towbar Download
- 55 kg (121 lb)
Chassis & Body
Chassis
- Chassis
- Station Wagon
- Pillars
- A-D
- Chassis Construction
- Unibody
Doors
- Front Doors
- Conventional
- Rear Doors
- Conventional
- Door Handles
- Swing-out
Platform
- Toyota Platform
- MC Platform (New MC)
Equipment
Side Mirrors
- Mirror Type
- Conventional
- Adjustments
- Electrical
- Heated
- Yes
- Turning Signal
- Yes
- House Colour
- Same as Car
Windscreen Wipers
- Number of Wiper Speeds
- 2
- Rear Wiper
- Yes
Windows
- Window Lifts, Front
- Powered
- Heated Windows
- Rear
- Heat-Insulating Windows
- Yes
- Tinted Windows
- Optional
Windows › Tinted Windows
- Second Row
- Optional
- Rear Window
- Optional
Other Equipment
- Roof Railing
- Yes
- Spoiler
- Fixed
- Antenna
- Shark Fin
Other Equipment › Roof Railing
- Roof Railing Type
- Flush Rails (Closed Rails)
- Colour
- Silver
Lights
- Rear Lights
- LED
- Daytime Running Light
- LED
- Fog Lights
- Optional
- Auxiliary Lights
- Spot Light
- Special Features
- Come Home/Leaving Lights
Special Features
- Main Beam Assist
- Optional
Rims & Tires
- Tire Pressure Monitoring System (TPMS)
- Yes
- Number of Bolts
- 5 pcs
- Bolt Distance
- 114.3
- Nut/Bolt Dimensions
- M12x1.5
- Central Bore (CB), front
- 60.1
- Fastening Type
- Lug Nuts
- Tightening Torque
- 103 Nm
- Rim Type
- Disc Wheel
Equipment
Instrument Cluster
- Trip Computer
- Yes
- Speedometer
- Analogue
- Tachometer
- Analogue
- Fuel Gauge
- Analogue
- Oil Temperature
- Analogue
- Odometer Limit
- 1,000,000 km/miles
Instrument Cluster › Trip Computer
- Display
- Yes
Instrument Cluster › Trip Computer › Display
- Type
- Monochrome
- Shape
- Cockpit
Climate Control
- Air Condition
- Yes
- Outside Temperature Indicator
- Yes
- Controls
- Buttons
- Rotary Dials
Climate Control › Air Condition
- Refrigerant
- R134A
Connectivity
- Radio
- AM
- FM
- Media Format
- CD
- MP3
- WMA
- Bluetooth
- Optional
Connectivity › Radio
- DAB
- Optional
- RDS
- Optional
Connectivity › Media Format
- DVD
- Optional
Connectivity › Media Inputs
- AUX
- Yes
- USB
- Optional
Connectivity › Media Inputs › USB
- USB-A
- Optional
Connectivity › Bluetooth
- Phone
- Optional
- Audio
- Optional
Displays
- Center Display
- 4.2"
Displays › Center Display
- Touchscreen
- Optional
Speakers
- Total Number of Speakers
- 4 - 6 pcs
Interior Storage › Storage Compartments
- Glove Compartment
- Yes
- Armrest Hatch
- Front
- Back Pocket
- Optional
- Sunglass Compartment
- Yes
- Door
- Driver Side
- Passenger Side
- Rear
Interior Storage › Storage Compartments › Armrest Hatch
- Back
- Optional
Interior Storage
- Cup Holders
- Yes
Interior Storage › Cup Holders
- Front
- 2
Interior Storage › Cup Holders › Front
- Placement
- Middle Console
Lights
- Read Light
- Front
- Guide Light
- Yes
Other Equipment
- Make-up Mirror
- Driver Side
- Passenger Side
- Clock
- Yes
- 12V Outlet
- Front
- Trunk
- Carpets
- Optional
Other Equipment › Make-up Mirror
- Make-up Light
- Optional
Other Equipment › Clock
- Digital
- Center Display
- Instrument Cluster
Steering Wheel

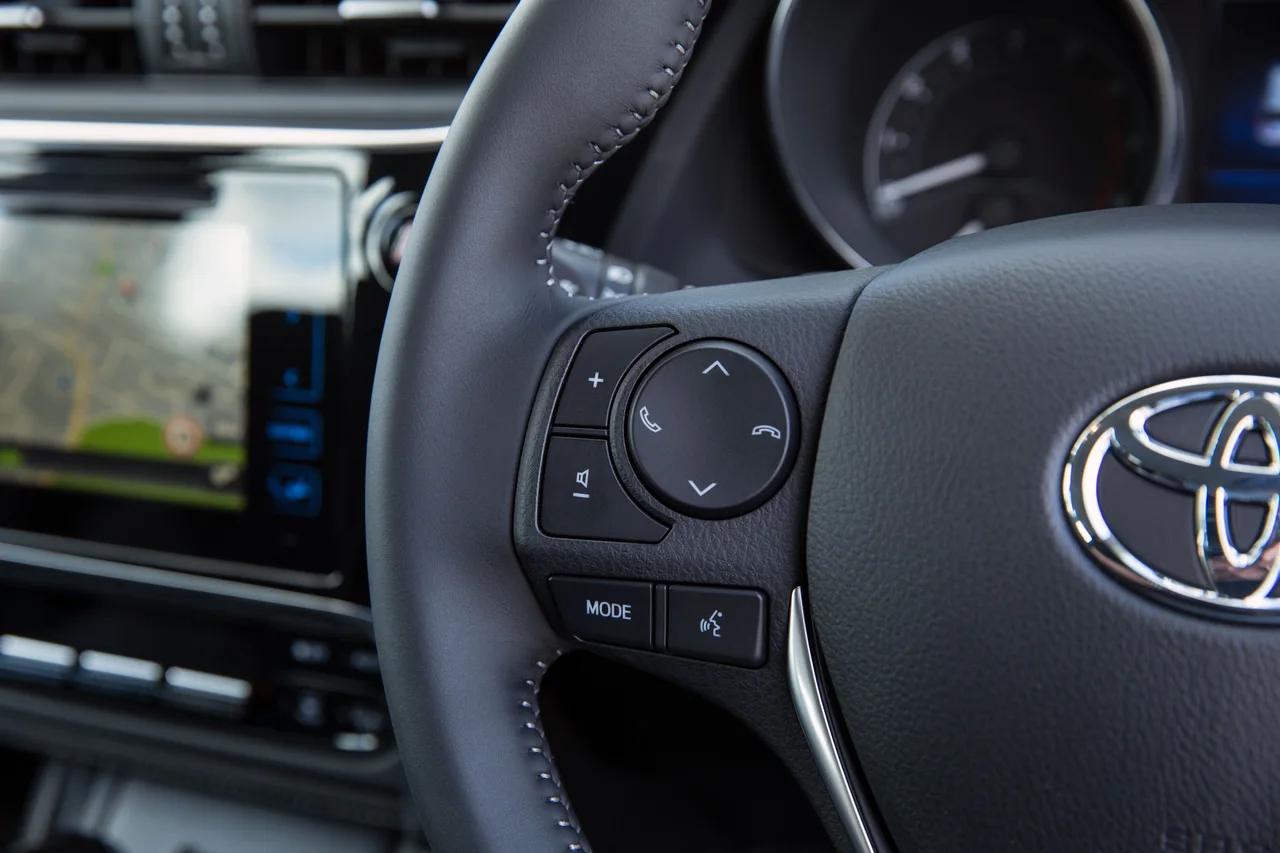

- Multifunction Steering Wheel
- Yes
- Power Steering
- Yes
- Adjustments
- Tilt
- Telescope
- Number of Spokes
- 3
- Colour
- Black
Multifunction Steering Wheel
- Menu Navigation
- Buttons
- Media
- Yes
Multifunction Steering Wheel › Media
- Channels
- Yes
- Volume
- Buttons
- Mute Audio
- Yes
Trunk
- Rear Trunk
- Yes
- Barrier Net/Grid
- Yes
- Light
- Yes
Rear Trunk
- Volume
- 530 litres
- Volume, Back Seat Collapsed
- 1,658 litres
- Depth
- 1,115 mm (43.9 in)
- Width
- 1,350 mm (53.1 in)
- Width, Between Wheel Arches
- 950 mm (37.4 in)
- Sill Height
- 605 mm (23.8 in)
Design
- Interior Decor Material
- Textile
- Interior Decor Colour
- Grey
Seats
Colour & Material
- Seat Colour
- Black
- Stitching Colour
- Black
Front Seats › Adjustments, Driver
- Seat Depth
- Yes
- Seat Height
- Yes
- Backrest Angle
- Yes
- Lumbar Support
- Optional
- Headrest, Height
- Manual
- Headrest, Tilt
- Manual
Front Seats
- Number of Driver Seat Adjustments, Manual
- 5
- Number of Driver Seat Adjustments, Powered
- 0 - 4
- Number of Driver Seat Adjustments, Total
- 5 - 6
- Number of Passenger Seat Adjustments, Manual
- 5
- Number of Passenger Seat Adjustments, Powered
- 0 - 3
- Number of Passenger Seat Adjustments, Total
- 5
- Heated Seats
- Optional
- Armrest
- Middle
Front Seats › Adjustments, Passenger
- Seat Depth
- Yes
- Seat Height
- Yes
- Backrest Angle
- Yes
- Headrest, Height
- Manual
- Headrest, Tilt
- Manual
Front Seats › Heated Seats
- Cushion
- Optional
Second Seat Row
- Collapsible
- Manual
- Number of Seats
- 3
- Type of Seat
- Adult
- Height Adjustment
- Yes
Second Seat Row › Collapsible
- Backrest Release
- On Top of Backrest
- Split Fold Ratio
- 60/40
Comfort Features
- Cruise Control
- Optional
- Speed Limiter
- Optional
- Cameras
- Optional
- Voice Control
- Optional
Cameras
- Rear
- Optional
Voice Control
- Media
- Optional
Other Features
- GPS
- Optional
- Start & Stop
- Optional
Seat Belt
- Height Adjustable Retractor
- Yes
- Rear Centre Seat Belt
- Yes
- Seat Belt Colour
- Black
Feature
Driver
Passenger
Rear
Seat Belt Reminder
Yes
Yes
-
Belt Pretensioner
Yes
Yes
-
Belt Load Limiter
Yes
Yes
Yes
Height Adjustable Retractor
- Manual
- Yes
Type of Belt
- Three-Point-Belt
- Front Seats
- Outer Rear Seats
- Centre Rear Seat
Assist Systems
- Electronic Stability Control (ESC)
- Yes
- Forward Collision Warning (FCW)
- Optional
- Lane Assist System
- Optional
- Speed Assist
- Optional
- Hill Start Assist (HSA)
- Yes
- Parking Assist
- Optional
- Sign Assist
- Optional
Brake Systems
- Power Brakes
- Yes
- Anti-lock Braking System (ABS)
- Four-channel
- Traction Control System (TCS)
- Yes
- Electronic Brakeforce Distribution (EBD)
- Yes
- Electronic Brake Assist (BA/EBA)
- Yes
- Brake Pad Wear Indicator
- Yes
Sensors
- Parking Sensors
- Optional
- Light Sensor
- Optional
- Rain Sensors
- Optional
Parking Sensors
- Front
- Optional
- Rear
- Optional
Other Features
- Immobiliser
- Yes
- Anti-theft Alarm
- Optional
- Central Locking
- Remote
- Child Safety Locks
- Manual
Immobiliser
- Electronic
- Yes
Safety Testing
General
- Test Year
- 2013
- Adult Occupant
- 92 %
- Child Occupant
- 84 %
- Vulnerable Road Users
- 68 %
- Safety Assist
- 66 %
- Overall
- 5/5 stars
Airbags
Feature
Driver
Passenger
Rear
Frontal Airbag
Yes
Yes
-
Side Chest Airbag
Yes
Yes
-
Side Head Airbag
Yes
Yes
Yes
Knee Airbag
Yes
-
-
Curtain Airbag
Yes
Yes
Yes
Airbag cut-off Switch
-
Yes
-
Child Protection
- Isofix
- Passenger: -
- Rear: Yes
Warranty
- Manufacturer
- 100,000 km / 3 years
- Body Protection
- 3 years
- Paintwork
- 3 years
- Rust Damage
- 12 years
- Roadside Assistance
- Yes
Identification
VIN Location
- Left Side Casing of Window
- Yes
- Pillar
- B-Pillar, Left
- Passenger Seat
- in Front of
Car Classification
- American Classification
- Compact Car
- British Classification
- Small Family Car
- Australian Classification
- Small Car
- European Segment
- C-Segment
- Car.info Classification
- Medium Family Car
Spare Parts BETA
Bulb Types
- Low Beam
- D4S (xenon)
- HIR2
- Main Beam
- HIR2
- Bi-Xenon
- D4S
- Fog Light, Front
- H16
- Fog Light, Rear
- W3×16d (W21W)
- Rear/Brake Light
- BA15s (P21W)
- Reversing Light
- W2.1×9.5d (W16W)
- Turn Indicators, Front
- BAU15s (PY21W)
- Turn Indicators, Side Mirrors
- W2.1×9.5d (W5W)
- Turn Indicators, Rear
- W3×16d (W21W)
- Read Light
- W2.1×9.5d (W5W)
- Trunk
- W2.1×9.5d (W5W)
- License Plate Light
- W2.1×9.5d (W5W)
ACRISS
- Type
- Wagon/Estate (W)
Similar wagons
Suggested vehicles
2014–2017
2016 Volkswagen Golf
2016–2020
2016 Daihatsu Thor
2018–2020
2018 Ford Ka
2015–2018
2015 Subaru Outback
2015–2019
2015 Mercedes-Benz C-Class
2014–2017
2014 Honda Civic
2014–2016
2015 Volvo V70
2016–2018
2016 Hyundai Tucson
2011–2013
2011 Honda Fit Shuttle
2012–2014
2012 Holden Cruze Sportwagon
2010–2016
