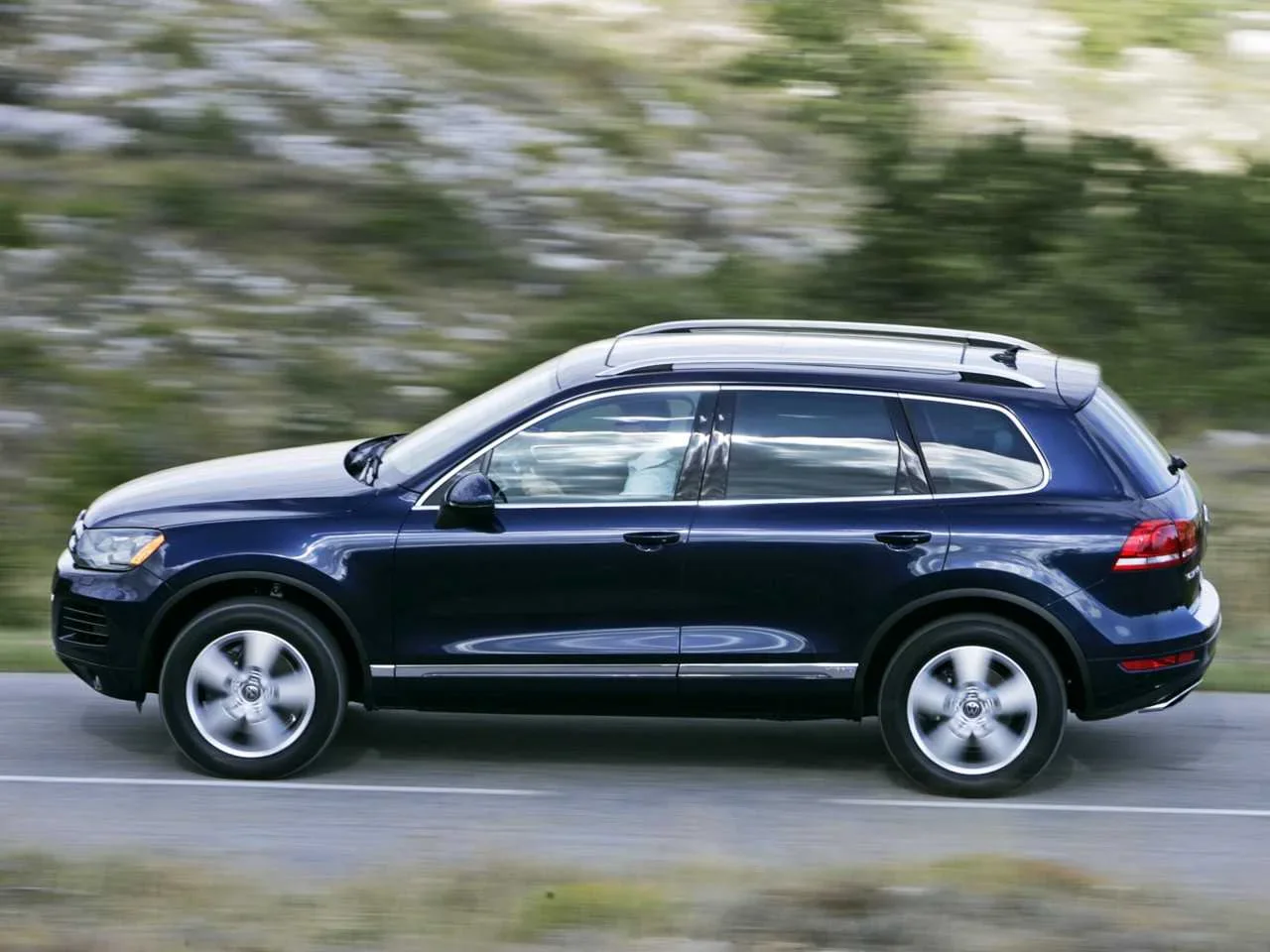

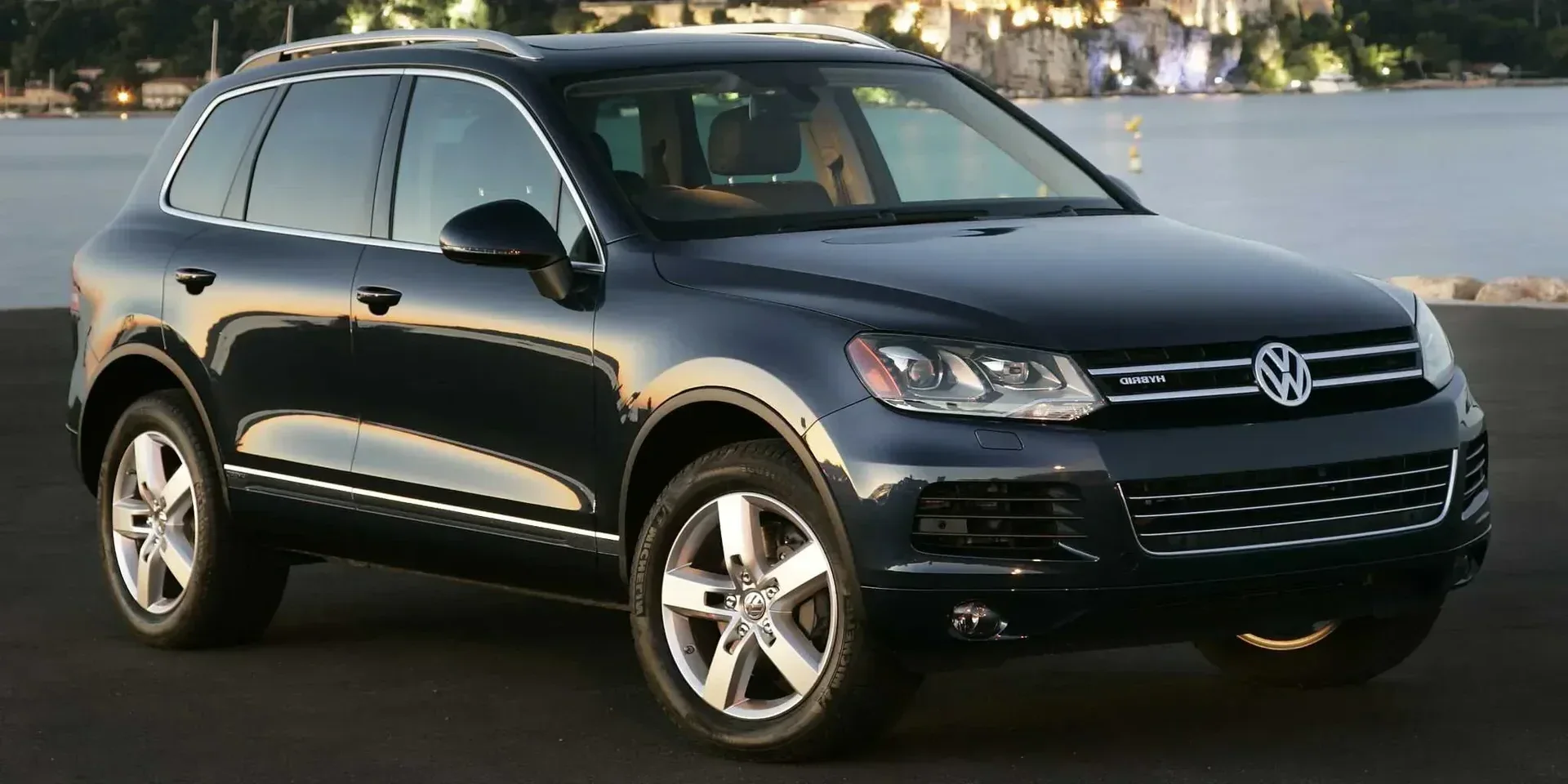

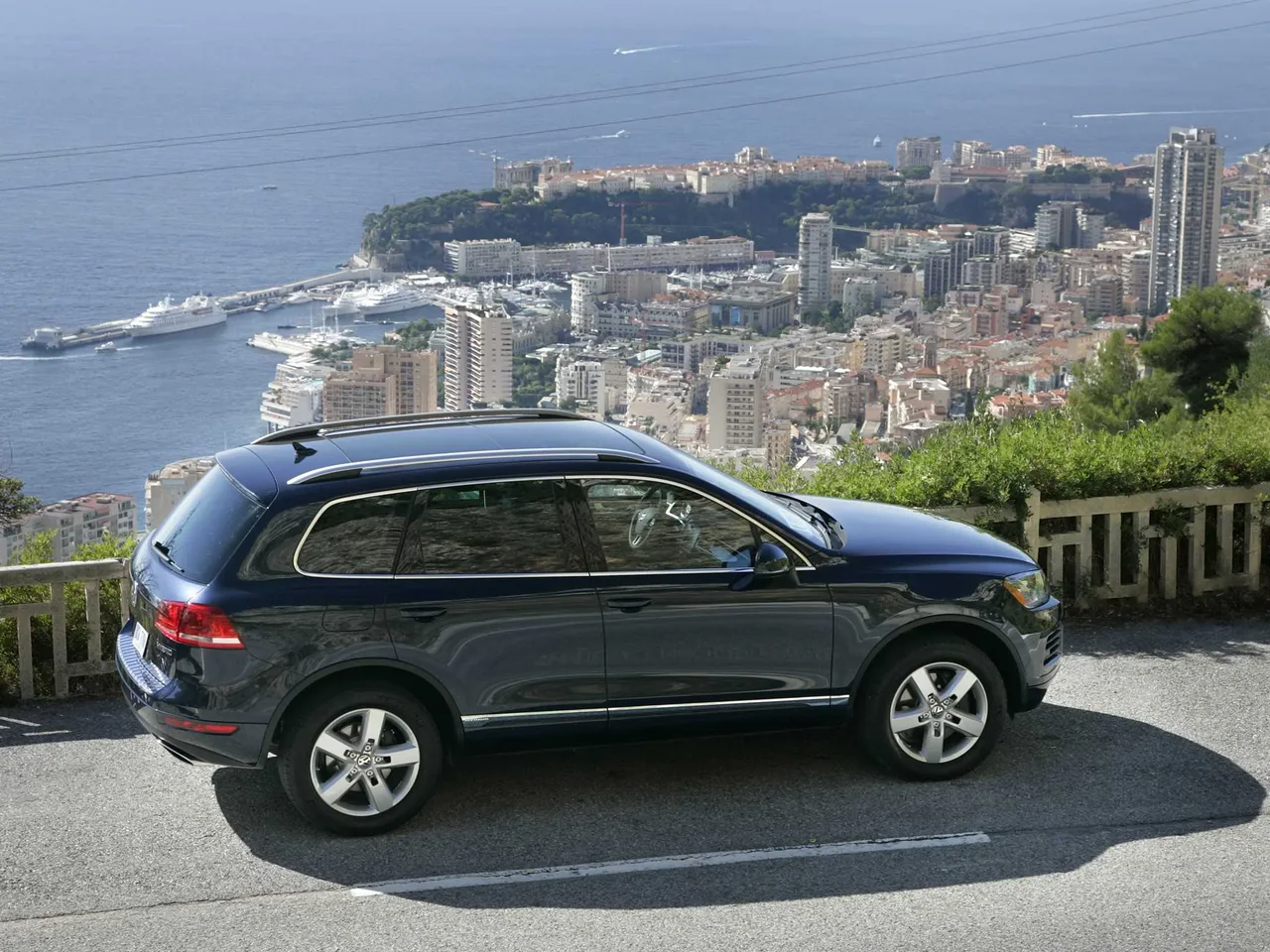

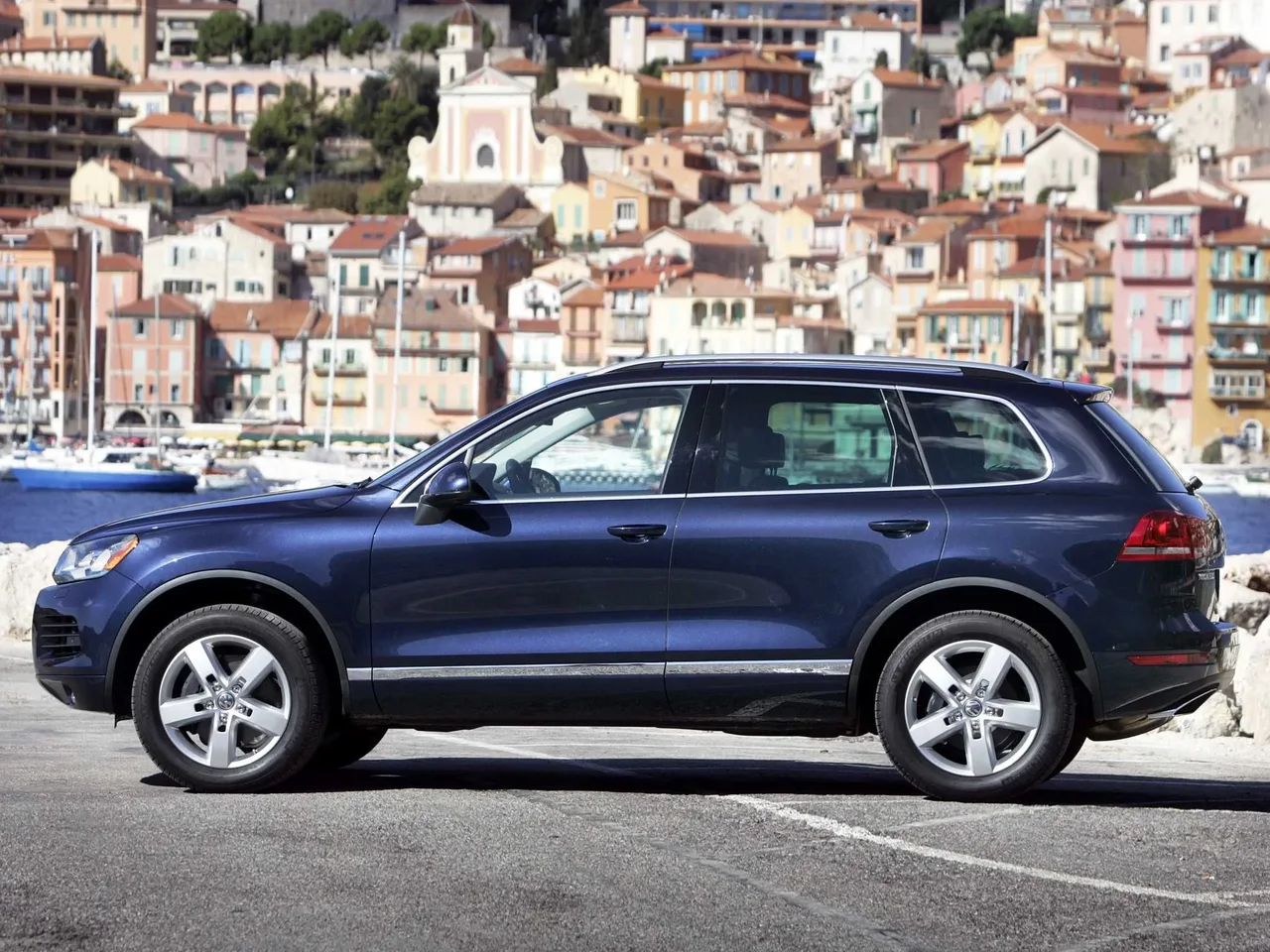

2015 Volkswagen Touareg

GermanyHybrid GasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2015
Make
Volkswagen
Model
Touareg
Body Style
SUV
Generation
II (Type 7P) Facelift
Seats
5
Doors
5
Fuel
Hybrid Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
3.0 V6 TSI Hybrid 4Motion TipTronic
Engine Configuration
V
Power (hp)
380 hp
Power (kW)
279 kW
Torque
580 Nm (428 lb-ft)
Top speed
240 km/h (149 mph)
0–60 mph
6.2 seconds (estimated)
0–100 km/h
6.5 seconds
Battery
1.73 kWh
Displacement
2,995 cc

Dimensions

Length
4,801 mm (189.0 in)
Width
1,940 mm (76.4 in)
Height
1,709 mm (67.3 in)
Wheelbase
2,893 mm (113.9 in)
Curb weight
2,315 kg (5,104 lb)

Engine & Performance

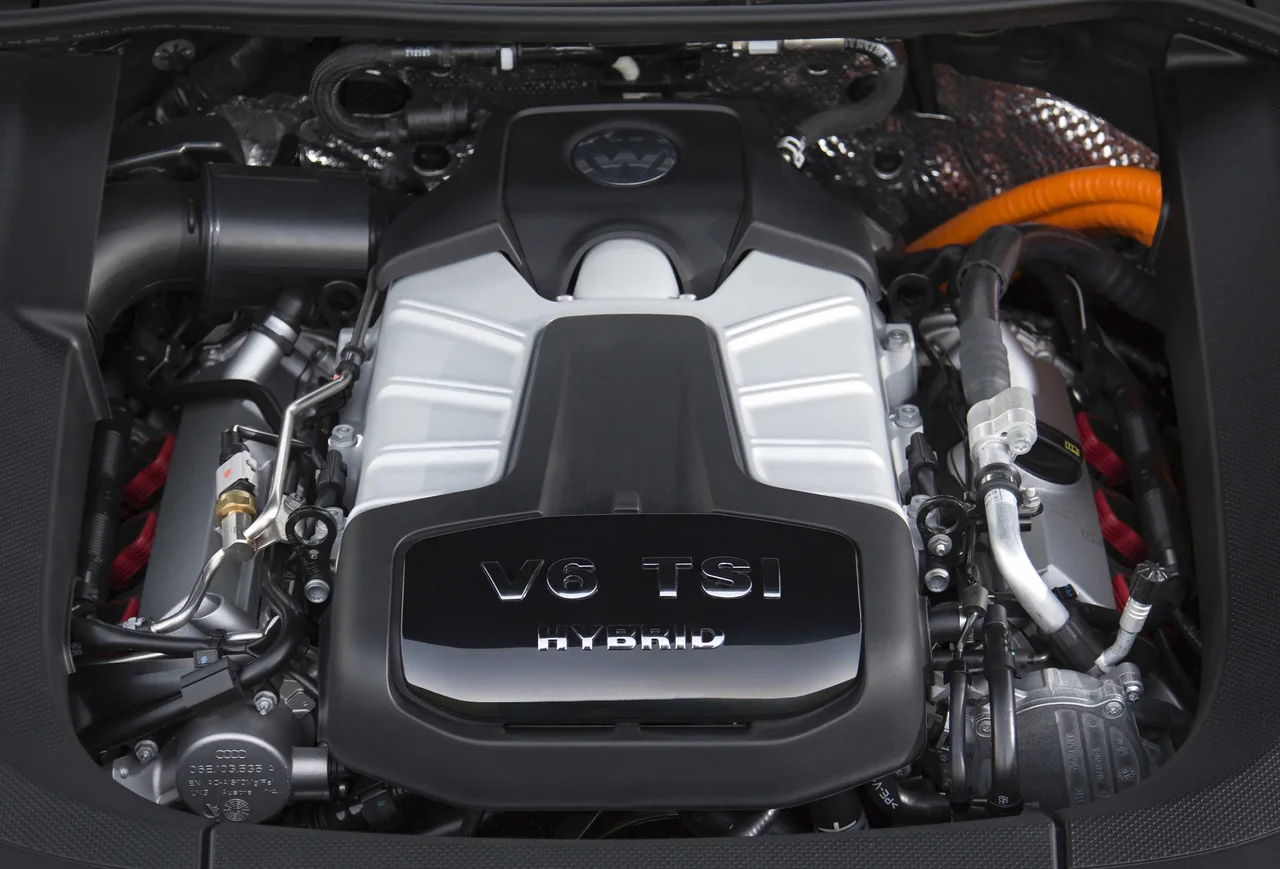

Engine

Engine Specification
Rev. at Max Power
5,500 - 6,500 rpm
Rev. at Max Torque
3,000 - 5,250 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-40
Engine Oil, Volume
6.8 litres
Car Battery
Battery Capacity
75 Ah
Configuration Combustion
Bore
84.5 mm (3.3 in)
Stroke
89 mm (3.5 in)
Compression Ratio
10.5 :1
Engine Configuration
V-Engine
Supercharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Configuration Electric
Type of Electric Car
Hybrid
Electric Engine Power
34 kW
Electric Engine Horsepower (Metric)
46 hp (46 bhp)
Torque
580 Nm (428 lb-ft)
Front Engines
Yes
Battery Capacity, Gross
1.73 kWh
Type of Battery
NiMH
Configuration Electric › Front Engines
Power (kW)
34 kW
Horsepower
47 hp
Number of Engines
1
Service Intervals
Air Filter
90,000 km / 6 years
Spark Plug
90,000 km / 6 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years
Accessory Belt
90,000 km (55,923 mi)

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console
Low Gear
Yes
Gear Ratio
1st Gear
4.92 :1
2nd Gear
2.81 :1
3rd Gear
1.84 :1
4th Gear
1.43 :1
5th Gear
1.21 :1
6th Gear
1 :1
7th Gear
0.83 :1
8th Gear
0.69 :1
Final Drive
3.27 :1
Reverse
4.02 :1

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Brakes Material
Cast Iron
Front Brakes
Diameter
361 mm (14.2 in)
Width
36 mm (1.4 in)
Cooling
Ventilated
Rear Brakes
Diameter
330 mm (13.0 in)
Width
28 mm (1.1 in)
Cooling
Ventilated

Suspensions

Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Independent
Multi-link
Anti-roll Bar
  • Front
  • Rear
Electronic Damper Control (EDC)
Yes

Fuel

General
Tank Volume
100 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 5
Emission Class
B
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption NEDC
City
8.7 litres / 100 km
Highway
7.9 litres / 100 km
Combined
8.2 litres / 100 km
Emission NEDC
CO₂, Combined
193 g/km

Performance

Acceleration
0-80 km/h
4.7 sec
Drag Coefficient
0.37

Dimensions & Weight

Exterior

Width, with Mirrors
2,208 mm (86.9 in)
Width, open Doors
3,881 mm (152.8 in)
Height (Bonnet Open)
1,923 mm (75.7 in)
Track, Front
1,656 mm (65.2 in)
Track, Rear
1,676 mm (66.0 in)
Approach Angle
24.2 °
Breakover Angle
16.6
Departure Angle
19.9 °
Turning Circle
11.9 m
Ground Clearance
201 - 210 mm (7.9 - 8.3 in)
Wading Depth
500 mm (19.7 in)

Interior

Head Room, Front
1,005 - 1,014 mm (39.6 - 39.9 in)
Head Room, Rear
984 - 989 mm (38.7 - 38.9 in)
Leg Room, Front
1,052 mm (41.4 in)
Leg Room, Rear
931 mm (36.7 in)
Shoulder Room, Front
1,549 mm (61.0 in)
Shoulder Room, Rear
1,511 mm (59.5 in)

Weight

Gross Weight
2,910 kg (6,415 lb)
Max Trailer Load, braked 12%
3,500 kg (7,716 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
670 kg (1,477 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
140 kg (309 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
E Platform (PL72)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Windscreen Wipers
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
Yes
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Second Row
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Optional
Antenna
Glass-integrated
Mud Flaps
Optional
Other Equipment › Sunroof
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Xenon
Low Beam
Xenon
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Dynamic Cornering Lights
  • Come Home/Leaving Lights
  • Headlight Washers
Fog Lights
Front
Halogen
Fog Lights › Front
Cornering Lights
Yes
Special Features
Main Beam Assist
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Indirect
Number of Bolts
5 pcs
Bolt Distance
130
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
71.6
Fastening Type
Lug Bolts
Tightening Torque
180 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

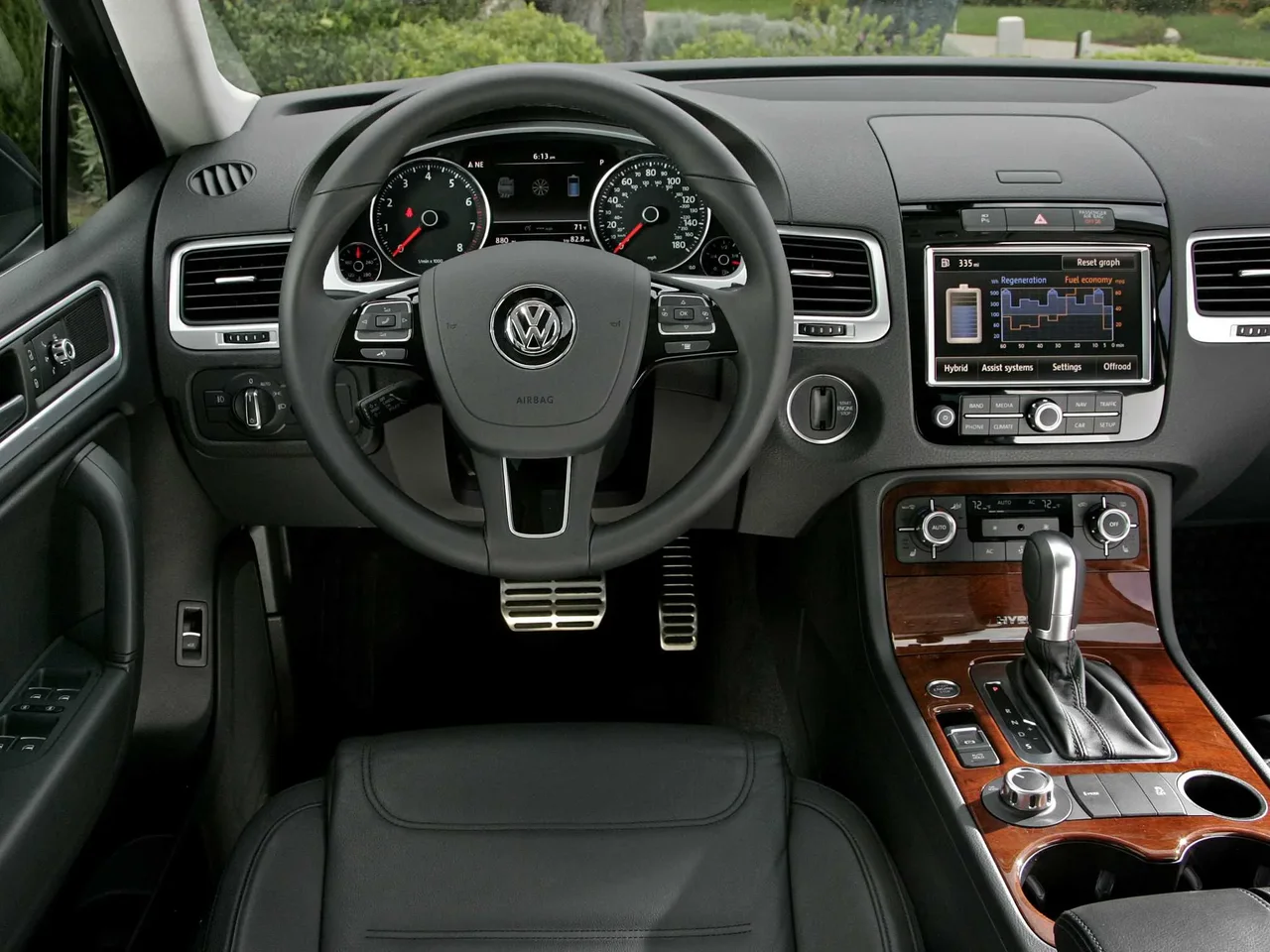

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
  • WMA
Bluetooth
Yes
Connectivity › Media Format
DVD
Optional
Memory Card Reader
SD
Connectivity › Media Inputs
AUX
Yes
USB
Optional
Connectivity › Media Inputs › USB
Front
Optional
USB-A
Optional
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Rear
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Ratio
12.81 :1
Steering Mechanism
Rack and Pinion
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
Yes

Trunk

Rear Trunk
Yes
Cover
Sliding
Cargo Hooks
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
580 litres
Volume, Back Seat Collapsed
1,642 litres
Depth
974 mm (38.3 in)
Depth, Back Seat Collapsed
1,814 mm (71.4 in)
Height
866 mm (34.1 in)
Height, to Trunk Cover
522 mm (20.6 in)
Trunk Door Opening Height
2,096 mm (82.5 in)

Design

Interior Decor Material
Plastic

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Yes
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
60/40
Heated Seats
Optional

Features

Comfort Features

Cruise Control
Yes
360° Camera
Optional
Cruise Control
Adaptive Cruise Control
Optional
360° Camera
Front
Optional
Sides
Optional
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Sign Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
No
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
No
Reverse
No
Pedestrian
No
Cyclist
No
City
No
Inter-urban
No

Sensors

Parking Sensors
  • Front
  • Rear
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Electrical
Active Bonnet
No
Emergency Call
Optional
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
IIHS
Test Year
2011
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Advanced

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of
Trunk
on Floor

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Large SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D3S (xenon)
  • D8S (xenon)
Bi-Xenon
  • D3S
  • D8S
Datyime Running Light
W3×16q (W21/5W)
Fog Light, Front
H11
Positioning-/Parking Lights, Front
  • W2.1×9.5d (W5W)
  • W3×16q (W21/5W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Read Light
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

Similar suvs

Suggested vehicles
