2016 Audi Q7 e-Tron

GermanyPlug In Hybrid DieselAWDSUV

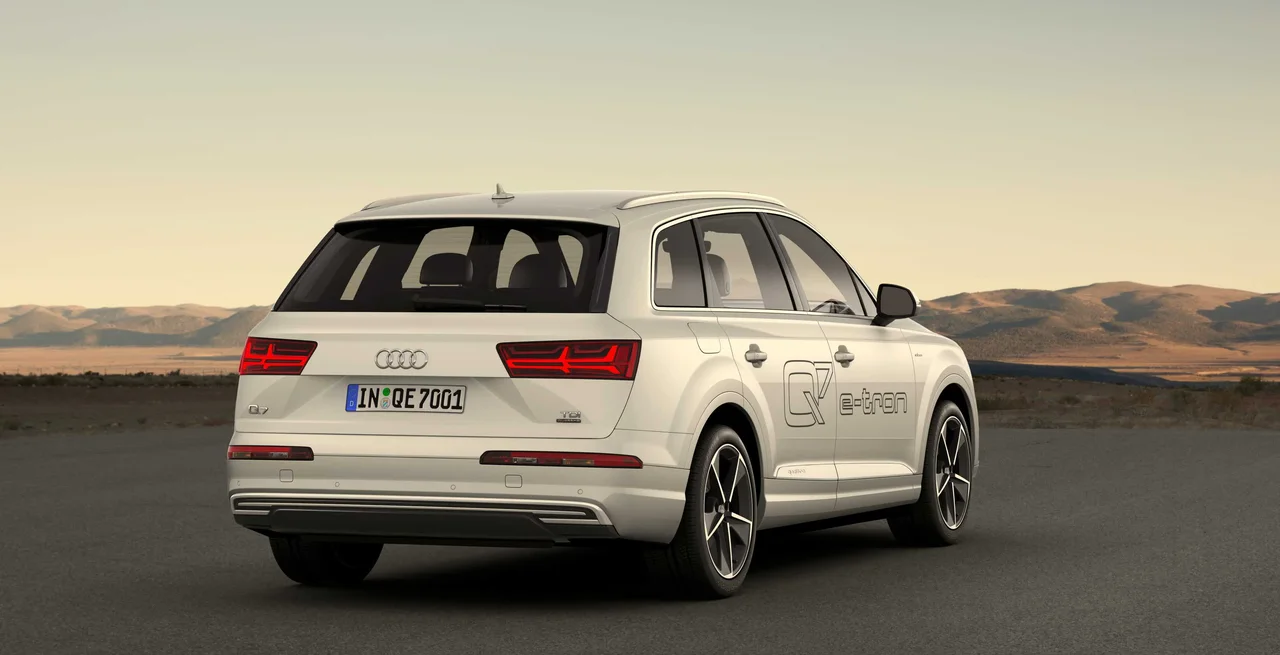

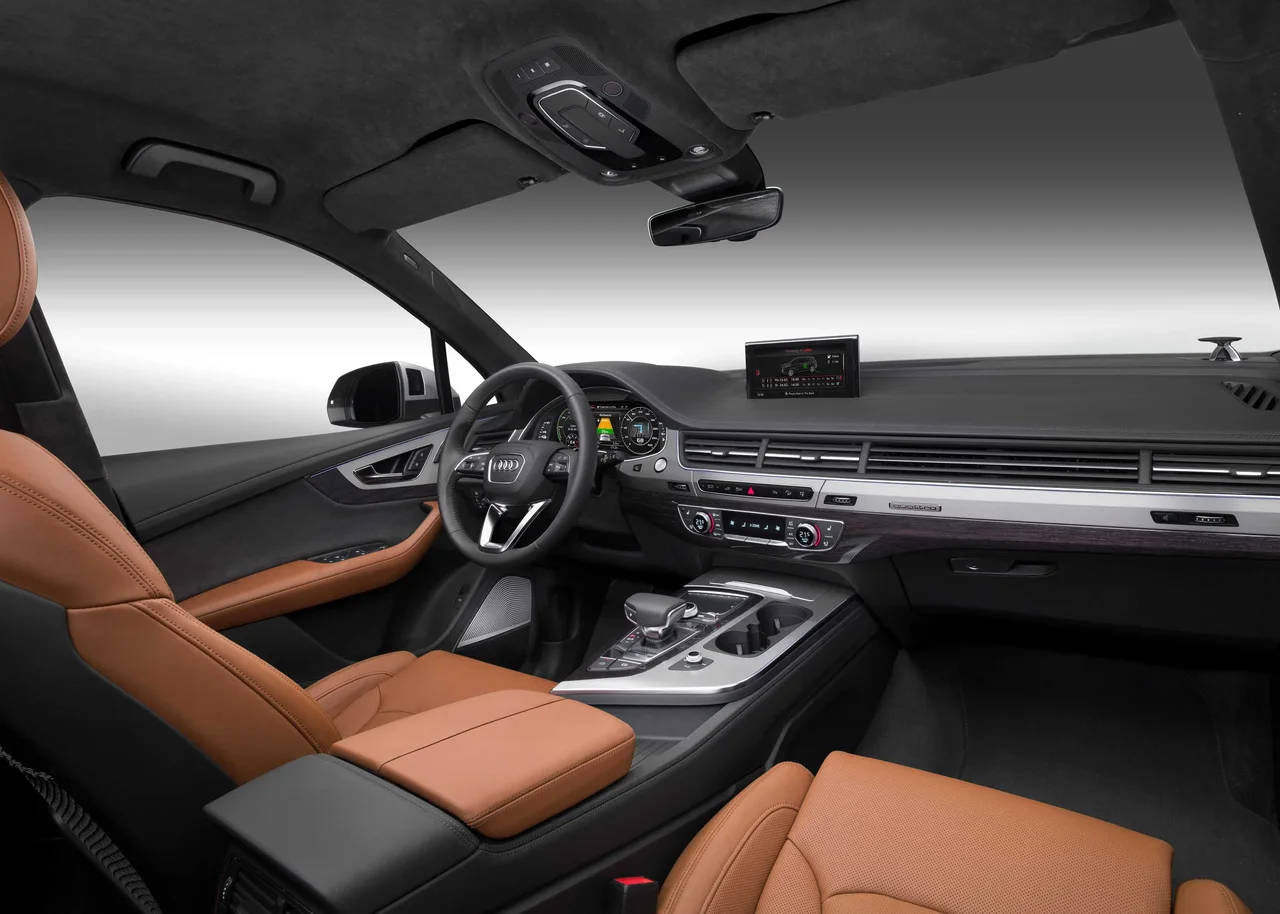

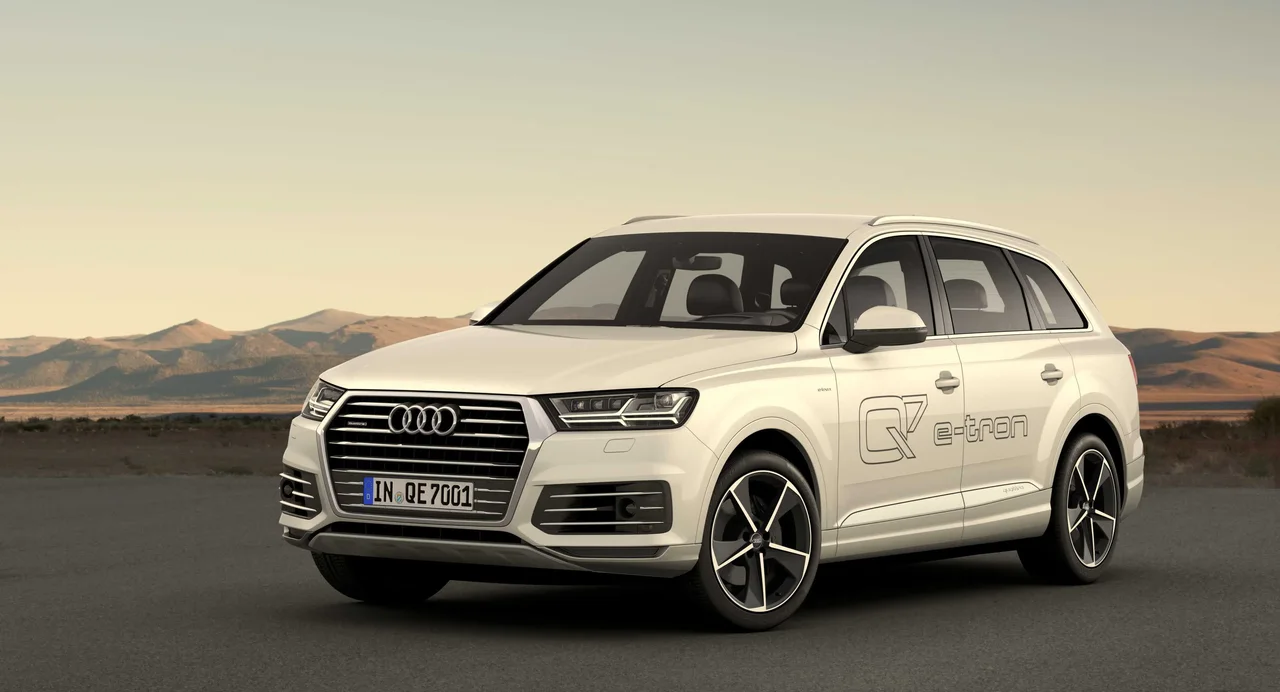

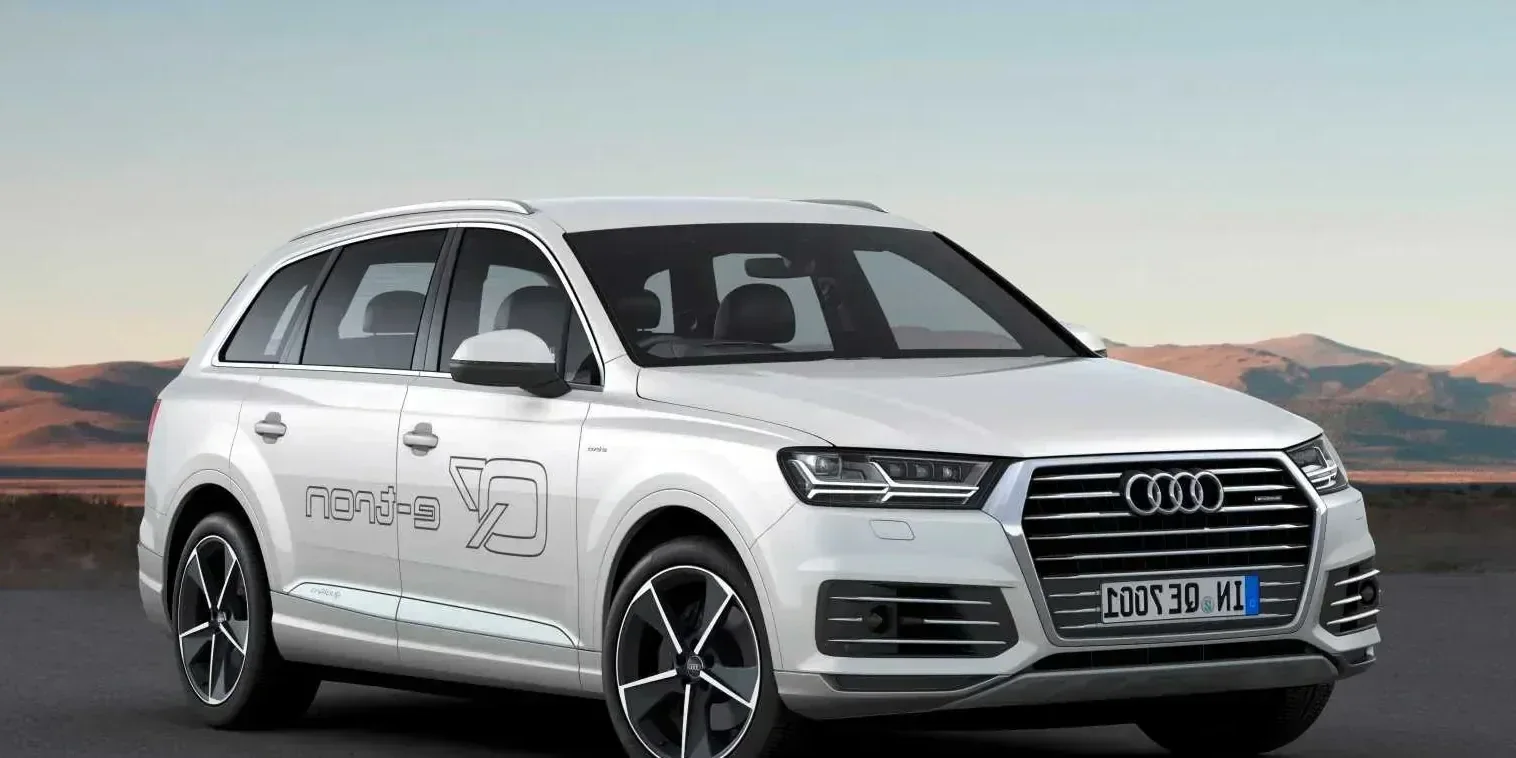

Photos

Specifications

Vehicle Details

Year
2016
Make
Audi
Model
Q7
Variant
e-Tron
Body Style
SUV
Generation
4M
Seats
5
Doors
5
Fuel
Plug In Hybrid Diesel
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
e-Tron TipTronic
Engine Configuration
V
Power (hp)
373 hp
Power (kW)
275 kW
Torque
700 Nm (516 lb-ft)
Top speed
230 km/h (143 mph)
0–60 mph
5.9 seconds (estimated)
0–100 km/h
6.2 seconds
Electric range
56 km (35 mi)
Battery
17.3 kWh
Displacement
2,967 cc

Dimensions

Length
5,051 mm (198.9 in)
Width
1,968 mm (77.5 in)
Height
1,741 mm (68.5 in)
Wheelbase
2,994 mm (117.9 in)
Curb weight
2,520 kg (5,556 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,250 - 4,500 rpm
Rev. at Max Torque
1,250 - 3,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-30
Semi-synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
6.1 litres
Configuration Combustion
Bore
83 mm (3.3 in)
Stroke
91.4 mm (3.6 in)
Compression Ratio
16 :1
Engine Configuration
V-Engine
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Configuration Combustion › ICE Specifications
Power
283 kW
Horsepower (Metric)
385 hp
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Front Engines
Yes
Battery Capacity, Gross
17.3 kWh
Type of Battery
Li-ion
AC Charge Type
Single-phase
Charging Plugs
Type 2
Configuration Electric › Front Engines
Power (kW)
94 kW
Number of Engines
1
Configuration Electric › Charge AC
Charge Time
2.3 h / 150 min
Charge Power
7.2 kW
Charge Ampere
16 A
Service Intervals
Air Filter
90,000 km (55,923 mi)
Fuel Filter
60,000 km (37,282 mi)
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed
Transmission
Paddles
Optional

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Pneumatic Air
Spring, Rear
Pneumatic Air
Suspension, Front
Active/Adaptive Suspension
Yes
Suspension, Rear
Active/Adaptive Suspension
Yes

Fuel

General
Tank Volume
75 litres
Emission
Emission Standard
Euro 6
Emission Class
A+
Fuel Consumption NEDC
Combined
1.8 litres / 100 km
Electric Range
56 km (35 mi)
Emission NEDC
CO₂, Combined
48 - 50 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,212 mm (87.1 in)
Track, Front
1,679 mm (66.1 in)
Track, Rear
1,691 mm (66.6 in)
Overhang, Front
975 mm (38.4 in)
Overhang, Rear
1,082 mm (42.6 in)
Turning Circle
12.4 m
Ground Clearance
205 - 245 mm (8.1 - 9.6 in)

Interior

Head Room, Front
1,071 mm (42.2 in)
Head Room, Rear
1,016 mm (40.0 in)
Head Room, Third Row
917 mm (36.1 in)
Leg Room, Front
1,059 mm (41.7 in)
Leg Room, Rear
985 mm (38.8 in)
Shoulder Room, Front
1,512 mm (59.5 in)
Shoulder Room, Rear
1,485 mm (58.5 in)
Shoulder Room, Third Row
1,255 mm (49.4 in)

Weight

Gross Weight
3,185 kg (7,022 lb)
Max Trailer Load, braked 12%
2,800 kg (6,173 lb)
Max Trailer Load, braked 8%
2,800 kg (6,173 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
650 kg (1,433 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
140 kg (309 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Soft Close
Optional
Platform
Volkswagen Group
E Platform (PL71)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Automatic Anti-glare
  • Driver side
  • Passenger side
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Yes
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Sun Visors
Optional
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
Yes
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Second Row
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Spoiler
Fixed
Antenna
Shark Fin
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Main Beam Assist
  • Adaptive Headlights
  • Dynamic Turn Signal
  • Dynamic Cornering Lights
  • Headlight Washers
Fog Lights
Rear
LED
Special Features
Come Home/Leaving Lights
Optional
Headlight Range Adjustment
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.5
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
160 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
12.3"
Instrument Cluster › Trip Computer › Display
Navigation
Yes
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
3
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Back Seat Controls
  • Buttons
  • Rotary Dials
Air Ionizer
Optional
Fragrance System
Optional
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Media Format
  • AAC
  • MP3
  • WMA
App-Connect
Android Auto
Bluetooth
  • Phone
  • Audio
Cellular Network
4G
WiFi
Yes
Connectivity › Radio
DAB
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › TV Receiver › Digital
Analogue
Optional
Connectivity › Media Format
CD
Yes
Memory Card Reader
SD
Connectivity › Media Inputs
AUX
Yes
USB
USB-A
Connectivity › Media Inputs › USB
Number of Ports
2 pcs
Displays
Center Display
8.3"
Displays › Center Display
Foldable
Yes
Type
Colour
Speakers
Total Number of Speakers
4 - 23 pcs
Speakers Max. Watt
180 - 1,920 W
Subwoofer
Optional
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Sunglass Compartment
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell
Ambient Light
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
12V Outlet
Front
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Carpets
Material
Textile
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Sport
Optional
Material
Leather
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes
Adjustments
Tilt
Yes
Telescope
Yes
User Memory
Optional

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
  • Foldable
  • Sliding (Manual)
Barrier Net/Grid
Yes
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
805 litres
Volume, Back Seat Collapsed
1,990 litres
Depth
1,179 mm (46.4 in)
Depth, Back Seat Collapsed
2,031 mm (80.0 in)
Width
1,086 mm (42.8 in)
Opening Width
1,219 mm (48.0 in)
Height
789 mm (31.1 in)
Sill Height
788 mm (31.0 in)
Automatic Open
Button on Trunk Door
Optional
From Inside Car
Optional
Key Button
Optional
Motion Activated
Optional
Carpet
Rubber/Rug
Optional

Design

Transmission Knob Material
Leather
Entry Guard Material
Aluminium
Colour
Silver

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Optional
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Optional
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Yes
Massage
Optional
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Massage
Driver
Optional
Passenger
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Collapsible
Manual
Adjustments
Backrest Angle
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
35/30/35
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Second Seat Row › Adjustments
Seat Depth
Optional
Third/Fourth Seat Row
Third Seat Row
Optional

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Remote Engine Start
Optional
Garage Remote Control
Optional
Cruise Control
Adaptive Cruise Control
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Optional
Voice Control
  • Media
  • Navigation
  • Phone
Wireless Phone Connection with Antenna
Optional
Wireless Phone Charger
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Remote
Optional
Timer
Optional
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional

Other Features

GPS
Yes
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Dynamic
  • Eco
  • Individual
  • Off-road
  • Auto

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Automatic Locking Retractor
Yes
Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Optional
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Optional
Parking Assist
Optional
Sign Assist
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Light Sensor
Yes
Rain Sensors
Yes
Night Vision
Optional
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Electrical
Emergency Call
Yes
Active Headrests
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
94 %
Child Occupant
88 %
Vulnerable Road Users
70 %
Safety Assist
76 %
Overall
5/5 stars
Test Year
2015
ANCAP Safety Rating
5
Adult Occupant
Total Points
36.1 /38
Lateral Impact
16 /16
Rear Impact
2.7 /4
Protection
94 %
Protection
36.1
Full Width
7.42
Frontal Offset
6.94
Side Impact
8
Pole
8
Whiplash Protection (Front)
2.7
AEB (City)
3
Child Occupant
Total Points
43.4 /49
Safety Features
8 /13
CRS Installation Check
12 /12
Protection
88 %
Protection
43.4
Vulnerable Road Users
Total Points
25.4 /49
Pedestrian
  • 18.8
  • 1.4
  • 5.2
Safety Assist
Speed Assistance (points)
1.3 /3
Lane Support (points)
0 /4
Safety Assist
76 %
Safety Assist
9.9
Speed Assistance System
1.3
ESC
3
Seat Belt Reminders
3
Lane Support System
0
AEB (Interurban)
2.6
Pedestrian
Protection
70 %
Protection
25.4
IIHS
Test Year
2017
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Good
Teknikens Världs Moose Test
Test Year
2017
Speed
73 km/h (45 mph)

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years
Hybrid Components
160,000 km / 8 years
EV Battery
160,000 km / 8 years

Identification

VIN Location
Engine Compartment, Inner Wing
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Trunk
on Floor
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Full-Size SUV
British Classification
Large 4x4
Australian Classification
Upper Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Large SUV

Spare Parts BETA

Bulb Types
Low Beam
D5S (xenon)
Bi-Xenon
D5S
Fog Light, Rear
W2.1×9.5d (W16W)
Cornering Light
H7
Rear/Brake Light
W2.1×9.5d (W16W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Rear
W2.1×9.5d (W16W)

ACRISS

Category
Luxury (litres)

Similar suvs

Suggested vehicles
