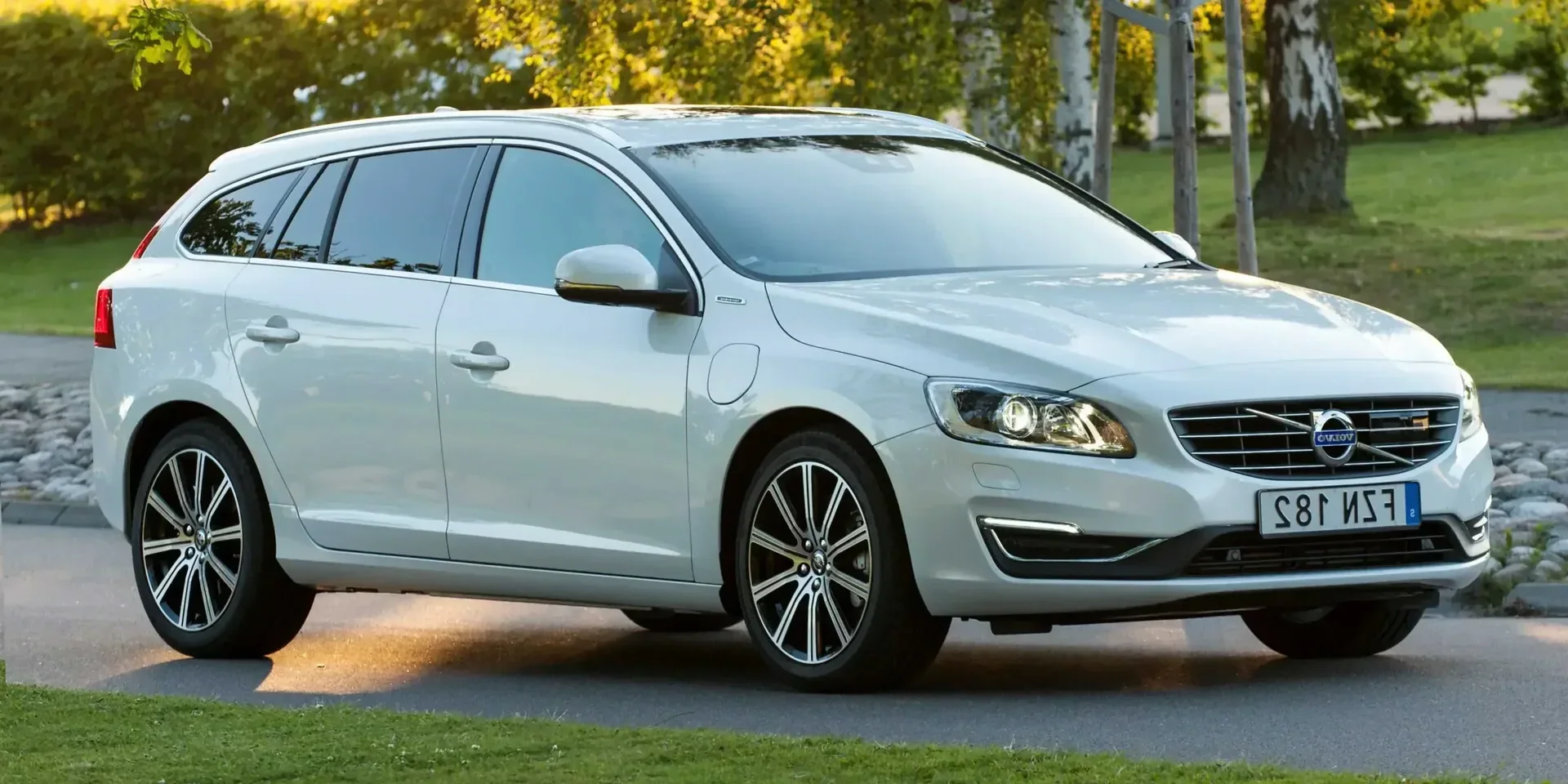

2015 Volvo V60

SwedenPlug In Hybrid DieselAWDWagon

Photos

Specifications

Vehicle Details

Year
2015
Make
Volvo
Model
V60
Body Style
Wagon
Generation
Y20 Facelift
Seats
5
Doors
5
Fuel
Plug In Hybrid Diesel
Drivetrain
AWD
Transmission
Automatic (Manumatic), 6-speed

Powertrain

Engine Name

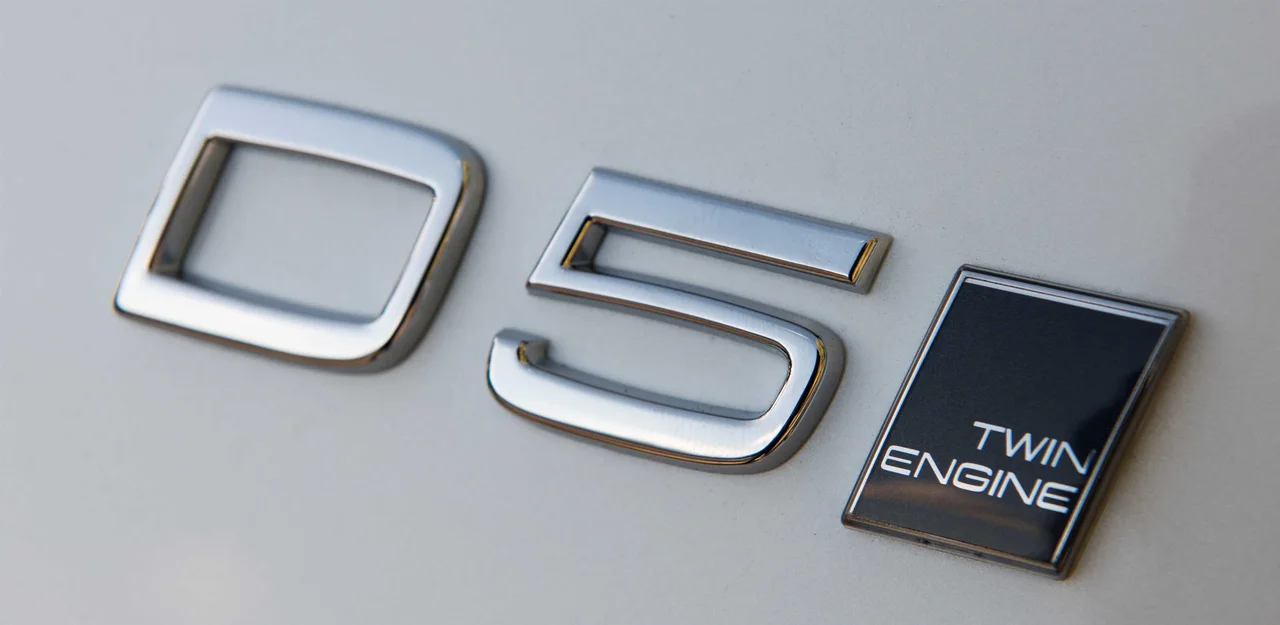

D5 Plug-in Hybrid AWD Geartronic
Engine Configuration
Inline
Power (hp)
231 hp
Power (kW)
170 kW
Torque
400 Nm (295 lb-ft)
Top speed
210 km/h (130 mph)
0–60 mph
6.6 seconds (estimated)
0–100 km/h
6.9 seconds
Electric range
29 km (18 mi)
Battery
11.2 kWh
Displacement
2,400 cc

Dimensions

Length
4,635 mm (182.5 in)
Width
1,866 mm (73.5 in)
Height
1,484 mm (58.4 in)
Wheelbase
2,776 mm (109.3 in)
Curb weight
2,048 kg (4,515 lb)

Engine & Performance

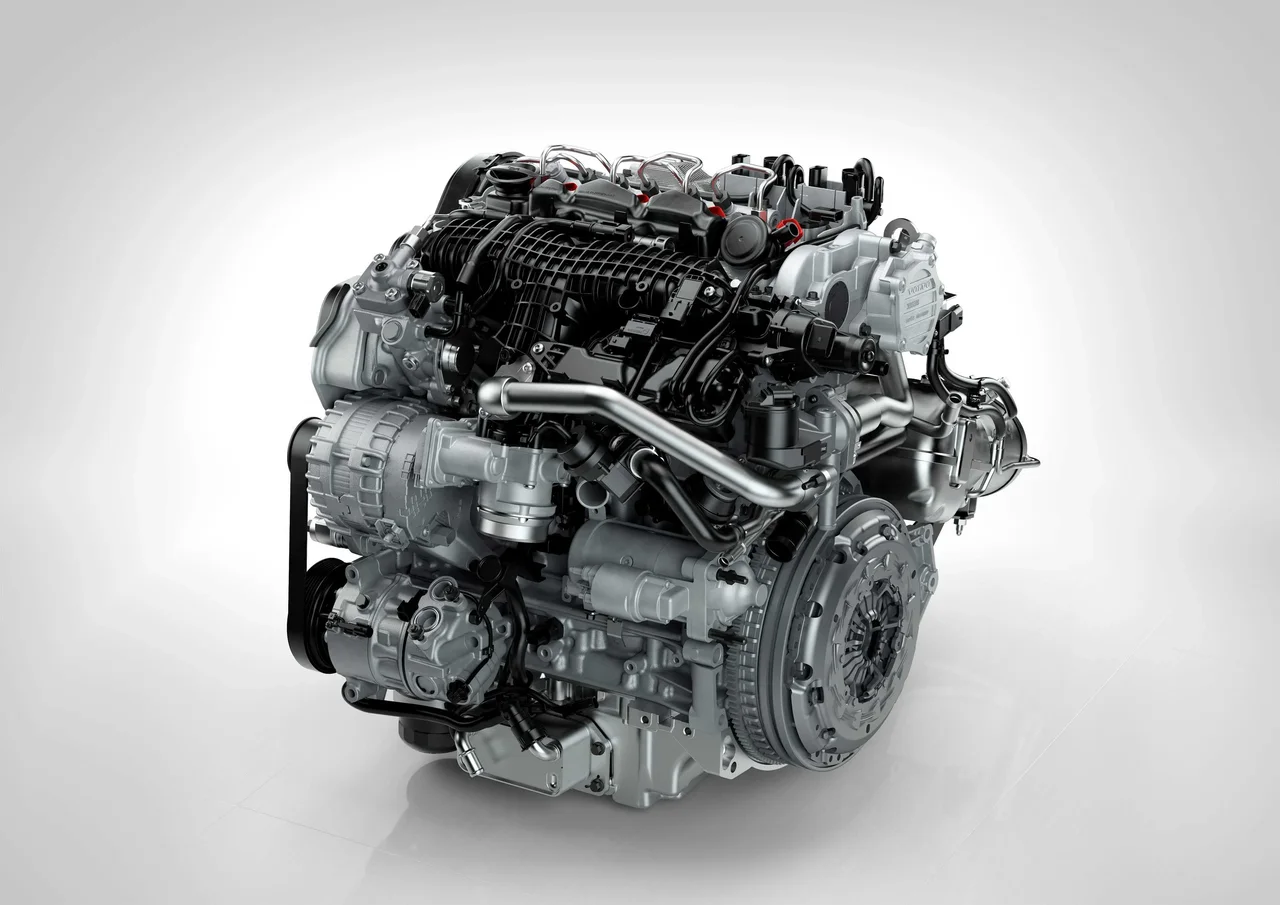

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,500 - 2,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Car Battery
Voltage
12 V
Cold Start Power
760 A
Configuration Combustion
Bore
81 mm (3.2 in)
Stroke
93.15 mm (3.7 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Turbocharger
Twin-turbo
Synchronization
Timing Belt
Engine Mount
Transversally
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
50 kW
Electric Engine Horsepower (Metric)
68 hp
Torque
400 Nm (295 lb-ft)
Front Engines
Yes
Battery Capacity, Gross
11.2 kWh
Type of Battery
Li-ion
AC Charge Type
Single-phase
Charging Plugs
Type 2
Configuration Electric › Front Engines
Power (kW)
50 kW
Horsepower
68 hp
RPM at Max Power
2,400 rpm
Number of Engines
1
Configuration Electric › Charge AC
Charge Time
3.5 h
Charge Ampere
16 A
Service Intervals
Timing Interval
180,000 km / 10 years
Air Filter
60,000 km (37,282 mi)
Fuel Filter
60,000 km (37,282 mi)
Brake Fluid
60,000 km / 3 years
Oil Change & Engine Filter
30,000 km / 1 years
Interior Filter
30,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 6-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Diameter
300 - 336 mm (11.8 - 13.2 in)
Width
28 mm (1.1 in)
Cooling
Ventilated
Rear Brakes
Diameter
302 mm (11.9 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
45 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6b
Emission Class
A
WLTP Consumption
Electric Range
29 - 50 km (18 - 31 mi)
Fuel Consumption NEDC
Combined
1.8 litres / 100 km
Electric Range
50 km (31 mi)
Emission NEDC
CO₂, Combined
45 – 48 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,097 mm (82.6 in)
Track, Front
1,588 mm (62.5 in)
Track, Rear
1,585 mm (62.4 in)
Overhang, Front
943 mm (37.1 in)
Overhang, Rear
916 mm (36.1 in)
Ground Clearance
136 mm (5.4 in)

Interior

Head Room, Front
999 mm (39.3 in)
Head Room, Rear
954 mm (37.6 in)
Leg Room, Front
1,064 mm (41.9 in)
Leg Room, Rear
850 mm (33.5 in)
Shoulder Room, Front
1,447 mm (57.0 in)
Shoulder Room, Rear
1,402 mm (55.2 in)

Weight

Gross Weight
2,505 kg (5,523 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
625 kg (1,378 lb)
Max Roof Load
90 kg (198 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Swing-out
Platform
Ford Motor Company
EUCD Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Push Button
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Spoiler
Fixed
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
Halogen
Daytime Running Light
LED
Fog Lights
Yes
Auxiliary Lights
Spot Light
Fog Lights
Front
Halogen
Rear
Yes
Special Features
Main Beam Assist
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Manual

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
63.4
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
8"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
  • WMA
Media Inputs
USB
Bluetooth
Optional
WiFi
Optional
Connectivity › Radio
DAB
Optional
Internet Radio
Optional
Connectivity › Media Format
DVD
Optional
Memory Card Reader
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Yes
Connectivity › Bluetooth
Phone
Optional
Displays
Center Display
5 - 7"
Center Display Controls
  • Buttons
  • Rotary Dial
Entertainment Screens
Optional
Displays › Center Display
Type
Colour
Displays › Entertainment Screens
Back of Headrest
8"
Speakers
Total Number of Speakers
6 - 12 pcs
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Armrest Hatch
Back
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Yes
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Cover
Yes
Carpet
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
430 litres
Volume, Back Seat Collapsed
1,241 litres
Depth
978 mm (38.5 in)
Depth, Back Seat Collapsed
1,749 mm (68.9 in)
Width
1,082 mm (42.6 in)
Carpet
Rubber
Optional
Rubber/Rug
Optional

Design

Transmission Knob Material
Leather
Entry Guard Material
Aluminium
Colour
Black
Colour
Brown
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Headrest, Tilt
Yes
Collapsible
Optional
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
40/20/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Optional
Cruise Control
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Rear Camera Preparation
Yes
Voice Control
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Remote
Optional
Parking Heater › Remote
Timer
Optional
Cameras
Front
Optional
Cameras › Front
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional

Other Features

GPS
Optional
GPS Preparation
Optional
Start & Stop
Yes
Driving Mode Selection
Optional
Smartphone App
Optional
Horn
Dual Note
GPS
DVD
Optional
Driving Mode Selection
Comfort
Optional
Dynamic
Optional
Eco
Optional

Accessories

Tool Kit and Jack
Optional
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Stability Assist (TSA)
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
City
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Optional
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2012
Adult Occupant
94 %
Child Occupant
82 %
Vulnerable Road Users
64 %
Safety Assist
100 %
Overall
5/5 stars
Test Year
2011
Overall Score
36.34
ANCAP Safety Rating
5
Adult Occupant
Total Points
33.8 /38
Frontal Impact
15.3 /16
Lateral Impact
14.9 /16
Rear Impact
3.6 /4
Frontal Offset
15.34
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Good
Child Occupant
Total Points
40 /49
Safety Features
4 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 14.7
  • 2.8
  • 5.7
Safety Assist
Speed Assistance (points)
1 /3
Seat Belt Reminders
3
Pedestrian
Protection (Assessment)
Acceptable
IIHS
Test Year
2018
Award
Top Safety Pick
Small Overlap Front: Driver Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

EV Battery
100,000 km / 5 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
A-Pillar, Right
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H9
Fog Light, Front
PGU20 (PY24W)
Fog Light, Rear
BAY9s (H21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Rear
BAU15s (PY21W)
Glove Compartment
SV8.5 (C5W)
Make-up Mirrors
W2×4.6d (W2.3W)
Trunk
SV8.5 (C5W)
Entry Light
W2.1×9.5d
License Plate Light
SV8.5 (C5W)

ACRISS

Type
Wagon/Estate (W)

Production

Statistics › Production Number (Model)
1st Generation
353,181
Statistics › Production Number (Year)
2010
4,609
2011
49,820
2012
53,037
2013
54,666
2014
61,977
2015
51,333
2016
42,236
2017
35,503
2018
42,502

Similar wagons

Suggested vehicles
