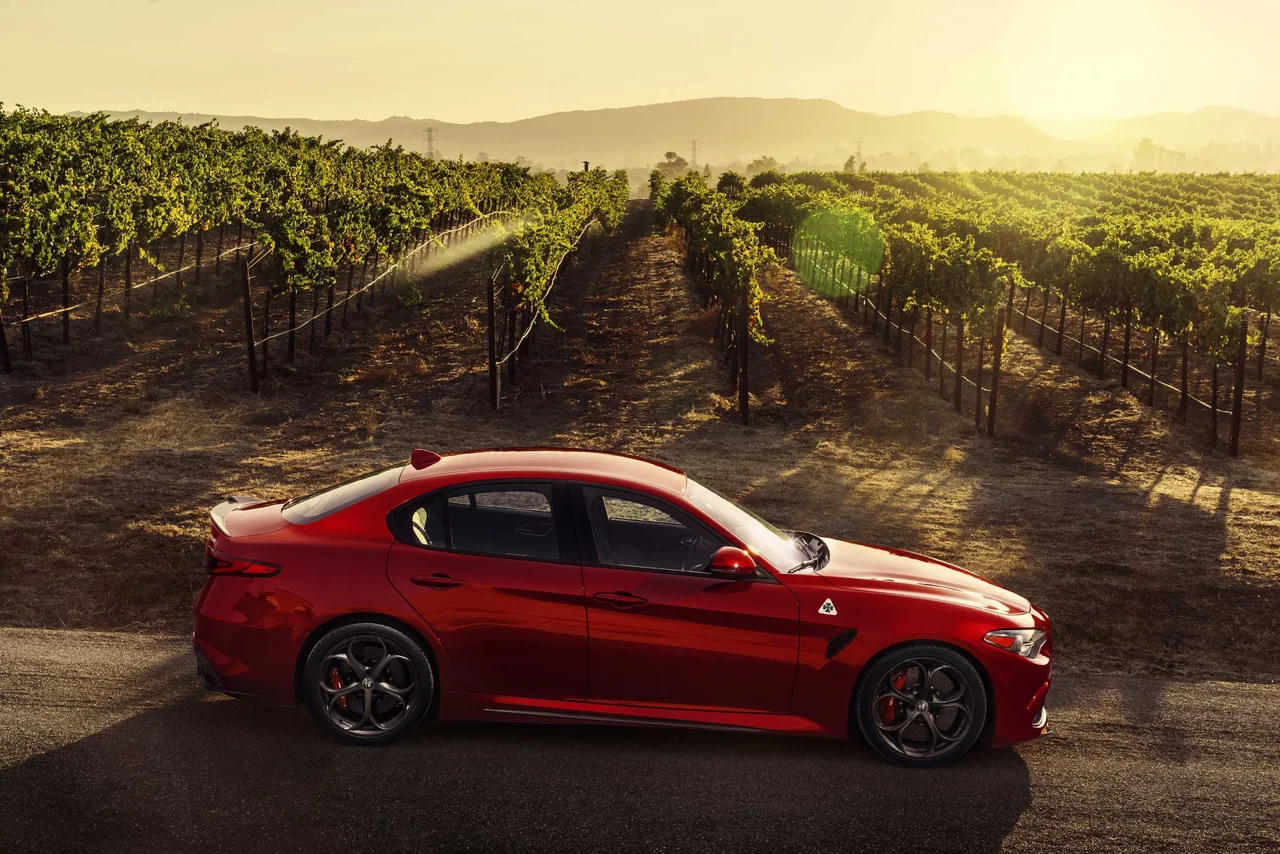

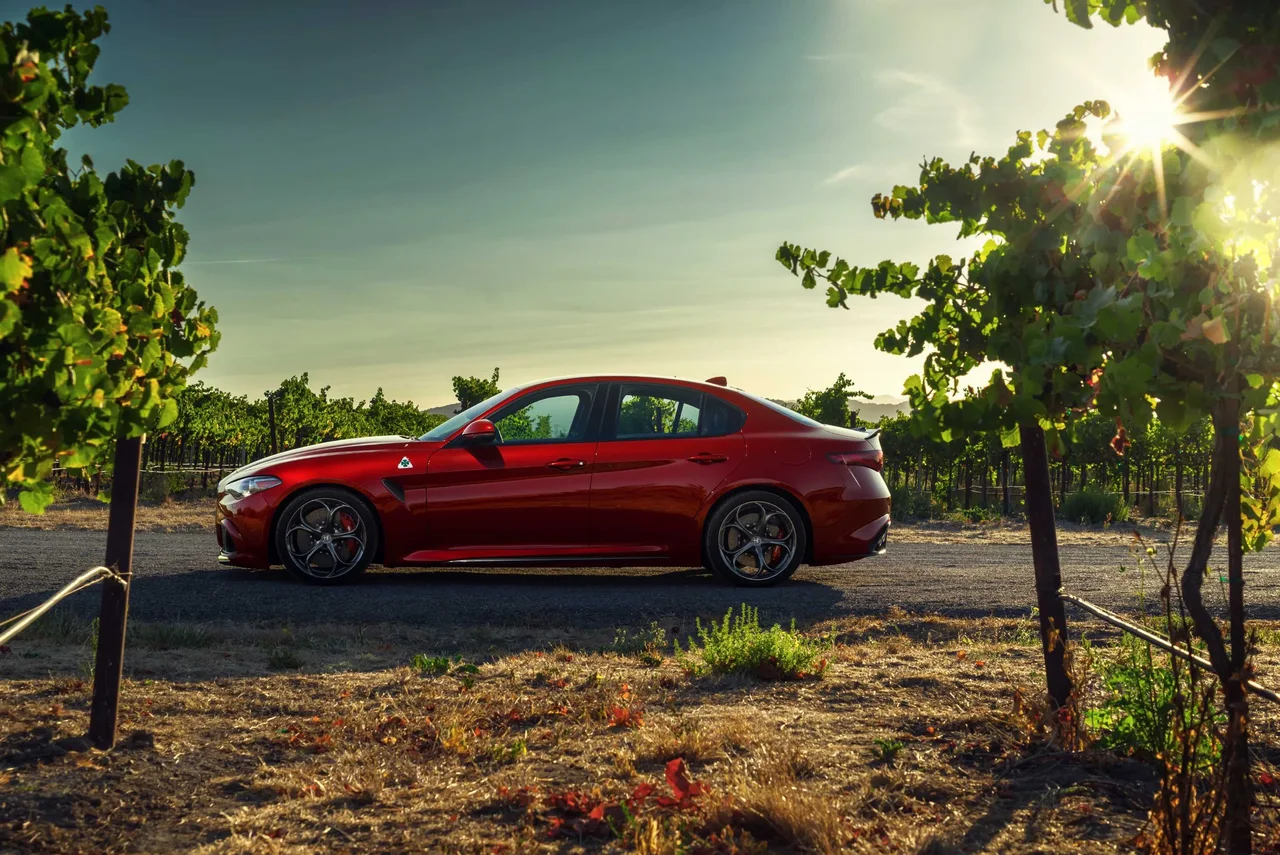

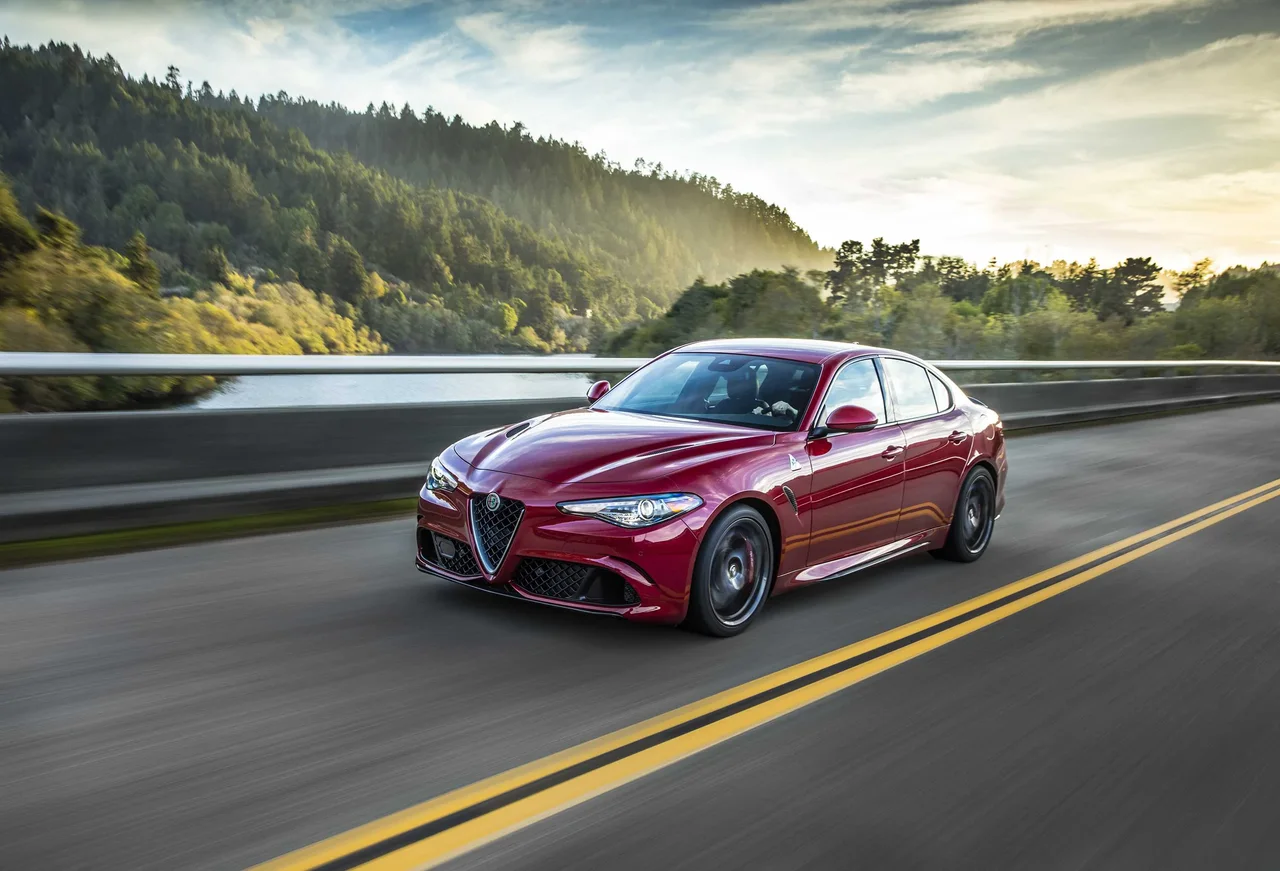

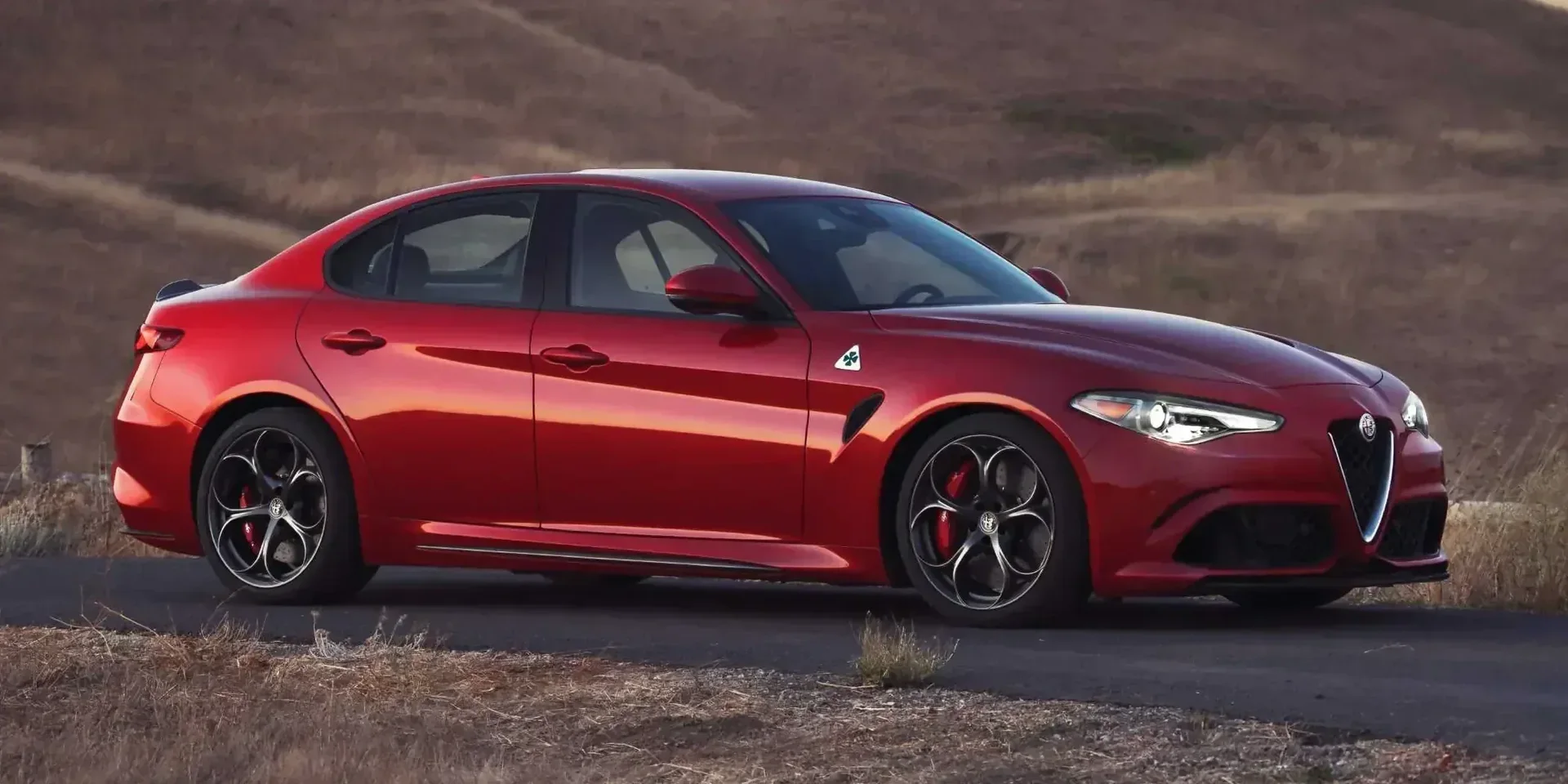

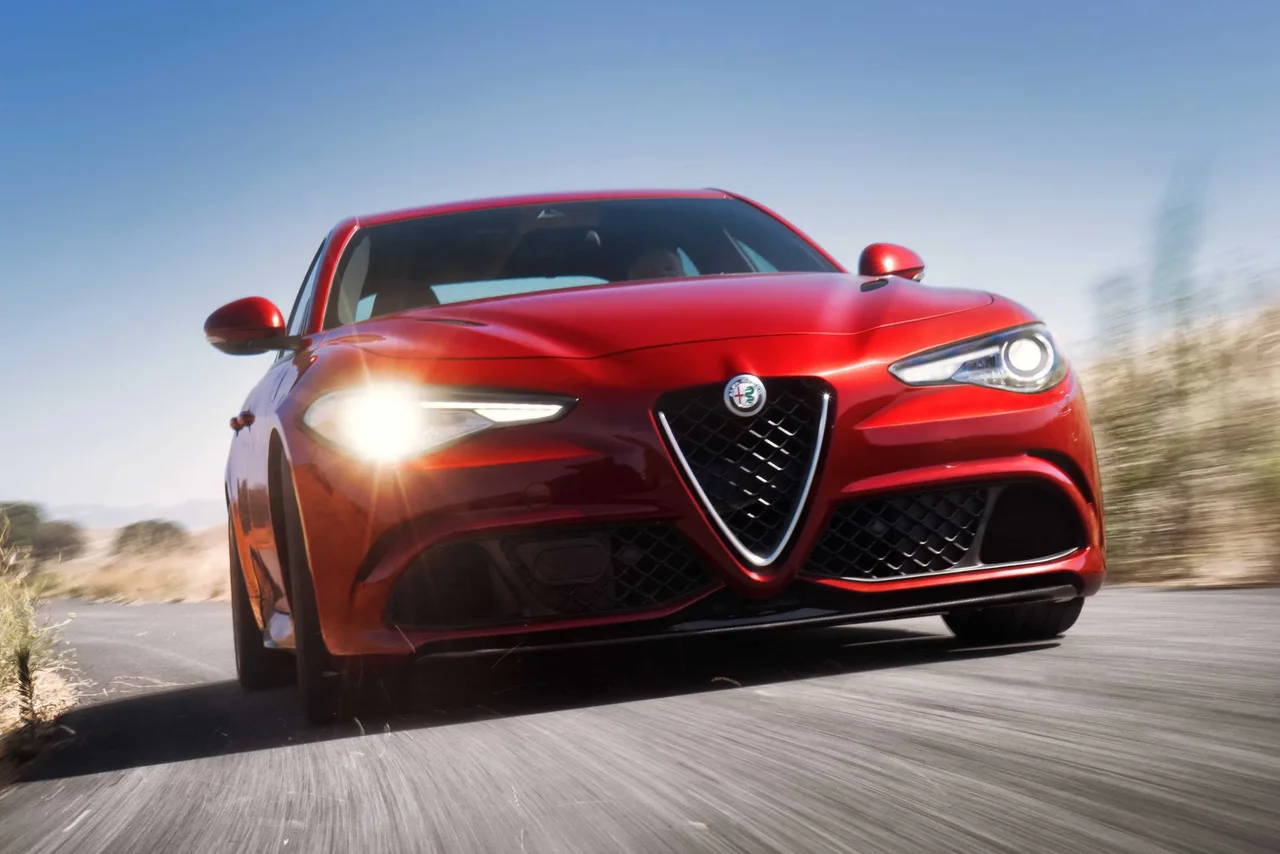

2016 Alfa Romeo Giulia Quadrifoglio

ItalyGasolineRWDSedan

Photos

Specifications

Vehicle Details

Year
2016
Make
Alfa Romeo
Model
Giulia
Variant
Quadrifoglio
Body Style
Sedan
Generation
952
Seats
4
Doors
4
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic
  • Manual, 6
  • 8-speed

Powertrain

Engine Name
Quadrifoglio
Engine Configuration
V
Power (hp)
510 hp
Power (kW)
375 kW
Torque
600 Nm (443 lb-ft)
Top speed
307 km/h (191 mph)
0–60 mph
3.7 seconds (estimated)
0–100 km/h
3.9 seconds
Displacement
2,891 cc

Dimensions

Length
4,639 mm (182.6 in)
Width
1,873 mm (73.7 in)
Height
1,426 mm (56.1 in)
Wheelbase
2,820 mm (111.0 in)
Curb weight
1,655 kg (3,649 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,500 rpm
Rev. at Max Torque
2,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-40
Engine Oil, Volume
7 litres
Engine Configuration
Bore
86.5 mm (3.4 in)
Stroke
82 mm (3.2 in)
Compression Ratio
9.3 :1
Engine Configuration
V-Engine
Turbocharger
Twin-turbo
Synchronization
Timing Chain
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Cooling
Liquid Cooling
Service Intervals
Oil Change & Engine Filter
15,000 km (9,321 mi)

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6
  • 8-speed
Gear Ratio
1st Gear
4.06 :1
2nd Gear
2.4 :1
3rd Gear
1.58 :1
4th Gear
1.19 :1
5th Gear
1 :1
6th Gear
0.87 :1
Final Drive
3.09 :1
Reverse
3.68 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Steel
Front Brakes
Diameter
360 - 390 mm (14.2 - 15.4 in)
Width
32 mm (1.3 in)
Cooling
Ventilated
Rear Brakes
Diameter
350 - 360 mm (13.8 - 14.2 in)
Width
28 mm (1.1 in)
Cooling
Ventilated
Brakes Material
Carbon Ceramic
Optional

Suspensions

Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
58 litres
Emission
Emission Standard
Euro 6d
Emission Class
F
Emission WLTP
CO₂, Combined
238 - 243 g/km
Emission NEDC
CO₂, Combined
189 – 198 - 198 – 214 g/km
Fuel Consumption NEDC
City
11.9 – 12.8 - 12.4 – 12.8 litres / 100 km
Highway
5.7 – 6 - 6 – 7.6 litres / 100 km
Combined
8.2 – 8.5 - 8.5 – 9.2 litres / 100 km
Fuel Consumption EPA
City
22.8 MPG
Highway
49.6 MPG
Combined
34.4 MPG

Dimensions & Weight

Exterior

Width, with Mirrors
2,024 mm (79.7 in)
Track, Front
1,555 mm (61.2 in)
Track, Rear
1,607 mm (63.3 in)
Overhang, Front
795 mm (31.3 in)
Overhang, Rear
1,024 mm (40.3 in)
Turning Circle
10.8 m
Ground Clearance
100 mm (3.9 in)

Interior

Head Room, Front
955 mm (37.6 in)
Head Room, Rear
955 mm (37.6 in)
Leg Room, Front
961 mm (37.8 in)
Leg Room, Rear
814 mm (32.0 in)
Shoulder Room, Front
1,425 mm (56.1 in)
Shoulder Room, Rear
1,362 mm (53.6 in)

Weight

Gross Weight
2100 – 2150 - 2115 – 2150 kg (4,663 – 4,740 lb)
Cargo Capacity
445 - 445 – 455 kg (981 – 1,003 lb)
Max Roof Load
50 kg (110 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Body Material
Carbon
Roof Material
Carbon
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Automatic Anti-glare
  • Driver side
  • Passenger side
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Convex
Mirror Shape, Passenger side
Convex
Windscreen Wipers
Number of Wiper Speeds
4
Heated Washer Nozzles
Yes
Rear Wiper
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Spoiler
Fixed
Antenna
Shark Fin
Number of Exhaust Pipes
4

Lights

Main Beam
Xenon
Low Beam
Xenon
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Main Beam Assist
  • Dynamic Cornering Lights
  • Headlight Washers
Fog Lights
Rear
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
110
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
65.1
Fastening Type
  • Lug Bolts
  • Lug Nuts
Tightening Torque
120 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Digital
Instrument Cluster › Trip Computer
Display
7"
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
5 pcs
Number of Vents, Rear
2 pcs
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
Phone
Connectivity › Radio
DAB
  • Yes
  • Optional
Connectivity › Media Inputs
AUX
Yes
USB
Yes
Connectivity › Media Inputs › USB
Number of Ports
2 pcs

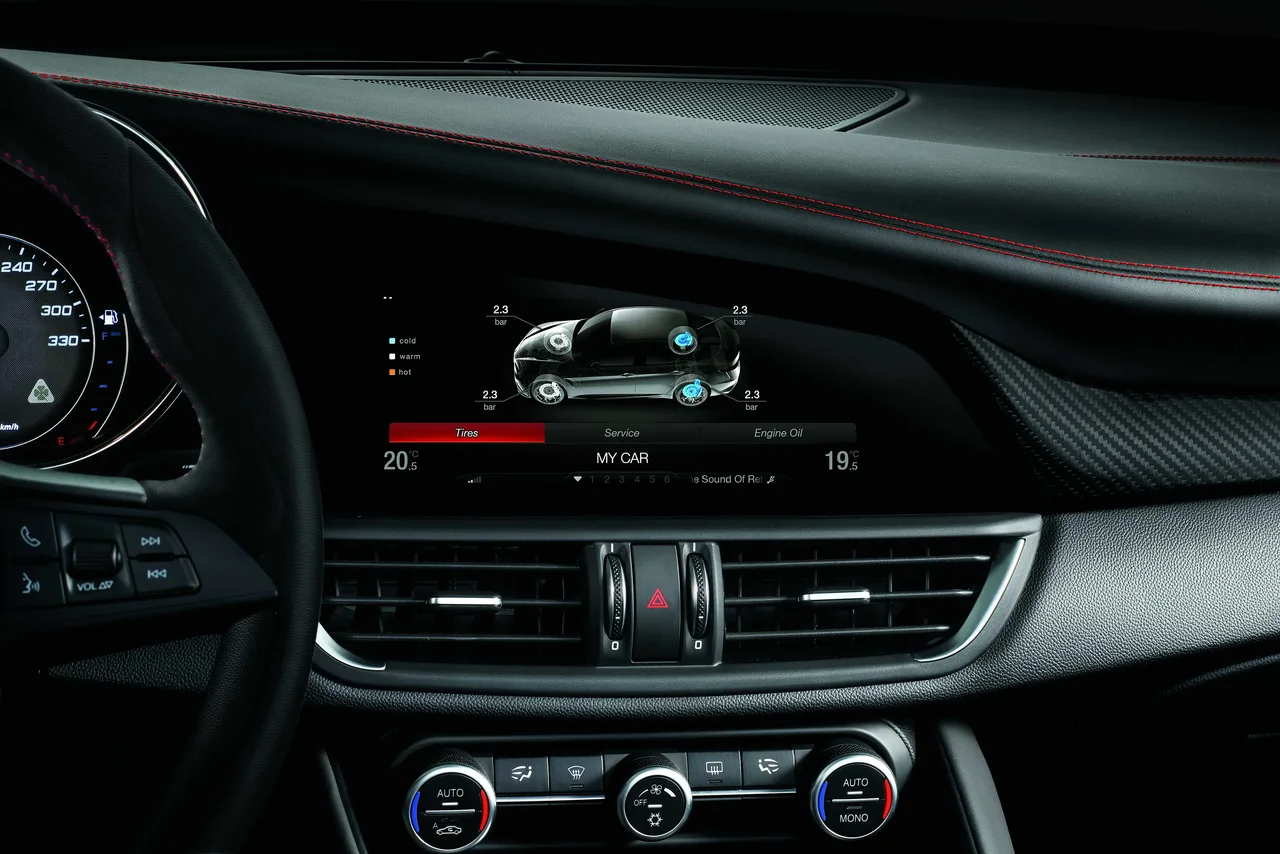

Displays
Center Display
6.5"
Center Display Controls
Touchscreen
Equalizer
Yes
Speakers
Total Number of Speakers
8 - 13 pcs
Tweeters
4 pcs
Midrange Speakers
4 pcs
Bass Speakers
0 - 1 pcs
Speakers Max. Watt
15 - 50 W
Subwoofer
Optional
Speakers › Subwoofer
Number of Subwoofers
0 - 1 pcs
Rear-view Mirror
Anti-glare
  • Automatic
  • Manual
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
Armrest Hatch
Front
Back Pocket
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Lights
Read Light
  • Front
  • Rear
Guide Light
Yes
Lights › Guide Light
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Carpets
Material
  • Rubber
  • Textile
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Material
Leather
Colour
Black
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down
  • Resume

Trunk

Rear Trunk
Yes
Automatic Open
  • From Inside Car
  • Key Button
Carpet
Optional
Light
Yes
Rear Trunk
Volume
480 litres
Depth
942 mm (37.1 in)
Depth, Back Seat Collapsed
1,725 mm (67.9 in)
Width
946 mm (37.2 in)
Width, Between Wheel Arches
668 mm (26.3 in)
Height
472 mm (18.6 in)
Sill Height
688 mm (27.1 in)
Carpet
Rubber
Optional

Design

Accent
Aluminium
Pedals
  • Aluminium
  • Sport

Seats

Colour & Material
Upholstery
  • Alcantara
  • Leather
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Number of Driver Seat Adjustments, Total
10
Number of Passenger Seat Adjustments, Total
10
Power Seat, Driver
Optional
Power Seat, Passenger
  • Yes
  • Optional
Heated Seats
Optional
Armrest
Middle
Type of Seat
Sport Seats
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Heated Seats
Cushion
  • Yes
  • Optional
Number of Heat Levels
3
Front Seats › Heated Seats › Cushion
Backrest
  • Yes
  • Optional
Second Seat Row
Collapsible
Manual
Number of Seats
2
Type of Seat
Adult
Height Adjustment
Yes
Tilt Adjustment
Yes
Second Seat Row › Collapsible
Split Fold Ratio
40/20/40

Features

Comfort Features

Keyless Entry
  • Yes
  • Optional
Keyless Start
  • Yes
  • Optional
Cruise Control
Yes
Cameras
Rear
Phone
Yes
Cruise Control
Adaptive Cruise Control
Optional

Other Features

GPS
Yes
Start & Stop
Yes
Driving Mode Selection
Yes
Smartphone App
Yes

Accessories

Tire Repair Kit
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Dynamic Torque Vectoring (DTV)
Yes
Forward Collision Warning (FCW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Yes
Trailer Stability Assist (TSA)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote

Safety Testing

General
Test Year
2016
Adult Occupant
98 %
Child Occupant
81 %
Vulnerable Road Users
69 %
Safety Assist
60 %
Overall
5/5 stars
Test Year
2016
ANCAP Safety Rating
5
Adult Occupant
Total Points
37.4 /38
Frontal Impact
7.8 /16
Lateral Impact
15.9 /16
Rear Impact
2.7 /4
Protection
98 %
Protection
37.4
Full Width
8
Frontal Offset
7.8
Side Impact
8
Pole
7.88
Whiplash Protection (Front)
2.68
AEB (City)
3
Child Occupant
Total Points
39.7 /49
Crash Test Performance
  • 14.5
  • 8 /16
Safety Features
6 /13
CRS Installation Check
11.3 /12
Protection
81 %
Protection
39.7
Vulnerable Road Users
Total Points
29.2 /49
Pedestrian
  • 12.7
  • 6
  • 6
AEB Pedestrian
4.5 /9
Safety Assist
Speed Assistance (points)
0 /3
Lane Support (points)
1.5 /4
Safety Assist
60 %
Safety Assist
7.3
Speed Assistance System
0
Seat Belt Reminders
3
Lane Support System
1.5
AEB (Interurban)
2.8
Pedestrian
Protection
69 %
Protection
29.2
IIHS
Test Year
2017
Small Overlap Front: Driver Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
200,000 km / 5 years
Paintwork
3 years
Rust Damage
8 years
EV Battery
160,000 km / 8 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car

ACRISS

Category
Premium Elite (U)
Type
4-5 Doors (D)

Awards

Motor Trend
Car of the Year
2018
Golden Steering Wheel
The most beautiful car
2016

Lap Time

Nürburgring, Lap Time
7:32 min-sec-ms
Nürburgring, Year of Record
2016

Similar sedans

Suggested vehicles
