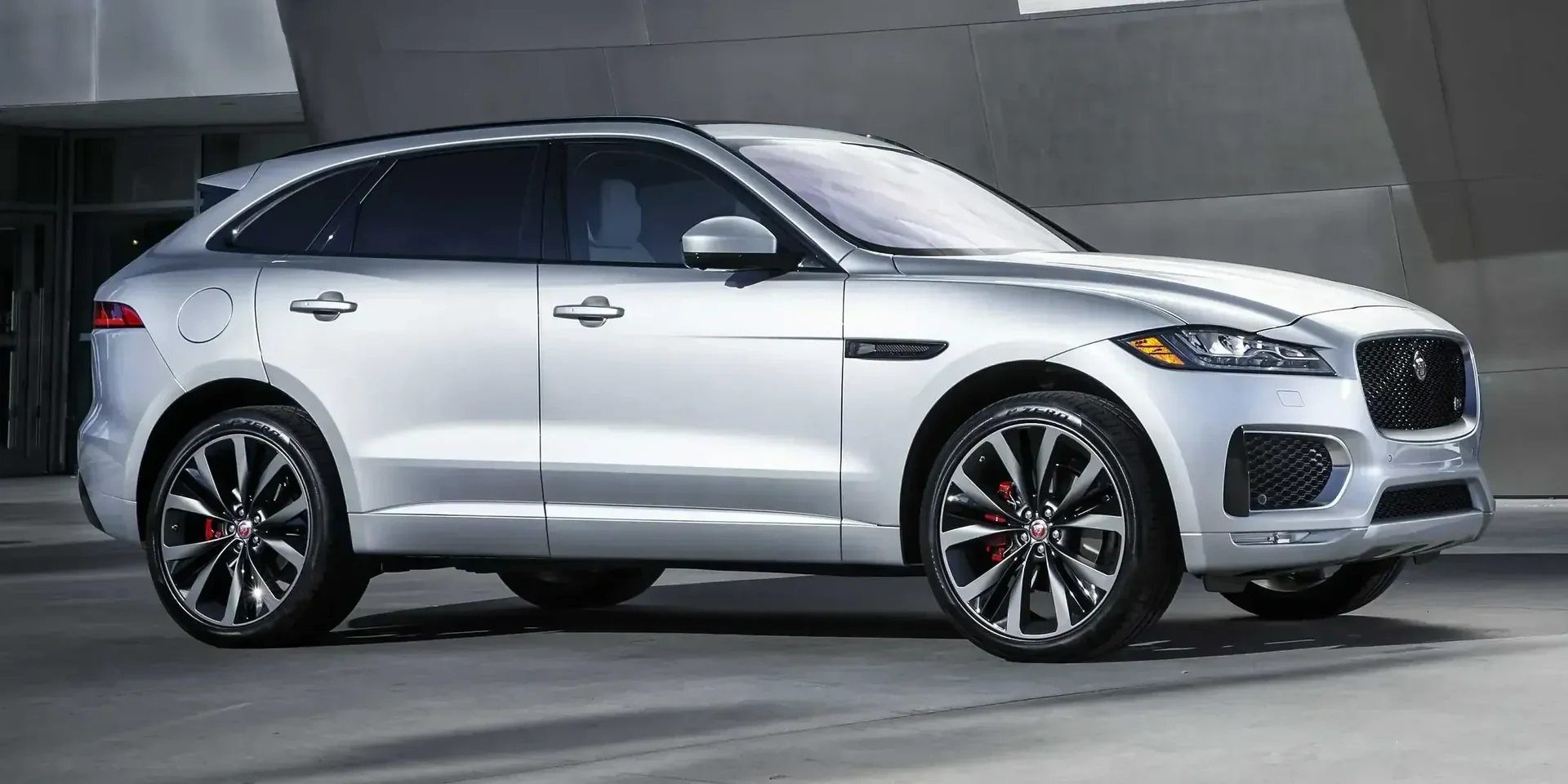

2016 Jaguar F-Pace

United KingdomDieselAWDSUV

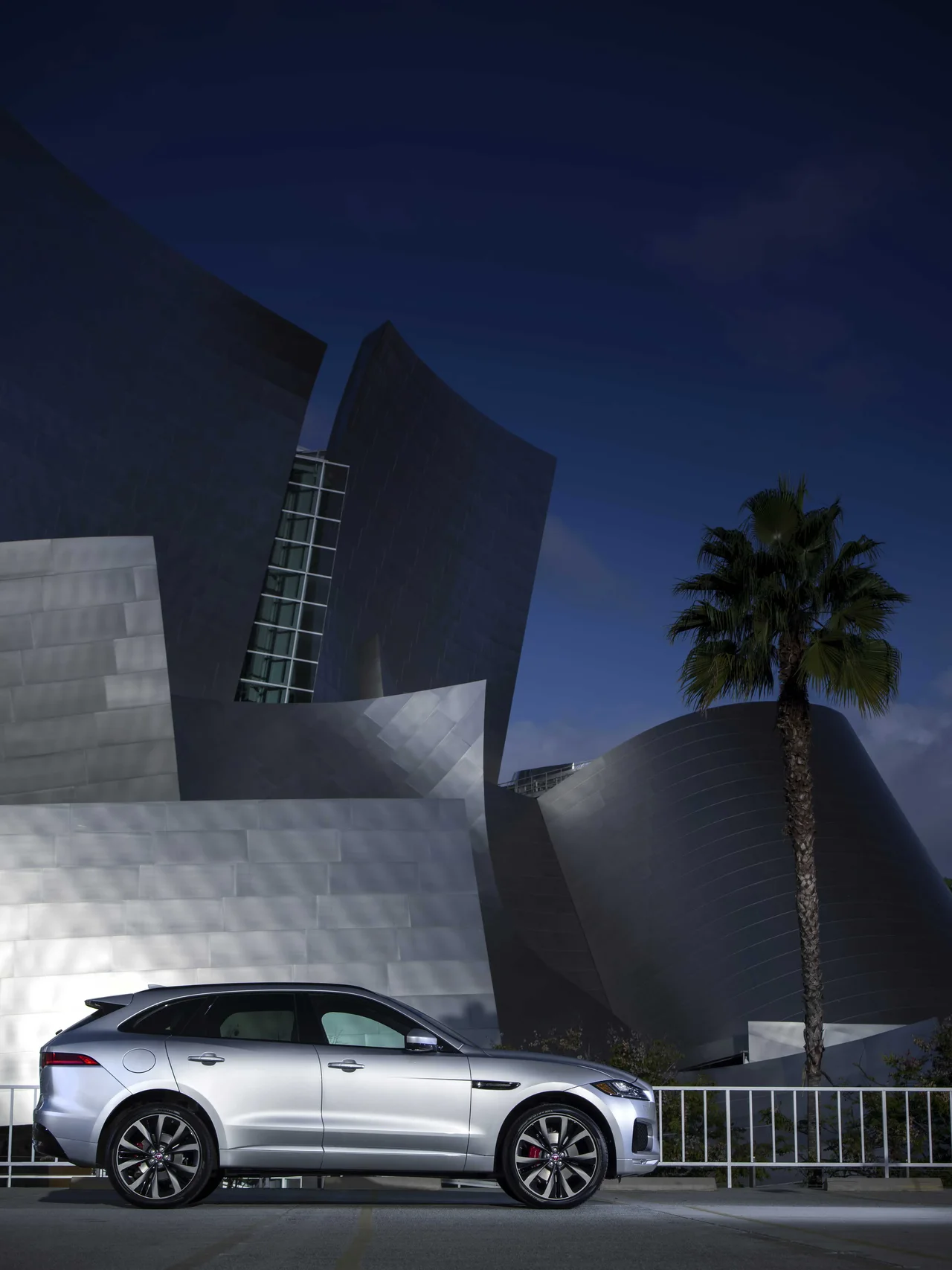

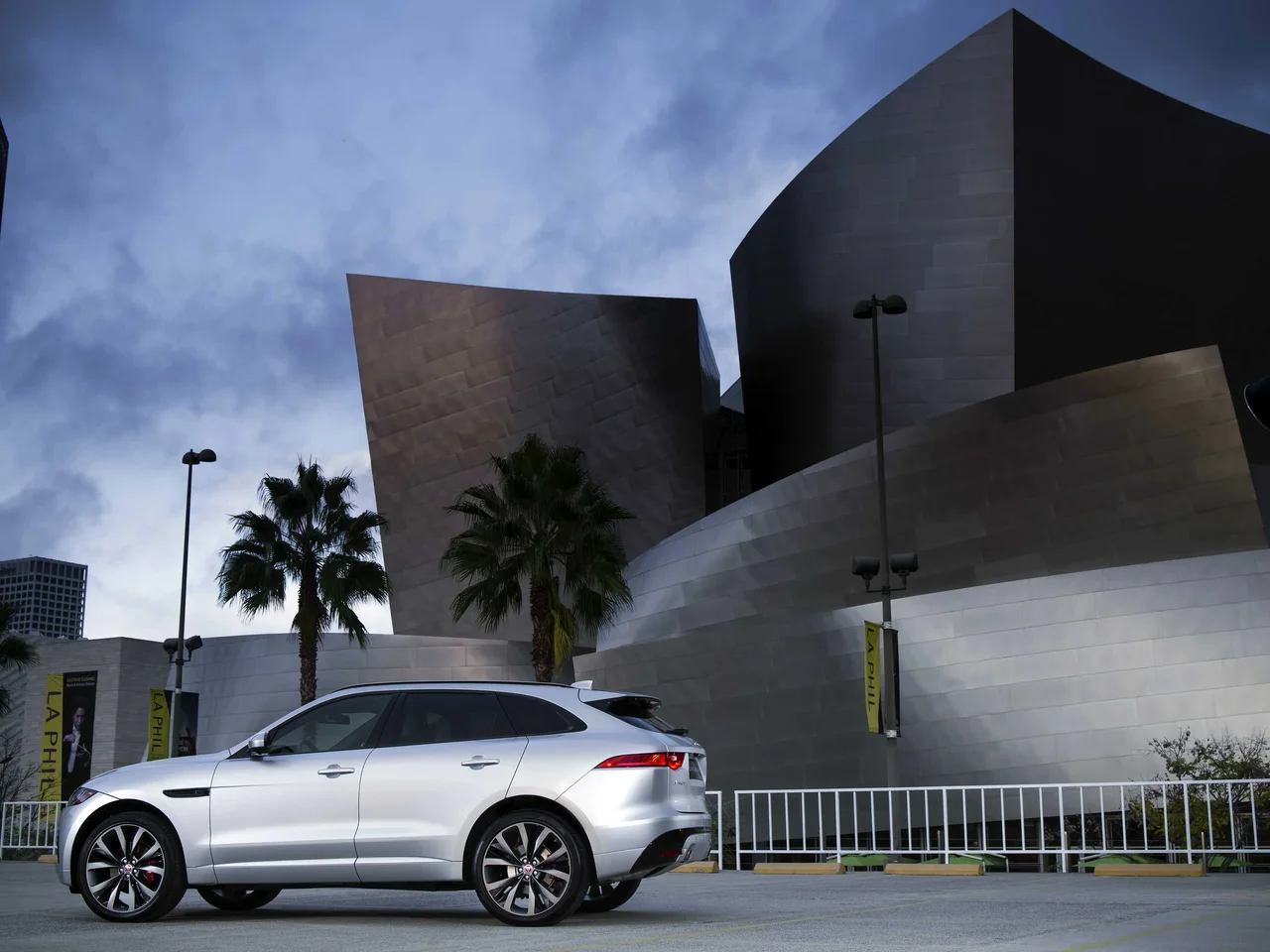

Photos

Specifications

Vehicle Details

Year
2016
Make
Jaguar
Model
F-Pace
Body Style
SUV
Generation
X761
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
Automatic, 8-speed

Powertrain

Engine Name
30d AWD Automatic
Engine Configuration
V
Power (hp)
300 hp
Power (kW)
221 kW
Torque
700 Nm (516 lb-ft)
Top speed
241 km/h (150 mph)
0–60 mph
5.8 seconds
0–100 km/h
6.2 seconds
Displacement
2,993 cc

Dimensions

Length
4,731 mm (186.3 in)
Width
2,070 mm (81.5 in)
Height
1,651 mm (65.0 in)
Wheelbase
2,874 mm (113.1 in)
Curb weight
1,884 kg (4,154 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
2,000 rpm
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Compression Ratio
16.1 :1
Engine Configuration
V-Engine
Turbocharger
Twin-turbo
Engine Placement
Front-Mid
Type of Combustion Engine
Piston
Fuel System
Fuel Injection
Camshaft Type
DOHC
Service Intervals
Oil Change & Engine Filter
26,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic, 8-speed
Gear Selector
Paddles
Gear Ratio
1st Gear
4.71 :1
2nd Gear
3.14 :1
3rd Gear
2.11 :1
4th Gear
1.67 :1
5th Gear
1.29 :1
6th Gear
1 :1
7th Gear
0.84 :1
8th Gear
0.67 :1
Final Drive
3.23 :1
Reverse
3.3 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
349 mm (13.7 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
300 mm (11.8 in)

Performance

Drag Coefficient
0.3

Fuel

General
Tank Volume
66 litres
Emission
Emission Standard
Euro 6d -TEMP
Emission Class
B
Emission Control
  • Catalyst
  • Particle Filter
Emission WLTP
CO₂, Combined
205 - 213 g/km
Emission NEDC
CO₂, Combined
159 g/km
Fuel Consumption NEDC
City
6.9 litres / 100 km
Highway
5.6 litres / 100 km
Combined
6 litres / 100 km

Dimensions & Weight

Exterior

Width, with Mirrors
2,175 mm (85.6 in)
Track, Front
1,641 mm (64.6 in)
Track, Rear
1,645 mm (64.8 in)
Turning Circle
11.59 m
Ground Clearance
213 mm (8.4 in)

Interior

Head Room, Front
1,007 mm (39.6 in)
Head Room, Rear
977 mm (38.5 in)
Leg Room, Front
1,024 mm (40.3 in)
Leg Room, Rear
945 mm (37.2 in)
Shoulder Room, Front
1,465 mm (57.7 in)
Shoulder Room, Rear
1,417 mm (55.8 in)

Weight

Gross Weight
2,570 kg (5,666 lb)
Max Trailer Load, braked 12%
2,400 kg (5,291 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
686 kg (1,512 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
175 kg (386 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Jaguar Land Rover Platforms
D7a

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
Side Mirrors › Adjustments
Driver side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Windows › Heated Windows
Front
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Spoiler
Fixed
Antenna
Shark Fin
Number of Exhaust Pipes
2
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Lights

Rear Lights
LED
Fog Lights
Optional
Special Features
  • Come Home/Leaving Lights
  • Headlight Washers
  • Headlight Range Adjustment
Fog Lights
Rear
Yes
Special Features
Adaptive Headlights
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
63.4
Fastening Type
Lug Nuts
Tightening Torque
133 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Fuel Gauge
Digital
Instrument Cluster › Trip Computer
Display
5 - 5 – 10.2"
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Number of Vents, Front
4 pcs
Number of Vents, Rear
2 pcs
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • HD Radio
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Optional
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
Memory Card Reader
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Yes
USB
Yes
Connectivity › Media Inputs › USB
Number of Ports
1 pcs
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
8 - 8 – 12.3"
Center Display Controls
Touchscreen
Features
Active Noise Cancellation
Yes
Speakers
Total Number of Speakers
6 - 11 – 17 pcs
Speakers Max. Watt
80 - 380 – 825 W
Number of Subwoofers
1 pcs
Interior Storage › Storage Compartments
Glove Compartment
Cooled
Armrest Hatch
Front
Sunglass Compartment
Yes
Interior Storage › Storage Compartments › Armrest Hatch
Back
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
Yes
Lights
Read Light
Front
Guide Light
Yes
Ambient Light
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
Front
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › 12V Outlet
Rear
Optional
Trunk
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Material
Leather
Colour
Black
Steering Ratio
15.5 :1
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Yes
Mute Audio
Yes
Adjustments
User Memory
Optional

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Second Trunk Compartment
Yes
Light
Yes
Rear Trunk
Volume
650 litres
Volume, Back Seat Collapsed
1,740 litres
Depth
1,030 mm (40.6 in)
Depth, Back Seat Collapsed
1,825 mm (71.9 in)
Width
1,255 mm (49.4 in)
Height
1,048 mm (41.3 in)
Sill Height
747 mm (29.4 in)
Automatic Open
Motion Activated
Optional
Carpet
Rubber
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Cushion Tilt
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Yes
Heated Seats
Optional
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
40/20/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Optional
Cameras
Optional
Media
Optional
Phone
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Safe Exit Warning (SEW)
Optional
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Traffic Light Recognition
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Yes
Child Safety Locks
Yes
Emergency Call
Yes

Safety Testing

General
Test Year
2017
Adult Occupant
93 %
Child Occupant
85 %
Vulnerable Road Users
80 %
Safety Assist
72 %
Overall
5/5 stars
Test Year
2017
ANCAP Safety Rating
5
Adult Occupant
Protection
93 %
Protection
35.5
Full Width
7.2
Frontal Offset
7.44
Side Impact
8
Pole
8
Whiplash Protection (Front)
1.92
AEB (City)
2.95
Child Occupant
Protection
85 %
Protection
42
Pedestrian
Protection
80 %
Protection
33.9
Safety Assist
Safety Assist
72 %
Safety Assist
8.8
Speed Assistance System
1.3
Seat Belt Reminders
3
Lane Support System
2
AEB (Interurban)
2.5

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
50,000 km / 2 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
2 years

Identification

VIN Location
Engine Compartment, Inner Wing
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV

ACRISS

Category
Premium Elite (U)

Awards

World
Car of the Year
2017
Car Design of the Year
2017

Similar suvs

Suggested vehicles
