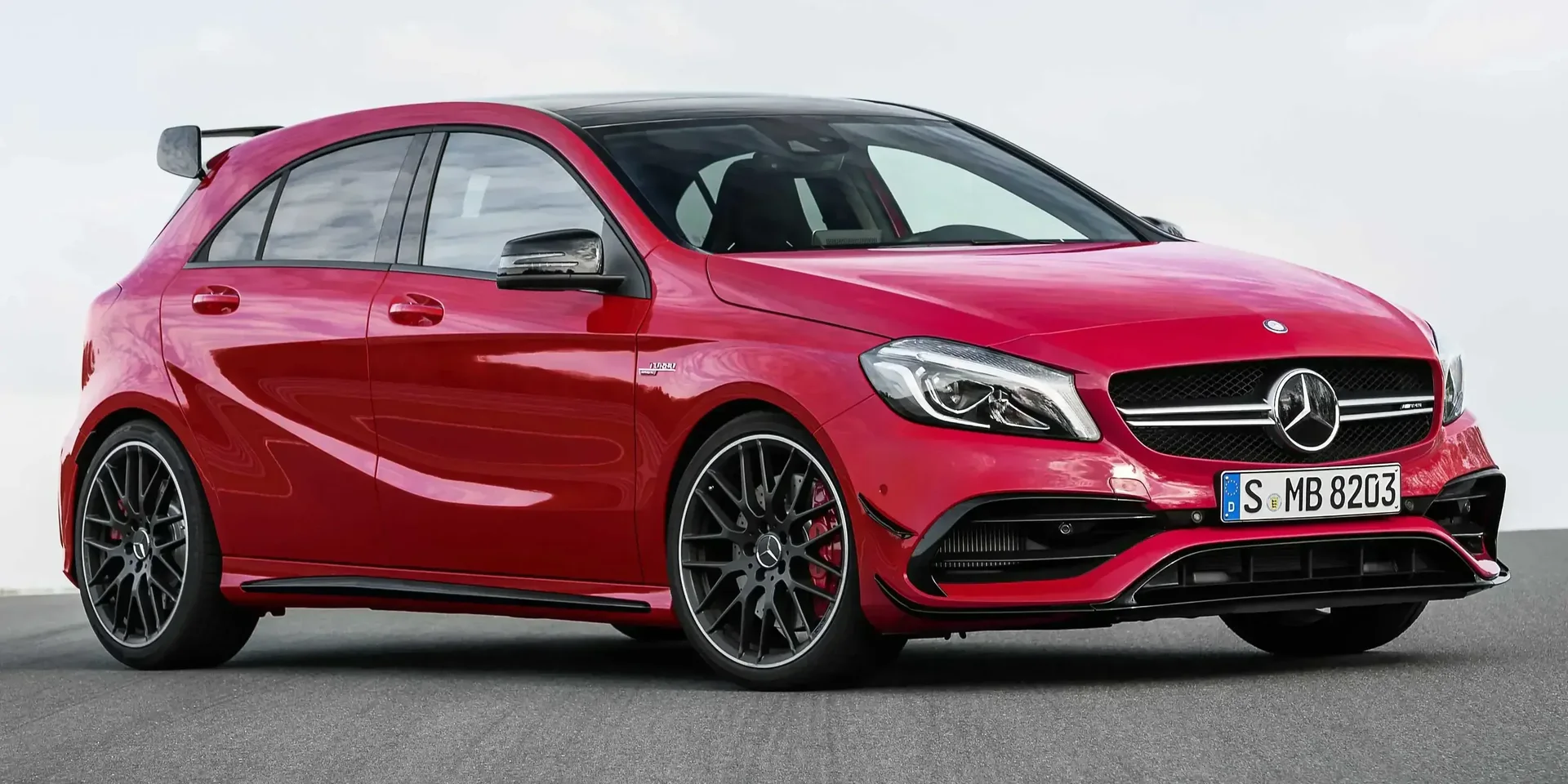

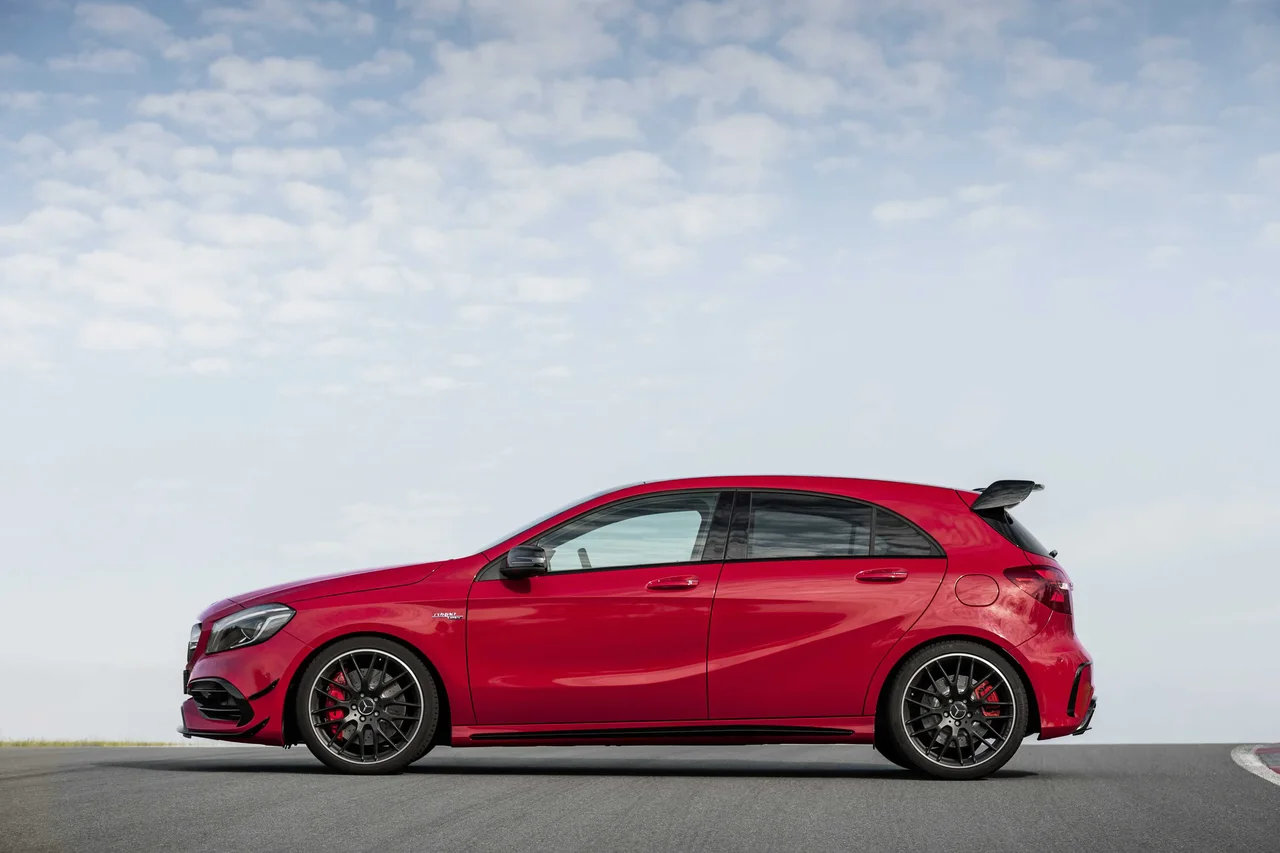

2016 Mercedes-Benz A-Class AMG A

GermanyGasolineAWDHatchback

Photos

Specifications

Vehicle Details

Year
2016
Make
Mercedes-Benz
Model
A-Class
Variant
AMG A
Body Style
Hatchback
Generation
W176 Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Semi-automatic), 7-speed

Powertrain

Engine Name
AMG A 45 4MATIC AMG Speedshift DCT 7-Speed
Engine Configuration
Inline
Power (hp)
381 hp
Power (kW)
280 kW
Torque
475 Nm (350 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.0 seconds (estimated)
0–100 km/h
4.2 seconds
Displacement
1,991 cc

Dimensions

Length
4,299 mm (169.3 in)
Width
1,780 mm (70.1 in)
Height
1,433 mm (56.4 in)
Wheelbase
2,699 mm (106.3 in)
Curb weight
1,555 kg (3,428 lb)

Engine & Performance

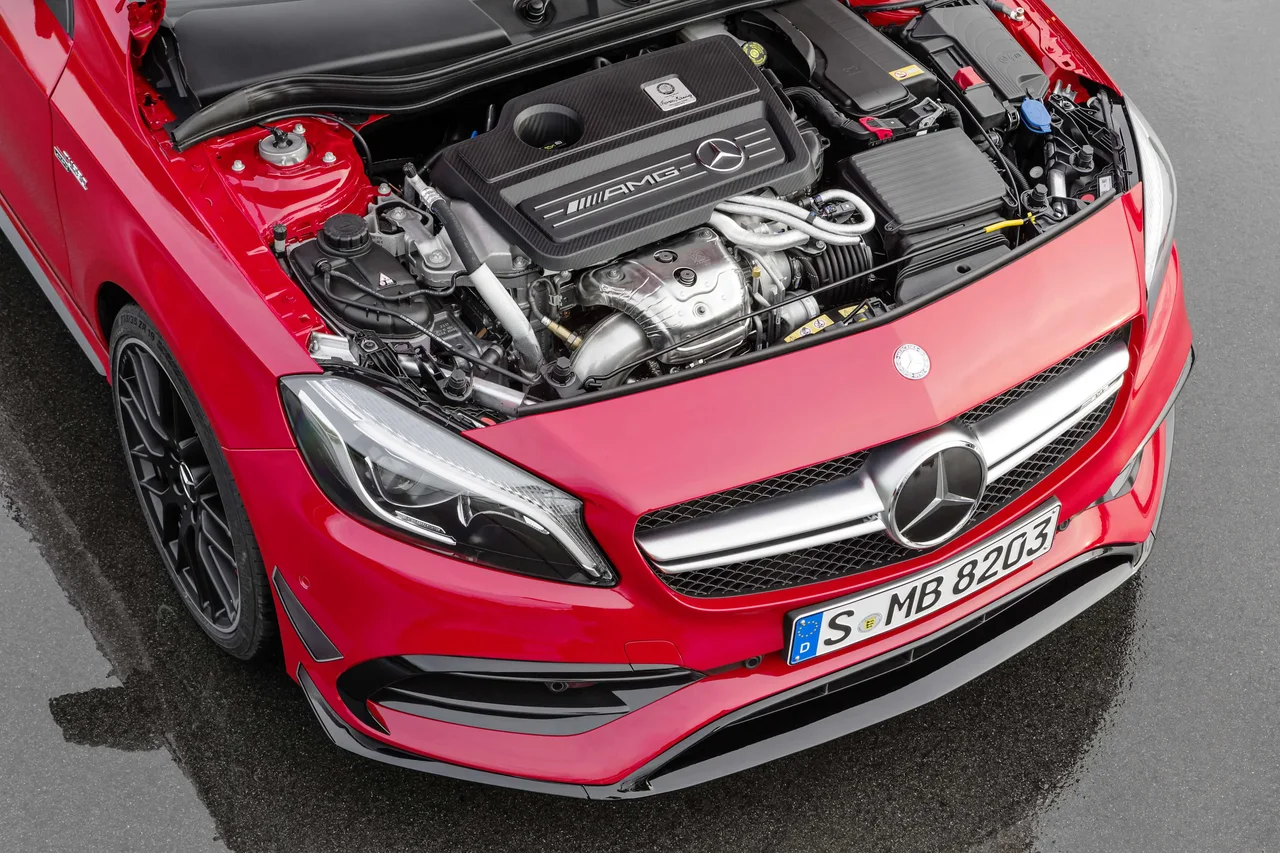

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
2,250 - 5,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
  • 5W-50
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-40
Engine Oil, Volume
5.5 litres
Engine Configuration
Bore
83 mm (3.3 in)
Stroke
92 mm (3.6 in)
Compression Ratio
8.6 :1
Engine Configuration
Inline
Turbocharger
Twin-scroll
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Service Intervals
Air Filter
30,000 km (18,641 mi)
Oil Change & Engine Filter
20,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Semi-automatic), 7-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
56 litres
Emission
Emission Standard
Euro 6
Emission Class
D
Fuel Consumption NEDC
City
9.2 litres / 100 km
Highway
5.6 litres / 100 km
Combined
6.9 litres / 100 km
Emission NEDC
CO₂, Combined
162 g/km

Dimensions & Weight

Exterior

Track, Front
1,553 mm (61.1 in)
Track, Rear
1,553 mm (61.1 in)
Overhang, Front
913 mm (35.9 in)
Overhang, Rear
687 mm (27.0 in)
Turning Circle
11 m
Ground Clearance
93 mm (3.7 in)

Interior

Head Room, Front
1,017 mm (40.0 in)
Head Room, Rear
952 mm (37.5 in)
Hip Room, Front
1,422 mm (56.0 in)
Hip Room, Rear
1,410 mm (55.5 in)
Shoulder Room, Front
1,391 mm (54.8 in)
Shoulder Room, Rear
1,350 mm (53.1 in)
Leg Room (est.), Rear
850 - 900 mm (33.5 - 35.4 in)

Weight

Gross Weight
2,050 kg (4,519 lb)
Cargo Capacity
495 kg (1,091 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Windscreen Wipers
Rear Wiper
Yes
Windscreen Wipers: Connector type, Front
Mercedes-Benz Fit
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Electric
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
Main Beam Assist
Fog Lights
Rear
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Inputs
USB
App-Connect
  • Yes
  • Optional
Bluetooth
Yes
Connectivity › Media Format
CD
Optional
Memory Card Reader
SD
Connectivity › Media Inputs
AUX
Yes
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
7"
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Sport
Yes
Number of Spokes
3
Colour
Black

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
340 litres
Volume, Back Seat Collapsed
1,155 litres
Depth
707 mm (27.8 in)
Sill Height
669 mm (26.3 in)

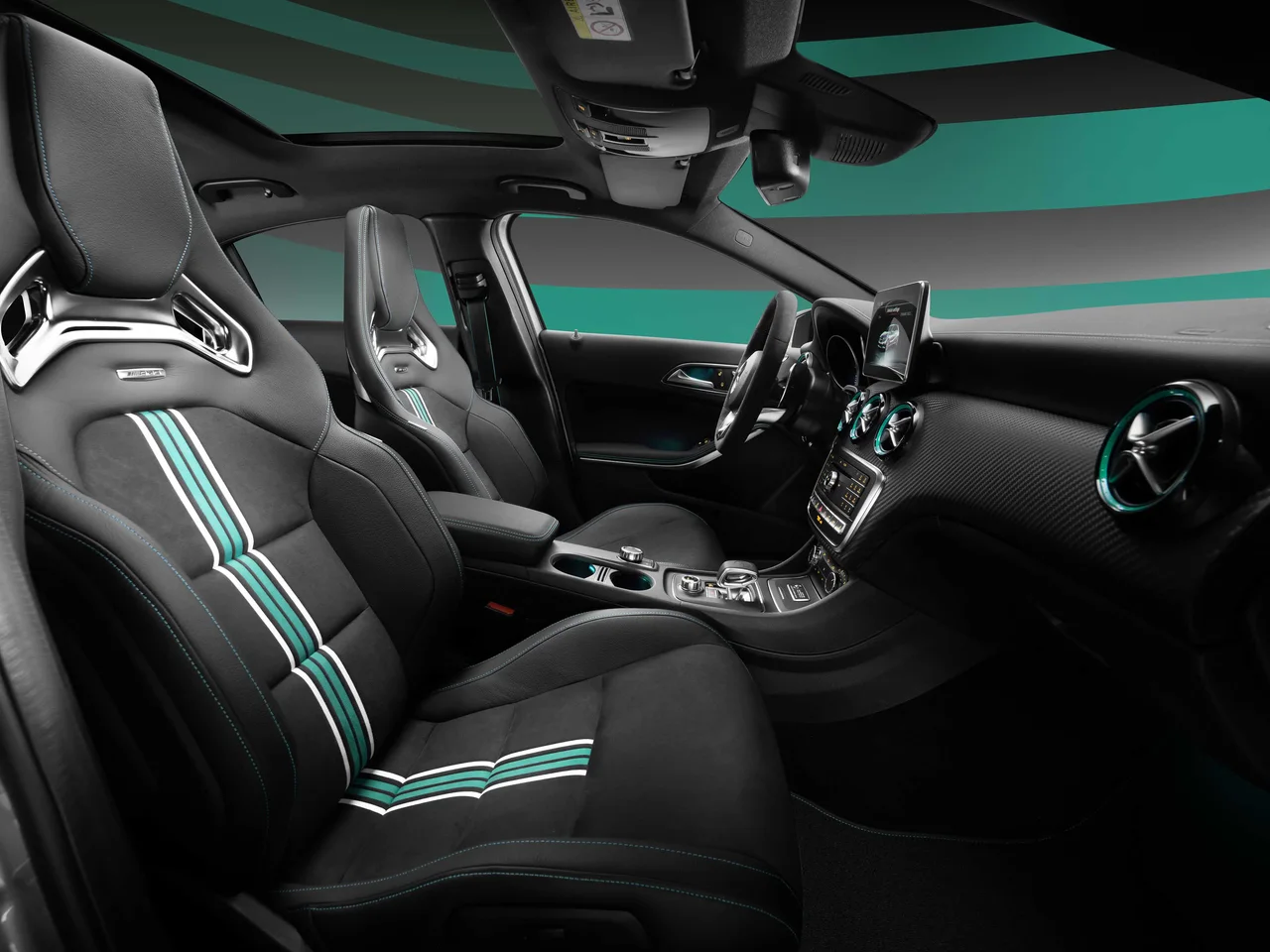

Seats

Colour & Material
Upholstery
Leather
Seat Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Type of Seat
Sport Seats
Front Seats › Heated Seats
Cushion
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes
Lane Departure Warning (LDW)
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Collision Avoidance System
Yes
Active Bonnet
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2012
Adult Occupant
93 %
Child Occupant
81 %
Vulnerable Road Users
67 %
Safety Assist
86 %
Overall
5/5 stars
Overall Score
35.8
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
14.8
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
Supermini
Australian Classification
Light Car
European Segment
B-Segment
Car.info Classification
Small Family Car

Spare Parts BETA

Bulb Types
Low Beam
  • D1S (xenon)
  • H7
Main Beam
H15
Bi-Xenon
D1S
Datyime Running Light
H15
Fog Light, Front
H11
Fog Light, Rear
BA15s (P21W)
Cornering Light
H7
Rear/Brake Light
W2.1×9.5d (W16W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Read Light
  • SV8.5 (C5W)
  • W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)
Entry Light
W2.1×9.5d (W5W)

ACRISS

Category
Compact Elite (D)
Type
4-5 Doors (D)
