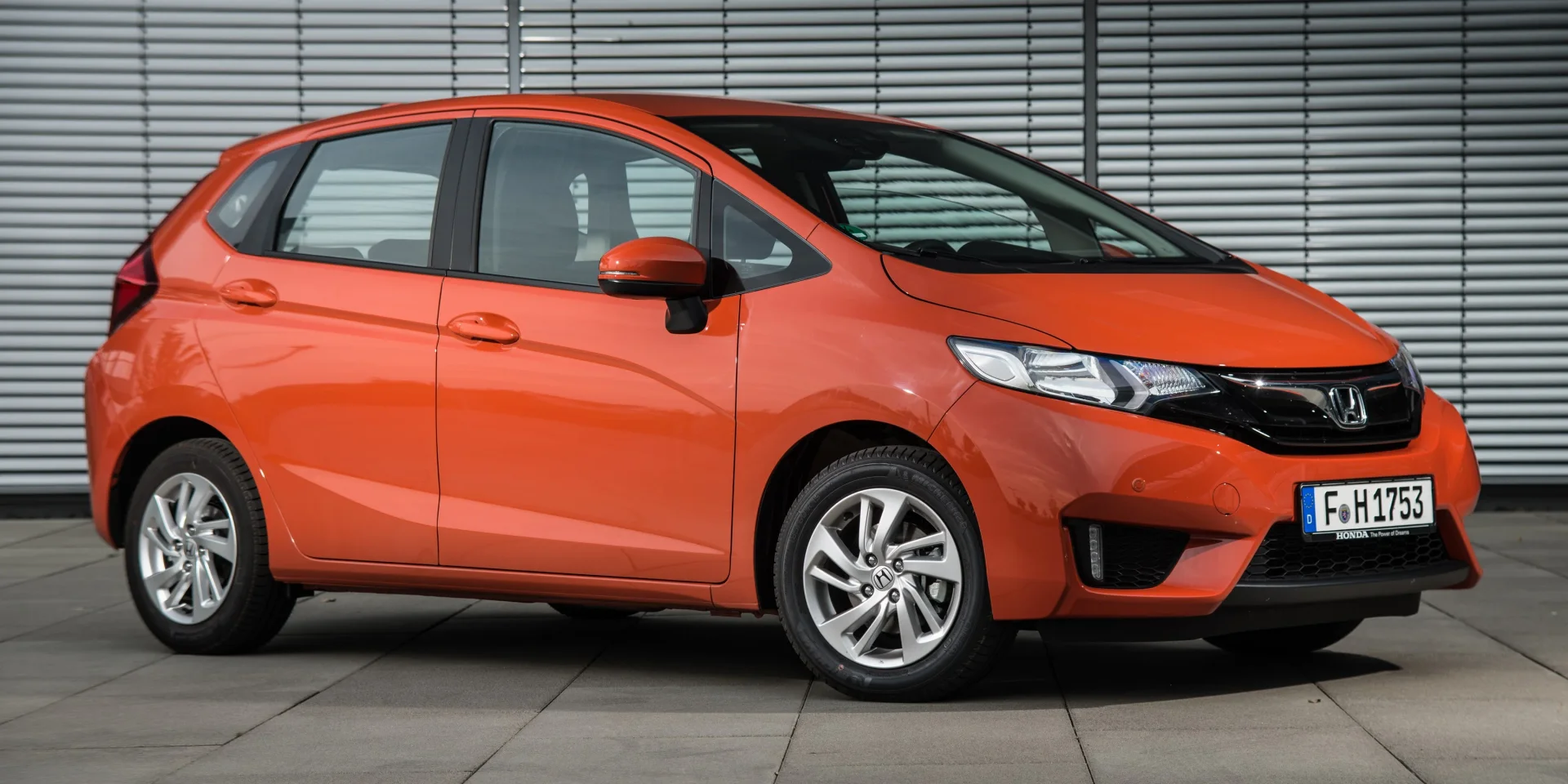

2017 Honda Jazz

JapanHybrid GasolineFWDHatchback

Photos

Specifications

Vehicle Details

Year
2017
Make
Honda
Model
Jazz
Body Style
Hatchback
Generation
GK
Seats
5
Doors
5
Fuel
Hybrid Gasoline
Drivetrain
FWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
1.5 Hybrid DCT
Engine Configuration
Inline
Power (hp)
140 hp
Power (kW)
103 kW
Torque
134 Nm (99 lb-ft)
Top speed
190 km/h (118 mph)
0–60 mph
9.4 seconds (estimated)
0–100 km/h
9.9 seconds
Displacement
1,496 cc

Dimensions

Length
3,995 mm (157.3 in)
Width
1,694 mm (66.7 in)
Height
1,525 mm (60.0 in)
Wheelbase
2,530 mm (99.6 in)
Curb weight
1,080 kg (2,381 lb)

Engine & Performance

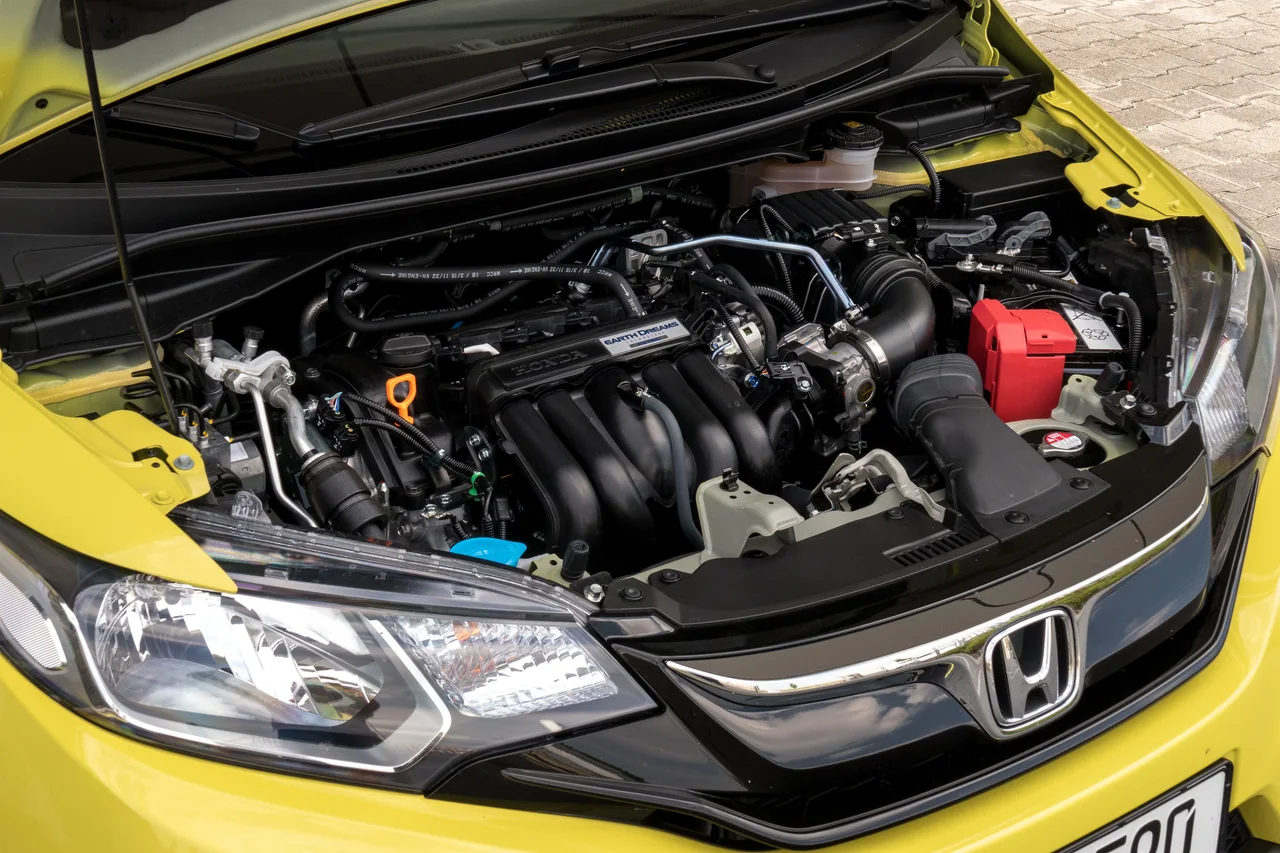

Engine

Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 0W-30
  • 5W-30
Engine Oil, Volume
3.2 litres
Configuration Combustion
Bore
73 mm (2.9 in)
Stroke
89.4 mm (3.5 in)
Compression Ratio
13.5 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Configuration Electric
Type of Electric Car
Hybrid

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed
Gear Ratio
1st Gear
4.15 :1
2nd Gear
2.01 :1
3rd Gear
1.48 :1
4th Gear
1.1 :1
5th Gear
0.81 :1
6th Gear
0.61 :1
Final Drive
4.84 :1
Reverse
3.21 :1

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
40 litres
Fuel Consumption NEDC
Combined
2.7 litres / 100 km
Emission NEDC
CO₂, Combined
64 g/km

Dimensions & Weight

Exterior

Track, Front
1,490 mm (58.7 in)
Track, Rear
1,480 mm (58.3 in)
Turning Circle
9.8 m
Ground Clearance
110 mm (4.3 in)

Weight

Max Roof Load
55 kg (121 lb)
Max Towbar Download
0 kg (0 lb)

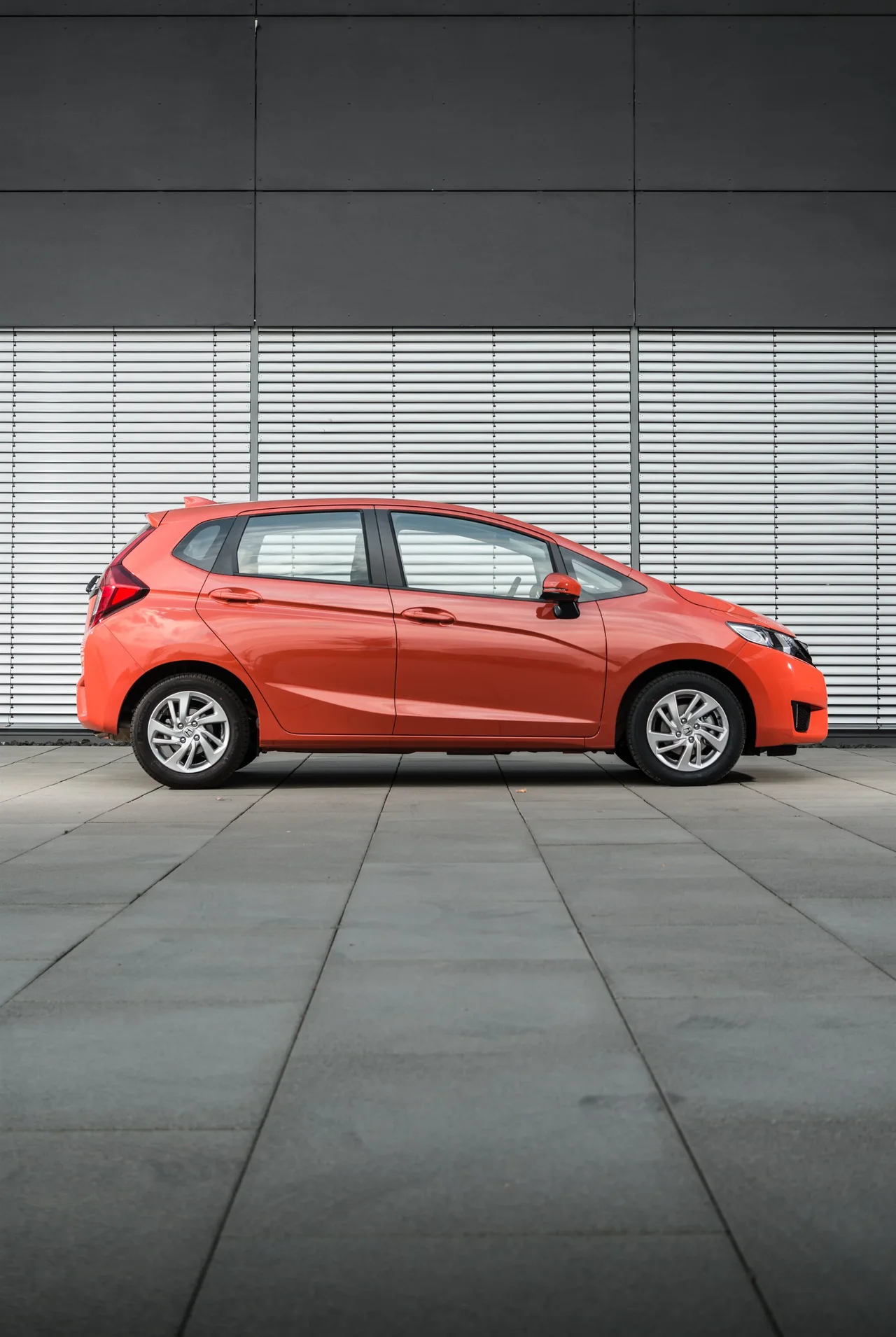

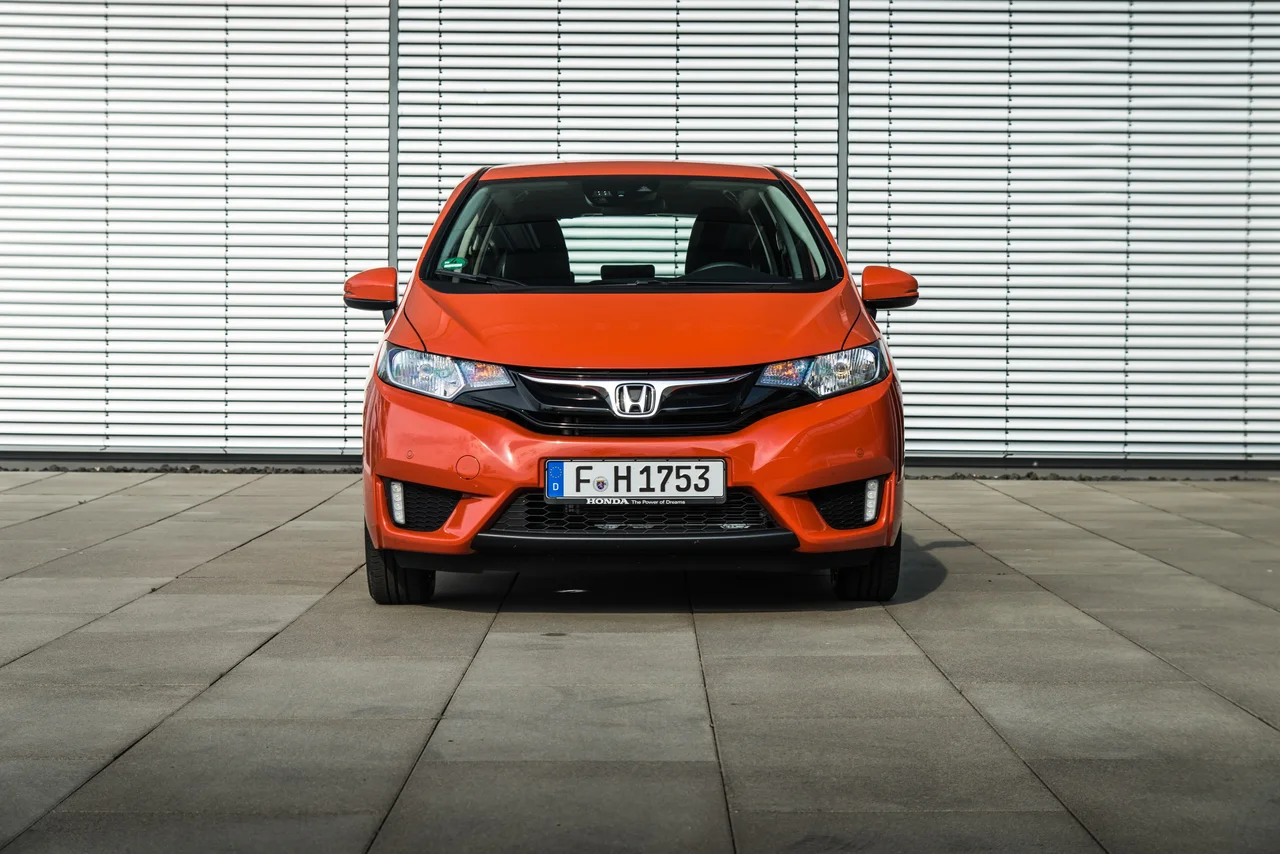

Exterior

Chassis & Body

Chassis
Chassis
Hatchback

Equipment

Side Mirrors
Folding
Manual
Turning Signal
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Normal Roof
Yes

Lights

Main Beam
Halogen
Low Beam
Halogen
Fog Lights
Yes
Fog Lights
Front
Yes

Rims & Tires

Number of Bolts
4 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
56.1
Fastening Type
Lug Nuts
Tightening Torque
108 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
Yes
Media Format
  • CD
  • MP3
  • WMA
Media Inputs
USB
Bluetooth
Yes
Connectivity › Media Inputs
AUX
Optional
Displays
Center Display
Yes

Steering Wheel

Multifunction Steering Wheel
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
470 litres
Volume, Back Seat Collapsed
1,490 litres

Seats

Colour & Material
Upholstery
Textile
Second Seat Row
Collapsible
Yes

Features

Comfort Features

Cruise Control
Yes
Cameras: Camera Position
Rear

Other Features

GPS
Yes

Safety & Security

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
City
Yes

Sensors

Parking Sensors
Optional
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
93 %
Child Occupant
85 %
Vulnerable Road Users
73 %
Safety Assist
71 %
Overall
5/5 stars
Overall Score
36.58
ANCAP Safety Rating
5
ASEAN NCAP
Test Year
2014
Adult Occupant
4/5 stars
Adult Occupant, Points
15.58
Child Occupant
4/5 stars
Child Occupant
71 %
Adult Occupant
Frontal Offset
15.58
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
3
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
5/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
14.7 %
Overall Safety Rating
5/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Airbag cut-off Switch

Seat Belt

Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
  • B-Pillar, Left
  • B-Pillar, Right
Passenger Seat
Next to

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
Supermini
Australian Classification
Light Car
European Segment
B-Segment
Car.info Classification
Small Family Car

Spare Parts BETA

Bulb Types
Low Beam
H4
Main Beam
H4
Fog Light, Front
H8
Fog Light, Rear
W3×16d (W21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Rear
WX3×16d (WY21W)
Trunk
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

ACRISS

Type
4-5 Doors (D)
