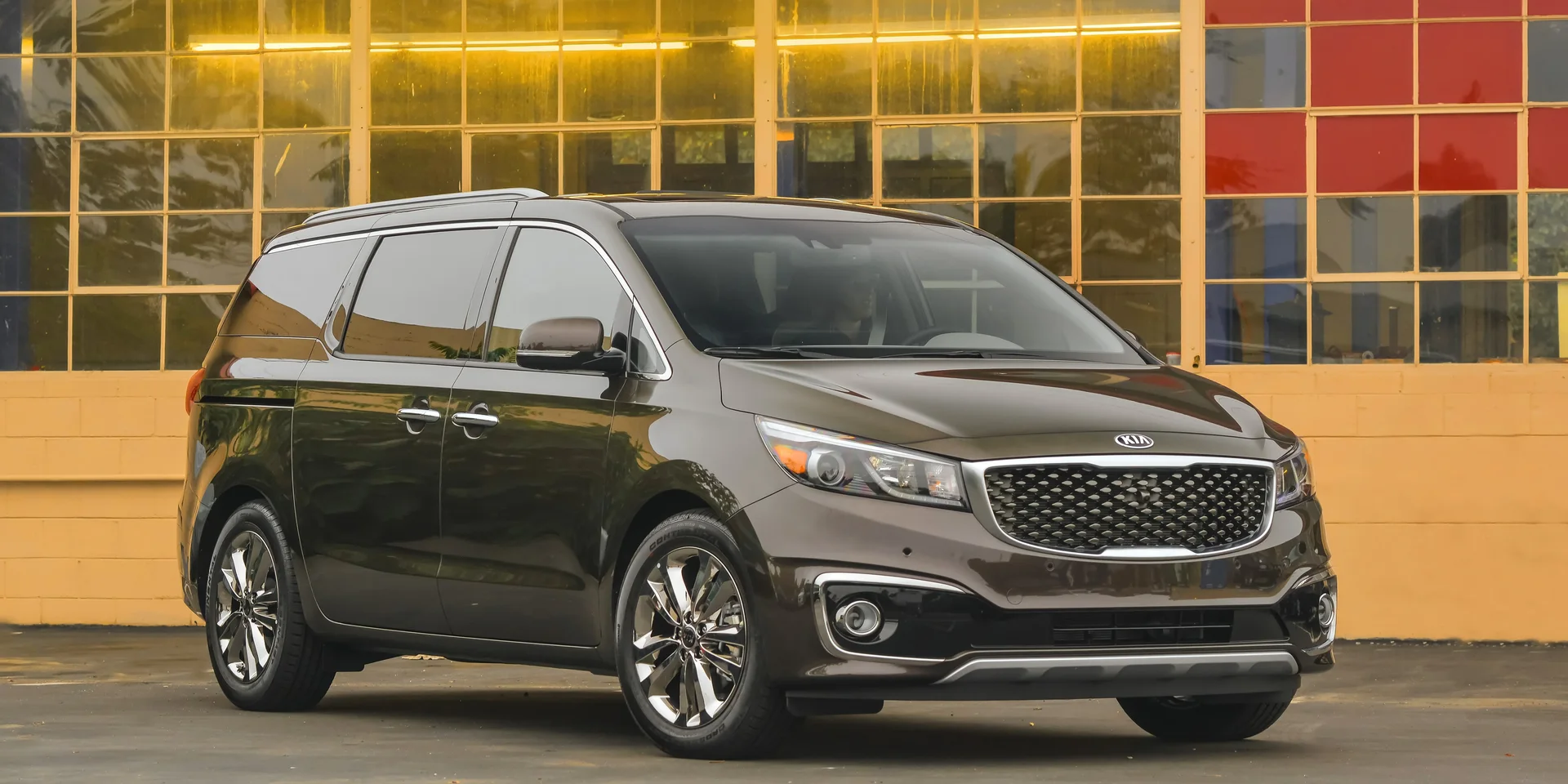

2017 Kia Carnival

South KoreaGasolineFWDMinivan

Photos

Specifications

Vehicle Details

Year
2017
Make
Kia
Model
Carnival
Body Style
Minivan
Generation
YP
Seats
7
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic, 6-speed

Powertrain

Engine Name
3.3 V6 Automatic
Engine Configuration
V
Power (hp)
280 hp
Power (kW)
206 kW
Torque
336 Nm (248 lb-ft)
Top speed
190 km/h (118 mph)
0–60 mph
8.2 seconds (estimated)
0–100 km/h
8.6 seconds
Displacement
3,342 cc

Dimensions

Length
5,115 mm (201.4 in)
Width
1,985 mm (78.1 in)
Height
1,740 mm (68.5 in)
Wheelbase
3,060 mm (120.5 in)
Curb weight
1,968 kg (4,339 lb)

Engine & Performance

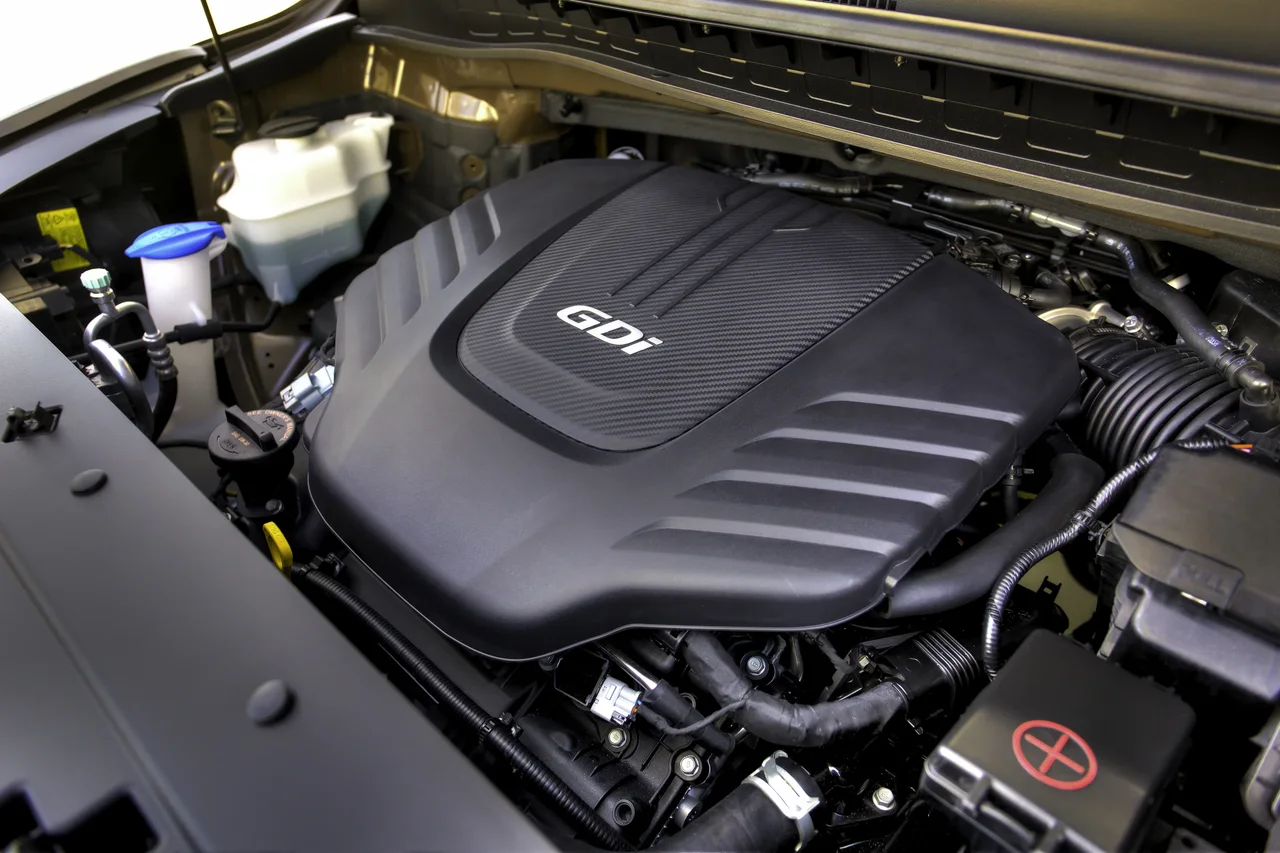

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
5,200 rpm
Engine Configuration
Bore
88 mm (3.5 in)
Stroke
97 mm (3.8 in)
Compression Ratio
16 :1
Engine Configuration
V-Engine

Transmission & Drivetrain

Transmission
Automatic, 6-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes

Fuel

General
Tank Volume
80 litres
Fuel Consumption NEDC
City
13.2 litres / 100 km
Highway
9.7 litres / 100 km
Combined
11.6 litres / 100 km
Emission NEDC
CO₂, Combined
271 g/km

Dimensions & Weight

Exterior

Turning Circle
11.2 m
Ground Clearance
171 mm (6.7 in)

Interior

Head Room, Front
1,010 mm (39.8 in)
Head Room, Rear
1,000 mm (39.4 in)
Head Room, Third Row
987 - 989 mm (38.9 - 38.9 in)
Leg Room, Front
1,040 mm (40.9 in)
Leg Room, Rear
1,045 mm (41.1 in)
Leg Room, Third Row
810 - 885 mm (31.9 - 34.8 in)
Hip Room, Front
1,506 mm (59.3 in)
Hip Room, Rear
1,679 mm (66.1 in)
Hip Room, Third Row
1,269 mm (50.0 in)
Shoulder Room, Front
1,622 mm (63.9 in)
Shoulder Room, Rear
1,602 mm (63.1 in)
Shoulder Room, Third Row
1,508 mm (59.4 in)

Weight

Gross Weight
2,770 kg (6,107 lb)
Max Trailer Load, braked 12%
2,000 kg (4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
802 kg (1,768 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Platform
Hyundai-Kia Platforms
Y Platform (Y6)

Equipment

Side Mirrors
Folding
Electrical
Turning Signal
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Other Equipment
Sunroof
Optional

Lights

Main Beam
Xenon
Low Beam
Xenon
Fog Lights
Yes
Fog Lights
Front
Yes

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts

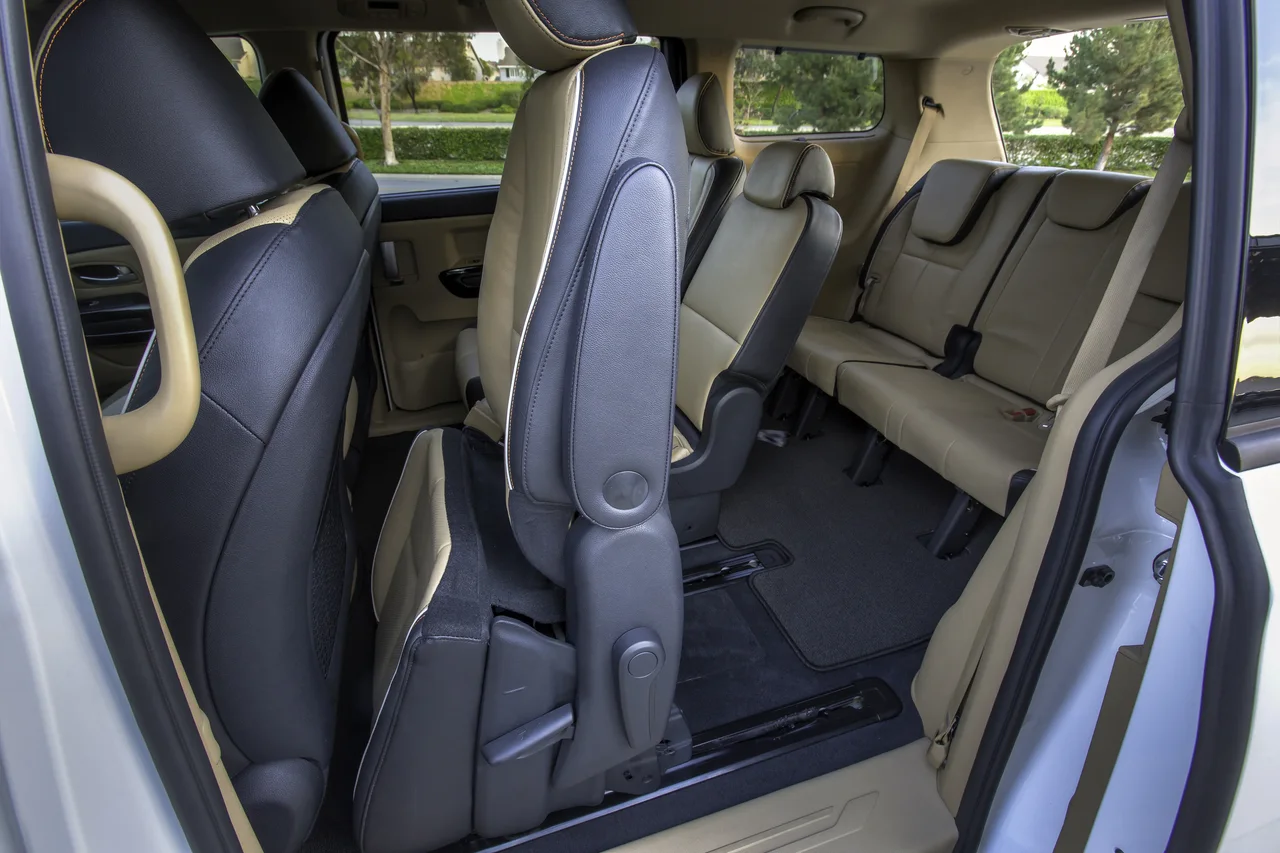

Interior

Equipment

Instrument Cluster
Tachometer
Analogue
Climate Control
Climate Control
Automatic
Air Condition
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
Yes
Media Inputs
USB
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
Yes
Connectivity › Media Inputs
AUX
Yes
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Optional
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Yes
Flat Surface
Yes
Rear Trunk
Volume
960 litres
Volume, Back Seat Collapsed
2,220 litres

Seats

Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Yes
Second Seat Row
Collapsible
Yes
Features
Heated Seats
Third/Fourth Seat Row
Third Seat Row
Yes

Features

Comfort Features

Cruise Control
Yes
Cameras: Camera Position
Rear

Other Features

Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Yes

Safety Testing

General
Overall Score
34.62
ANCAP Safety Rating
5
Adult Occupant
Frontal Offset
14.29
Side Impact
16
Pole
2
Safety Assist
Seat Belt Reminders
2.3
Frontal Crash
Front Driver Side
5/5 stars
Front Passenger Side
5/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
13 %
Overall Safety Rating
5/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars
IIHS
Test Year
2015
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Acceptable
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Headlight
Poor
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag

Other

Warranty

Manufacturer
7 years
12V Battery
2 years
Paintwork
150,000 km (93,206 mi)
Rust Damage
150,000 km / 7 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
150,000 km / 7 years

Car Classification

American Classification
Minivan
British Classification
Large MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Large MPV
