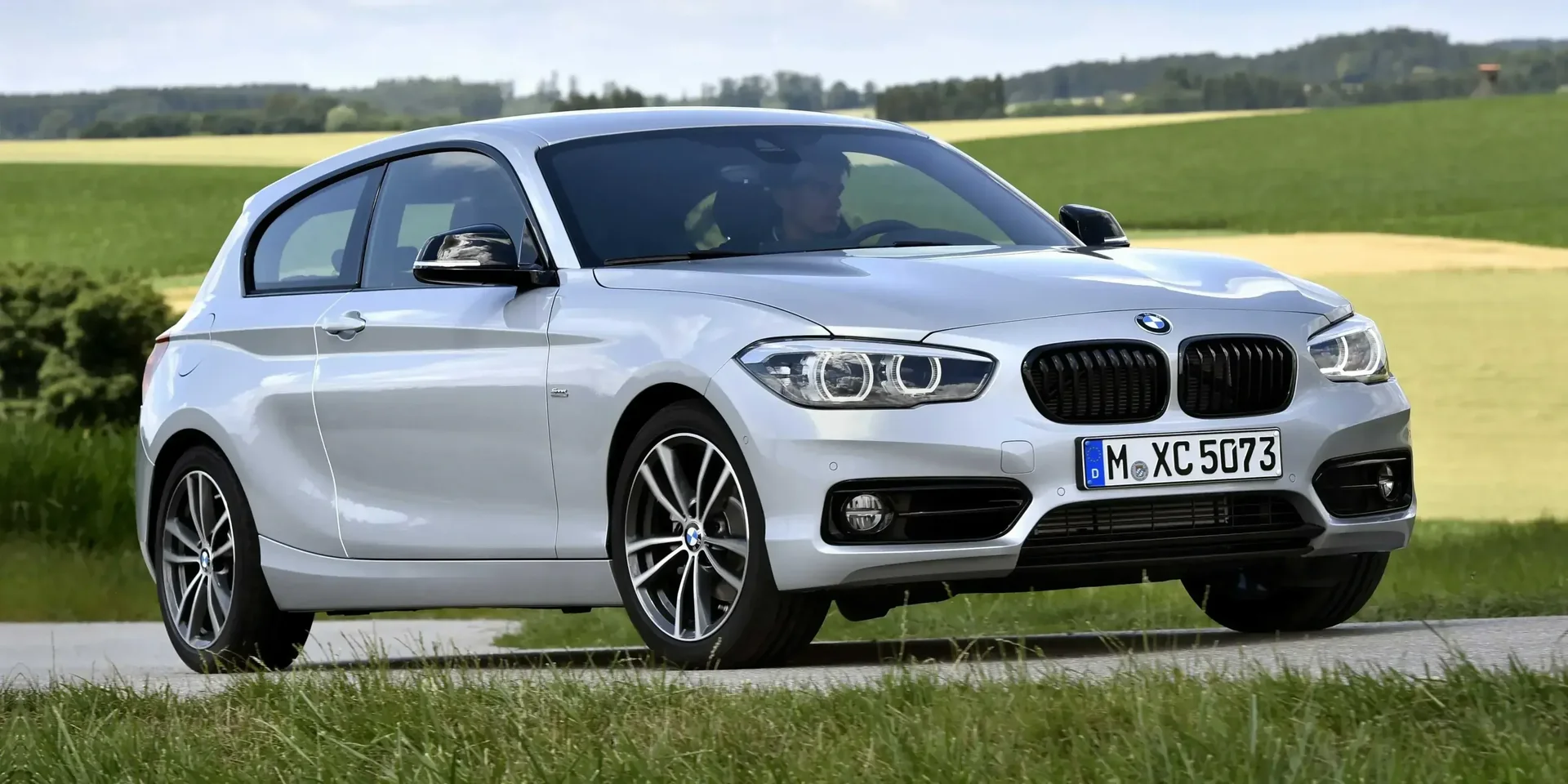

2018 BMW 1 Series

GermanyDieselRWDHatchback

Photos

Specifications

Vehicle Details

Year
2018
Make
BMW
Model
1 Series
Body Style
Hatchback
Generation
F20 2nd LCI
Seats
5
Doors
3
Fuel
Diesel
Drivetrain
RWD
Transmission
  • Automatic Manumatic
  • Manual, 6
  • 8-speed

Powertrain

Engine Name
120d 3-door
Engine Configuration
Inline
Power (hp)
190 hp
Power (kW)
140 kW
Torque
400 Nm (295 lb-ft)
Top speed
228 km/h (142 mph)
0–60 mph
6.8 seconds (estimated)
0–100 km/h
7.1 seconds
Displacement
1,995 cc

Dimensions

Length
4,329 mm (170.4 in)
Width
1,765 mm (69.5 in)
Height
1,421 mm (55.9 in)
Wheelbase
2,690 mm (105.9 in)
Curb weight
1,490 kg (3,285 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,750 - 2,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
Engine Oil, Volume
5.2 litres
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Turbocharger
  • Twin-scroll
  • Twin-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Fuel Filter
60,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
15,000 km / 1 years

Transmission & Drivetrain

Transmission
  • Automatic Manumatic
  • Manual, 6
  • 8-speed
Gear Ratio
1st Gear
4.11 – 5 :1
2nd Gear
2.25 – 3.2 :1
3rd Gear
1.4 – 2.14 :1
4th Gear
1 – 1.72 :1
5th Gear
0.8 – 1.31 :1
6th Gear
0.66 – 1 :1
7th Gear
0.82 :1
8th Gear
0.64 :1
Final Drive
2.65 – 3.08 :1
Reverse
3.46 – 3.73 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
300 mm (11.8 in)
Width
22 mm (0.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
300 mm (11.8 in)
Width
20 mm (0.8 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Sports Suspension
Optional
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
52 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
  • Euro 6c
  • Euro 6d -TEMP
Emission Class
A
Emission › Emission Control
Selective Catalyst Reduction (SCR)
Yes
Emission › Emission Control › Selective Catalyst Reduction (SCR)
Tank Volume (DEF)
9.5 litres
Fuel Consumption NEDC
City
5.1 – 5.2 - 5.2 – 5.4 litres / 100 km
Highway
4.2 - 4.2 – 4.3 litres / 100 km
Combined
4.5 – 4.6 - 4.6 – 4.7 litres / 100 km
Emission NEDC
CO₂, Combined
120 – 121 - 121 – 124 g/km

Dimensions & Weight

Exterior

Track, Front
1,521 mm (59.9 in)
Track, Rear
1,556 mm (61.3 in)
Overhang, Front
770 mm (30.3 in)
Overhang, Rear
869 mm (34.2 in)
Turning Circle
10.9 m
Ground Clearance
140 mm (5.5 in)

Interior

Head Room, Front
1,018 mm (40.1 in)
Head Room, Rear
972 mm (38.3 in)
Shoulder Room, Front
1,400 mm (55.1 in)
Shoulder Room, Rear
1,417 mm (55.8 in)

Weight

Gross Weight
1975 – 1985 kg (4,354 – 4,376 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, braked 8%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
710 kg (1,565 lb)
Cargo Capacity
555 - 555 – 560 kg (1,224 – 1,235 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)
Permitted Axle Load, front
910 kg (2,006 lb)
Permitted Axle Load, rear
1,120 kg (2,469 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Side Mirrors › Adjustments
Driver side
Optional
Windscreen Wipers
Heated Washer Nozzles
Yes
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Pinch Tab
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Yes
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Yes
Mud Flaps
Optional
Electric
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Fog Lights
Main Beam Assist
Optional
Adaptive Headlights
Optional
Headlight Range Adjustment
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
72.6
Central Bore (CB), rear
72.6
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Steel
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
6.5"
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
Media Inputs
USB
App-Connect
Optional
Bluetooth
Yes
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
DVD
Optional
Connectivity › App-Connect
Apple CarPlay
Optional
Displays
Center Display
6.5 - 8.8"
Displays › Center Display
Touchscreen
Optional
Speakers
Total Number of Speakers
6 - 12 pcs
Speakers Max. Watt
205 - 360 W
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Other Equipment › Carpets
Material
  • Rubber
  • Textile
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Number of Spokes
3
Material
Leather
Colour
Black
Steering Ratio
15 :1
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Light
Optional
Rear Trunk
Volume
360 litres
Volume, Back Seat Collapsed
1,200 litres

Design

Colour
Grey
Colour
Black
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Yes
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Second Seat Row › Headrests
Outer Seats
  • Height Adjustment
  • Tilt Adjustment
  • Foldable

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Active Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
Eco
Horn
Dual Note

Accessories

Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Forward Distance Monitoring (FDM)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Active Bonnet
Yes
Emergency Call
Yes
Speed Sensitive
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2012
Adult Occupant
91 %
Child Occupant
83 %
Vulnerable Road Users
63 %
Safety Assist
86 %
Overall
5/5 stars
Test Year
2011
Overall Score
36.33
ANCAP Safety Rating
5
Adult Occupant
Total Points
32.9 /38
Frontal Impact
15.4 /16
Lateral Impact
14.4 /16
Rear Impact
3 /4
Frontal Offset
15.45
Side Impact
15.88
Pole
2
Whiplash Protection (Assessment)
Not Assessed
Child Occupant
Total Points
40.8 /49
Safety Features
5 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
22.6 /49
Pedestrian
  • 16.6
  • 0
  • 6
Safety Assist
Speed Assistance (points)
0 /3
Lane Support (points)
0 /4
Seat Belt Reminders
3
Pedestrian
Protection (Assessment)
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Warranty

Manufacturer
2 years

Identification

On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
  • D1S (xenon)
  • H7
Main Beam
H7
Bi-Xenon
D1S
Datyime Running Light
W3×16d (W21W)
Fog Light, Front
H8
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
BAX9s (H6W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Read Light
W2.1×9.5d (W5W)
Trunk
SV8.5 (C5W)

ACRISS

Type
2-3 Doors (B)

Similar hatchbacks

Suggested vehicles
