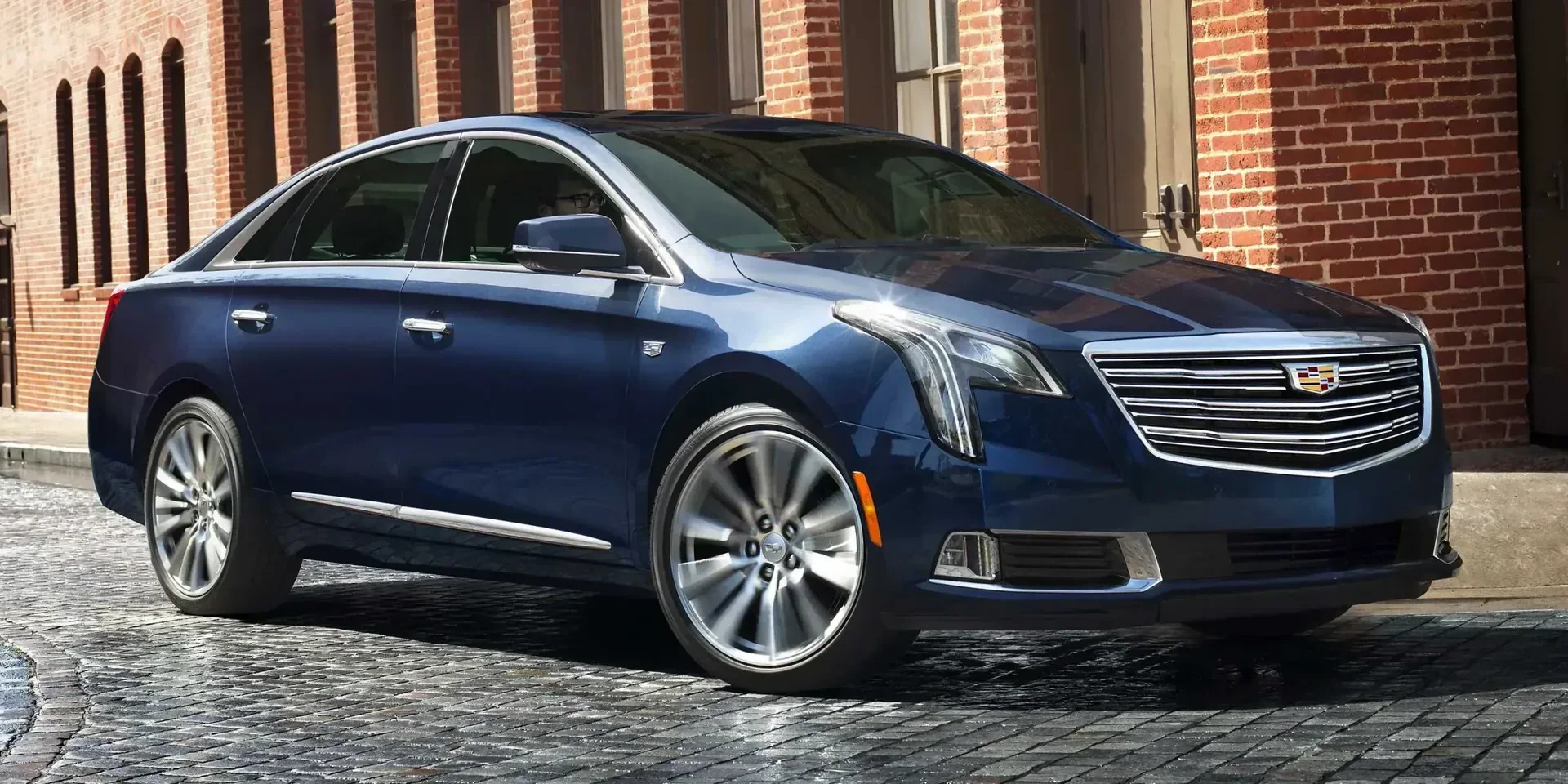

2018 Cadillac XTS

United StatesGasolineAWDSedan

Photos

Specifications

Vehicle Details

Year
2018
Make
Cadillac
Model
XTS
Body Style
Sedan
Generation
1st Generation Facelift
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Electrohydraulic), 6-speed

Powertrain

Engine Name
3.6 V6 AWD Hydra-Matic
Engine Configuration
V
Power (hp)
309 hp
Power (kW)
227 kW
Torque
358 Nm (264 lb-ft)
Displacement
3,564 cc

Dimensions

Length
5,103 mm (200.9 in)
Width
1,852 mm (72.9 in)
Height
1,510 mm (59.4 in)
Wheelbase
2,837 mm (111.7 in)
Curb weight
1,905 kg (4,200 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,800 rpm
Rev. at Max Torque
5,300 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
5.7 litres
Engine Coolant, Volume
7.1 litres
Engine Configuration
Bore
94 mm (3.7 in)
Stroke
85.8 mm (3.4 in)
Compression Ratio
11.5 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
72,000 km / 4 years
Spark Plug
156,000 km (96,934 mi)
Brake Fluid
5 years
Oil Change & Engine Filter
1 years
Engine Coolant
240,000 km / 5 years
Interior Filter
36,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 6-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
4.48 :1
2nd Gear
2.87 :1
3rd Gear
1.84 :1
4th Gear
1.41 :1
5th Gear
1 :1
6th Gear
0.74 :1
Final Drive
2.77 :1
Reverse
2.88 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
345 mm (13.6 in)
Width
20 mm (0.8 in)
Cooling
Ventilated
Rear Brakes
Diameter
315 mm (12.4 in)
Width
23 mm (0.9 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Pneumatic Air
Anti-roll Bar
  • Front
  • Rear
Electronic Damper Control (EDC)
Optional
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
70 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption EPA
City
17 MPG
Highway
26 MPG

Dimensions & Weight

Exterior

Track, Front
1,567 mm (61.7 in)
Track, Rear
1,575 mm (62.0 in)
Turning Circle
11.8 m

Interior

Head Room, Front
991 mm (39.0 in)
Head Room, Rear
960 mm (37.8 in)
Leg Room, Front
1,069 mm (42.1 in)
Leg Room, Rear
1,016 mm (40.0 in)
Hip Room, Front
1,400 mm (55.1 in)
Hip Room, Rear
1,379 mm (54.3 in)
Shoulder Room, Front
1,471 mm (57.9 in)
Shoulder Room, Rear
1,430 mm (56.3 in)

Weight

Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
General Motors Platforms
Epsilon Platform (Epsilon II)

Equipment

Side Mirrors
Mirror Type
Conventional
Heated
Yes
Turning Signal
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Other Equipment
Sunroof
Optional
Normal Roof
Yes

Lights

Main Beam
LED
Low Beam
LED
Special Features
Main Beam Assist
Cornering Lights
Optional

Colour

Finish
Solid

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Tightening Torque
150 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
Media Inputs
USB
Bluetooth
Yes
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Optional
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Back Pocket
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Rear
Yes
Lights
Read Light
Front
Other Equipment
Clock
Digital

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
Tilt
Colour
Black
Multifunction Steering Wheel
Cruise Control
Yes
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Volume
Yes

Trunk

Rear Trunk
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
510 litres

Seats

Colour & Material
Upholstery
Leather
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Cruise Control
Yes
Cameras: Camera Position
Rear
Cruise Control
Adaptive Cruise Control
Optional

Other Features

GPS
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Seat Belt Colour
Black
Belt Pretensioner
  • Driver: Yes
  • Passenger: Yes
  • Rear: -

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Lane Departure Warning (LDW)
Optional

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Yes
Rain Sensors
Optional
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
IIHS
Test Year
2013
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

American Classification
Full-Size Luxury Car
British Classification
Luxury Car
Australian Classification
Upper Large Car
European Segment
F-Segment
Car.info Classification
Luxury Car
