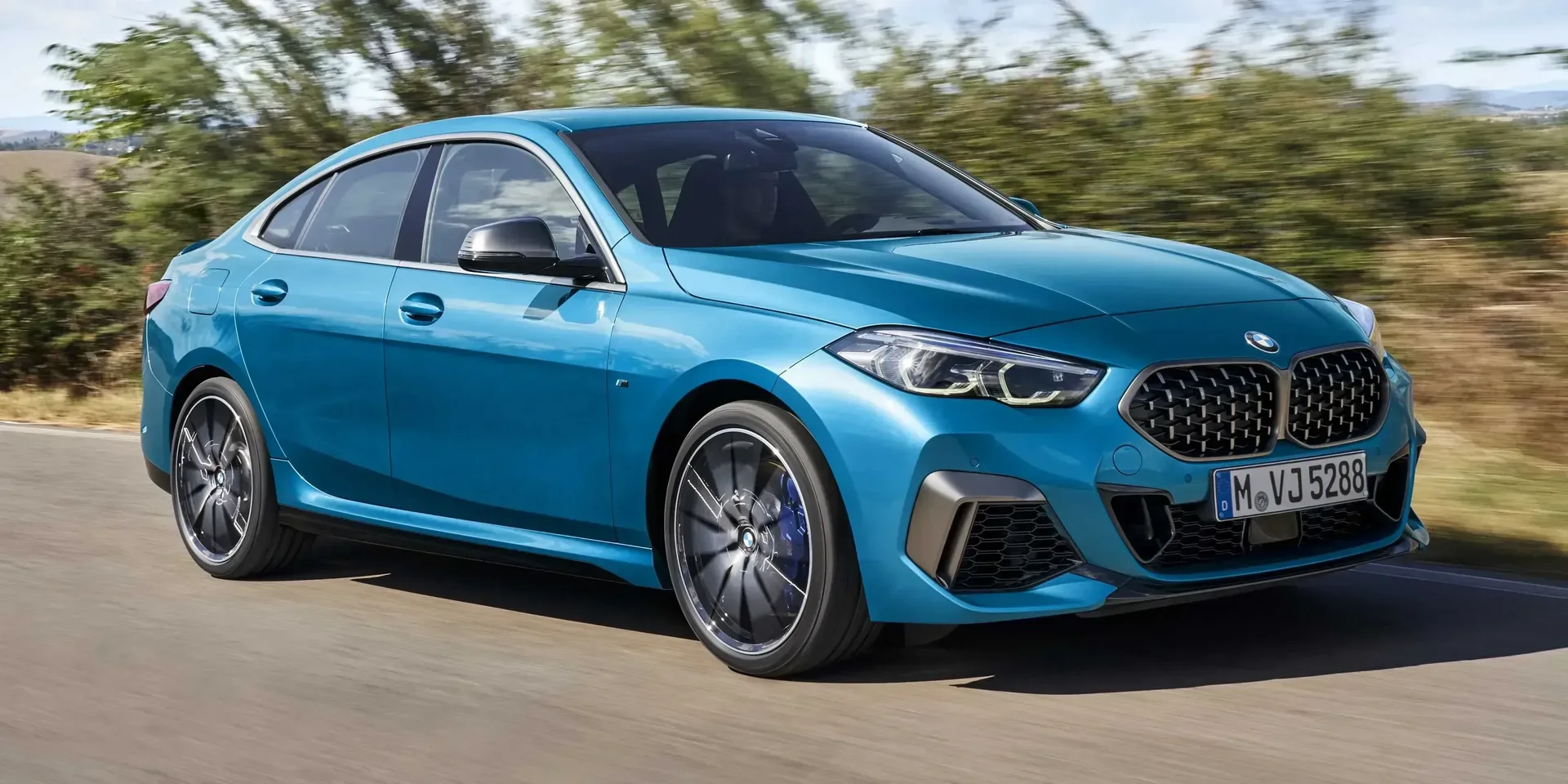

2020 BMW 2 Series M235i xDrive

GermanyGasolineAWDSedan

Photos

Specifications

Vehicle Details

Year
2020
Make
BMW
Model
2 Series
Variant
M235i xDrive
Body Style
Sedan
Generation
F45 LCI
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
M235i xDrive Gran Coupé Steptronic
Engine Configuration
Inline
Power (hp)
306 hp
Power (kW)
225 kW
Torque
450 Nm (332 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.7 seconds (estimated)
0–100 km/h
4.9 seconds
Displacement
1,998 cc

Dimensions

Length
4,526 mm (178.2 in)
Width
1,800 mm (70.9 in)
Height
1,420 mm (55.9 in)
Wheelbase
2,670 mm (105.1 in)
Curb weight
1,645 kg (3,627 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 - 6,250 rpm
Rev. at Max Torque
1,750 - 4,500 rpm
Engine Fluids
Engine Oil, Volume
5.25 litres
Car Battery
Voltage
12 V
Battery Capacity
70 Ah
Engine Configuration
Bore
82 mm (3.2 in)
Stroke
94.6 mm (3.7 in)
Compression Ratio
9.5 :1
Engine Configuration
Inline
Turbocharger
Twin-scroll
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
60,000 km / 4 years
Fuel Filter
60,000 km / 4 years
Spark Plug
60,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed
Transmission
Paddles
Optional
Gear Ratio
1st Gear
5.52 :1
2nd Gear
3.18 :1
3rd Gear
2.05 :1
4th Gear
1.49 :1
5th Gear
1.24 :1
6th Gear
1 :1
7th Gear
0.8 :1
8th Gear
0.67 :1
Final Drive
3.08 :1
Reverse
4.22 :1

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (1)
  • Rear (1)
Front Brakes
Diameter
330 mm (13.0 in)
Width
24 mm (0.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
300 mm (11.8 in)
Width
20 mm (0.8 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Sports Suspension
Yes

Fuel

General
Tank Volume
50 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d
Emission Class
E
WLTP Consumption
Low (l/100km) (WLTP)
9.9 - 11.7 litres / 100 km
Medium (l/100km)
7.3 - 8.2 litres / 100 km
High (l/100km)
6.1 - 7.3 litres / 100 km
Extra High (l/100km)
6.8 - 8 litres / 100 km
Combined (l/100km)
7.1 - 7.8 litres / 100 km
Fuel Consumption NEDC
City
7.5 - 8.6 litres / 100 km
Highway
5.6 - 6.3 litres / 100 km
Combined
6.3 - 7.1 litres / 100 km
Fuel Consumption EPA
Combined
37.2 MPG
Emission WLTP
CO₂, Combined
162 - 177 g/km
Emission NEDC
CO₂, Combined
145 - 162 g/km

Performance

Electronically Limited Top Speed
Yes

Dimensions & Weight

Exterior

Width, with Mirrors
2,081 mm (81.9 in)
Track, Front
1,563 mm (61.5 in)
Track, Rear
1,560 mm (61.4 in)
Overhang, Front
881 mm (34.7 in)
Overhang, Rear
975 mm (38.4 in)
Turning Circle
11.4 m
Ground Clearance
152 mm (6.0 in)

Interior

Head Room, Front
1,017 mm (40.0 in)
Head Room, Rear
919 mm (36.2 in)
Leg Room, Front
1,052 mm (41.4 in)
Leg Room, Rear
873 mm (34.4 in)
Hip Room, Front
1,410 mm (55.5 in)
Hip Room, Rear
1,349 mm (53.1 in)
Shoulder Room, Front
1,443 mm (56.8 in)
Shoulder Room, Rear
1,430 mm (56.3 in)

Weight

Curb Weight (DIN)
1,570 kg (3,461 lb)
Gross Weight
2,105 kg (4,641 lb)
Cargo Capacity
535 kg (1,179 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)
Permitted Axle Load, front
1,140 kg (2,513 lb)
Permitted Axle Load, rear
1,040 kg (2,293 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Black
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Heated Water Tank
Optional
Windscreen Wipers: Connector type, Front
Pinch Tab
Number of Windscreen Wipers, Front
2
Windscreen Wipers › Heated Water Tank
Timer
Optional
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Frameless Windows
  • First Row
  • Second Row
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
Yes
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Spoiler
Fixed
Antenna
Shark Fin
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Come Home/Leaving Lights
Fog Lights
Rear
LED
Special Features
Main Beam Assist
Optional
Adaptive Headlights
Optional
Dynamic Turn Signal
Optional
Dynamic Cornering Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Shift Indicator
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Buttons
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • FM
  • DAB
Media Format
  • FLAC
  • MP3
Media Inputs
USB
App-Connect
  • Android Auto
  • Apple CarPlay (Wireless)
Bluetooth
  • Phone
  • Audio
WiFi
Optional
Displays
Center Display
Yes
Center Display Controls
  • Touchscreen
  • Gesture Control
Displays › Center Display
Type
Colour
Speakers
Subwoofer
Optional
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Phone/Tablet Holder
Optional
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
230V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Ratio
14 :1
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Scrolling Wheel)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Second Trunk Compartment
Yes
Light
Yes
Rear Trunk
Volume
430 litres
Carpet
Rubber
Optional

Design

Accent
Aluminium
Pedals
  • Aluminium
  • Sport
Colour
Black
Colour
Blue
Optional
Red
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Cushion Tilt
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Cushion Tilt
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Easy Entry
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
40/20/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Optional
Cameras
Optional
Voice Control
Yes
Wireless Phone Charger
Optional
Automatic Access Height
Optional
Cruise Control
Adaptive Cruise Control
Optional
Active Cruise Control
Optional
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Launch Control
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Individual
  • Sport
Dynamic Chassis Control (DCC)
Yes
Smartphone App
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Torque Vectoring (DTV)
Yes
Positive Torque Control (PTC)
Optional
Forward Collision Warning (FCW)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Stability Assist (TSA)
Yes
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Obstacle Detection Sensor
Optional
Driver Alertness Warning (DAW)
Optional
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Active Bonnet
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2019
Adult Occupant
94 %
Child Occupant
87 %
Vulnerable Road Users
76 %
Safety Assist
72 %
Overall
5/5 stars
Adult Occupant
Total Points
35.9 /38
Lateral Impact
16 /16
Rear Impact
1.5 /4
Child Occupant
Total Points
43 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
8 /13
CRS Installation Check
11 /12
Vulnerable Road Users
Total Points
36.5 /49
Pedestrian
  • 17.3
  • 2.9
  • 5.6
AEB Vulnerable Road Users
10.7 /18
AEB Pedestrian
5.5 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
5.2 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.5 /3
Speed Assistance (assesment)
Good
Seat Belt Reminder (assesment)
Good
Lane Support (points)
1.8 /4
Lane Support (assesment)
Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Car Classification

American Classification
MPV
British Classification
Compact MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
  • Medium Family Car
  • Medium MPV

Similar sedans

Suggested vehicles
