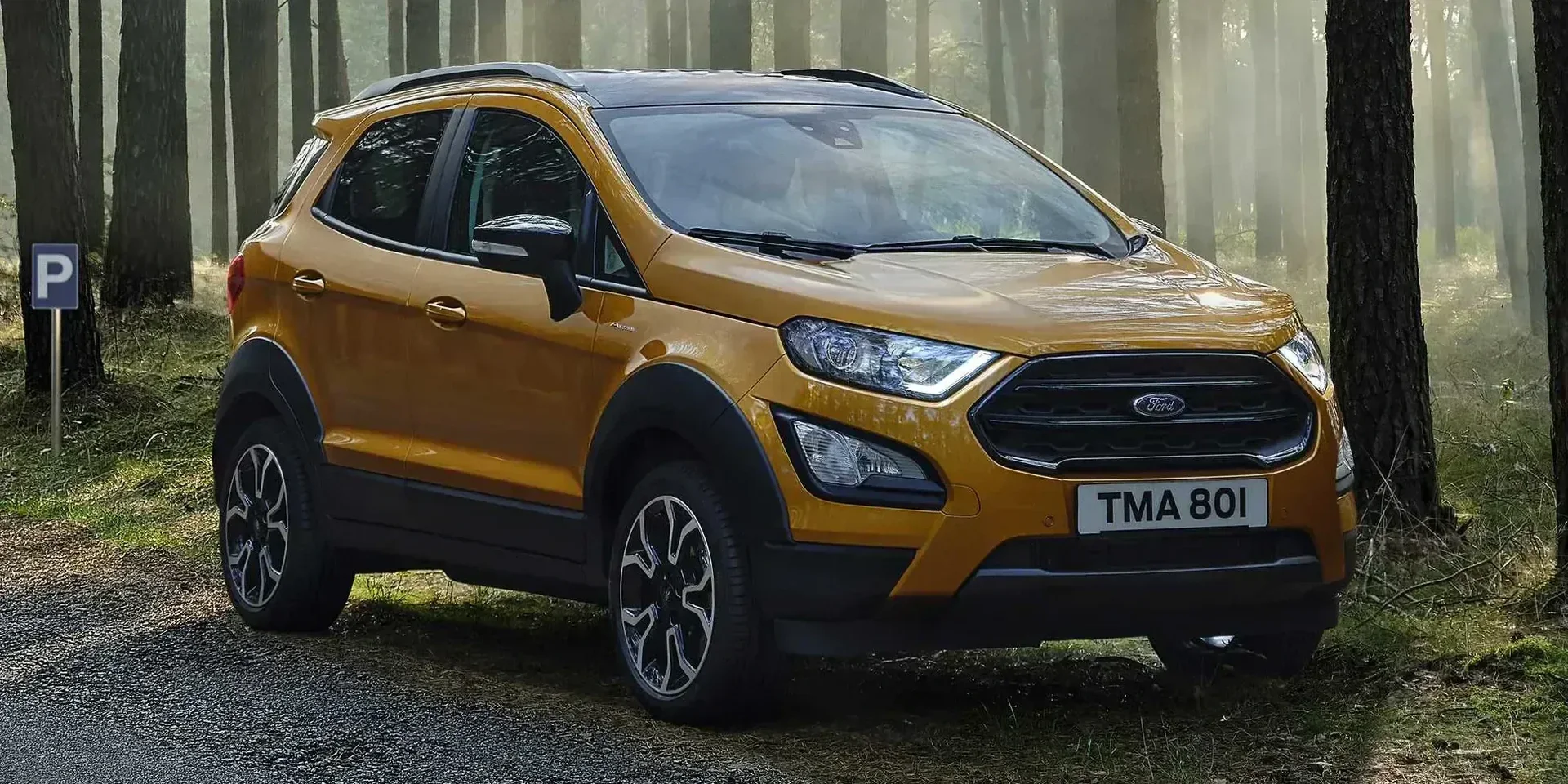

2018 Ford EcoSport

United StatesGasolineFWDSUV

Photos

Specifications

Vehicle Details

Year
2018
Make
Ford
Model
EcoSport
Body Style
SUV
Generation
2nd Generation Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

Engine Name
1.0 EcoBoost
Engine Configuration
Inline
Power (hp)
125 hp
Power (kW)
92 kW
Torque
170 Nm (125 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
11.0 seconds (estimated)
0–100 km/h
11.6 seconds
Displacement
998 cc

Dimensions

Length
4,017 mm (158.1 in)
Width
1,765 mm (69.5 in)
Height
1,650 mm (65.0 in)
Wheelbase
2,519 mm (99.2 in)
Curb weight
1,280 kg (2,822 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6000 – 6300 rpm
Rev. at Max Torque
1400 – 4400 - 4400 – 5000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-20
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
Engine Oil, Volume
4.6 litres
Engine Configuration
Bore
71.9 mm (2.8 in)
Stroke
82 mm (3.2 in)
Compression Ratio
10 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Type of Combustion Engine
Piston
Service Intervals
Timing Interval
240,000 km / 10 years
Air Filter
48,000 km (29,826 mi)
Spark Plug
160,000 km / 6 years
Brake Fluid
3 years
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
160,000 km / 6 years
Interior Filter
16,000 km / 1 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
52 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 6d -TEMP
Emission Class
  • B
  • D
Fuel Consumption NEDC
City
6.2 – 7.2 litres / 100 km
Highway
4.6 – 5 litres / 100 km
Combined
5.2 – 5.8 litres / 100 km
Emission NEDC
CO₂, Combined
119 – 134 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,057 mm (81.0 in)
Track, Front
1,530 mm (60.2 in)
Track, Rear
1,522 mm (59.9 in)
Turning Circle
10.7 m
Ground Clearance
200 mm (7.9 in)

Interior

Head Room, Front
1,008 mm (39.7 in)
Head Room, Rear
971 mm (38.2 in)
Leg Room, Front
1,090 mm (42.9 in)
Leg Room, Rear
933 mm (36.7 in)
Hip Room, Front
1,310 mm (51.6 in)
Hip Room, Rear
1,293 mm (50.9 in)
Shoulder Room, Front
1,355 mm (53.3 in)
Shoulder Room, Rear
1,302 mm (51.3 in)

Weight

Gross Weight
1730 – 1775 kg (3,814 – 3,913 lb)
Max Trailer Load, braked 12%
900 – 1100 kg (1,984 – 2,425 lb)
Max Trailer Load, unbraked
670 – 680 kg (1,477 – 1,499 lb)
Cargo Capacity
450 – 451 kg (992 – 994 lb)
Max Roof Load
40 kg (88 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Ford Motor Company
B3 Platform (Global B Platform)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
4 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
63.4
Central Bore (CB), rear
63.4
Fastening Type
Lug Nuts
Tightening Torque
135 Nm
Rim Type
Disc Wheel
Tire Pressure Monitoring System (TPMS)
Indirect
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
Media Inputs
USB
Bluetooth
Yes
Connectivity › Media Inputs
AUX
Yes
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
355 litres
Volume, Back Seat Collapsed
1,238 litres
Depth
950 mm (37.4 in)
Depth, Back Seat Collapsed
1,369 mm (53.9 in)
Width
950 mm (37.4 in)
Opening Width
1,022 mm (40.2 in)
Height
1,010 mm (39.8 in)
Sill Height
627 mm (24.7 in)

Design

Interior Decor Material
Plastic
Transmission Knob Material
Plastic
Colour
Black

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Hill Start Assist (HSA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Speed Sensitive
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2013
Adult Occupant
93 %
Child Occupant
77 %
Vulnerable Road Users
58 %
Safety Assist
55 %
Overall
4/5 stars
IIHS
Test Year
2018
Head Restraints & Seats
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Paintwork
2 years
Rust Damage
12 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Subcompact SUV
British Classification
Mini 4x4
Australian Classification
Small SUV
European Segment
J-Segment JB-Segment
Car.info Classification
Small SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D5S (xenon)
  • H7
  • H18
Main Beam
H1
Fog Light, Front
H8
Fog Light, Rear
BA15s (P21W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Side
W2.1×9.5d (WY5W)
Turn Indicators, Rear
BAU15s (PY21W)
Make-up Mirrors
W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

Similar suvs

Suggested vehicles
