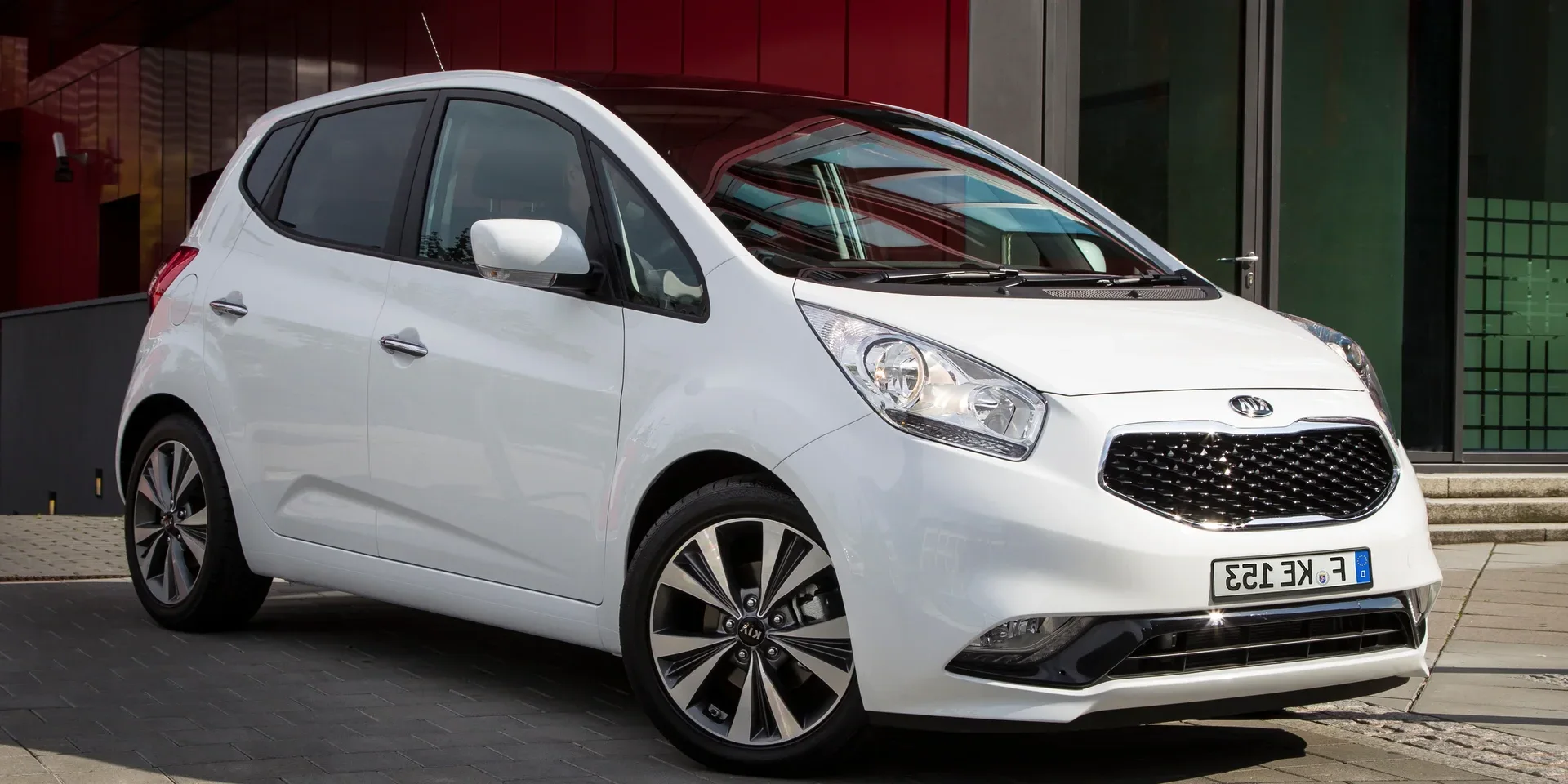

2018 Kia Venga

South KoreaDieselFWDMinivan

Photos

Specifications

Vehicle Details

Year
2018
Make
Kia
Model
Venga
Body Style
Minivan
Generation
YN Facelift
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
1.4 CRDi Manual
Engine Configuration
Inline
Power (hp)
90 hp
Power (kW)
66 kW
Torque
220 Nm (162 lb-ft)
Top speed
167 km/h (104 mph)
0–60 mph
13.8 seconds (estimated)
0–100 km/h
14.5 seconds
Displacement
1,396 cc

Dimensions

Length
4,075 mm (160.4 in)
Width
1,765 mm (69.5 in)
Height
1,600 mm (63.0 in)
Wheelbase
2,615 mm (103.0 in)
Curb weight
1,370 kg (3,020 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,750 - 2,750 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
5.3 litres
Engine Configuration
Bore
75 mm (3.0 in)
Stroke
79 mm (3.1 in)
Compression Ratio
17 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Service Intervals
Air Filter
60,000 km (37,282 mi)
Fuel Filter
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
30,000 km / 1 years
Engine Coolant
2 years
Interior Filter
30,000 km / 2 years

Brakes

Parking Brake
Manual
Lever
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Steel
Brake Caliper Colour
Grey
Front Brakes
Diameter
280 mm (11.0 in)
Cooling
Ventilated
Rear Brakes
Diameter
258 mm (10.2 in)

Suspensions

Suspension, Front
Independent
MacPherson Strut
Spring, Rear
Torsion

Fuel

General
Tank Volume
48 litres
Emission
Emission Standard
Euro 6
Fuel Consumption NEDC
City
5.6 litres / 100 km
Highway
4.3 litres / 100 km
Combined
4.7 litres / 100 km
Emission NEDC
CO₂, Combined
115 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,020 mm (79.5 in)
Track, Front
1,553 mm (61.1 in)
Track, Rear
1,557 mm (61.3 in)
Overhang, Front
792 mm (31.2 in)
Overhang, Rear
668 mm (26.3 in)
Turning Circle
10.42 m
Ground Clearance
155 - 156 mm (6.1 - 6.1 in)

Interior

Head Room, Front
1,020 mm (40.2 in)
Head Room, Rear
980 mm (38.6 in)
Leg Room, Front
1,080 mm (42.5 in)
Leg Room, Rear
901 mm (35.5 in)
Shoulder Room, Front
1,388 mm (54.6 in)
Shoulder Room, Rear
1,367 mm (53.8 in)

Weight

Gross Weight
1,800 kg (3,968 lb)
Max Trailer Load, braked 12%
1,300 kg (2,866 lb)
Max Trailer Load, unbraked
550 kg (1,213 lb)
Cargo Capacity
430 kg (948 lb)
Max Roof Load
70 kg (154 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Hyundai-Kia Platforms
Small Automobile Platform (PB)

Equipment

Side Mirrors
Mirror Type
Conventional
Folding
Manual
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Convex
Mirror Shape, Passenger side
Convex
Windscreen Wipers
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Normal Roof
Yes
Spoiler
Fixed
Antenna
Whip

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Yes
Fog Lights
Front
Yes
Special Features
Headlight Range Adjustment
Manual

Colour

Finish
Solid

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Fastening Type
Lug Nuts
Tightening Torque
88 - 107 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Number of Climate Zones
1
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Refrigerant, Capacity
550 g
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
Media Inputs
USB
Bluetooth
Optional
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
Optional
Displays › Center Display
Touchscreen
Optional
Interior Storage › Storage Compartments
Glove Compartment
Yes
Lights
Read Light
Front
Other Equipment
Clock
Digital
12V Outlet
Front
Carpets
Optional
Cigarette Lighter
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Adjustments
Tilt
Colour
Black
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
440 litres
Volume, Back Seat Collapsed
1,486 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Front Seats
Heated Seats
Yes
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Cruise Control
Optional
Cruise Control
Rear
Optional

Other Features

GPS
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes
Child Safety Locks
Manual
Immobiliser
Electronic
Yes
Central Locking
Remote
Optional

Safety Testing

General
Test Year
2010
Adult Occupant
89 %
Child Occupant
85 %
Vulnerable Road Users
64 %
Safety Assist
71 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
7 years
12V Battery
2 years
Paintwork
150,000 km / 5 years
Rust Damage
150,000 km / 7 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
150,000 km (93,206 mi)

Identification

VIN Location
Left Side Casing of Window
Yes
Right Side Casing of Window
Yes
Passenger Seat
in Front of

Car Classification

British Classification
Mini MPV
European Segment
M-Segment
Car.info Classification
Small MPV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H1
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Read Light
SV8.5 (C5W)
Trunk
SV8.5 (C5W)
License Plate Light
W2.1×9.5d (W5W)
