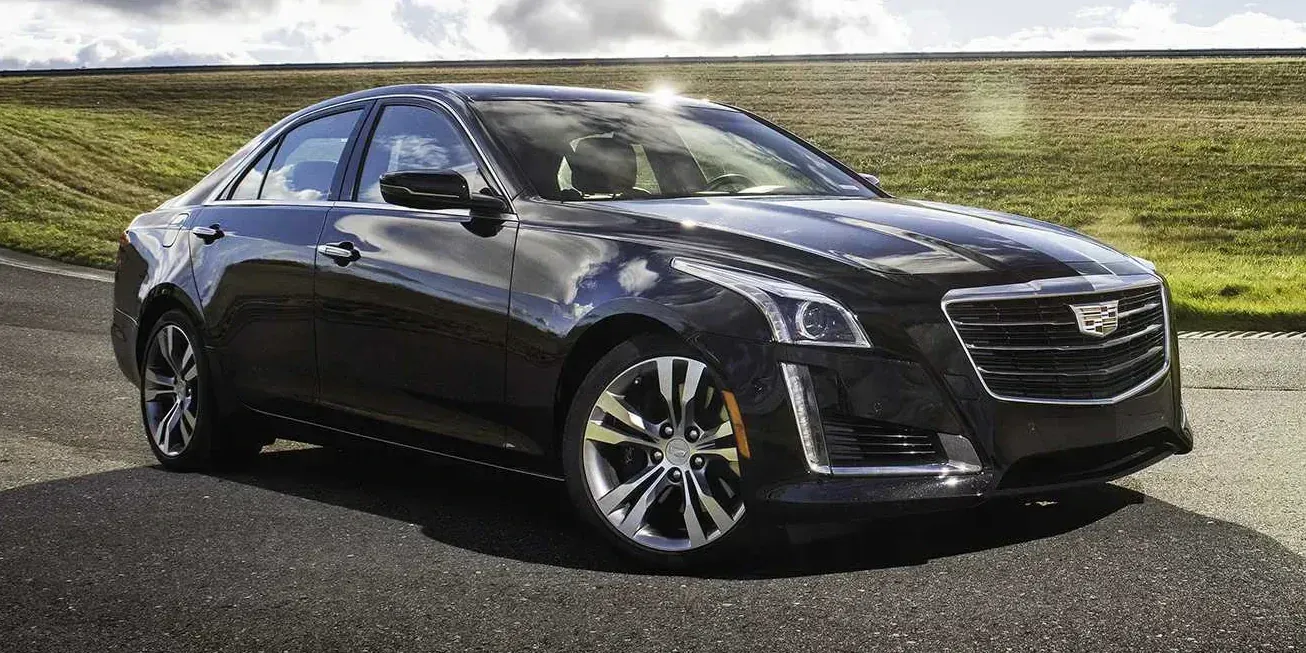

2019 Cadillac CTS V-Sport

United StatesGasolineRWDSedan

Specifications

Vehicle Details

Year
2019
Make
Cadillac
Model
CTS
Variant
V-Sport
Body Style
Sedan
Generation
3rd Generation Facelift
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
RWD
Transmission
Automatic (Electrohydraulic), 8-speed

Powertrain

Engine Name
V-Sport Automatic
Engine Configuration
V
Power (hp)
426 hp
Power (kW)
313 kW
Torque
583 Nm (430 lb-ft)
Displacement
3,564 cc

Dimensions

Length
4,966 mm (195.5 in)
Width
1,833 mm (72.2 in)
Height
1,454 mm (57.2 in)
Wheelbase
2,910 mm (114.6 in)
Curb weight
1,793 kg (3,953 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,750 rpm
Rev. at Max Torque
3,500 - 4,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
6.6 litres
Engine Coolant, Volume
12.8 litres
Engine Configuration
Bore
94 mm (3.7 in)
Stroke
85.6 mm (3.4 in)
Compression Ratio
10.2 :1
Engine Configuration
V-Engine
Turbocharger
Twin-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
72,000 km / 4 years
Spark Plug
96,000 km (59,652 mi)
Brake Fluid
240,000 km / 10 years
Oil Change & Engine Filter
1 years
Engine Coolant
240,000 km / 5 years
Rear Axle, Oil
72,000 km (44,739 mi)
Interior Filter
36,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 8-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
4.6 :1
2nd Gear
2.72 :1
3rd Gear
1.86 :1
4th Gear
1.46 :1
5th Gear
1.23 :1
6th Gear
1 :1
7th Gear
0.82 :1
8th Gear
0.69 :1
Final Drive
2.85 :1
Reverse
4.06 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
321 - 345 mm (12.6 - 13.6 in)
Cooling
Ventilated
Rear Brakes
Diameter
315 mm (12.4 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Electronic Damper Control (EDC)
Optional
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
72 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption EPA
City
16 MPG
Highway
24 MPG

Dimensions & Weight

Exterior

Track, Front
1,560 mm (61.4 in)
Track, Rear
1,568 mm (61.7 in)
Turning Circle
11.3 - 11.5 m

Interior

Head Room, Front
995 mm (39.2 in)
Head Room, Rear
952 mm (37.5 in)
Leg Room, Front
1,160 - 1,081 mm (45.7 - 42.6 in)
Leg Room, Rear
899 mm (35.4 in)
Hip Room, Front
1,366 mm (53.8 in)
Hip Room, Rear
1,353 mm (53.3 in)
Shoulder Room, Front
1,446 mm (56.9 in)
Shoulder Room, Rear
1,392 mm (54.8 in)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
General Motors Platforms
Alpha Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
User Memory
Yes
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Side Mirrors › Folding
Driver side
Optional
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Spoiler
Yes

Lights

Daytime Running Light
LED

Colour

Finish
Metallic

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.9
Fastening Type
Lug Nuts
Tightening Torque
150 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Connectivity
Radio
  • AM
  • FM
  • HD Radio
Media Inputs
USB
App-Connect
Android Auto
Bluetooth
Phone
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
8"
Speakers
Total Number of Speakers
11 - 13 pcs
Speaker Brand
Bose
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Lights
Read Light
Front
Other Equipment
12V Outlet
Front

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
Telescope
Material
Leather
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Cruise Control
Yes

Trunk

Rear Trunk
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
388 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Yes
Heated Seats
Optional
Armrest
Yes
Ventilated Seats
Optional
Front Seats › Power Seat, Driver
User Memory
2 slots
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Remote Engine Start
Yes
Cruise Control
Yes
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

Start & Stop
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Lane Assist System
Optional

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
IIHS
Test Year
2015
Small Overlap Front: Driver Side
Marginal
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Headlight
Poor
Latch Ease of Use
Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag

Other

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left

Car Classification

American Classification
Mid-Size Luxury Car
British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car

Awards

Motor Trend
Car of the Year
2014
