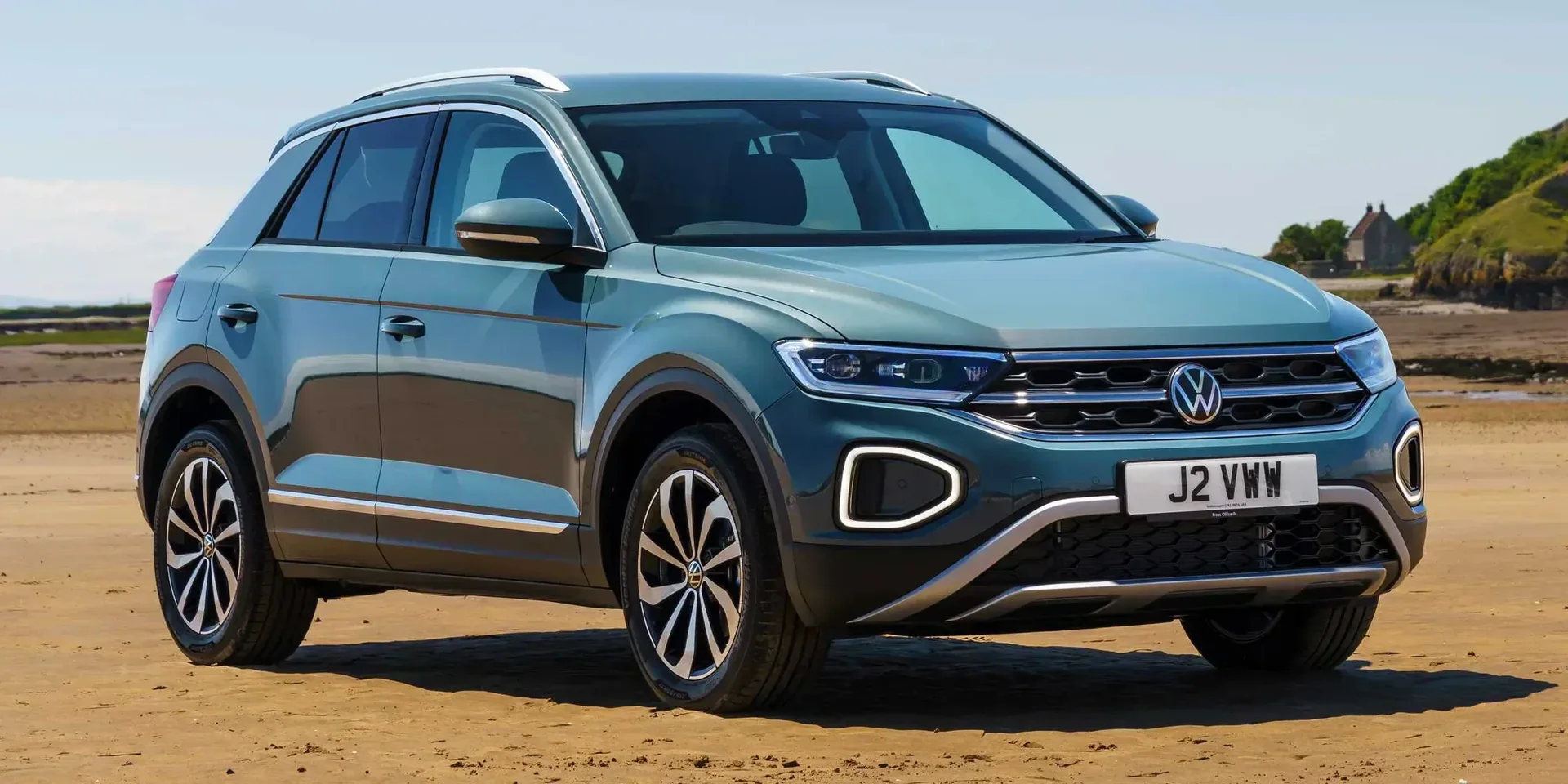

2019 Volkswagen T-Roc

GermanyGasolineFWDSUV

Photos

Specifications

Vehicle Details

Year
2019
Make
Volkswagen
Model
T-Roc
Body Style
SUV
Generation
Type A1
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Manual, 6-speed

Powertrain

Engine Name
1.0 TSI OPF Manual
Engine Configuration
Inline
Power (hp)
116 hp
Power (kW)
85 kW
Torque
200 Nm (148 lb-ft)
Top speed
187 km/h (116 mph)
0–60 mph
9.6 seconds (estimated)
0–100 km/h
10.1 seconds
Displacement
999 cc

Dimensions

Length
4,234 mm (166.7 in)
Width
1,819 mm (71.6 in)
Height
1,573 mm (61.9 in)
Wheelbase
2,590 mm (102.0 in)
Curb weight
1,270 kg (2,800 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
2,000 - 3,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-40
Engine Oil, Volume
4 litres
Engine Configuration
Bore
74.5 mm (2.9 in)
Stroke
76.4 mm (3.0 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
90,000 km / 6 years
Spark Plug
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
Front (1)
Brakes Material
Cast Iron
Front Brakes
Diameter
272 - 312 mm (10.7 - 12.3 in)
Cooling
Ventilated
Rear Brakes
Diameter
272 - 310 mm (10.7 - 12.2 in)
Cooling
Solid
Rear Brakes › Cooling
Ventilated
Optional

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
Front
Sports Suspension
Optional
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Semi-dependent
Twist-Beam

Fuel

General
Tank Volume
50 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d -TEMP-EVAP-ISC
Emission Class
B
Emission Control
  • Catalyst
  • Particle Filter
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
WLTP Consumption
Combined (l/100km)
6.2 litres / 100 km
Fuel Consumption NEDC
City
6.1 - 6.6 litres / 100 km
Highway
4.5 - 4.7 litres / 100 km
Combined
5.1 - 5.4 litres / 100 km
Emission WLTP
CO₂, Combined
140 g/km
Emission NEDC
CO₂, Combined
115 - 123 g/km

Performance

Acceleration
0-80 km/h
6.7 sec
80-120 km/h
9 sec

Dimensions & Weight

Exterior

Width, with Mirrors
1,992 mm (78.4 in)
Track, Front
1,538 - 1,546 mm (60.6 - 60.9 in)
Track, Rear
1,533 - 1,541 mm (60.4 - 60.7 in)
Overhang, Front
831 mm (32.7 in)
Overhang, Rear
800 mm (31.5 in)
Approach Angle
16.4 °
Breakover Angle
12.5 - 12.8
Departure Angle
18.8 °
Turning Circle
11.1 m
Ground Clearance
161 mm (6.3 in)

Interior

Head Room, Front
993 - 1,043 mm (39.1 - 41.1 in)
Head Room, Rear
961 - 982 mm (37.8 - 38.7 in)
Hip Room, Front
1,471 mm (57.9 in)
Hip Room, Rear
1,474 mm (58.0 in)

Weight

Gross Weight
1,780 - 1,790 kg (3,924 - 3,946 lb)
Max Trailer Load, braked 12%
1,300 kg (2,866 lb)
Max Trailer Load, braked 8%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
630 kg (1,389 lb)
Cargo Capacity
420 - 585 kg (926 - 1,290 lb)
Max Roof Load
50 kg (110 lb)
Max Towbar Download
80 kg (176 lb)
Permitted Axle Load, front
920 kg (2,028 lb)
Permitted Axle Load, rear
910 kg (2,006 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
MQB A1

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Automatic Tilt Down
Optional
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Other Equipment
Sunroof
Optional
Roof Railing
Optional
Antenna
Glass-integrated
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Fog Lights
Rear
LED
Special Features
Automatic Headlight Activation
Optional
Main Beam Assist
Optional
Adaptive Headlights
Optional
Dynamic Turn Signal
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
120 Nm
Rim Colour
Silver
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
  • WMA
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Optional
Connectivity › Media Format
Memory Card Reader
SD
Connectivity › Media Inputs
AUX
Armrest Hatch/Mid-console
USB
  • USB-A
  • USB-C
Connectivity › Media Inputs › USB
Placement
Front
Armrest Hatch/Mid-console
Optional
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
MirrorLink
Optional
Connectivity › Cellular Network
4G
Optional
Connectivity › Cellular Network › 4G
3G
Optional
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable
Armrest Hatch
Front
Back Pocket
Yes
Coin Holder
Optional
Card Holder
Optional
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Cover
Yes
Flat Surface
Yes
Rear Trunk
Volume
445 litres
Volume, Back Seat Collapsed
1,290 litres
Depth
830 mm (32.7 in)
Depth, Back Seat Collapsed
1,532 mm (60.3 in)
Width
1,127 mm (44.4 in)
Width, Between Wheel Arches
1,011 mm (39.8 in)
Height
640 mm (25.2 in)
Trunk Door Opening Height
2,089 mm (82.2 in)
Sill Height
750 mm (29.5 in)

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black
Pedals
Standard
Pedals
Stainless Steel
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Collapsible
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional
Voice Control
Navigation
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Optional
Speed Assist
Optional
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2017
Adult Occupant
96 %
Child Occupant
87 %
Vulnerable Road Users
79 %
Safety Assist
71 %
Overall
5/5 stars
Test Year
2017
ANCAP Safety Rating
5
Adult Occupant
Total Points
36.6 /38
Frontal Impact
15.2 /16
Lateral Impact
16 /16
Rear Impact
2.4 /4
Protection
96 %
Protection
36.6
Full Width
7.68
Frontal Offset
7.45
Side Impact
8
Pole
8
Whiplash Protection (Front)
2.43
AEB (City)
3
Child Occupant
Total Points
43 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Protection
87 %
Protection
43
Vulnerable Road Users
Total Points
33.5 /49
Pedestrian
  • 17.3
  • 4.4
  • 6
AEB Pedestrian
5.8 /9
Safety Assist
Speed Assistance (points)
0 /3
Lane Support (points)
2.7 /4
Safety Assist
71 %
Safety Assist
8.6
Speed Assistance System
0
Seat Belt Reminders
3
Lane Support System
2.8
AEB (Interurban)
2.8
Pedestrian
Protection
79 %
Protection
33.5

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Paintwork
3 years
Rust Damage
12 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Trunk
on Floor
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Subcompact SUV
European Segment
  • J-Segment JB-Segment
  • JC-Segment
Car.info Classification
Small SUV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Fog Light, Front
H8
Turn Indicators, Front
BAU15s (PY21W)
Glove Compartment
W2.1×9.5d (W3W)
Read Light
W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)

ACRISS

Category
Intermediate (I)
Type
Crossover (G)

Similar suvs

Suggested vehicles
