2020 MG ZS

United KingdomGasolineFWDSUV

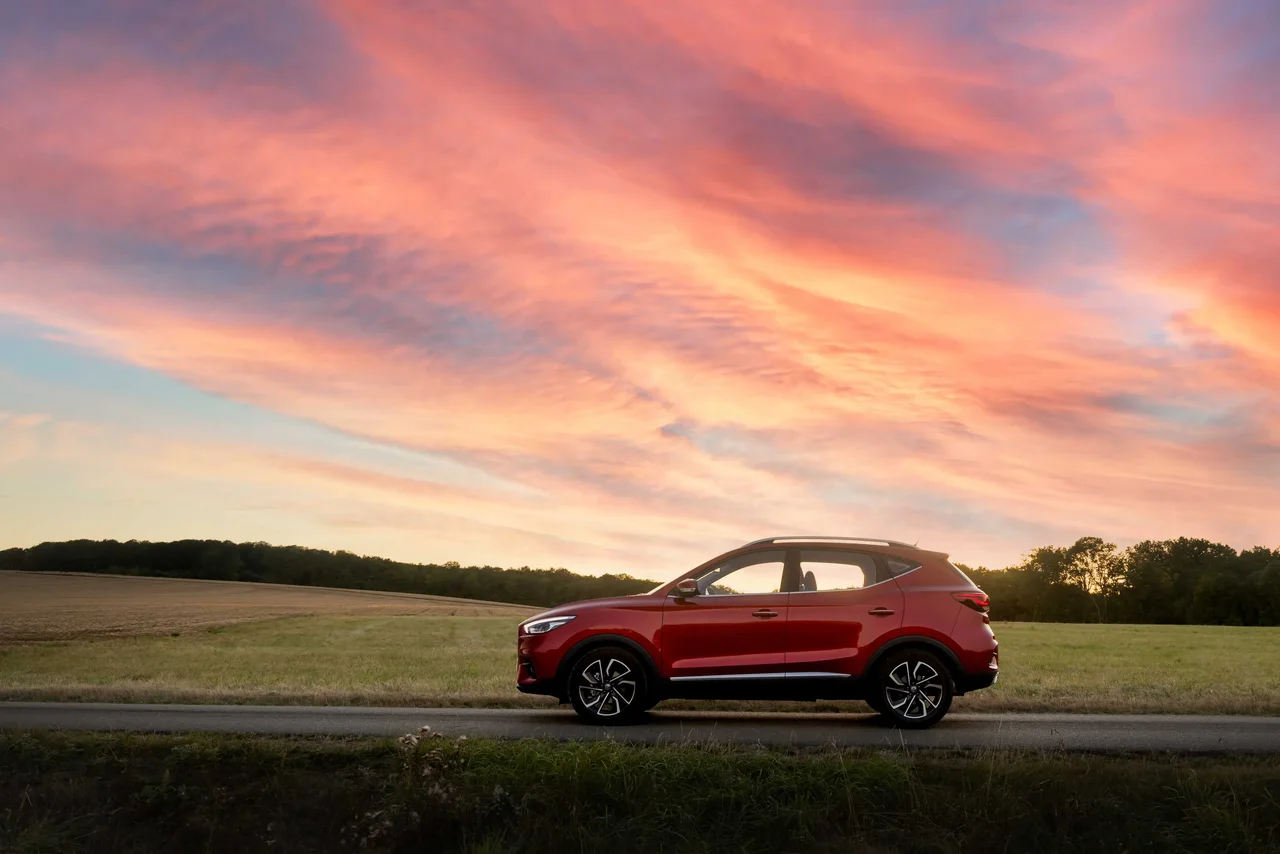

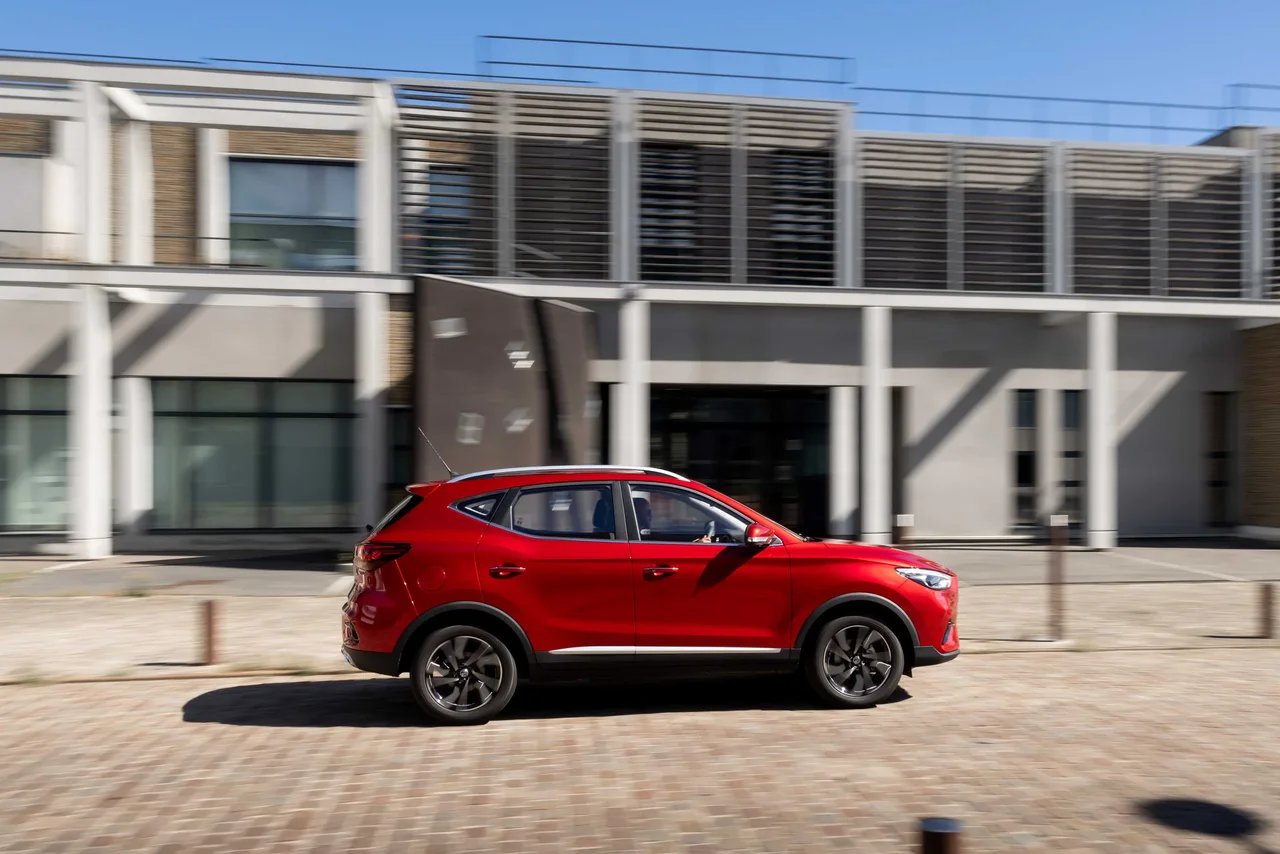

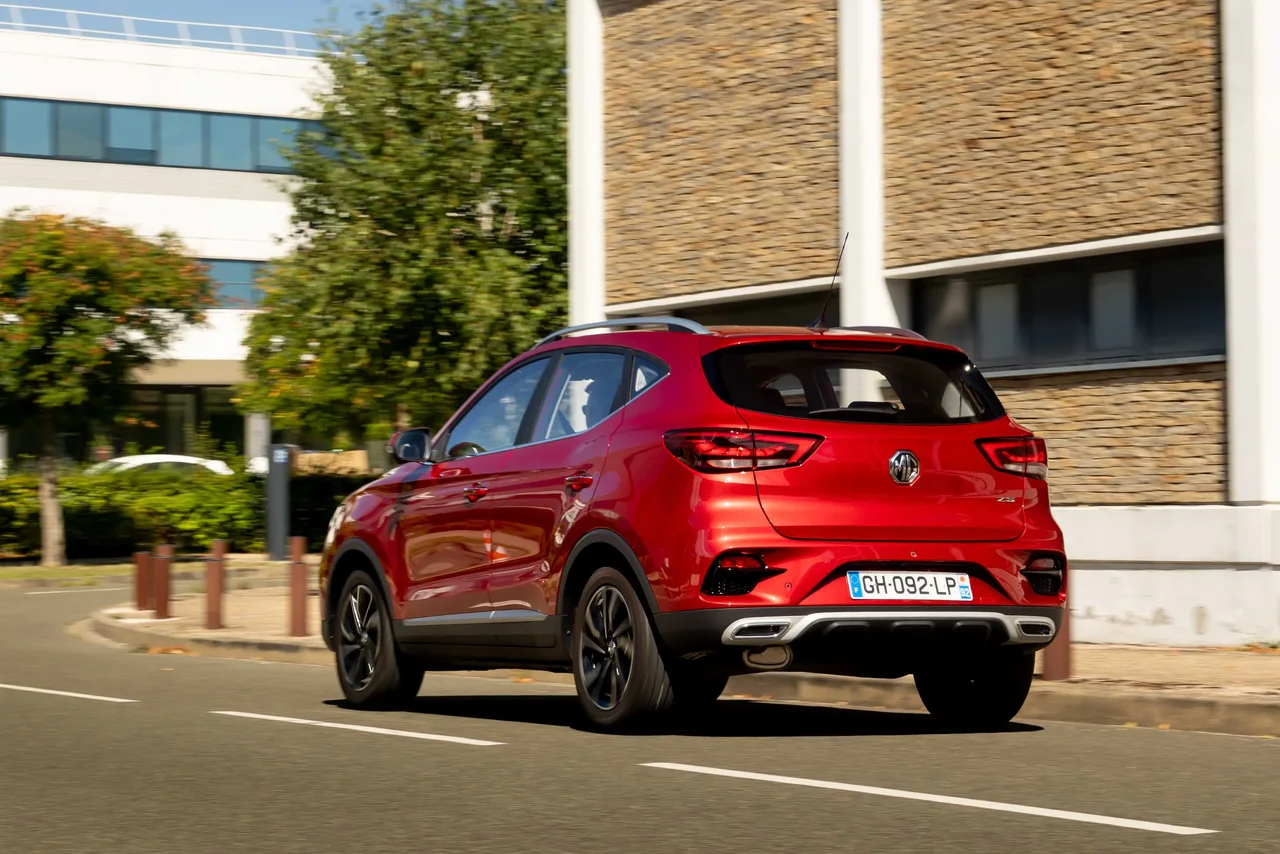

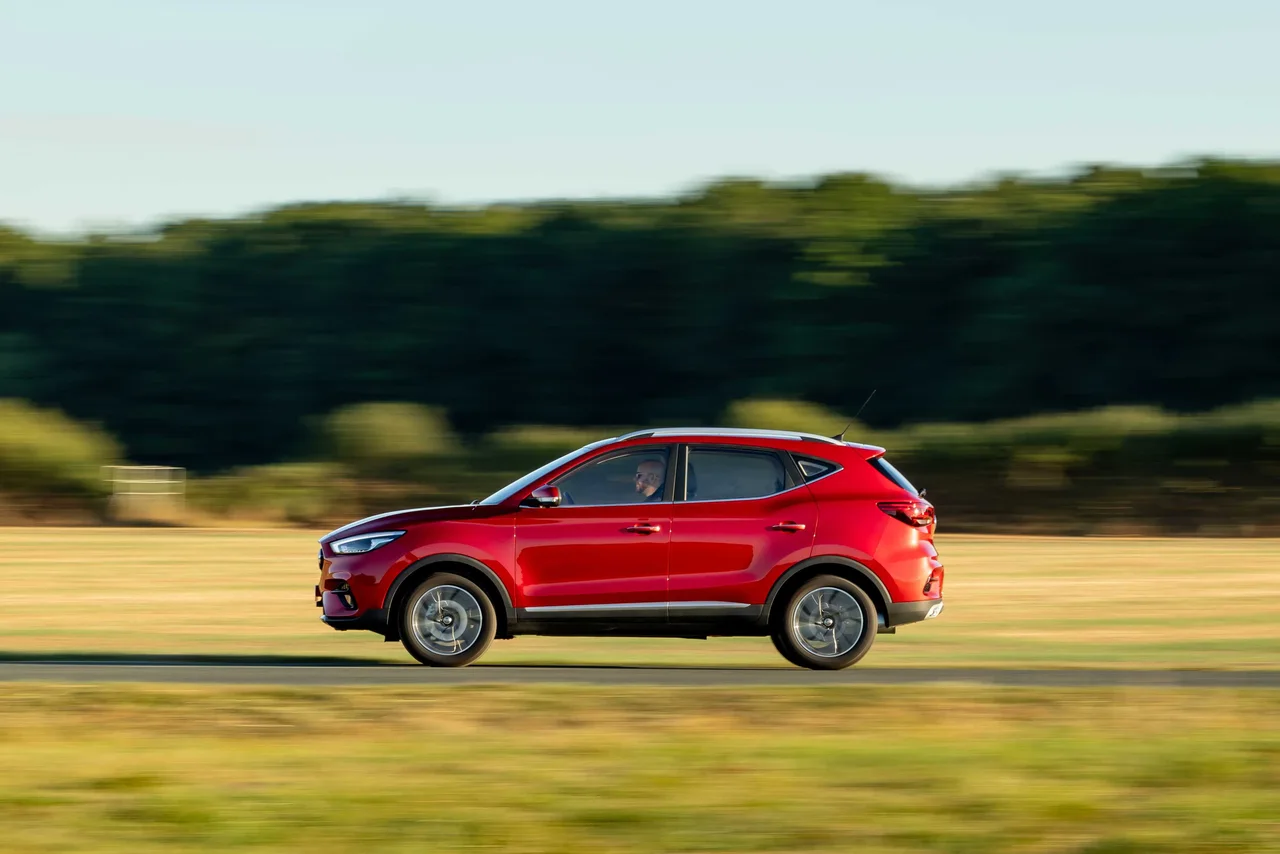

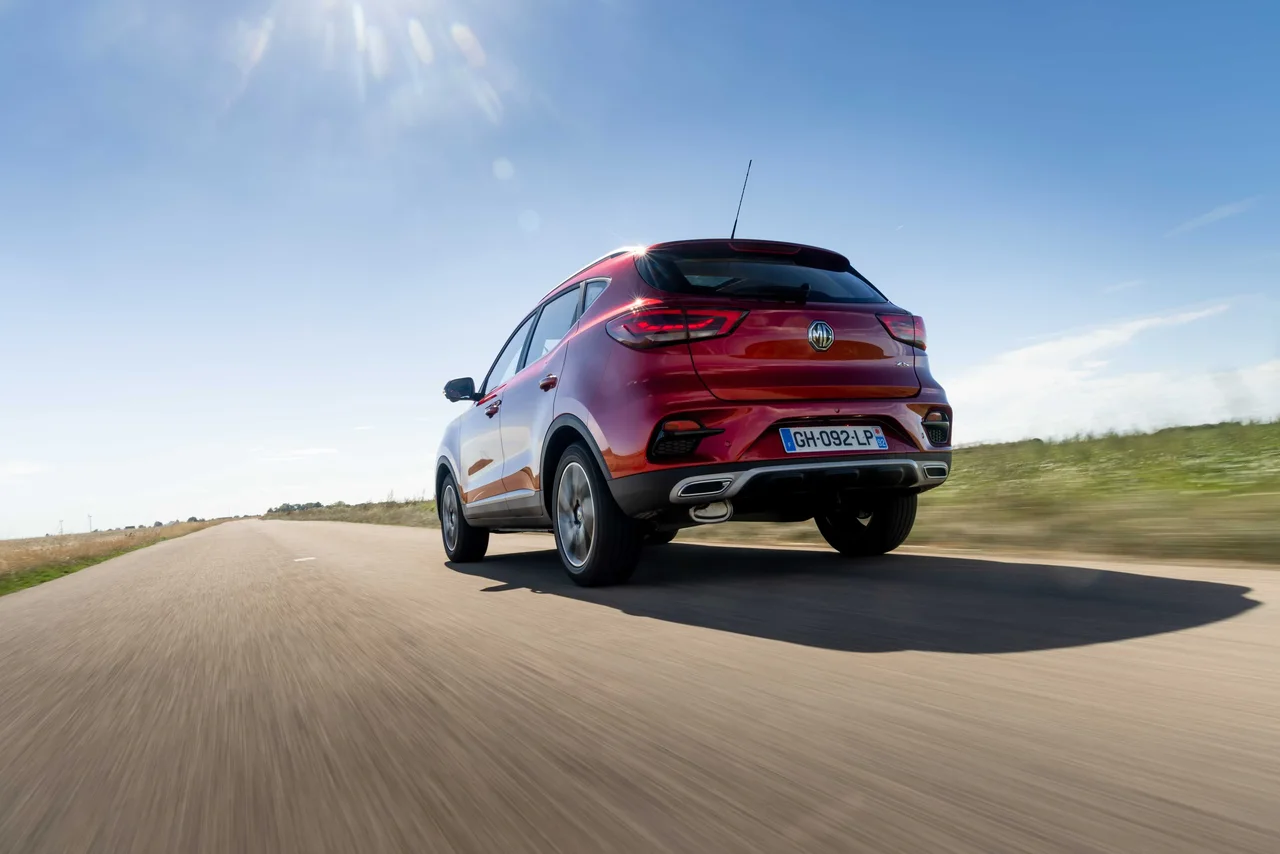

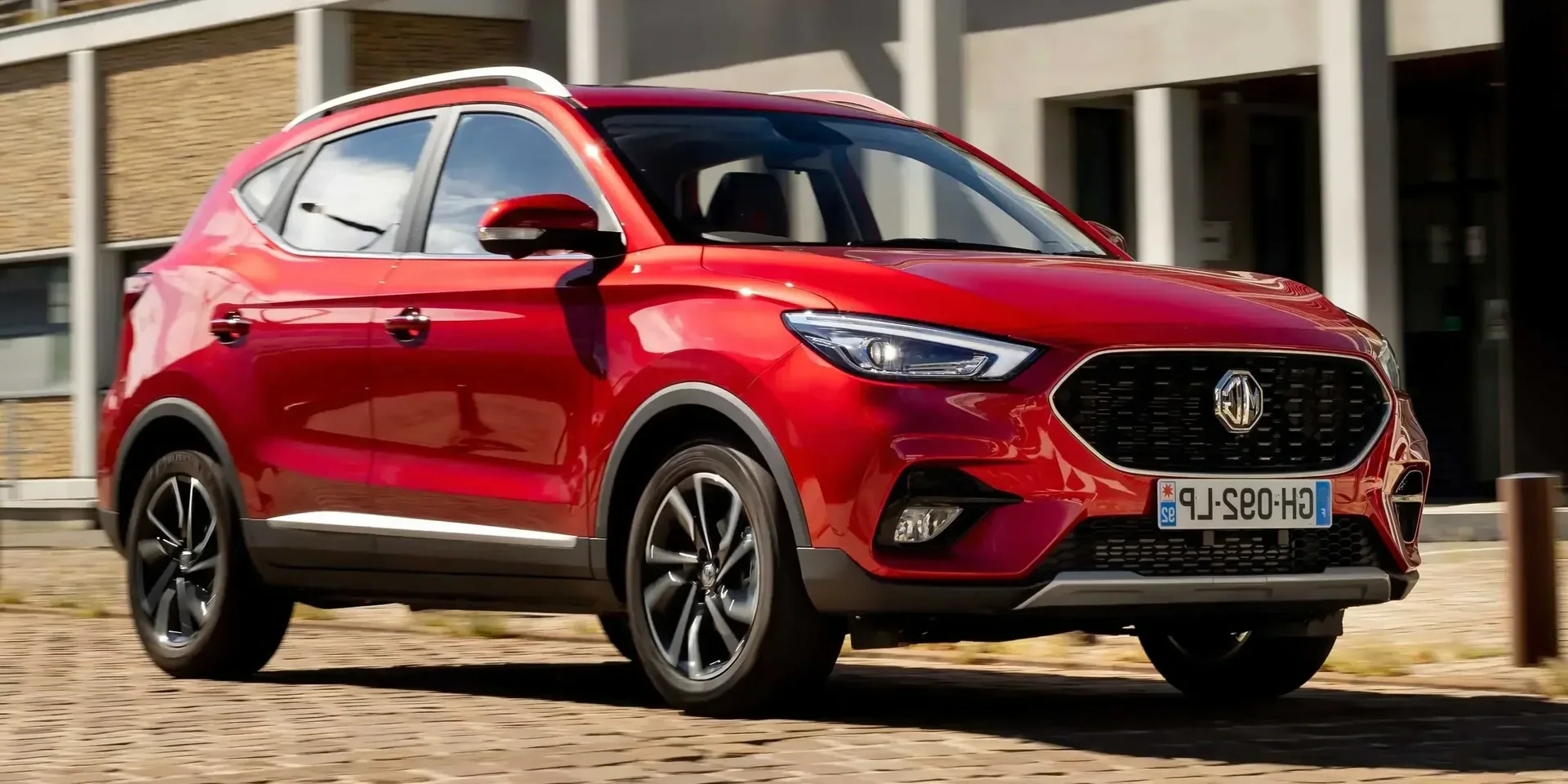

Photos

Specifications

Vehicle Details

Year
2020
Make
MG
Model
ZS
Body Style
SUV
Generation
1st Generation Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Electrohydraulic
  • Manual, 6-speed

Powertrain

Engine Name
ZS 1.0 T-GDI
Engine Configuration
Inline
Power (hp)
111 hp
Power (kW)
82 kW
Torque
60 Nm (44 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
11.2 seconds
0–100 km/h
10.5 seconds
Displacement
999 cc

Dimensions

Length
4,323 mm (170.2 in)
Width
1,809 mm (71.2 in)
Height
1,628 mm (64.1 in)
Wheelbase
2,585 mm (101.8 in)
Curb weight
1,255 kg (2,767 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,200 rpm
Rev. at Max Torque
1,800 - 4,700 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-30
Engine Oil, Volume
4 litres
Transmission Fluid, Volume
1.7 – 6.2 litres
Engine Coolant, Volume
4 litres
Car Battery
Voltage
12 V
Engine Configuration
Bore
74 mm (2.9 in)
Stroke
77.4 mm (3.0 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
48,000 km / 2 years
Spark Plug
72,000 km / 3 years
Brake Fluid
48,000 km / 2 years
Oil Change & Engine Filter
24,000 km / 1 years
Engine Coolant
120,000 km / 5 years
Interior Filter
48,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Electrohydraulic
  • Manual, 6-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
Front
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Semi-dependent
Twist-Beam

Fuel

General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
Emission Control
  • Catalyst
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
WLTP Consumption
Low (l/100km) (WLTP)
7.3 – 8.9 litres / 100 km
Medium (l/100km)
5.9 – 6.7 litres / 100 km
High (l/100km)
5.6 – 6.1 litres / 100 km
Extra High (l/100km)
7.6 – 7.9 litres / 100 km
Combined (l/100km)
6.6 – 6.8 - 6.6 – 7.3 litres / 100 km
Fuel Consumption NEDC
Combined
6.6 - 7.2 litres / 100 km
Emission WLTP
CO₂, Combined
149 – 163 g/km
Emission NEDC
CO₂, Combined
149 - 163 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,048 mm (80.6 in)
Track, Front
1,521 mm (59.9 in)
Track, Rear
1,523 mm (60.0 in)
Overhang, Front
901 mm (35.5 in)
Overhang, Rear
837 mm (33.0 in)
Approach Angle
18 °
Departure Angle
29 °
Turning Circle
11.15 m
Ground Clearance
154 mm (6.1 in)

Interior

Head Room, Rear
995 mm (39.2 in)
Leg Room, Rear
926 mm (36.5 in)

Weight

Gross Weight
1722 – 1730 kg (3,796 – 3,814 lb)
Max Trailer Load, braked 12%
500 kg (1,102 lb)
Max Trailer Load, unbraked
500 kg (1,102 lb)
Gross Train Weight
2222 – 2230 kg (4,899 – 4,916 lb)
Cargo Capacity
463 – 466 - 463 – 475 kg (1,021 – 1,047 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
50 kg (110 lb)
Permitted Axle Load, front
872 – 883 kg (1,922 – 1,947 lb)
Permitted Axle Load, rear
839 – 858 kg (1,850 – 1,892 lb)
Weight Distribution, front
60 – 61 %
Weight Distribution, rear
39 – 40 %

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Roof Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Number of Wiper Speeds
2
Intermittent Control
Yes
Volume Water Tank
4 litres
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Yes
  • Optional
Windows › Window Lifts, Features
Pinch Protection
Driver
One-touch up/down
Driver
Windows › Tinted Windows
Second Row
  • Yes
  • Optional
Rear Window
  • Yes
  • Optional
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Spoiler
Fixed
Antenna
Whip
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Colour
Silver

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Come Home/Leaving Lights
Fog Lights
Front
  • Yes
  • Optional
Rear
LED
Fog Lights › Front
LED
  • Yes
  • Optional
Special Features
Headlight Range Adjustment
Manual (Electric)

Colour

Accent
Silver
Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Central Bore (CB), rear
57.1
Fastening Type
Lug Bolts
Tightening Torque
115 - 130 Nm
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
3.5 – 7 - 7"
Instrument Cluster › Trip Computer › Display
Shape
Square
Cockpit
  • Yes
  • Optional
Instrument Cluster › Speedometer
Digital
  • Yes
  • Optional
Instrument Cluster › Tachometer
Digital
  • Yes
  • Optional
Climate Control
Climate Control
Manual
Number of Climate Zones
1
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Number of Vents, Rear
2 pcs
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R1234yf
Refrigerant, Capacity
520 g
Connectivity
Radio
  • AM
  • FM
  • DAB+
  • RDS
Media Format
MP3
App-Connect
  • Android Auto
  • Apple CarPlay (Wired)
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
AUX
Front
USB
  • USB-A
  • USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Rear
Number of Ports
5 pcs
Displays
Center Display
10.1"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
4 – 6 - 6 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Manual
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
Tilt
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Number of Buttons
14 pcs
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Cover
Sliding (Manual)
Second Trunk Compartment
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
448 litres
Volume, Back Seat Collapsed
1,375 litres

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black
Transmission Knob Material
Plastic
Colour
Silver

Seats

Colour & Material
Upholstery
Textile
Seat Colour
Black
Colour & Material › Upholstery
Leatherette
  • Yes
  • Optional
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Manual
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats
Number of Driver Seat Adjustments, Manual
6
Number of Driver Seat Adjustments, Powered
6
Number of Driver Seat Adjustments, Total
6
Number of Passenger Seat Adjustments, Manual
4
Number of Passenger Seat Adjustments, Total
4
Power Seat, Driver
  • Yes
  • Optional
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Backrest Angle
Manual
Front Seats › Heated Seats
Cushion
  • Yes
  • Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Adaptive Cruise Control
Speed Limiter
Yes
Cameras
Rear
Voice Control
  • Climate Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cameras
360° Camera
  • Yes
  • Optional
View Location
Center Display
Voice Control
Navigation
Optional
Wireless Phone Charger
Front
Optional

Other Features

GPS
Navigation
Start & Stop
Yes
GPS
Internet
  • Yes
  • Optional

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Yes
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Cross-Traffic Alert (RCTA)
  • Yes
  • Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Parking Assist
Optional
Sign Assist
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
  • Yes
  • Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Yes
Speed Sensitive
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2019
Adult Occupant
90 %
Child Occupant
85 %
Vulnerable Road Users
64 %
Safety Assist
70 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
130,000 km / 7 years
Paintwork
72,000 km / 3 years
Rust Damage
7 years

Identification

VIN Location
Left Side Casing of Window
Yes
Passenger Seat
Under

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JB-Segment
Car.info Classification
Small SUV

ACRISS

Type
Crossover (G)

Similar suvs

Suggested vehicles
