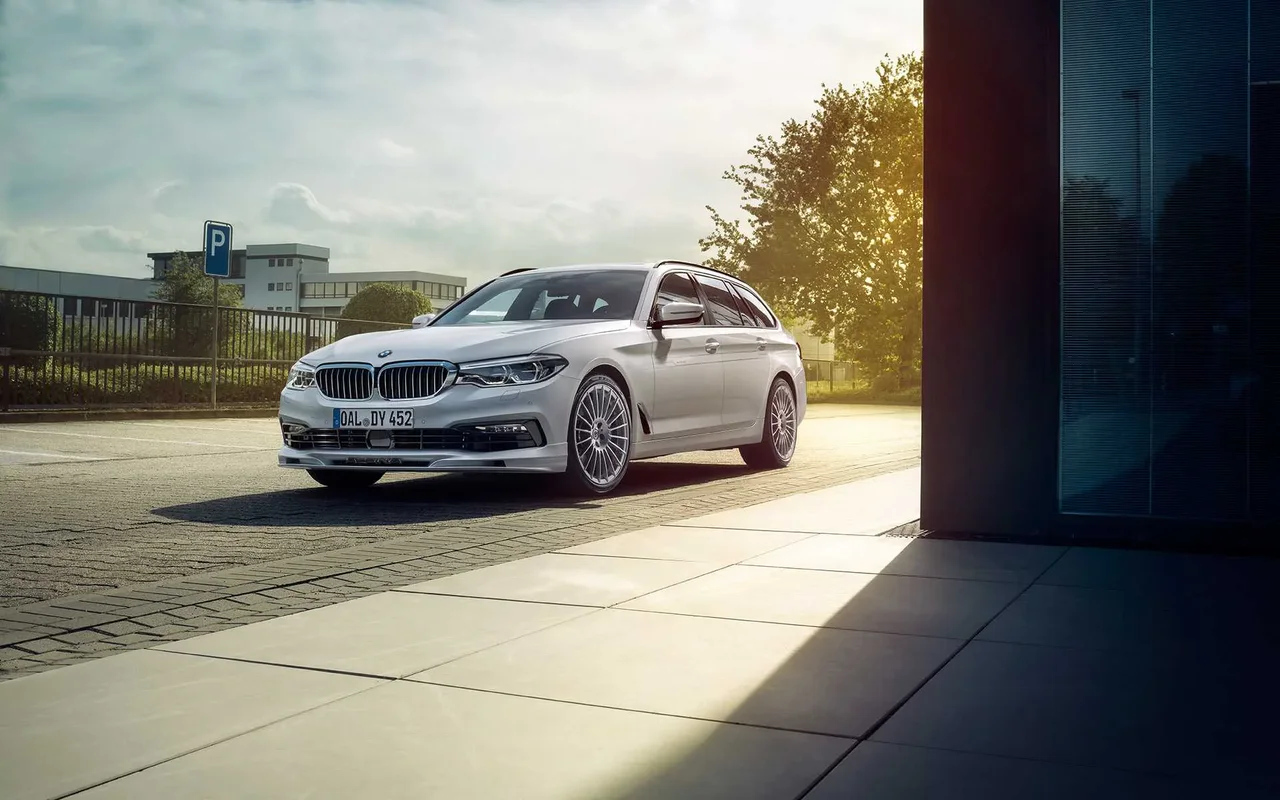

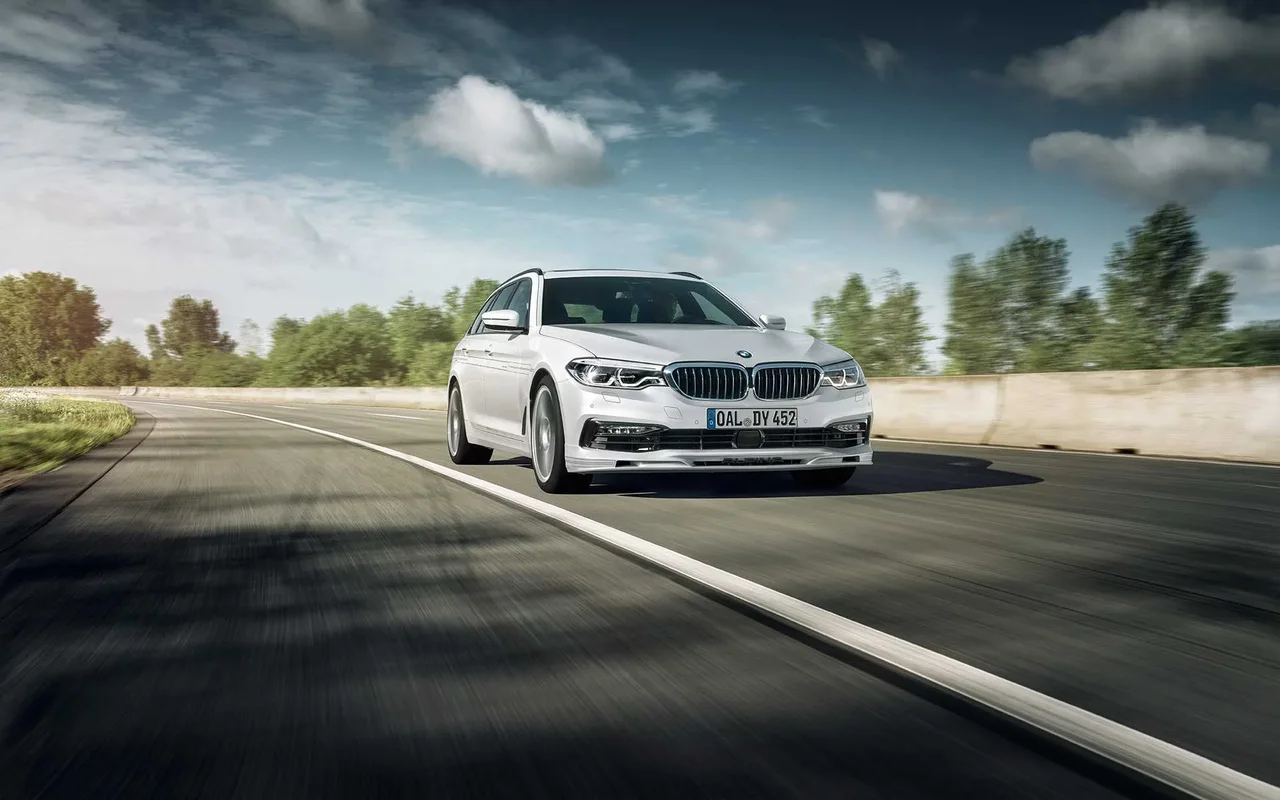

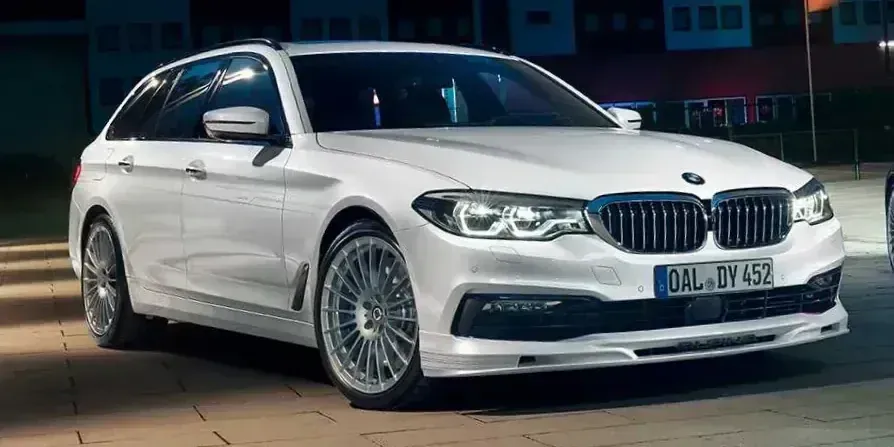

2020 Alpina 5 Series D5 S

GermanyDieselAWDWagon

Photos

Specifications

Vehicle Details

Year
2020
Make
Alpina
Model
5 Series
Variant
D5 S
Body Style
Wagon
Generation
G30
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

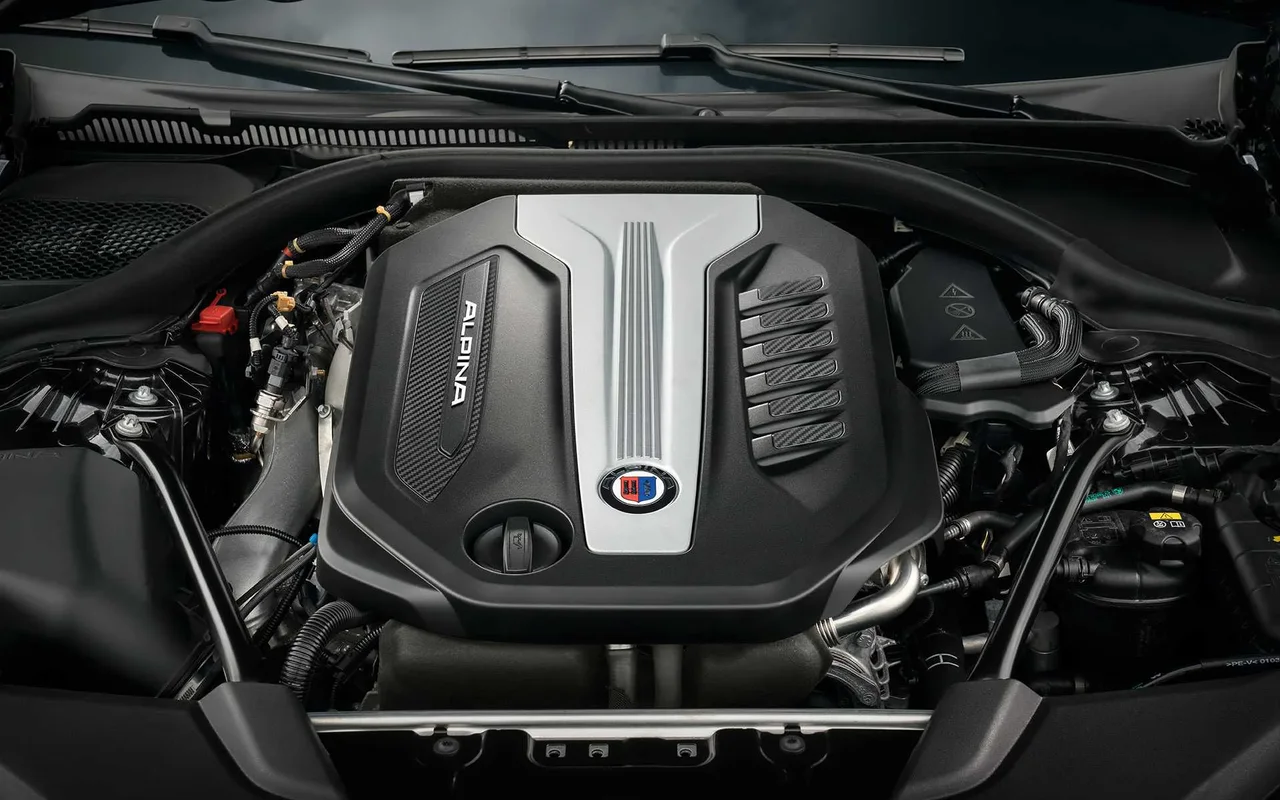

Engine Name
D5 S Touring Switch-Tronic
Engine Configuration
Inline
Power (hp)
388 hp
Power (kW)
285 kW
Torque
800 Nm (590 lb-ft)
Top speed
283 km/h (176 mph)
0–60 mph
4.4 seconds (estimated)
0–100 km/h
4.6 seconds
Displacement
2,993 cc

Dimensions

Length
4,956 mm (195.1 in)
Width
1,865 mm (73.4 in)
Height
1,466 mm (57.7 in)
Wheelbase
2,975 mm (117.1 in)
Curb weight
2,035 kg (4,486 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 - 5,000 rpm
Rev. at Max Torque
1,750 - 2,650 rpm
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Compression Ratio
16 :1
Engine Configuration
Inline

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
395 mm (15.6 in)
Cooling
Ventilated
Rear Brakes
Diameter
398 mm (15.7 in)

Fuel

General
Tank Volume
66 litres
Emission
Emission Standard
Euro 6
Emission Class
C
Fuel Consumption NEDC
City
7.8 litres / 100 km
Highway
6.4 litres / 100 km
Combined
6.9 litres / 100 km
Emission NEDC
CO₂, Combined
182 g/km

Dimensions & Weight

Exterior

Track, Front
1,611 mm (63.4 in)
Track, Rear
1,596 mm (62.8 in)
Ground Clearance
119 mm (4.7 in)

Weight

Gross Weight
2,610 kg (5,754 lb)
Max Trailer Load, braked 12%
2,000 kg (4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
600 kg (1,323 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Automatic Anti-glare
Driver side
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Other Equipment
Roof Railing
Yes
Spoiler
Front
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Black

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Fog Lights
Front
Yes
Special Features
Adaptive Headlights
Optional
Headlight Range Adjustment
Automatic

Colour

Finish
Metallic

Rims & Tires

Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

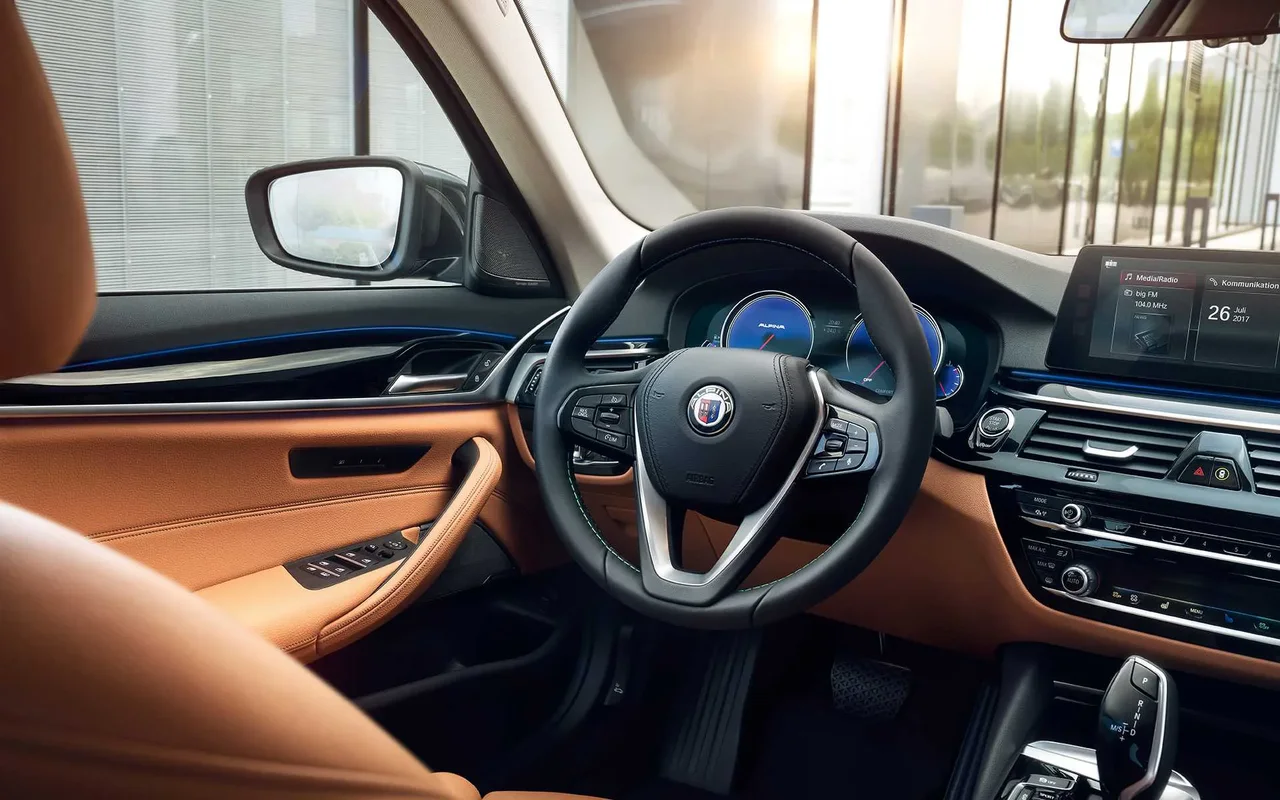

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
4
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
FM
Media Inputs
USB
App-Connect
Optional
Connectivity › Radio
DAB
Optional
Connectivity › App-Connect
Apple CarPlay
Optional
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Other Equipment
12V Outlet
  • Front
  • Trunk
Carpets
Yes
Other Equipment › Carpets
Material
Textile

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
Tilt
Sport
Yes
Material
Leather
Steering Mechanism
Rack and Pinion
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
570 litres
Volume, Back Seat Collapsed
1,700 litres

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Powered
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Powered
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Yes
Front Seats › Power Seat, Driver
User Memory
Yes
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest

Features

Comfort Features

Cruise Control
Yes

Other Features

GPS
Navigation

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Rain Sensors
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Airbag cut-off Switch

Other

Car Classification

British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car
