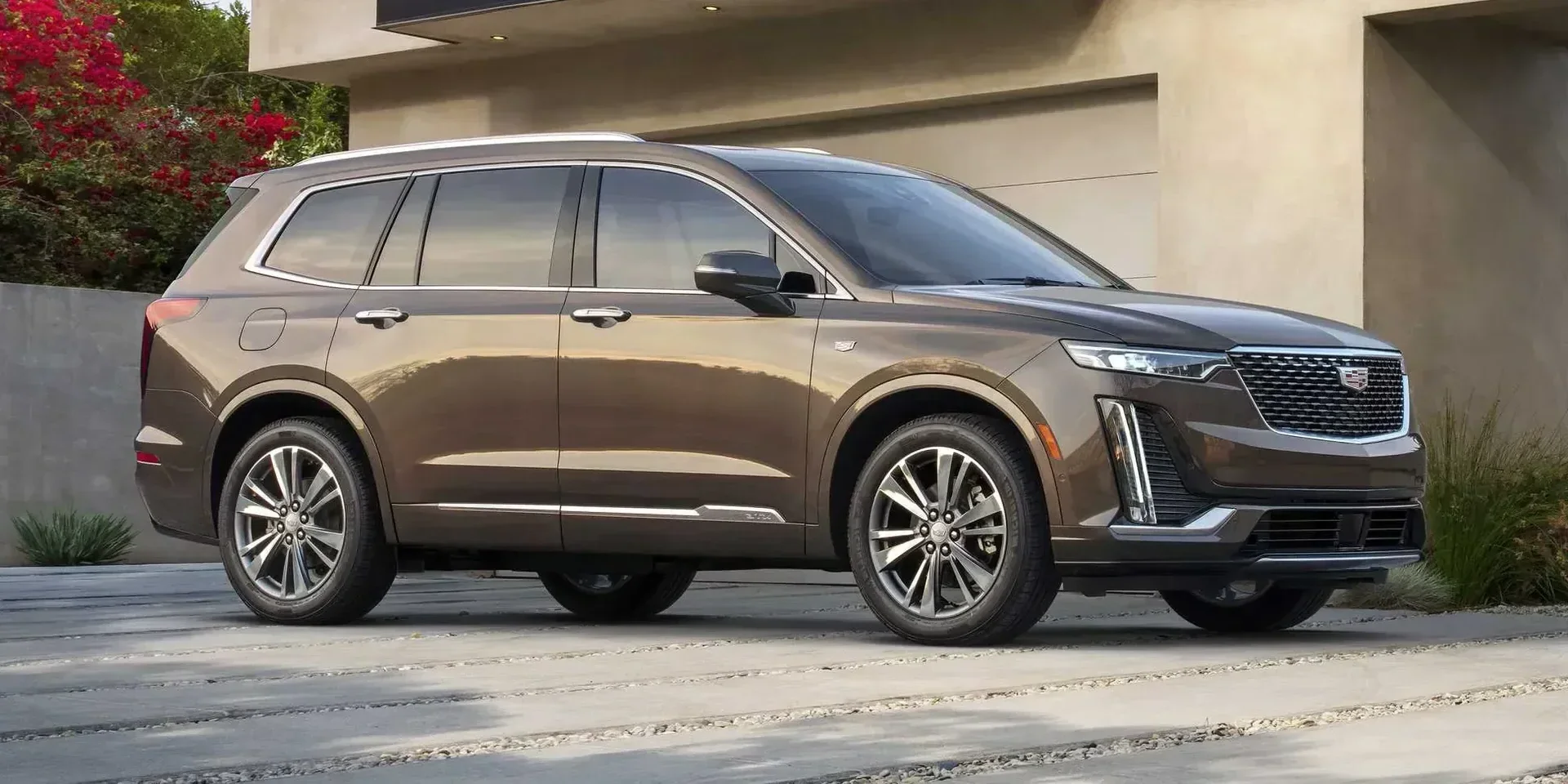

2020 Cadillac XT6

United StatesGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2020
Make
Cadillac
Model
XT6
Body Style
SUV
Generation
1st Generation
Seats
6
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic, 9-speed

Powertrain

Engine Name
400 AWD Hydra-Matic
Engine Configuration
V
Power (hp)
314 hp
Power (kW)
231 kW
Torque
367 Nm (271 lb-ft)
Displacement
3,649 cc

Dimensions

Length
5,050 mm (198.8 in)
Width
1,964 mm (77.3 in)
Height
1,750 mm (68.9 in)
Wheelbase
2,863 mm (112.7 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,700 rpm
Rev. at Max Torque
5,000 rpm
Redline
7,200 rpm
Engine Fluids
Engine Oil, Volume
5.7 litres
Engine Coolant, Volume
12.9 litres
Engine Configuration
Bore
95 mm (3.7 in)
Stroke
85.8 mm (3.4 in)
Compression Ratio
11.5 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
72,000 km / 4 years
Spark Plug
156,000 km (96,934 mi)
Brake Fluid
5 years
Oil Change & Engine Filter
1 years
Engine Coolant
240,000 km / 5 years
Rear Axle, Oil
240,000 km (149,129 mi)
Interior Filter
36,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic, 9-speed
Gear Selector
Joystick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
4.69 :1
2nd Gear
3.31 :1
3rd Gear
3.01 :1
4th Gear
2.44 :1
5th Gear
1.92 :1
6th Gear
1.44 :1
7th Gear
1 :1
8th Gear
0.75 :1
9th Gear
0.62 :1
Final Drive
3.49 :1
Reverse
2.96 :1

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
321 mm (12.6 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
315 mm (12.4 in)
Width
23 mm (0.9 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
83 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Catalyst
  • Adaptive Cylinder Management
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption EPA
City
18 MPG
Highway
25 MPG

Dimensions & Weight

Exterior

Track, Front
1,686 mm (66.4 in)
Track, Rear
1,682 mm (66.2 in)
Turning Circle
11.9 m

Interior

Head Room, Front
1,010 mm (39.8 in)
Head Room, Rear
993 mm (39.1 in)
Head Room, Third Row
945 mm (37.2 in)
Leg Room, Front
1,046 mm (41.2 in)
Leg Room, Rear
994 mm (39.1 in)
Leg Room, Third Row
750 mm (29.5 in)
Hip Room, Front
1,424 mm (56.1 in)
Hip Room, Rear
1,416 mm (55.7 in)
Hip Room, Third Row
1,003 mm (39.5 in)
Shoulder Room, Front
1,482 mm (58.3 in)
Shoulder Room, Rear
1,459 mm (57.4 in)
Shoulder Room, Third Row
1,360 mm (53.5 in)

Weight

Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
General Motors Platforms
Epsilon Platform (C1XX)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Turning Signal
Yes
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Other Equipment
Roof Railing
Yes
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Lights

Main Beam
LED

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
6 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.9
Central Bore (CB), rear
66.9
Fastening Type
Lug Nuts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
190 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Instrument Cluster › Trip Computer
Display
Yes
Connectivity
Radio
  • AM
  • FM
  • XM
App-Connect
Apple CarPlay
Bluetooth
  • Phone
  • Audio
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Rear-view Mirror
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Other Equipment
Clock
Digital

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
Yes
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Volume
Buttons

Seats

Second Seat Row › Headrests
Outer Seats
Yes
Second Seat Row
Type of Seat
Adult
Third/Fourth Seat Row
Third Seat Row
Yes
Third/Fourth Seat Row › Third Seat Row
Collapsible
Yes
Number of Seats
2
Type of Seat
Adult
Seat Angle
Front Facing

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
357 litres
Volume, Back Seat Collapsed
2,229 litres
Volume (Opt. third seat row, Collapsed seat)
1,221 litres

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black

Features

Comfort Features

Cruise Control
Yes
Cameras
Rear
Cruise Control
Adaptive Cruise Control
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
Seat Belt Colour
Black
Belt Load Limiter
  • Driver: Yes
  • Passenger: Yes
  • Rear: -

Assist Systems

Forward Collision Warning (FCW)
Yes
Rear Cross-Traffic Alert (RCTA)
Yes
Lane Assist System
Yes
Parking Assist
Optional
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Yes
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Yes
Rain Sensors
Yes
Night Vision
Optional

Safety Testing

IIHS
Test Year
2020
Award
Top Safety Pick+
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Front Crash Prevention: Vehicle-to-pedestrian
Superior
Headlight
Acceptable
Latch Ease of Use
Acceptable

Airbags

Frontal Airbag
  • Driver: Yes
  • Passenger: Yes
  • Rear: -

Other

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Large SUV
