2020 Mercedes-Benz GLA AMG GLA

GermanyGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2020
Make
Mercedes-Benz
Model
GLA
Variant
AMG GLA
Body Style
SUV
Generation
H247
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic

Powertrain

Engine Name
AMG GLA 35 4MATIC 8G-DCT
Engine Configuration
Inline
Power (hp)
306 hp
Power (kW)
225 kW
Torque
400 Nm (295 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.9 seconds (estimated)
0–100 km/h
5.1 seconds
Displacement
1,991 cc

Dimensions

Length
4,410 mm (173.6 in)
Width
1,834 mm (72.2 in)
Height
1,611 mm (63.4 in)
Wheelbase
2,729 mm (107.4 in)
Curb weight
1,657 kg (3,653 lb)

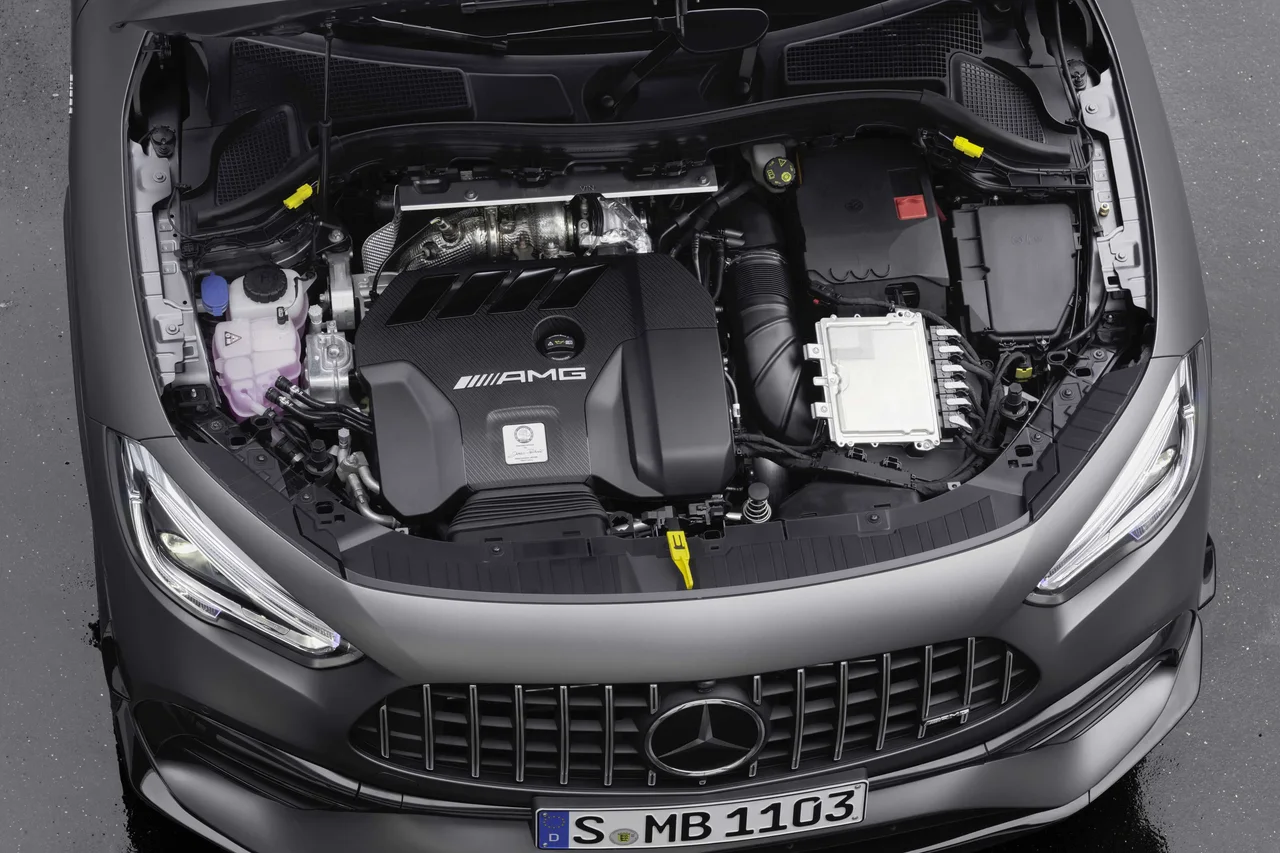

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,800 rpm
Rev. at Max Torque
3,000 - 4,000 rpm
Engine Configuration
Engine Configuration
Inline
Turbocharger
Twin-scroll
Synchronization
Timing Chain
Engine Mount
Transversally

Transmission & Drivetrain

Transmission
Automatic

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Steel
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Strut Bar
  • Front
  • Rear
Sports Suspension
Yes

Fuel

General
Tank Volume
51 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d -ISC-FCM
Emission Class
D
WLTP Consumption
Combined (l/100km)
8.6 - 9.1 litres / 100 km
Fuel Consumption NEDC
City
9.3 litres / 100 km
Highway
6.4 litres / 100 km
Combined
7.4 - 7.5 litres / 100 km
Emission WLTP
CO₂, Combined
196 - 208 g/km
Emission NEDC
CO₂, Combined
170 - 171 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,020 mm (79.5 in)
Track, Front
1,605 mm (63.2 in)
Track, Rear
1,606 mm (63.2 in)
Overhang, Front
905 mm (35.6 in)
Overhang, Rear
776 mm (30.6 in)
Turning Circle
11.4 m
Ground Clearance
183 mm (7.2 in)

Interior

Head Room, Front
1,037 mm (40.8 in)
Head Room, Rear
969 mm (38.1 in)
Leg Room, Front
1,045 mm (41.1 in)
Leg Room, Rear
976 mm (38.4 in)
Hip Room, Front
1,456 mm (57.3 in)
Hip Room, Rear
1,455 mm (57.3 in)
Shoulder Room, Front
1,419 mm (55.9 in)
Shoulder Room, Rear
1,393 mm (54.8 in)

Weight

Gross Weight
2,190 kg (4,828 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
533 kg (1,175 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
80 kg (176 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
Automatic Anti-glare
  • Driver side
  • Passenger side
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Black
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Mercedes-Benz Fit
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
Yes
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Dynamic Cornering Lights
  • Headlight Washers
Special Features
Dynamic Turn Signal
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Tightening Torque
130 Nm
Rim Type
Disc Wheel

Interior

Equipment

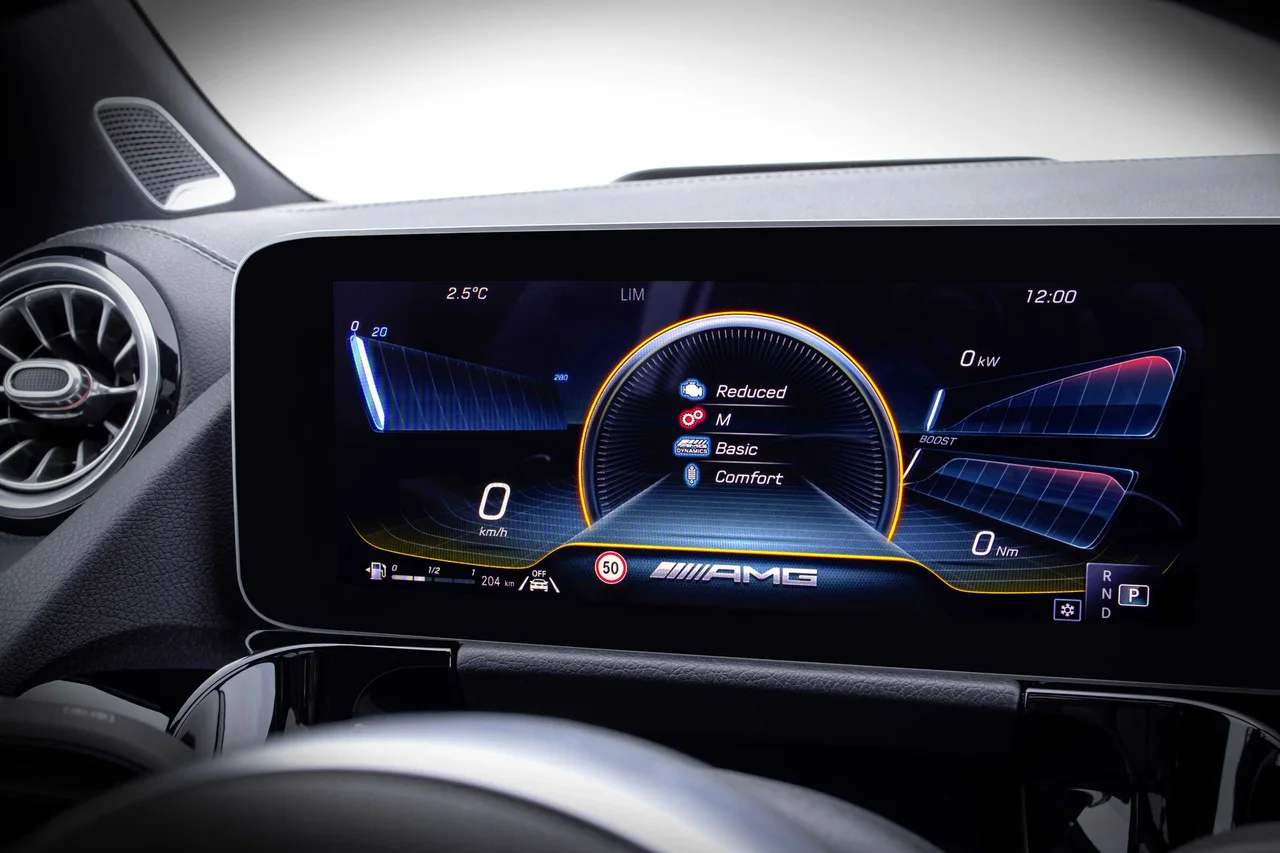

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • FM
  • DAB
Media Format
  • Hard Drive
  • MP3
App-Connect
  • Android Auto
  • Apple CarPlay (Wireless)
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Number of Ports
2 pcs
Displays
Center Display
10.25"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Bottom of the Doors
Ambient Light
Yes
Selectable Light Colour
Yes
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Scrolling Wheel)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes
Adjustments
Tilt
Yes
Telescope
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
Yes
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Hatch Through Rear Seats
Yes
Second Trunk Compartment
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
435 litres
Depth
804 mm (31.7 in)
Depth, Back Seat Collapsed
1,422 mm (56.0 in)
Width
1,272 mm (50.1 in)
Opening Width
1,050 mm (41.3 in)
Height, to Trunk Cover
742 mm (29.2 in)
Trunk Door Opening Height
2,119 mm (83.4 in)
Sill Height
692 mm (27.2 in)
Carpet
Rubber
Optional
Rubber/Rug
Optional

Design

Entry Guard Material
Stainless steel
Pedals
Stainless Steel

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Yes
Armrest
Middle
Ventilated Seats
Optional
Type of Seat
Sport Seats
Easy Entry
Optional
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
40/20/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Voice Control
  • Media
  • Navigation
  • Phone
Wireless Phone Charger
Yes
Cruise Control
Adaptive Cruise Control
Queue Assist
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Active Bonnet
Yes
Speed Sensitive
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2021
Adult Occupant
96 %
Child Occupant
90 %
Vulnerable Road Users
79 %
Safety Assist
75 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Small SUV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Rear
BAU15s (PY21W)

ACRISS

Category
Intermediate Elite (J)
Type
Crossover (G)

Similar suvs

Suggested vehicles
