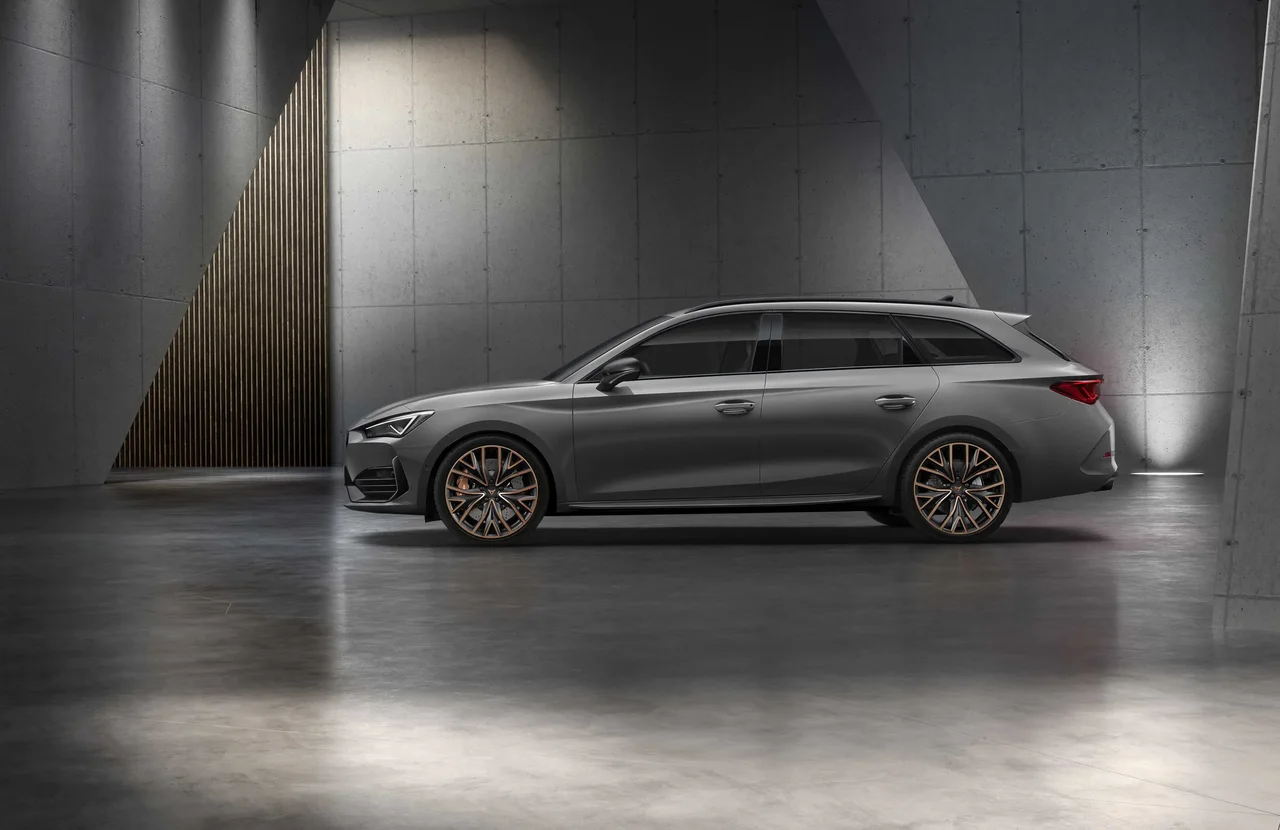

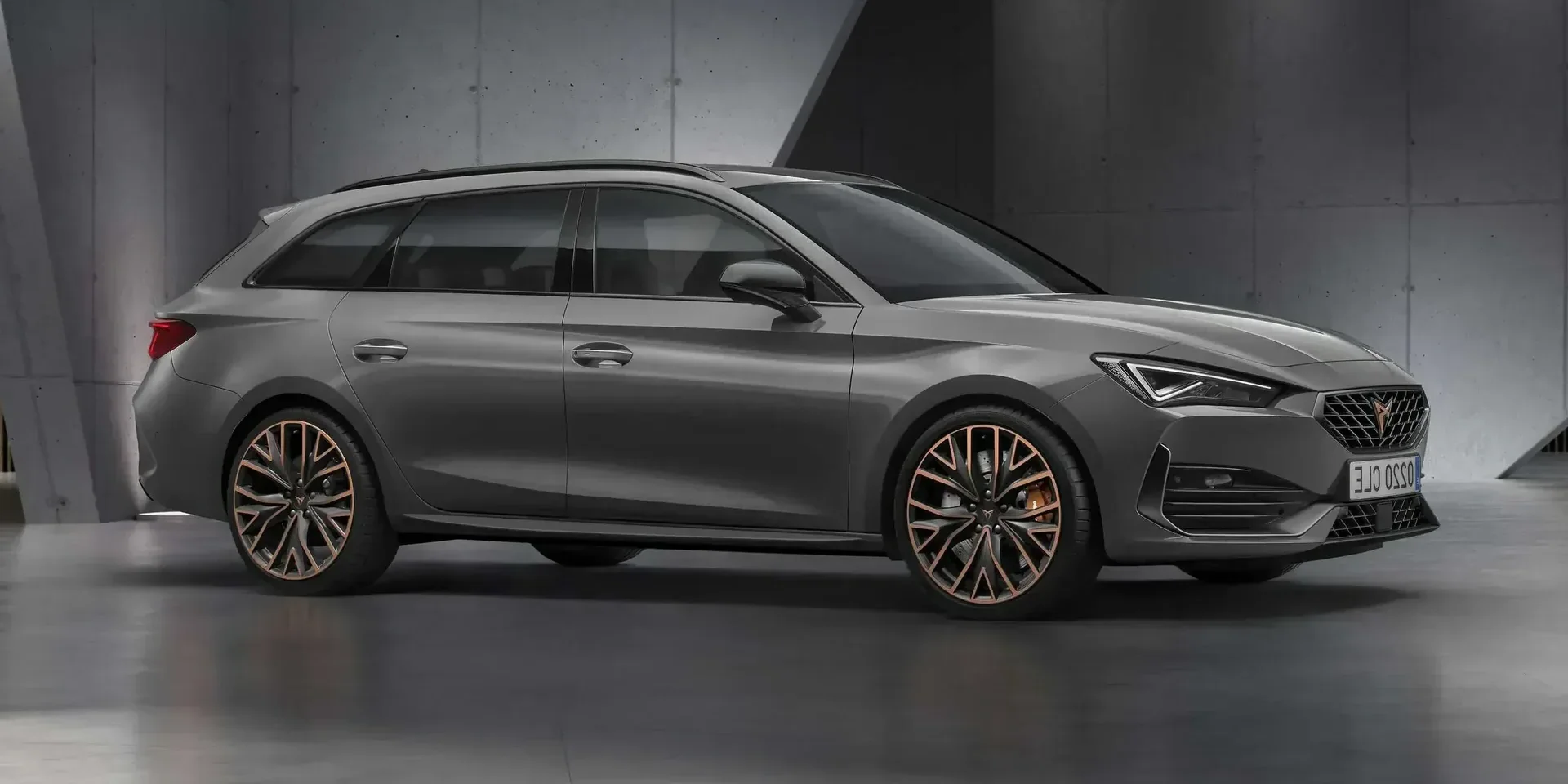

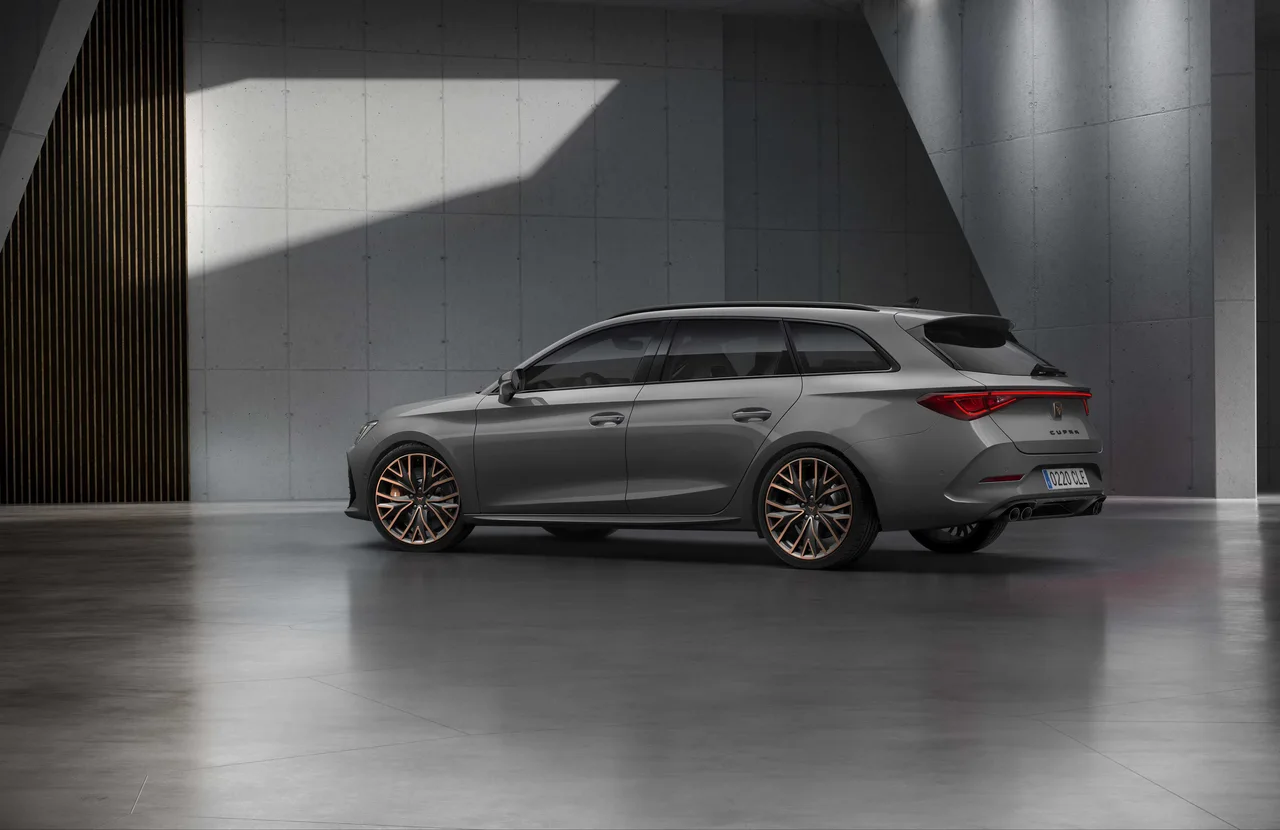

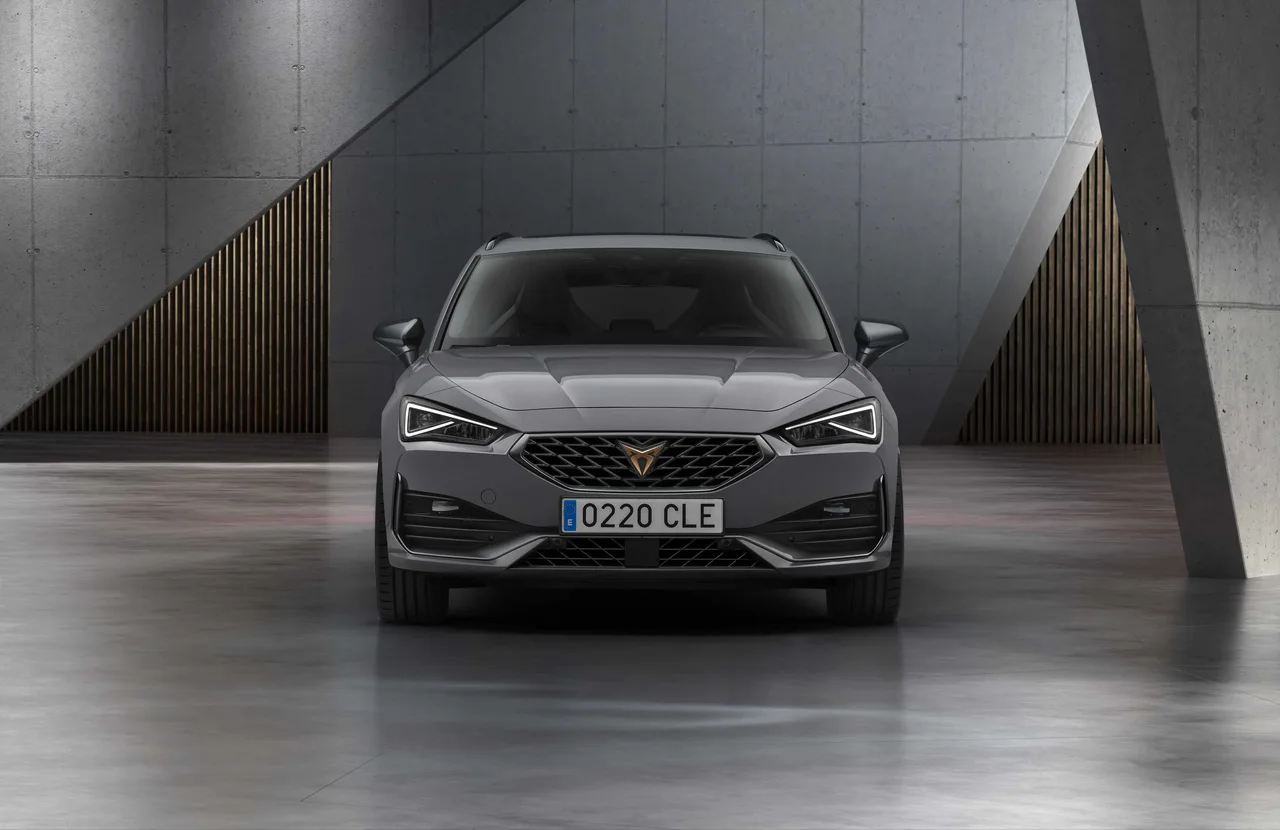

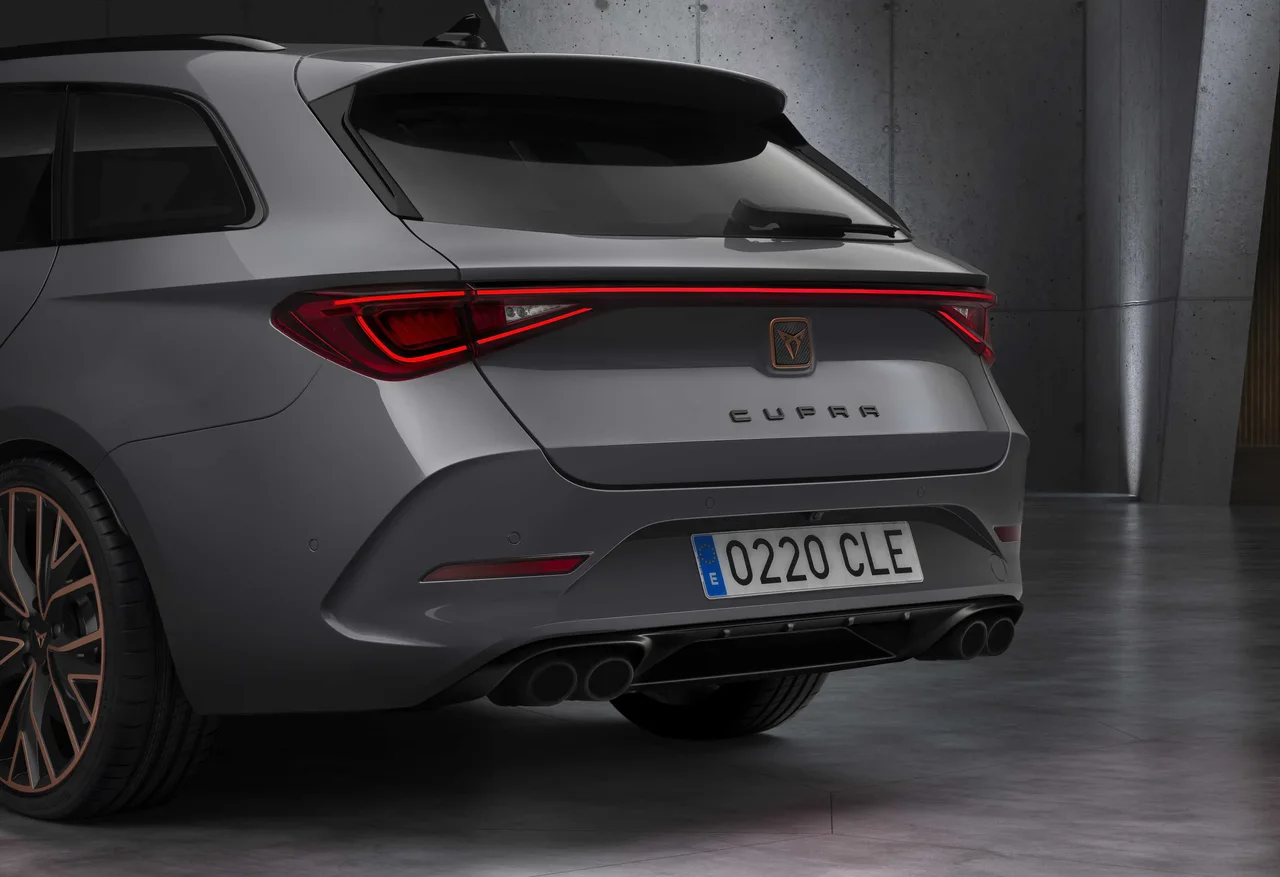

2020 Cupra Leon Sportstourer e-Hybrid

SpainPlug In Hybrid GasolineFWDWagon

Photos

Specifications

Vehicle Details

Year
2020
Make
Cupra
Model
Leon
Variant
Sportstourer e-Hybrid
Body Style
Wagon
Generation
1st Generation
Seats
5
Doors
5
Fuel
Plug In Hybrid Gasoline
Drivetrain
FWD
Transmission
Automatic (Dual-clutch), 6-speed

Powertrain

Engine Name
e-Hybrid DSG Sequential
Engine Configuration
Inline
Power (hp)
245 hp
Power (kW)
180 kW
Torque
250 Nm (184 lb-ft)
Top speed
225 km/h (140 mph)
0–60 mph
6.7 seconds (estimated)
0–100 km/h
7 seconds
Electric range
52 km (32 mi)
Battery
12.8 kWh
Displacement
1,395 cc

Dimensions

Length
4,657 mm (183.3 in)
Width
1,799 mm (70.8 in)
Height
1,463 mm (57.6 in)
Wheelbase
2,681 mm (105.6 in)
Curb weight
1,717 kg (3,785 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 - 6,000 rpm
Rev. at Max Torque
1,550 - 3,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Engine Oil, Volume
4.3 litres
Configuration Combustion
Bore
74.5 mm (2.9 in)
Stroke
80 mm (3.1 in)
Compression Ratio
10 :1
Engine Configuration
Inline
Turbocharger
Yes
Configuration Combustion › ICE Specifications
Power
110 kW
Horsepower (Metric)
150 hp (148 bhp)
Torque
250 Nm (184 lb-ft)
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
85 kW
Electric Engine Horsepower (Metric)
115 hp (113 bhp)
Battery Capacity, Gross
12.8 kWh
Type of Battery
Li-ion
AC Charge Type
Single-phase
Charging Plugs
Type 2
Service Intervals
Air Filter
60,000 km (37,282 mi)
Spark Plug
60,000 km (37,282 mi)
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 6-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Colour
Black
Front Brakes
Diameter
340 mm (13.4 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
310 mm (12.2 in)
Width
22 mm (0.9 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
40 litres
Emission
Emission Standard
Euro 6d
Emission Class
A+
WLTP Consumption
Weighted, Combined
1.4 litres / 100 km
Combined
15.5 - 15.9 kWh/100km
Electric Range
52 km (32 mi)
Electric Range, City
60 km (37 mi)
Fuel Consumption NEDC
Combined
1.6 litres / 100 km
Combined
11.9 kWh/100km
Electric Range
67 km (42 mi)
Emission WLTP
CO₂, Weighted, Combined
31 - 32 g/km
Emission NEDC
CO₂, Combined
35 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,992 mm (78.4 in)
Track, Front
1,552 mm (61.1 in)
Track, Rear
1,508 mm (59.4 in)
Overhang, Front
860 mm (33.9 in)
Overhang, Rear
1,057 mm (41.6 in)
Turning Circle
10.5 m
Ground Clearance
129 mm (5.1 in)

Interior

Head Room, Front
1,041 mm (41.0 in)
Head Room, Rear
972 mm (38.3 in)
Leg Room (est.), Rear
880 - 930 mm (34.6 - 36.6 in)

Weight

Gross Weight
2,090 kg (4,608 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, braked 8%
1,700 kg (3,748 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
448 kg (988 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
80 kg (176 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Yes
Windscreen Wipers
Intermittent Control
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Black
Other Equipment › Mud Flaps
Front
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Special Features
  • Automatic Headlight Activation
  • Dynamic Turn Signal
  • Come Home/Leaving Lights
  • Headlight Washers
Special Features
Main Beam Assist
Optional
Adaptive Headlights
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Central Bore (CB), rear
57.1
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Black
Rim Type
Disc Wheel
Spare Wheel
Temporary

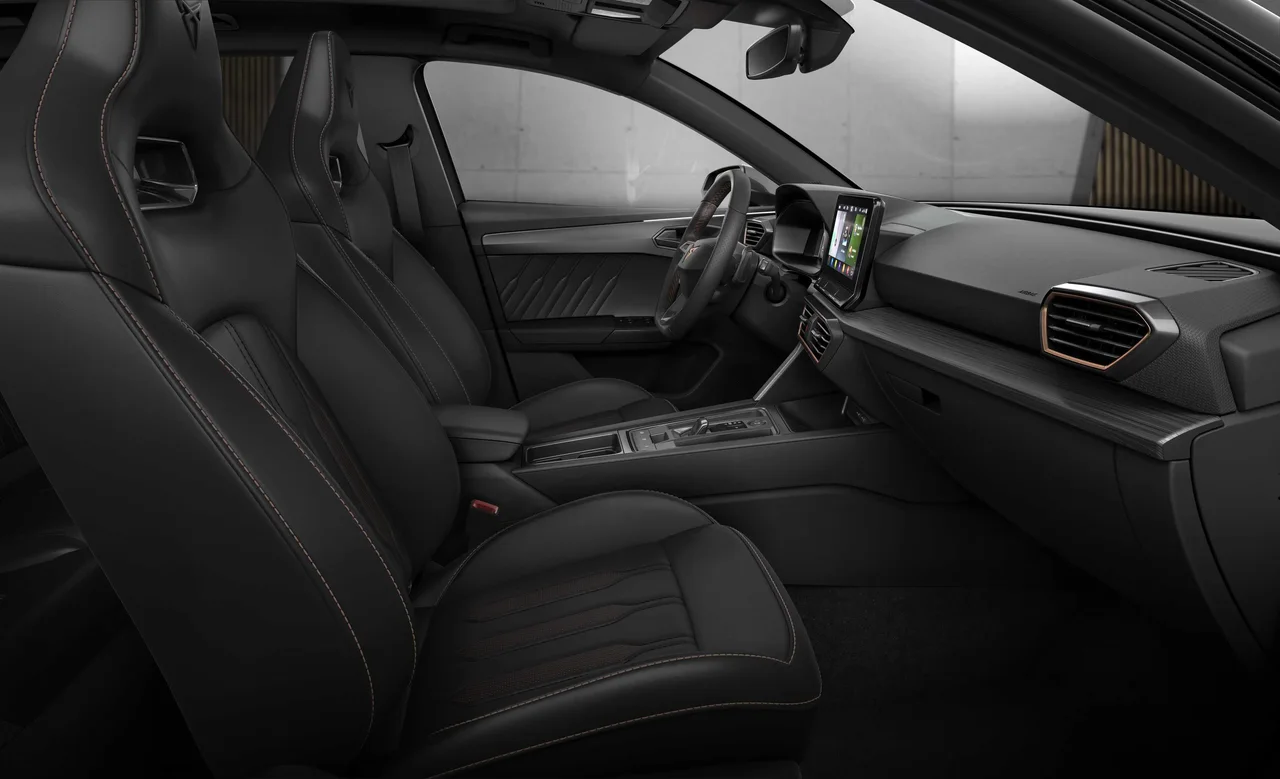

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
3
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Controls
Touchscreen
Climate Control › Air Condition
Refrigerant
R1234yf
Refrigerant, Capacity
450 g
Connectivity
Radio
  • AM
  • FM
  • DAB+
Media Format
  • FLAC
  • MP3
App-Connect
MirrorLink
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Optional
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Rear
Number of Ports
4 pcs
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Connectivity › Cellular Network
4G
Optional
Connectivity › Cellular Network › 4G
3G
Optional
Displays
Center Display
12"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
6 - 10 pcs
Speakers Max. Watt
340 W
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
Ambient Light
Yes
Selectable Light Colour
Optional
Lights › Guide Light
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
230V Outlet
Optional
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
Sliding (Manual)
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Hatch Through Rear Seats
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
470 litres
Volume, Back Seat Collapsed
1,450 litres
Automatic Open
Button on Trunk Door
Optional
Motion Activated
Optional
Carpet
Rubber
Optional

Design

Pedals
Standard
Pedals
Aluminium
Optional
Sport
Optional

Seats

Colour & Material
Stitching Colour
Brown
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Type of Seat
Sport Seats
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Voice Control
  • Media
  • Navigation
  • Phone
Wireless Phone Charger
Front
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional

Other Features

GPS
Navigation
Start & Stop
Yes
Launch Control
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Sport
  • Auto
Dynamic Chassis Control (DCC)
Yes
Horn
Dual Note
GPS
Map-update
Internet

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Safe Exit Assist (SEA)
Optional
Safe Exit Warning (SEW)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Sign Assist
Optional
Emergency Assist
Optional
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
City
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Yes

Safety Testing

General
Test Year
2020
Adult Occupant
91 %
Child Occupant
88 %
Vulnerable Road Users
71 %
Safety Assist
80 %
Overall
5/5 stars
Adult Occupant
Total Points
34.9 /38
Frontal Impact
13.9 /16
Lateral Impact
15.5 /16
Rear Impact
3.6 /4
Rescue and Extrication
2 /2
Child Occupant
Total Points
43.4 /49
Crash Test Performance
  • 15.4
  • 8 /16
Safety Features
8 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
38.5 /49
Pedestrian
  • 14.9
  • 6
  • 6
AEB Vulnerable Road Users
11.6 /18
AEB Pedestrian
5.4 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist
6.2 /9
AEB Cyclist (assesment)
Adequate
Safety Assist
Speed Assistance (points)
1.3 /3
Speed Assistance (assesment)
Marginal
Occupant Status Monitoring (points)
3 /3
Occupant Status Monitoring (assesment)
Good
Seat Belt Reminder (points)
2 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
1
Driver Monitoring (assesment)
Good
Lane Support (points)
3.5 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
5.1 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

EV Battery
100,000 km / 3 years

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Similar wagons

Suggested vehicles
