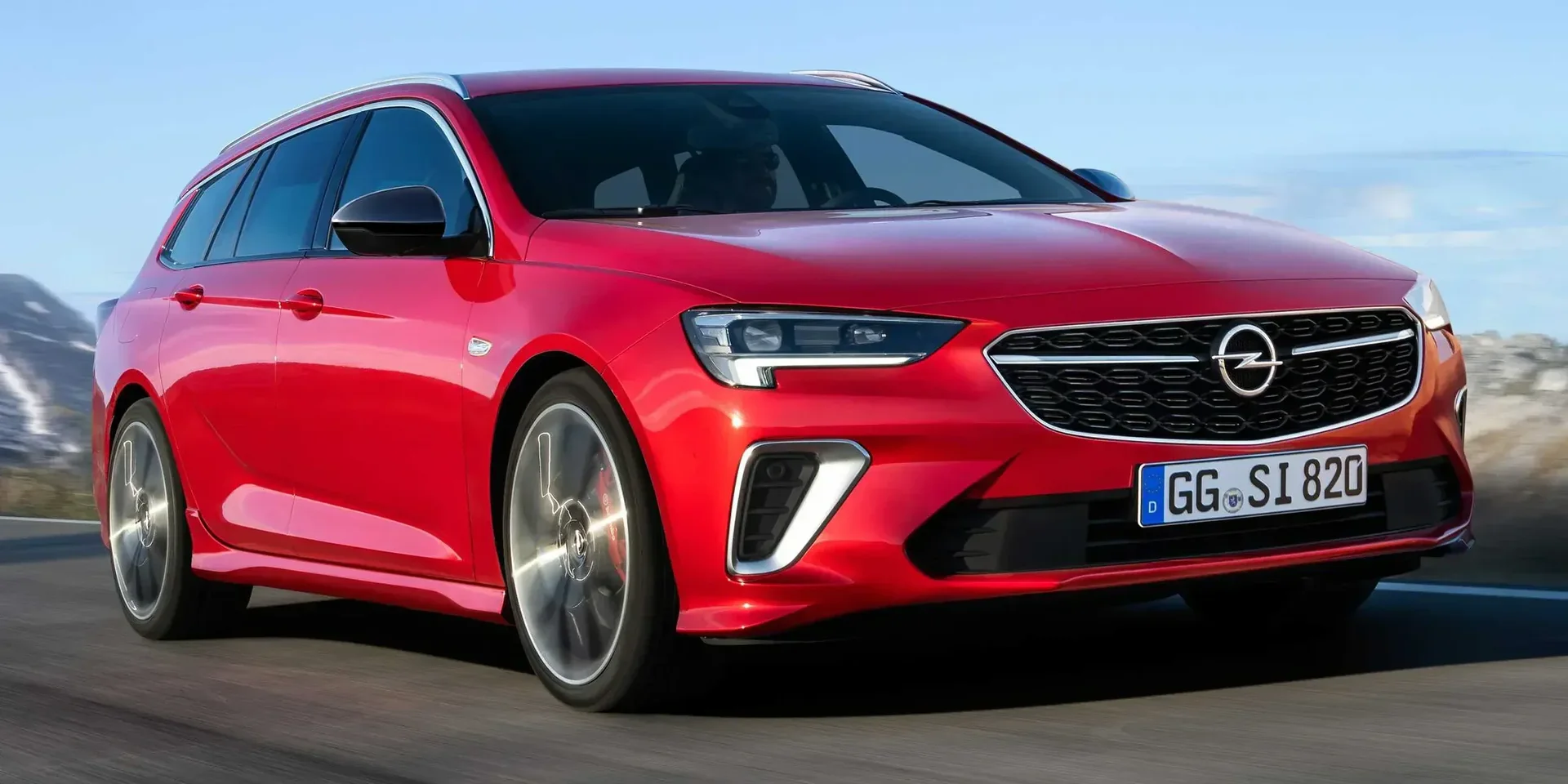

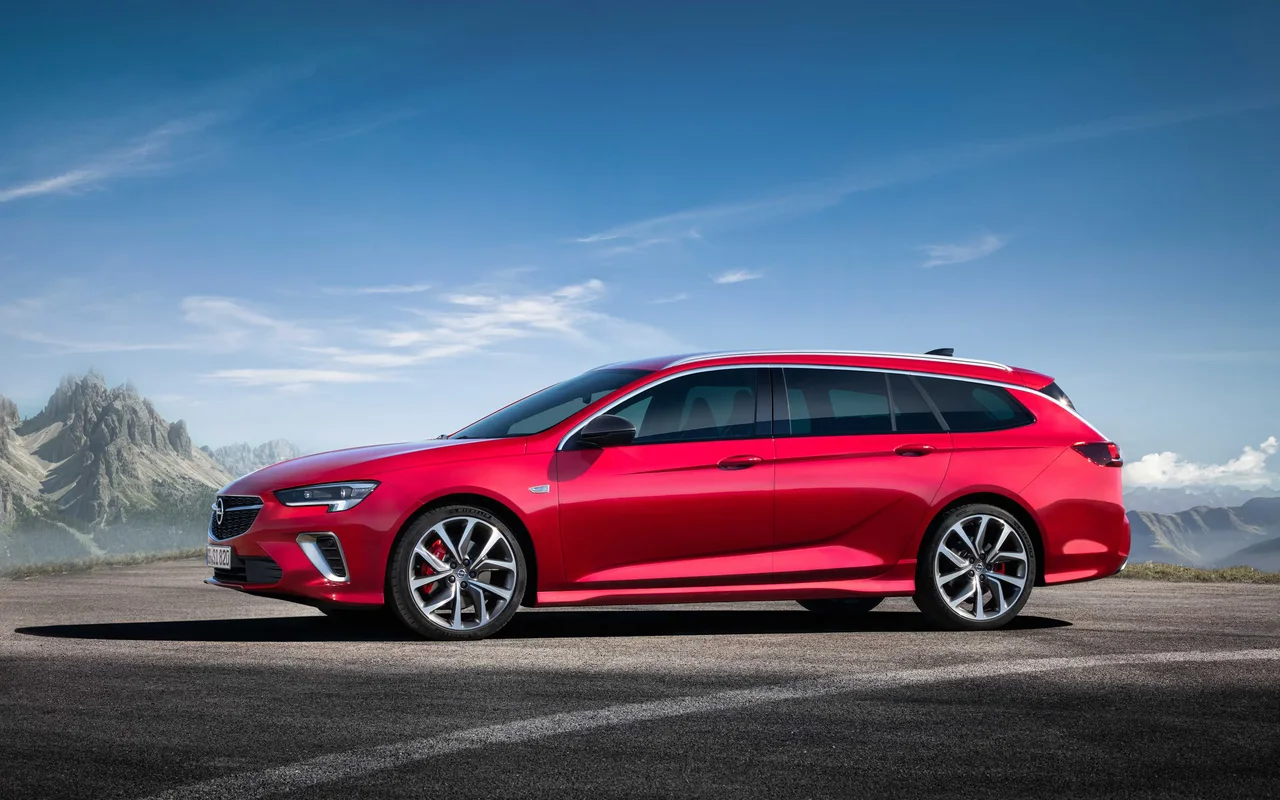

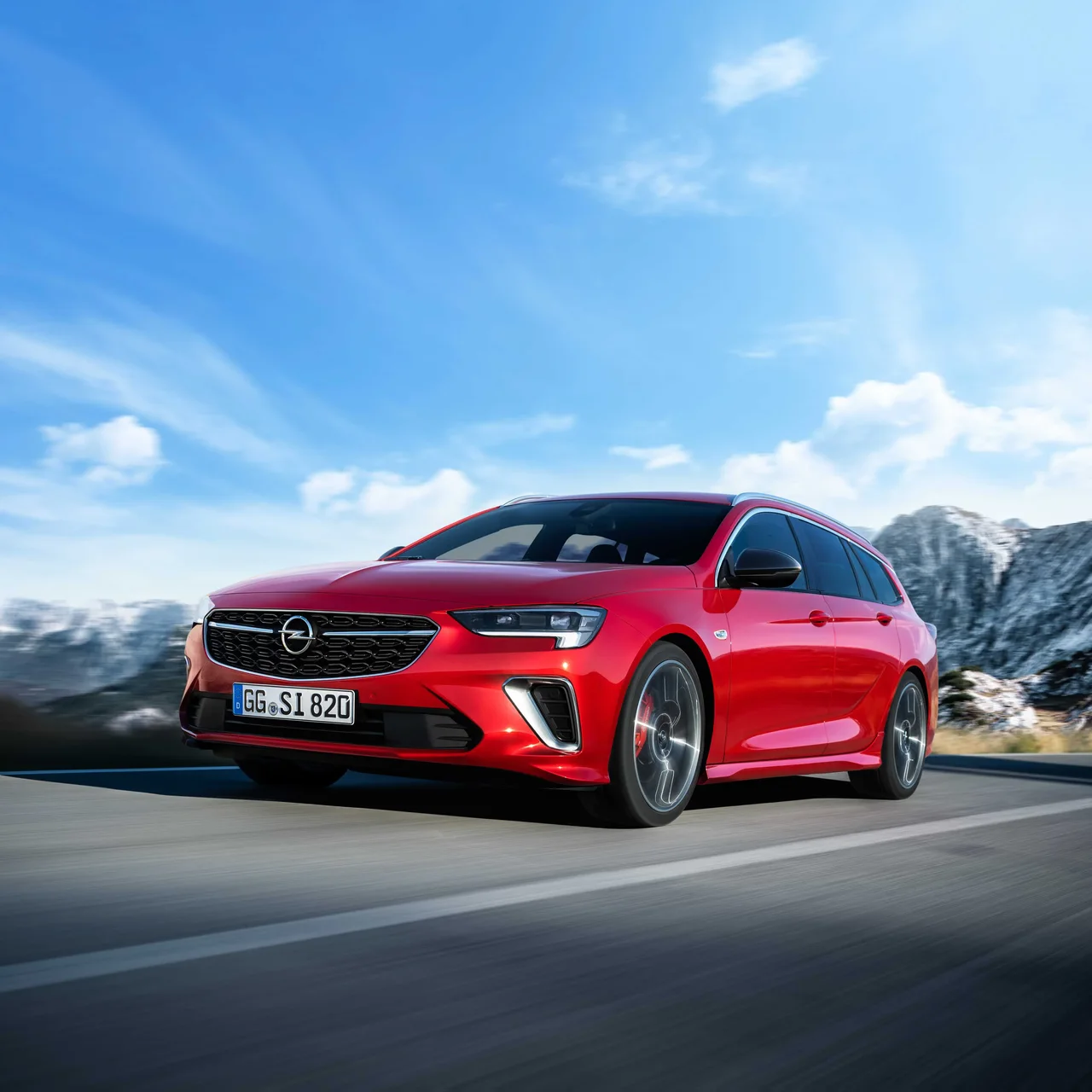

2020 Opel Insignia GSi Sports

GermanyGasolineAWDWagon

Photos

Specifications

Vehicle Details

Year
2020
Make
Opel
Model
Insignia
Variant
GSi Sports
Body Style
Wagon
Generation
B Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic, 9-speed

Powertrain

Engine Name
GSi Sports Tourer Automatic
Engine Configuration
Inline
Power (hp)
230 hp
Power (kW)
169 kW
Torque
350 Nm (258 lb-ft)
Top speed
235 km/h (146 mph)
0–60 mph
7.2 seconds (estimated)
0–100 km/h
7.6 seconds
Displacement
1,998 cc

Dimensions

Length
4,986 mm (196.3 in)
Width
1,863 mm (73.3 in)
Height
1,500 mm (59.1 in)
Wheelbase
2,829 mm (111.4 in)
Curb weight
1,735 kg (3,825 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 rpm
Rev. at Max Torque
1,500 - 4,000 rpm
Engine Configuration
Bore
83 mm (3.3 in)
Stroke
90.2 mm (3.6 in)
Compression Ratio
10 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
60,000 km / 4 years
Spark Plug
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
30,000 km / 1 years
Accessory Belt
150,000 km / 6 years

Transmission & Drivetrain

Transmission
Automatic, 9-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
345 mm (13.6 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
315 mm (12.4 in)
Cooling
Ventilated

Fuel

General
Tank Volume
62 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d
WLTP Consumption
Low (l/100km) (WLTP)
11.8 - 12.3 litres / 100 km
Medium (l/100km)
8.1 - 8.7 litres / 100 km
High (l/100km)
6.6 - 7.5 litres / 100 km
Extra High (l/100km)
7.4 - 8.7 litres / 100 km
Combined (l/100km)
7.9 - 8.8 litres / 100 km
Fuel Consumption NEDC
City
8.9 litres / 100 km
Highway
5.9 litres / 100 km
Combined
7 litres / 100 km
Emission WLTP
CO₂, Combined
179 - 200 g/km
Emission NEDC
CO₂, Combined
163 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,093 mm (82.4 in)
Track, Front
1,607 mm (63.3 in)
Track, Rear
1,610 mm (63.4 in)
Overhang, Front
990 mm (39.0 in)
Overhang, Rear
1,167 mm (45.9 in)
Turning Circle
11.74 m
Ground Clearance
175 mm (6.9 in)

Interior

Head Room, Front
985 mm (38.8 in)
Head Room, Rear
1,006 mm (39.6 in)
Leg Room, Front
1,070 mm (42.1 in)
Leg Room, Rear
938 mm (36.9 in)
Hip Room, Front
1,402 mm (55.2 in)
Hip Room, Rear
1,374 mm (54.1 in)
Shoulder Room, Front
1,444 mm (56.9 in)
Shoulder Room, Rear
1,470 mm (57.9 in)

Weight

Gross Weight
2,290 kg (5,049 lb)
Max Trailer Load, braked 12%
2,000 kg (4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
555 kg (1,224 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
90 kg (198 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Windscreen Wipers
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Adaptive Headlights
  • Dynamic Cornering Lights
Fog Lights
Front
LED
Fog Lights › Front
Cornering Lights
Yes
Special Features
Headlight Range Adjustment
Automatic

Colour

Roof Colour
Black

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
115
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
70.2
Central Bore (CB), rear
70.2
Fastening Type
Lug Nuts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Full-size
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Analogue
Fuel Gauge
Analogue
Voltmeter
Digital
Oil Pressure
Digital
Coolant Temperature
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Faders
  • Touchscreen
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
  • RDS
Media Format
  • MP3
  • WMA
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
  • Phone
  • Audio
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
Memory Card Reader
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
AUX
Yes
USB
USB-A
Connectivity › Media Inputs › USB
Placement
Front
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Equalizer
Yes
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
7 - 8 pcs
Subwoofer
Optional
Speakers › Subwoofer
Number of Subwoofers
1 pcs
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Sunglass Compartment
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Center Display
Other Equipment › 12V Outlet
Trunk
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Scrolling Wheel)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Scrolling Wheel

Trunk

Rear Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • Key Button
  • Motion Activated
Automatic Close
Yes
Cover
Yes
Barrier Net/Grid
Optional
Flat Surface
Yes
Hatch Through Rear Seats
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
560 litres
Volume, Back Seat Collapsed
1,665 litres
Depth
1,178 mm (46.4 in)
Depth, Back Seat Collapsed
2,005 mm (78.9 in)
Width
1,451 mm (57.1 in)
Width, Between Wheel Arches
1,030 mm (40.6 in)
Sill Height
630 mm (24.8 in)

Design

Interior Decor Colour
Beige
Interior Decor Colour
Brown
Optional

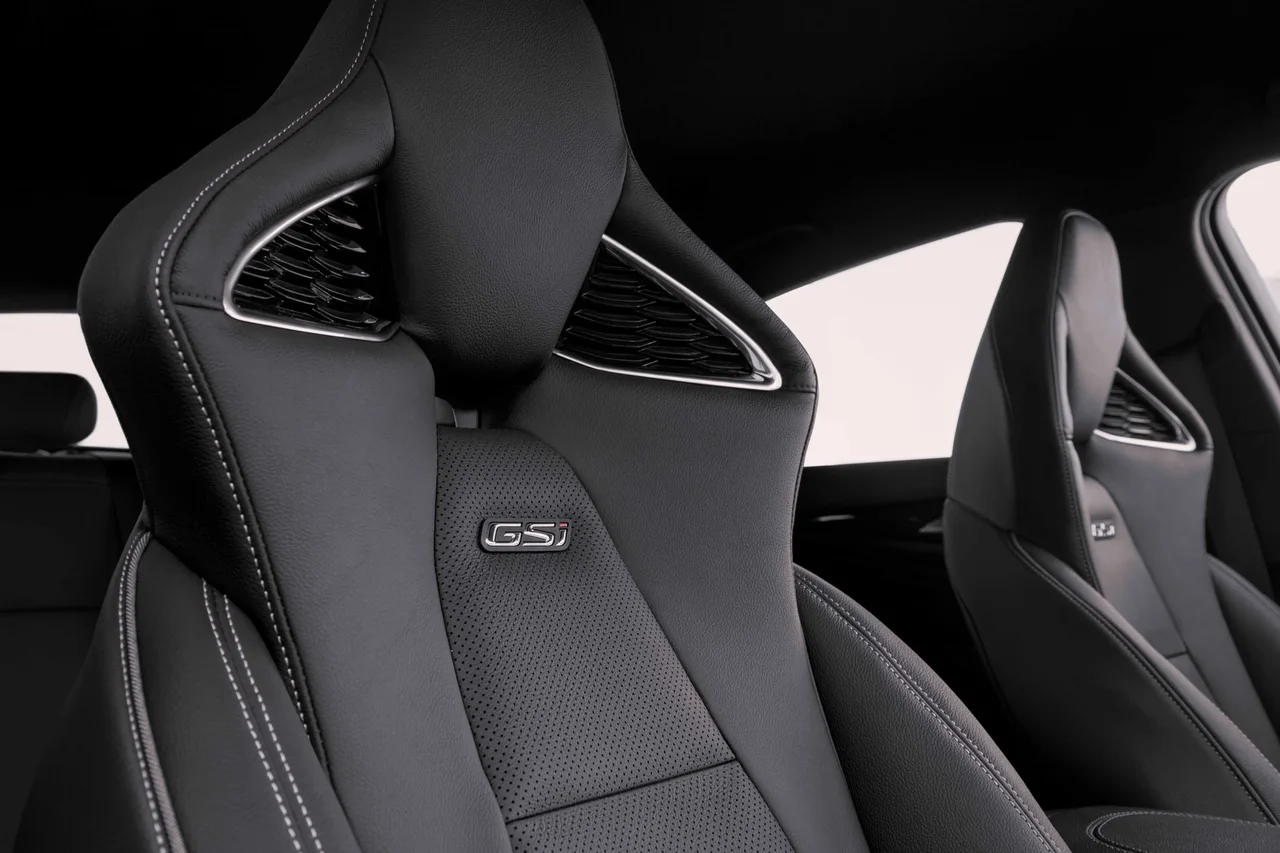

Seats

Colour & Material
Stitching Colour
White
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Tilt
Powered
Backrest Angle
Yes
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Manual
Cushion Tilt
Powered
Backrest Angle
Yes
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Massage
Optional
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Massage
Driver
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Split Fold Ratio
40/20/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Rear
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
View Location
Center Display
Voice Control
Navigation
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Individual
  • Sport
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Active Bonnet
Yes
Emergency Call
Optional
Total Number of Keys
2
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2017
Adult Occupant
93 %
Child Occupant
85 %
Vulnerable Road Users
78 %
Safety Assist
69 %
Overall
5/5 stars
Adult Occupant
Total Points
35.5 /38
Lateral Impact
16 /16
Rear Impact
2.1 /4
Child Occupant
Total Points
42 /49
Crash Test Performance
  • 15
  • 8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
32.8 /49
Pedestrian
  • 19.5
  • 3.6
  • 5.5
AEB Pedestrian
4.2 /9
Safety Assist
Speed Assistance (points)
1.3 /3
Seat Belt Reminder (points)
2 /2
Lane Support (points)
2.9 /4

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

American Classification
Mid-Size Car
British Classification
Large Family Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Large Family Car

ACRISS

Type
Wagon/Estate (W)

Similar wagons

Suggested vehicles
