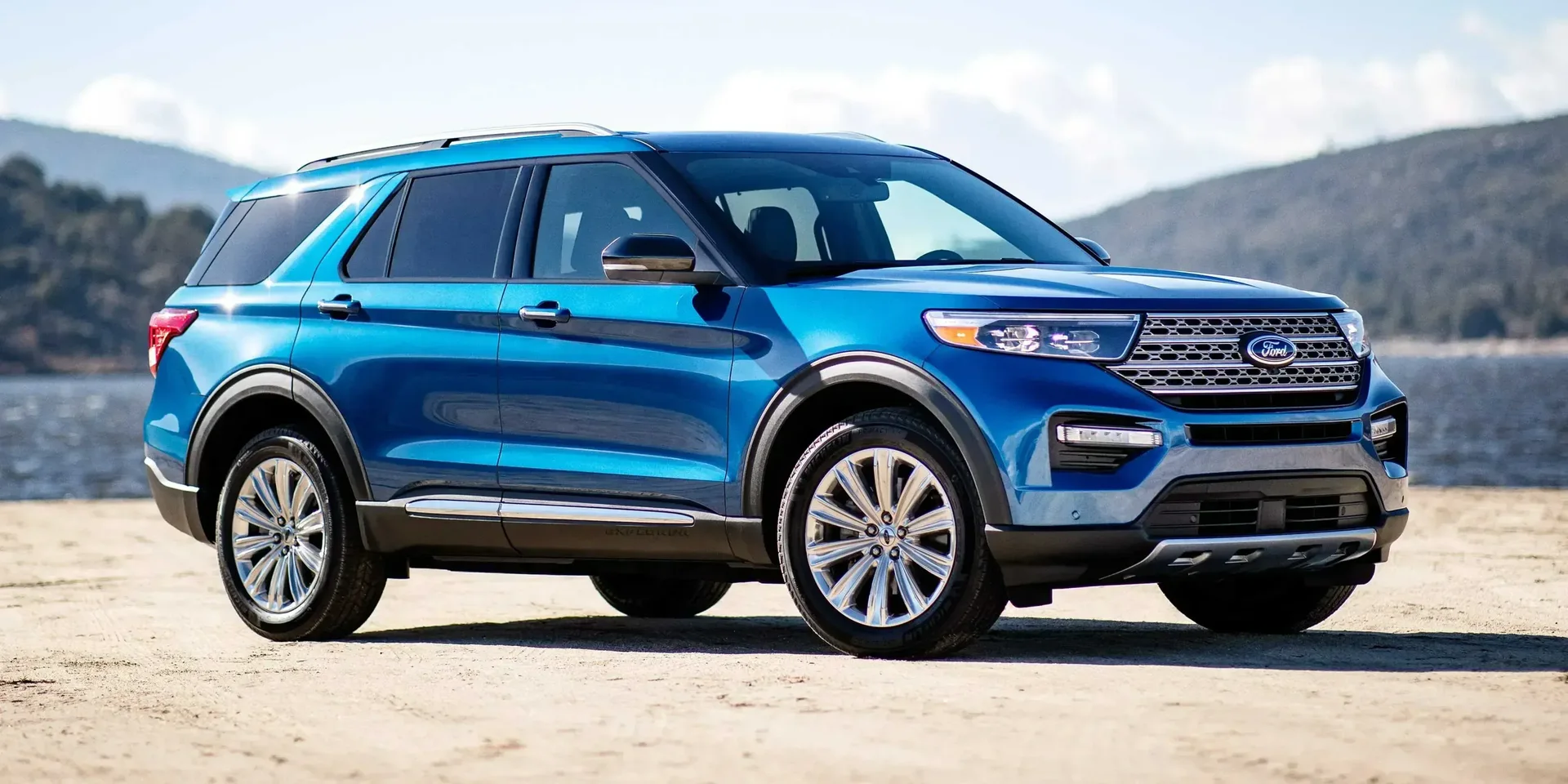

2020 Ford Explorer Hybrid 4WD

United StatesHybrid Gasoline4WDSUV

Photos

Specifications

Vehicle Details

Year
2020
Make
Ford
Model
Explorer
Variant
Hybrid 4WD
Body Style
SUV
Generation
6th Generation (U625)
Seats
6
Doors
5
Fuel
Hybrid Gasoline
Drivetrain
4WD
Transmission
Automatic, 10-speed

Powertrain

Engine Name
Hybrid 4WD SelectShift
Engine Configuration
V
Power (hp)
322 hp
Power (kW)
237 kW
Displacement
3,339 cc

Dimensions

Length
5,050 mm (198.8 in)
Width
2,004 mm (78.9 in)
Height
1,775 mm (69.9 in)
Wheelbase
3,025 mm (119.1 in)

Engine & Performance

Engine

Configuration Combustion
Bore
90.41 mm (3.6 in)
Stroke
86.7 mm (3.4 in)
Compression Ratio
12 :1
Engine Configuration
V-Engine
Configuration Electric
Type of Electric Car
Hybrid
Type of Battery
Li-ion
Service Intervals
Air Filter
48,000 km (29,826 mi)
Fuel Filter
160,000 km (99,419 mi)
Brake Fluid
3 years
Oil Change & Engine Filter
16,000 km / 1 years
Engine Coolant
322,000 km / 10 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic, 10-speed

Fuel

General › Fuel Cap Position
Rear
Left

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Dimensions & Weight

Exterior

Width, with Mirrors
2,268 mm (89.3 in)
Track, Front
1,699 mm (66.9 in)
Track, Rear
1,699 mm (66.9 in)
Turning Circle
12.6 m
Ground Clearance
201 mm (7.9 in)

Interior

Head Room, Front
1,034 mm (40.7 in)
Head Room, Rear
1,029 mm (40.5 in)
Head Room, Third Row
988 mm (38.9 in)
Leg Room, Front
1,092 mm (43.0 in)
Leg Room, Rear
991 mm (39.0 in)
Leg Room, Third Row
818 mm (32.2 in)
Hip Room, Front
1,504 mm (59.2 in)
Hip Room, Rear
1,501 mm (59.1 in)
Shoulder Room, Front
1,570 mm (61.8 in)
Shoulder Room, Rear
1,572 mm (61.9 in)
Shoulder Room, Third Row
1,387 mm (54.6 in)

Weight

Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
House Colour
Same as Car
Windscreen Wipers
Integrated Water Nozzles in Wipers
Yes
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Other Equipment
Roof Railing
Yes
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
70.5
Central Bore (CB), rear
70.5
Fastening Type
Lug Nuts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
204 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Yes

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Climate Control
Automatic
Number of Climate Zones
3
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
  • XM
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
Phone
WiFi
Yes
Connectivity › Media Inputs
AUX
Yes
USB
Yes
Connectivity › Media Inputs › USB
Number of Ports
2 pcs
Displays
Center Display
Yes
Displays › Center Display
Type
Colour
Rear-view Mirror
Adjustments
Electrical
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
Lockable
Armrest Hatch
Front
Back Pocket
Yes
Coin Holder
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Rear
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
12V Outlet
Front
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Carpets
Material
Textile
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
4
Material
Leather
Colour
Black
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
Yes
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Yes
Automatic Close
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
515 litres
Volume, Back Seat Collapsed
2,486 litres
Volume (third seat row)
515 litres
Volume (Opt. third seat row, Collapsed seat)
1,356 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Third/Fourth Seat Row
Third Seat Row
Yes
Colour & Material
Seat Colour
Black
Stitching Colour
Black

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Yes
Parking Heater
Optional
Cameras
Yes
Parking Heater
Engine Heater
Optional
Cameras
360° Camera
Yes

Other Features

Start & Stop
Yes

Accessories

Tool Kit and Jack
Optional
Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Cross-Traffic Alert (RCTA)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Trailer Stability Assist (TSA)
Yes
Emergency Assist
Yes
Lane Assist System
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Electrical
Collision Avoidance System
Yes
Emergency Call
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Heartbeat Sensor
Yes

Safety Testing

General
Test Year
2019
Adult Occupant
87 %
Child Occupant
86 %
Vulnerable Road Users
61 %
Safety Assist
76 %
Overall
5/5 stars
IIHS
Test Year
2020
Award
Top Safety Pick+
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Headlight
Acceptable
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Large SUV

Spare Parts BETA

Bulb Types
Reversing Light
W3×16d (W21W)
Turn Indicators, Rear
PY27/7W
License Plate Light
W2.1×9.5d (W5W)
