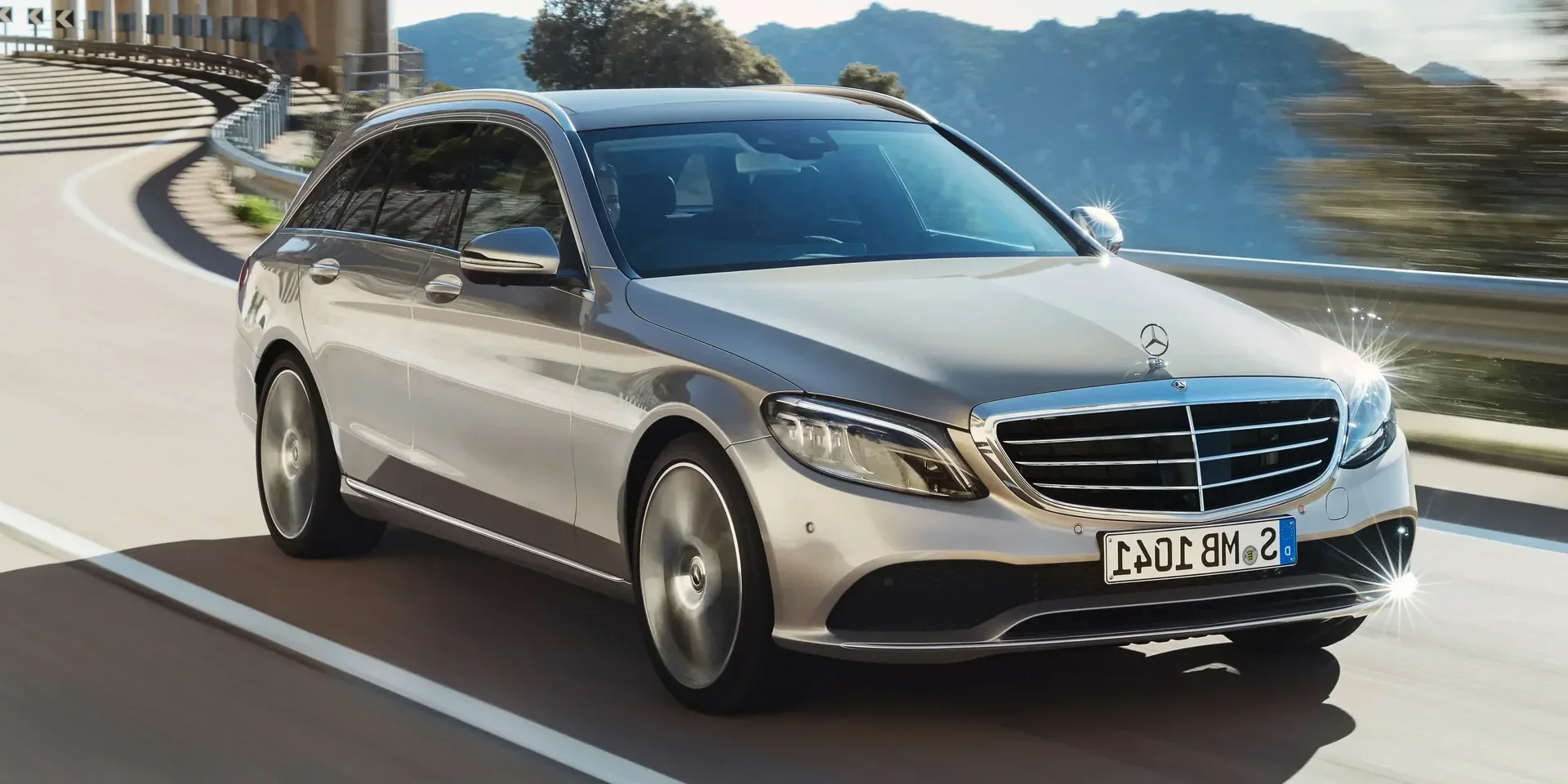

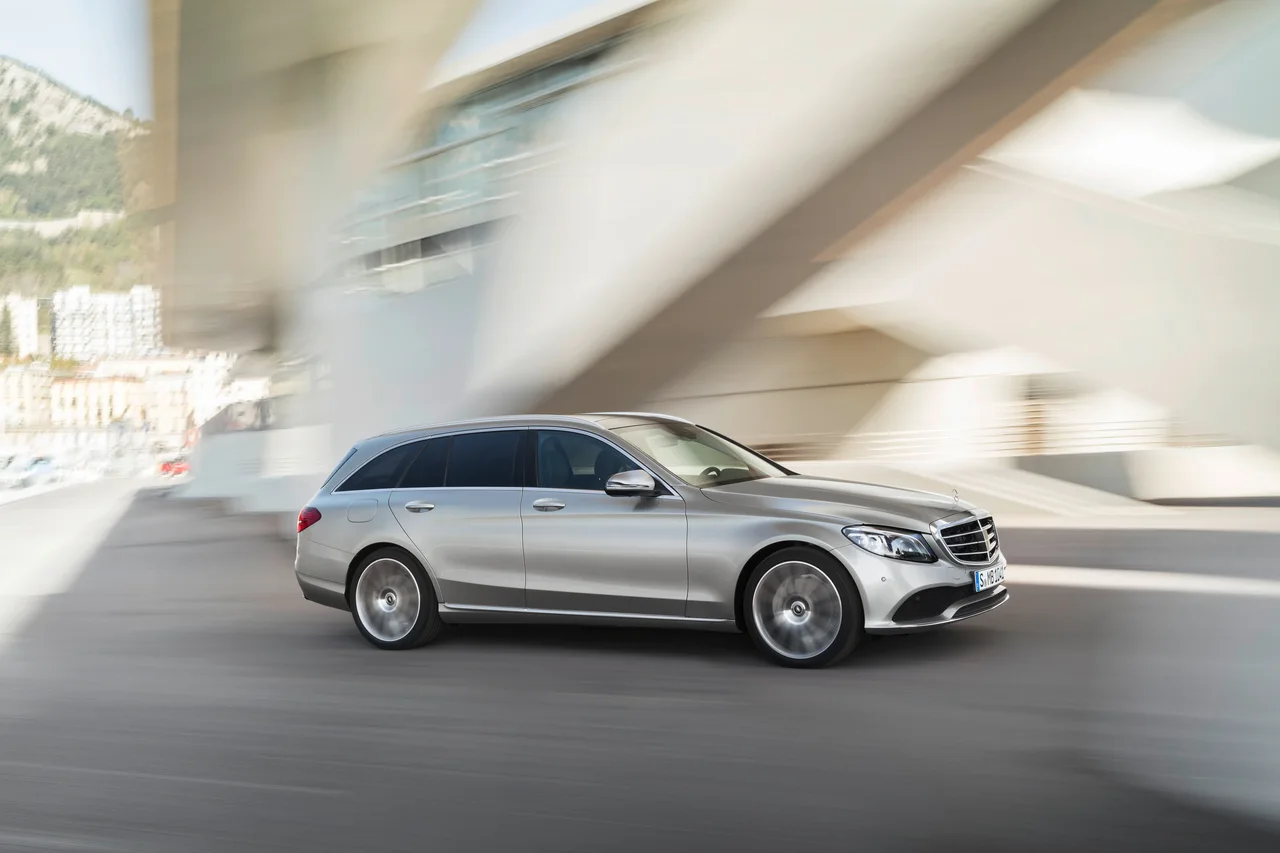

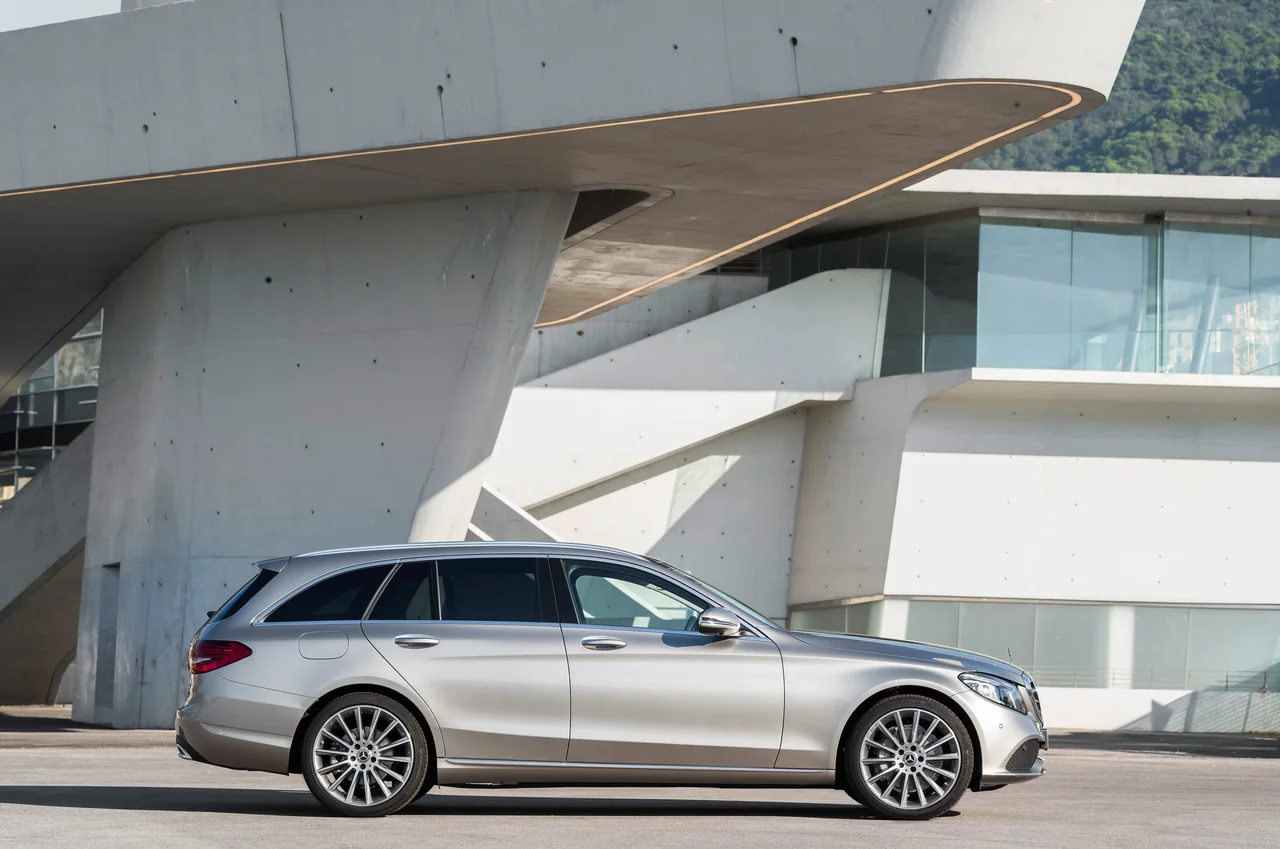

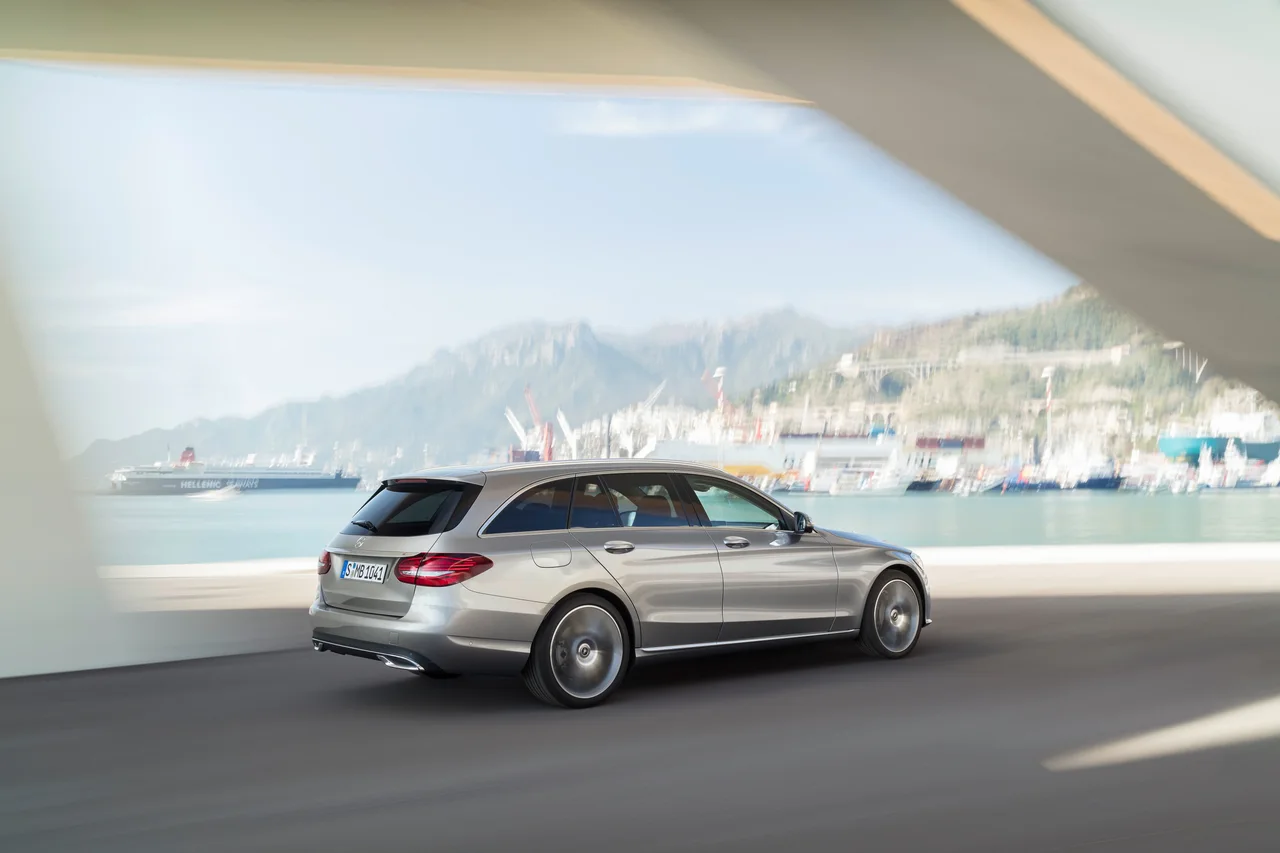

2020 Mercedes-Benz C-Class

GermanyGasolineRWDWagon

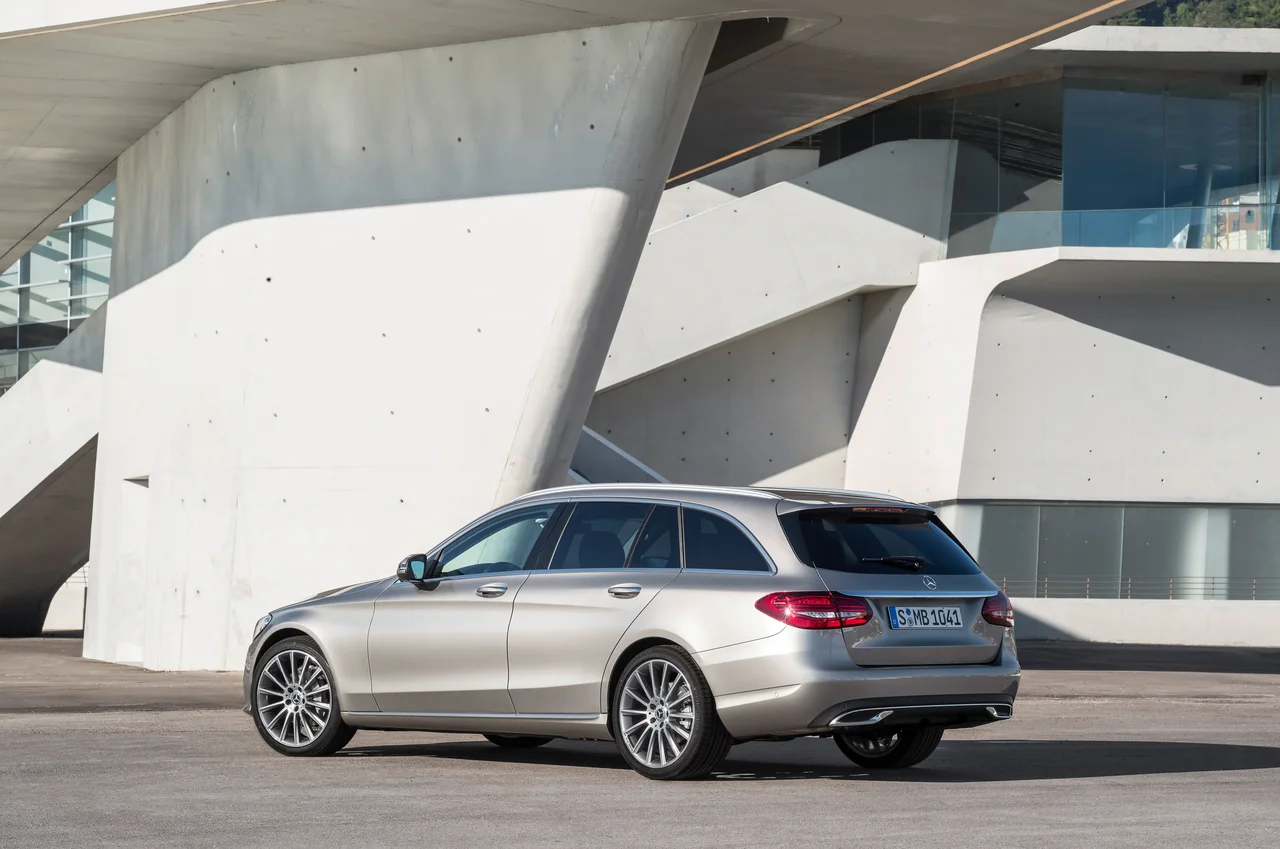

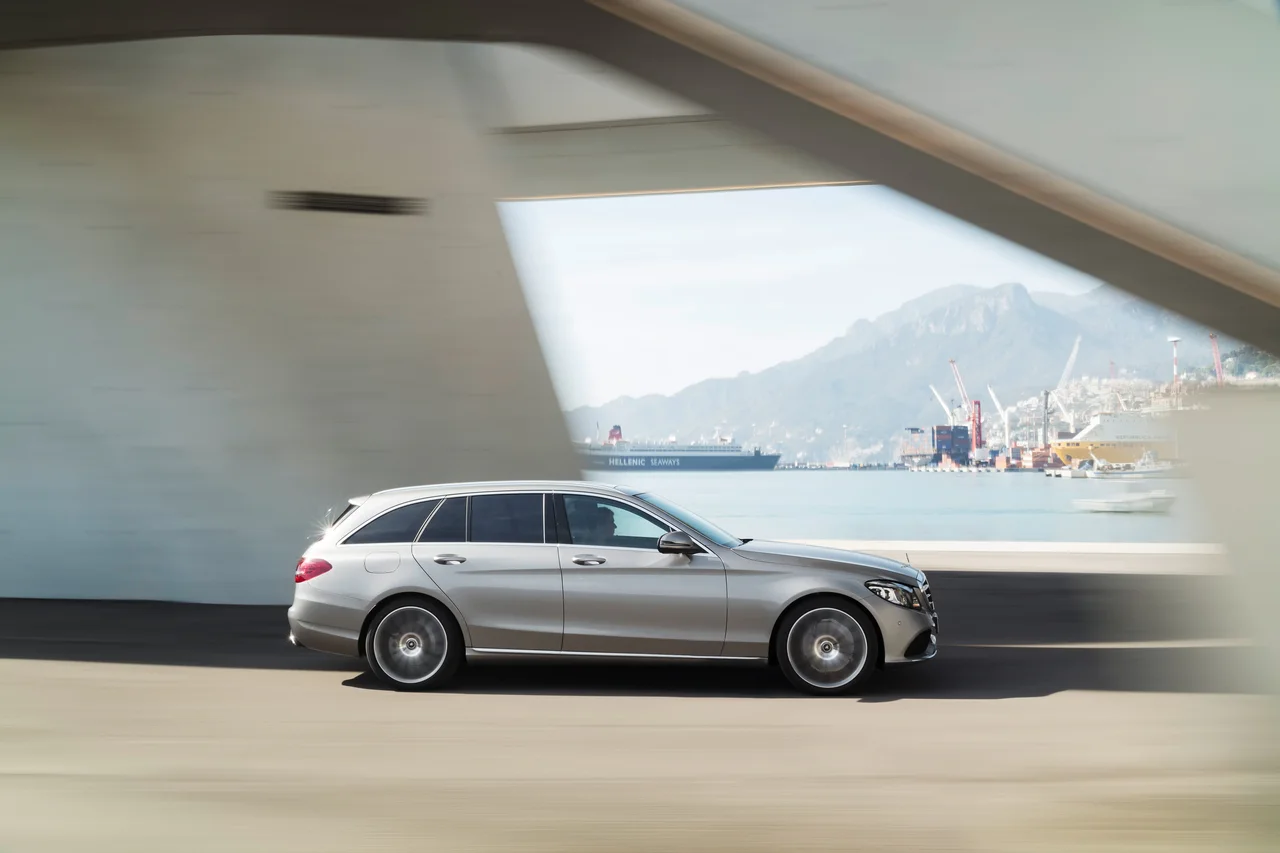

Photos

Specifications

Vehicle Details

Year
2020
Make
Mercedes-Benz
Model
C-Class
Body Style
Wagon
Generation
W205 Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic
  • Manual, 6-speed

Powertrain

Engine Name
C 180 T
Engine Configuration
Inline
Power (hp)
156 hp
Power (kW)
115 kW
Torque
250 Nm (184 lb-ft)
Top speed
220 km/h (137 mph)
0–60 mph
8.0 seconds (estimated)
0–100 km/h
8.4 seconds
Displacement
1,595 cc

Dimensions

Length
4,702 mm (185.1 in)
Width
1,810 mm (71.3 in)
Height
1,457 mm (57.4 in)
Wheelbase
2,840 mm (111.8 in)
Curb weight
1,495 kg (3,296 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 rpm
Rev. at Max Torque
1,200 - 4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
Engine Oil, Volume
7 litres
Engine Configuration
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
80,000 km / 5 years
Fuel Filter
200,000 km / 10 years
Spark Plug
100,000 km / 5 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
200,000 km / 10 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Suspension, Front
Independent
Yes
Spring, Rear
Coil

Fuel

General
Tank Volume
41 - 66 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d -ISC-FCM
Emission Class
C
WLTP Consumption
Low (l/100km) (WLTP)
8.8 - 11 litres / 100 km
Medium (l/100km)
7 - 8.5 litres / 100 km
High (l/100km)
5.8 - 7.1 litres / 100 km
Extra High (l/100km)
6.6 - 8.2 litres / 100 km
Combined (l/100km)
6.7 - 8.3 litres / 100 km
Fuel Consumption NEDC
City
7.5 – 8.3 - 8.2 – 8.6 litres / 100 km
Highway
5.1 – 5.2 - 5.5 – 5.7 litres / 100 km
Combined
6 – 6.4 - 6.5 – 6.7 litres / 100 km
Emission WLTP
CO₂, Combined
152 - 188 g/km
Emission NEDC
CO₂, Combined
136 – 146 - 148 – 154 g/km

Dimensions & Weight

Exterior

Height (Bonnet Open)
2,208 mm (86.9 in)
Track, Front
1,584 mm (62.4 in)
Overhang, Front
790 mm (31.1 in)
Overhang, Rear
1,072 mm (42.2 in)
Turning Circle
11.2 m
Ground Clearance
92 mm (3.6 in)

Interior

Head Room, Front
1,046 mm (41.2 in)
Head Room, Rear
974 mm (38.3 in)
Leg Room, Front
1,059 mm (41.7 in)
Leg Room, Rear
894 mm (35.2 in)
Hip Room, Front
1,404 mm (55.3 in)
Hip Room, Rear
1,398 mm (55.0 in)
Shoulder Room, Front
1,454 mm (57.2 in)
Shoulder Room, Rear
1,462 mm (57.6 in)

Weight

Gross Weight
2085 – 2120 kg (4,597 – 4,674 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
710 – 750 kg (1,565 – 1,653 lb)
Cargo Capacity
590 kg (1,301 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Body Material
Aluminium
Roof Material
Aluminium
Doors
Front Doors
Conventional
Rear Doors
Conventional
Soft Close
Optional
Door Handles
Pull-up
Platform
Mercedes-Benz Platforms
MRA

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Mercedes-Benz Fit
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Sun Visors
Optional
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Antenna
Glass-integrated
Electric
Optional
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Colour
Black

Lights

Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Fog Lights
Front
LED
Special Features
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional
Headlight Range Adjustment
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
130 Nm
Rim Material
Alloy
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Media Format
MP3
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
4G
WiFi
Optional
Connectivity › Radio
DAB
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › Media Format
DVD
Optional
Memory Card Reader
Optional
Connectivity › Media Format › Memory Card Reader
SD
Optional
Connectivity › Media Inputs
USB
USB-A
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
Yes
Displays › Center Display
Touchscreen
Optional
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Sunglass Compartment
Yes
Card Holder
Yes
Fridge
Optional
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
230V Outlet
Optional
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Analogue
Optional
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes
Adjustments
User Memory
Optional

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Release Button
Yes
Cover
Optional
Barrier Net/Grid
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
460 litres
Volume, Back Seat Collapsed
1,480 litres
Depth
1,035 mm (40.7 in)
Depth, Back Seat Collapsed
1,608 mm (63.3 in)
Sill Height
590 mm (23.2 in)
Automatic Open
Button on Trunk Door
Optional
From Inside Car
Optional
Cover
Sliding
Optional
Cover › Sliding
Manual
Optional

Design

Pedals
Standard
Pedals
Stainless Steel
Optional
Sport
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Powered
Backrest Angle
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Powered
Backrest Angle
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
40/20/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Horn
Dual Note

Accessories

Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Safe Exit Warning (SEW)
Yes
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Yes
Emergency Call
Yes

Safety Testing

General
Test Year
2014
Adult Occupant
92 %
Child Occupant
84 %
Vulnerable Road Users
77 %
Safety Assist
70 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Rust Damage
30 years

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
WP3.3×14.5 (PWY24W)
Turn Indicators, Rear
BAU15s (PY21W)

ACRISS

Type
Wagon/Estate (W)

Similar wagons

Suggested vehicles
